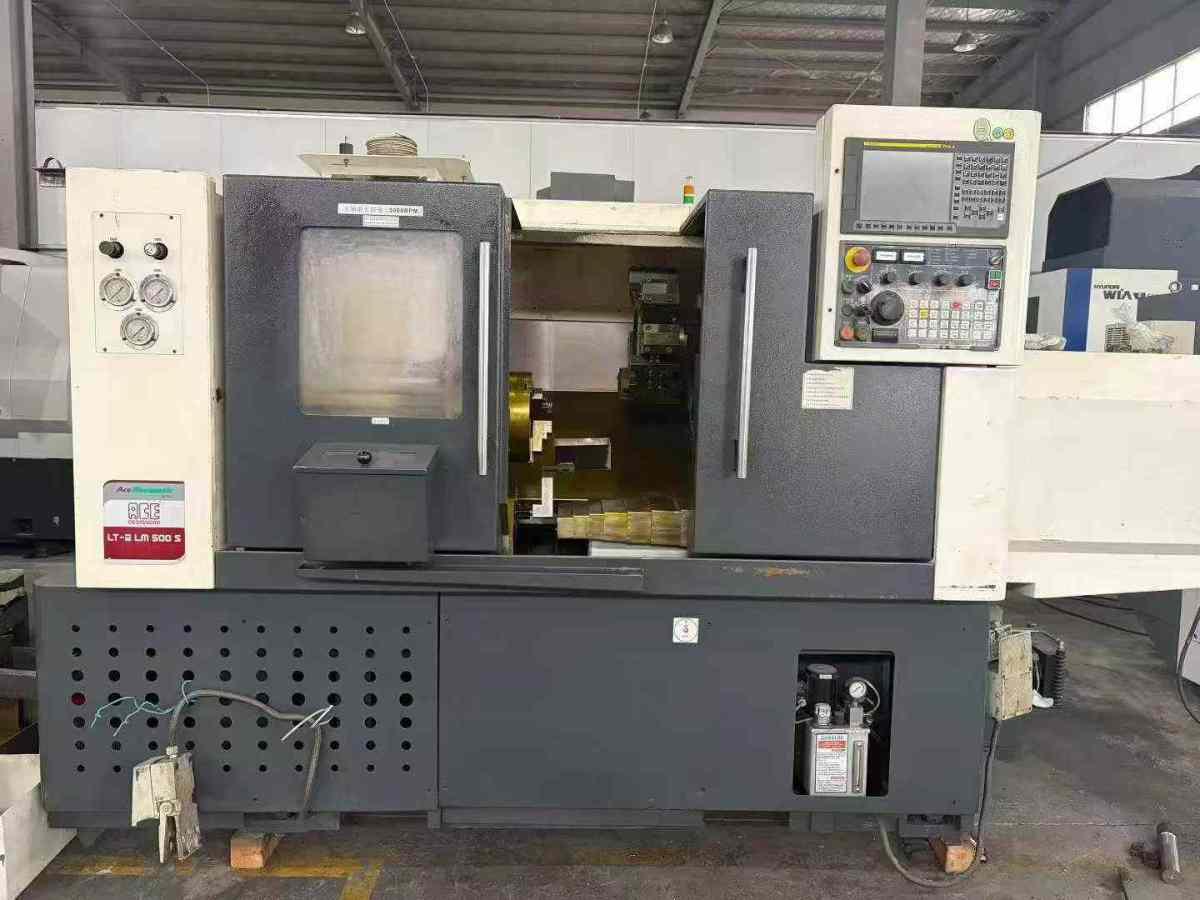

ACE LT-2LM 500 S CNC turning lathe

The maximum rotation diameter on the bed is 500mm
The maximum machining length is 1000mm

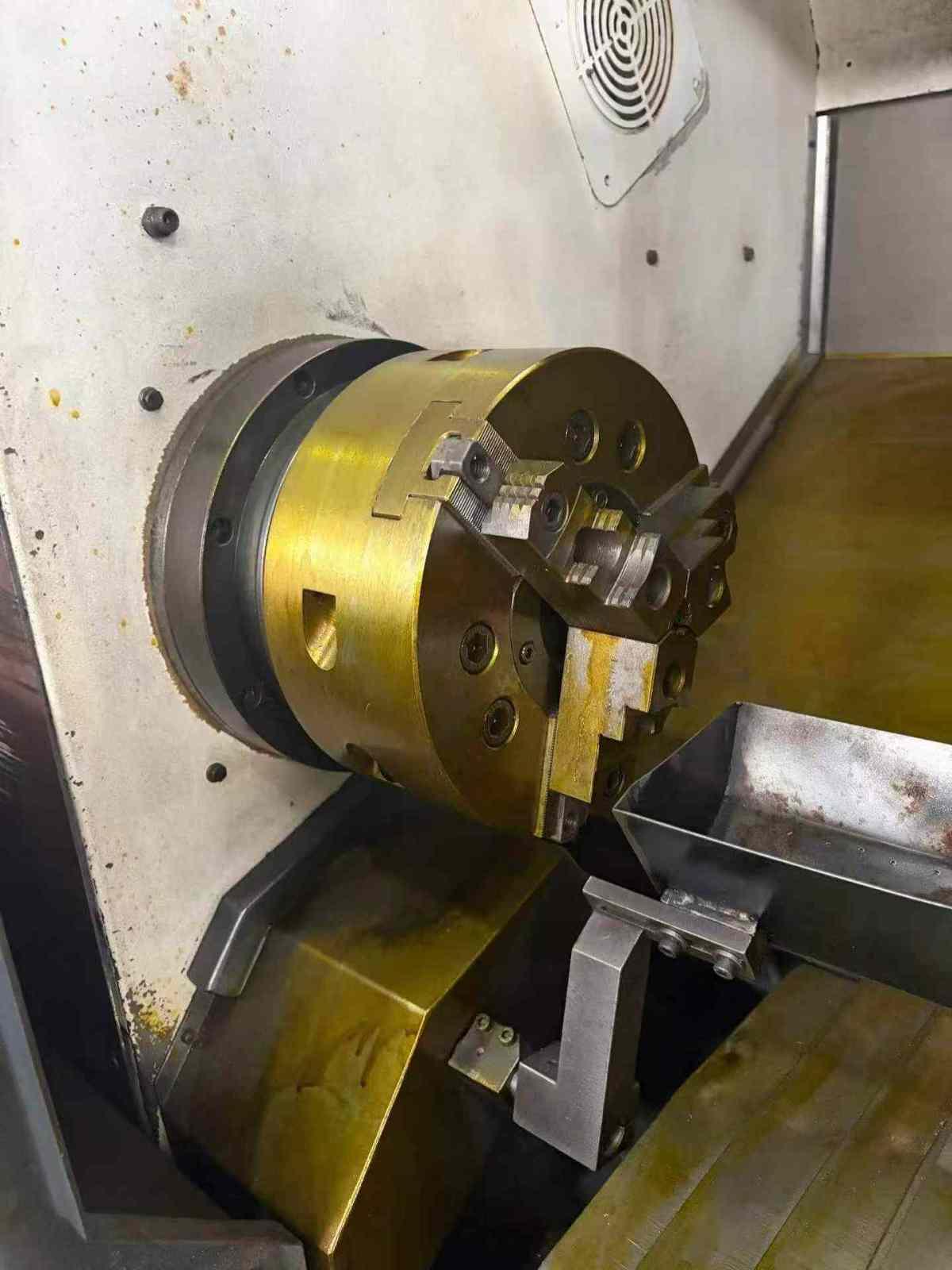

The diameter of spindle through hole is 80mm
Spindle speed range: 50 to 3000rpm
Main motor power: 11kW

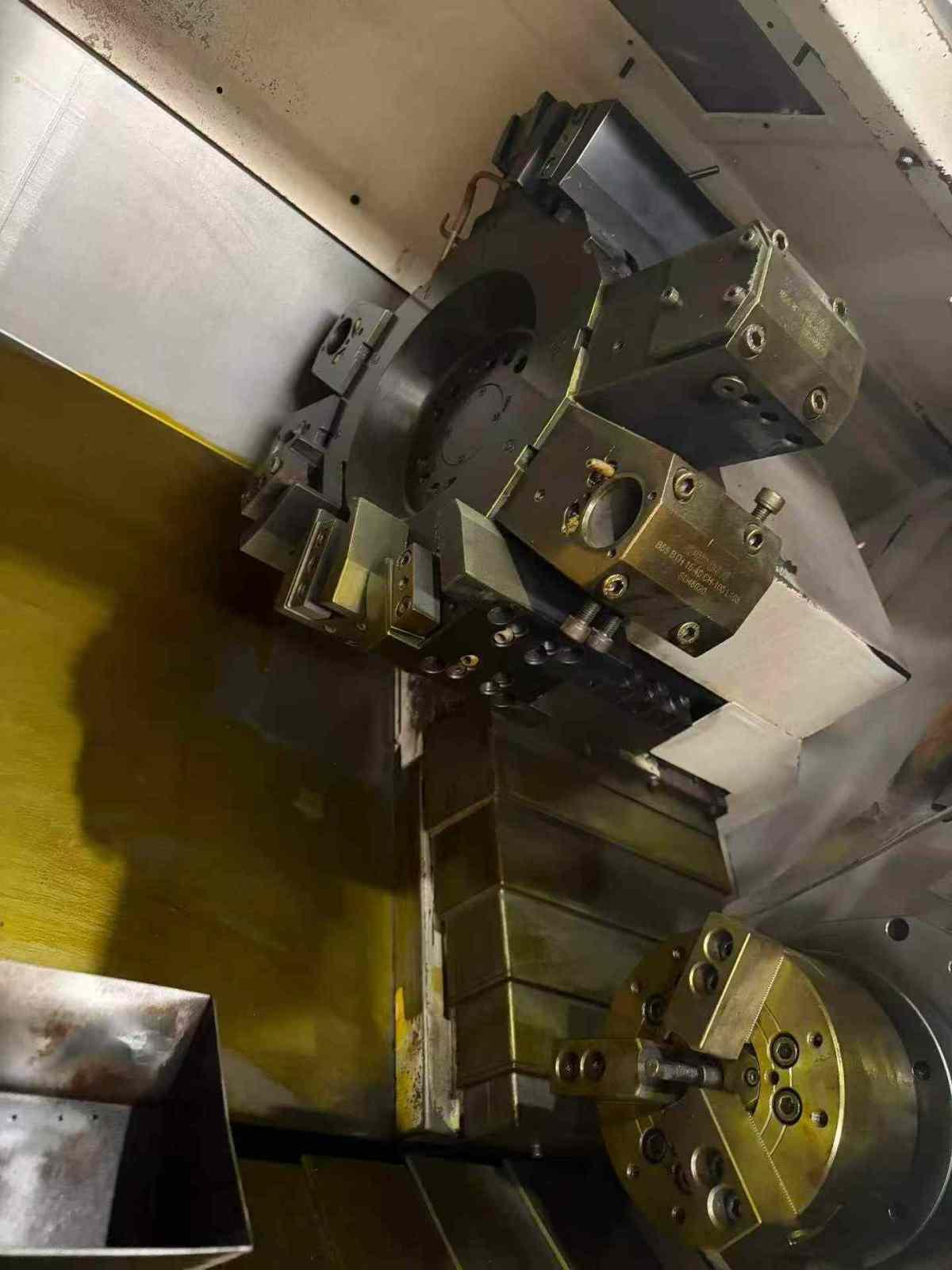

Tool turret Accessories: 8-station electric tool turret
X-axis travel: 250mm
Z-axis travel: 1000mm
Fast moving rate: X:15m/min, Z:20m/min
Positioning precision: ±0.01mm
Repeated Positioning precision: ±0.005mm
Rated capacity: 35kVA

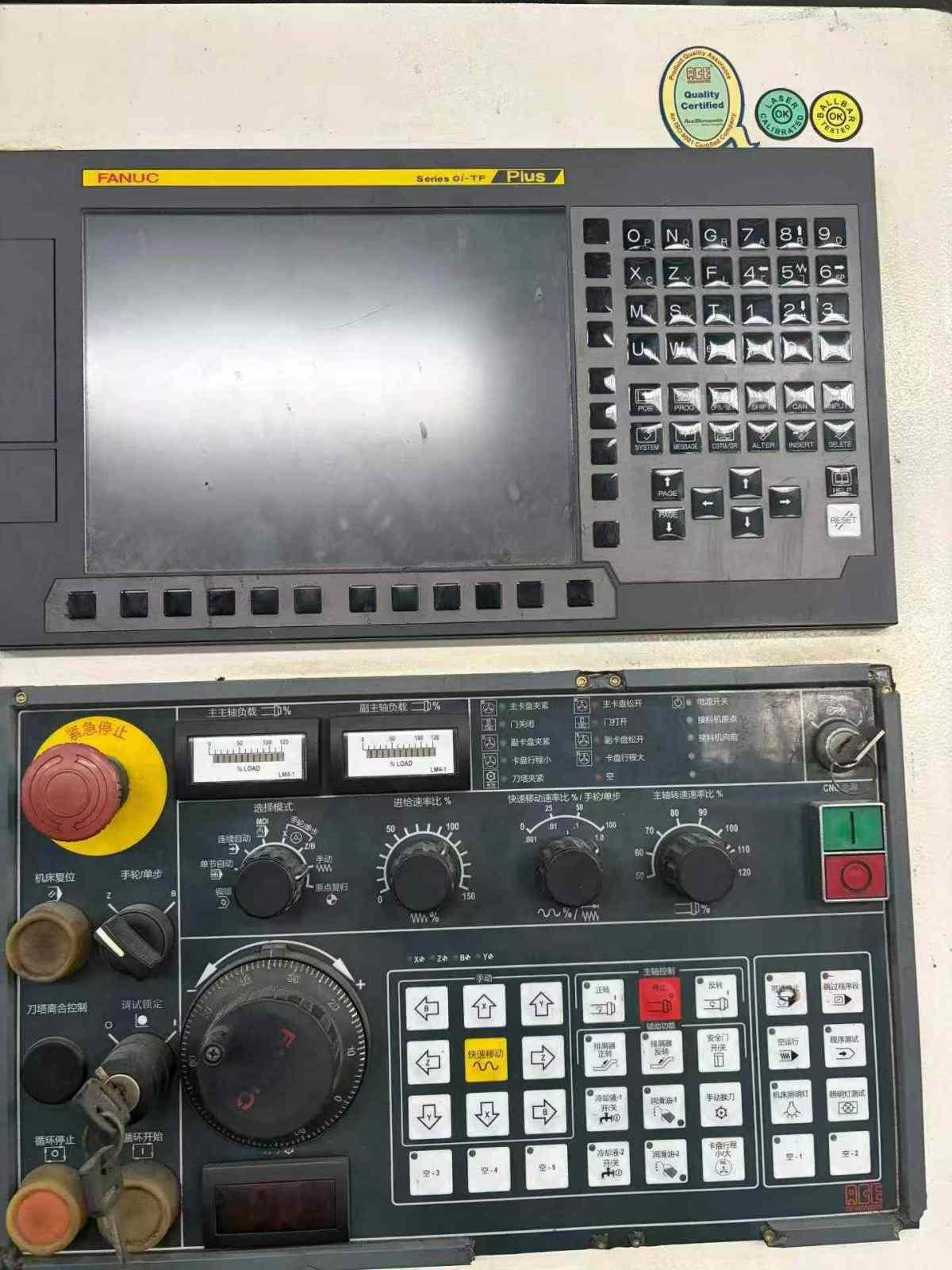

CNC System: FANUC 0i-TF
