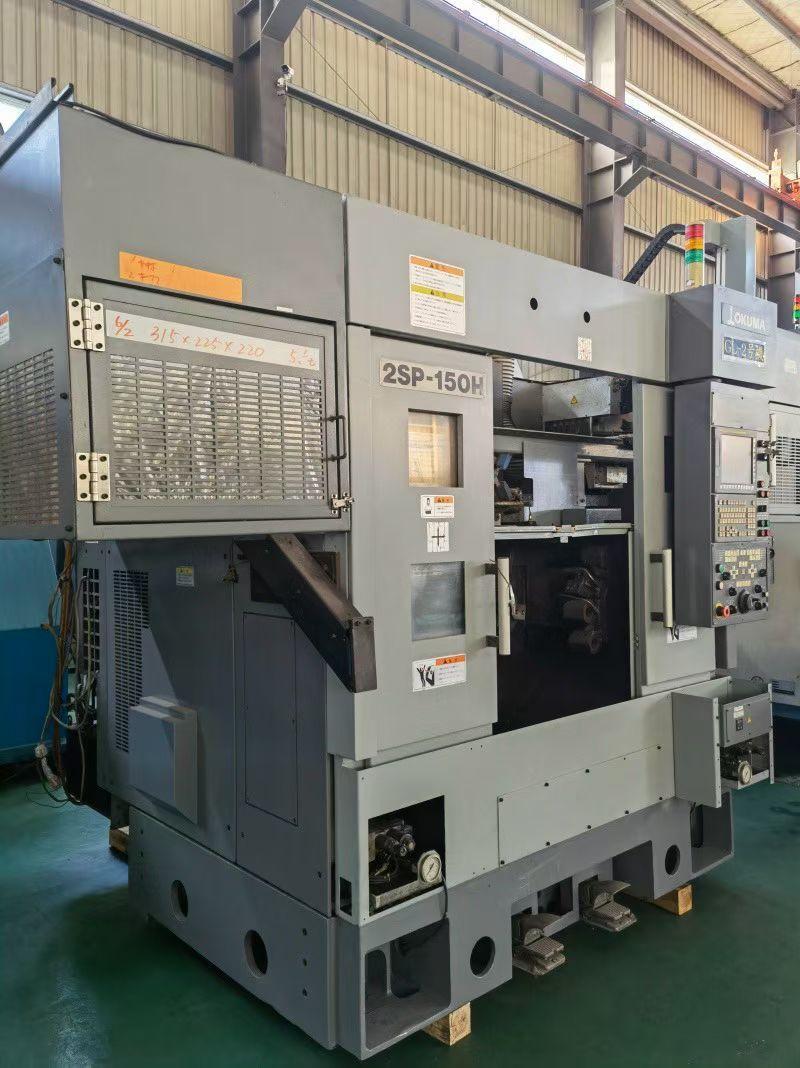

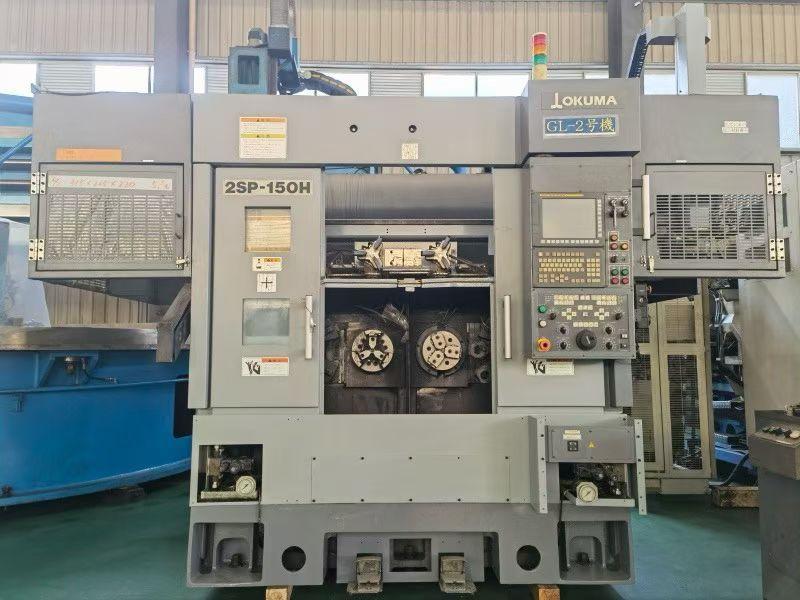

OKUMA 2SP-150H CNC turning lathe

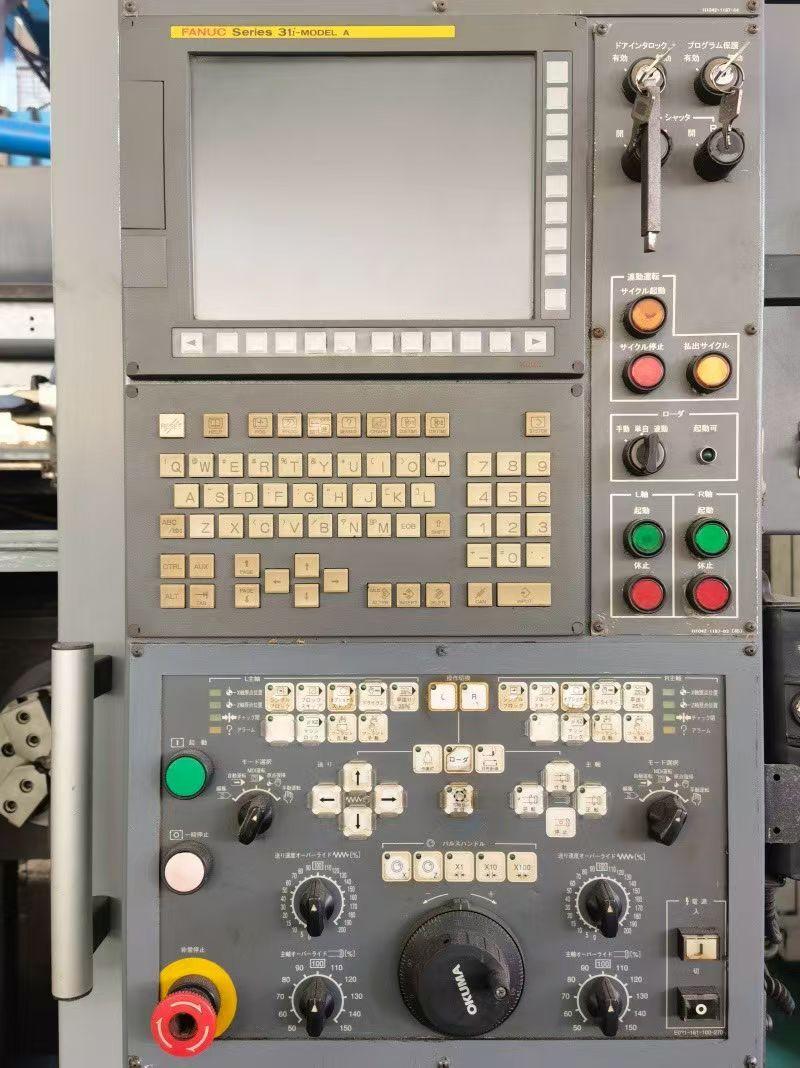

CNC System: FANUC 31i
Chuck size: 6 inches.
Maximum rotational diameter: 220mm
Standard machining diameter: φ150mm
Maximum machining diameter: φ220mm
Standard processing length: 80mm
Maximum processing length: 150mm
Speed range: 50 to 4500 rpm
Spindle motor power: 11/7.5kW
Main shaft through-hole diameter: φ42mm
Main shaft end type: φ140
X-axis travel range: 150mm
Z-axis travel range: 155mm

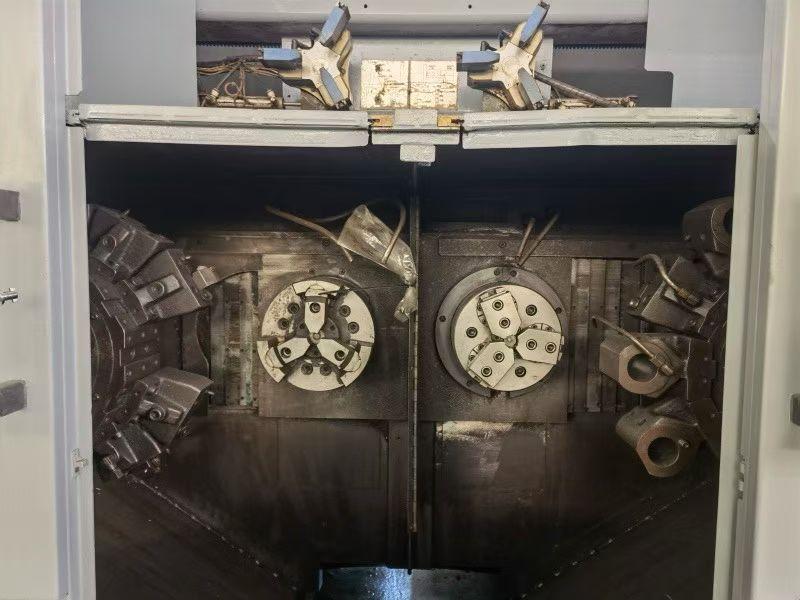

Dota configuration:
The V12 servo turret is arranged symmetrically on both sides.
Single tower with 12 workstations.
There are a total of 24 knife positions throughout the entire machine.
