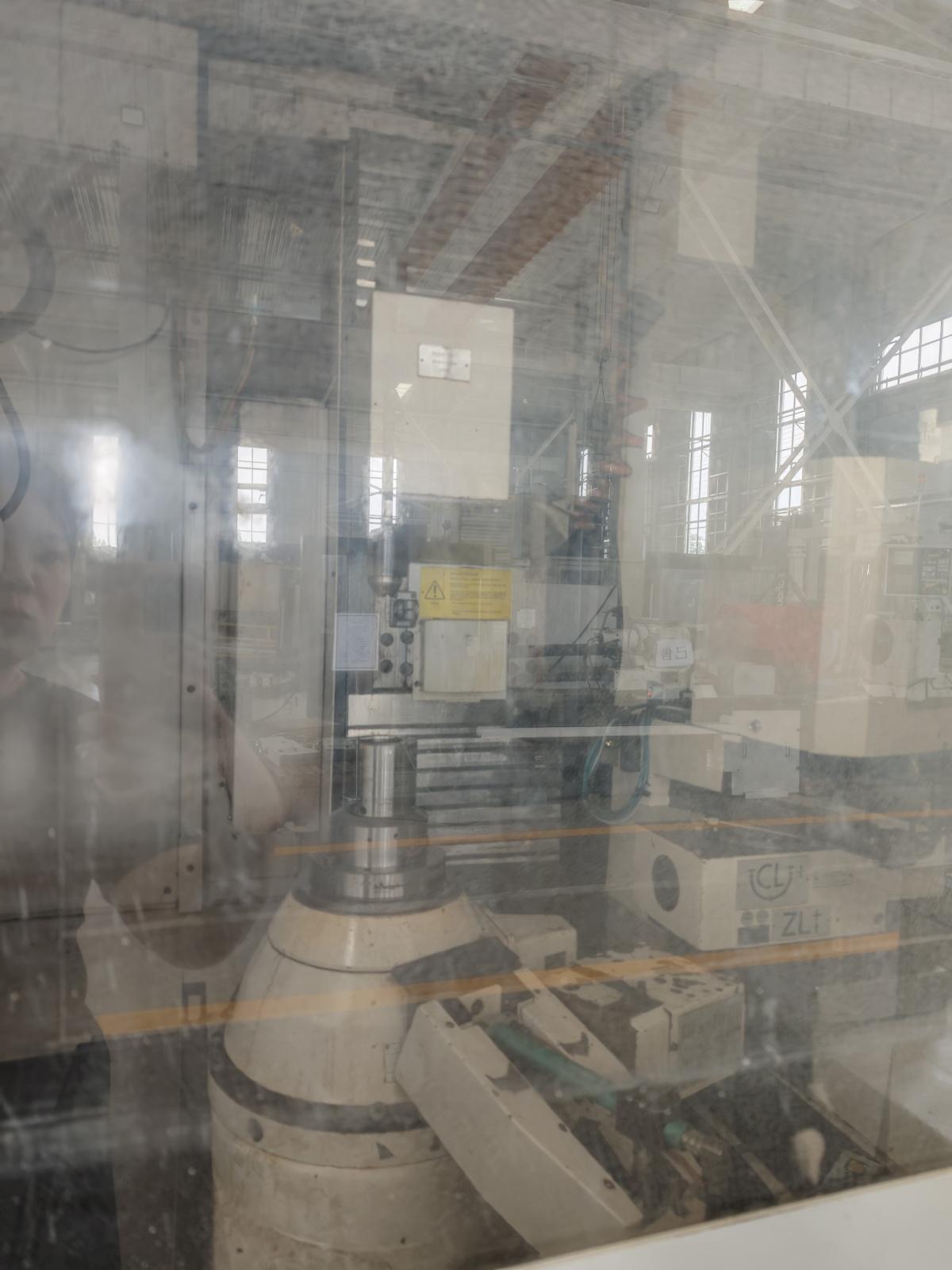

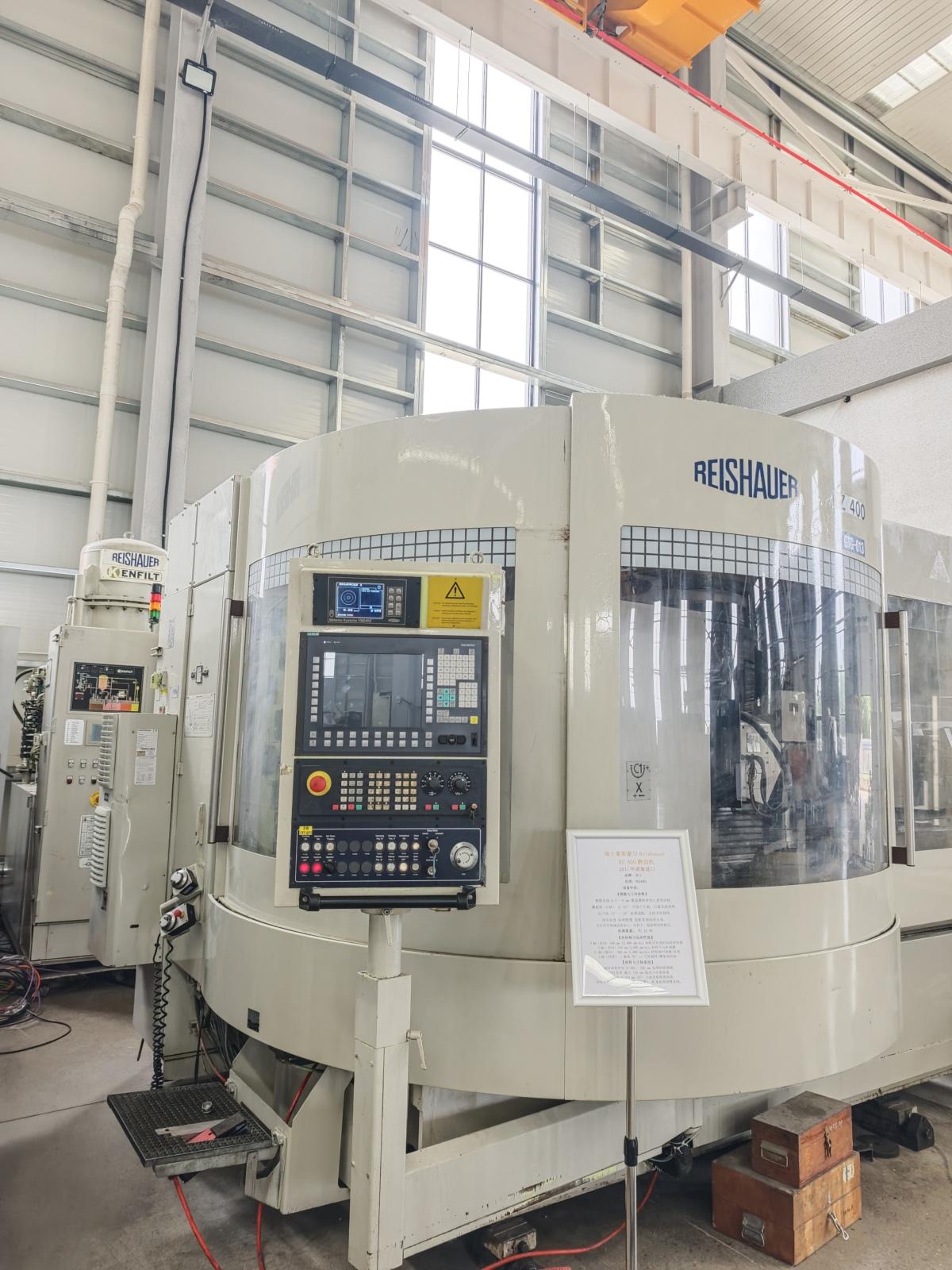

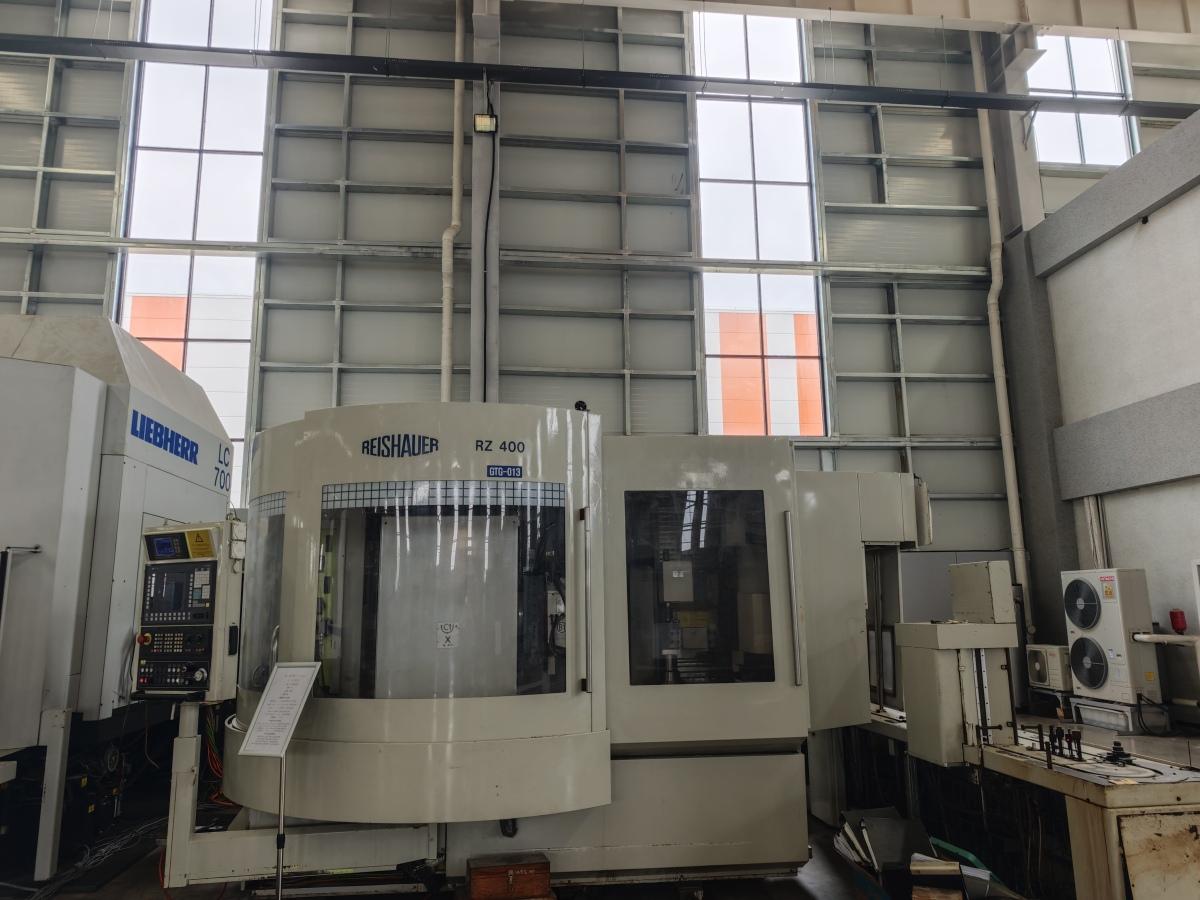

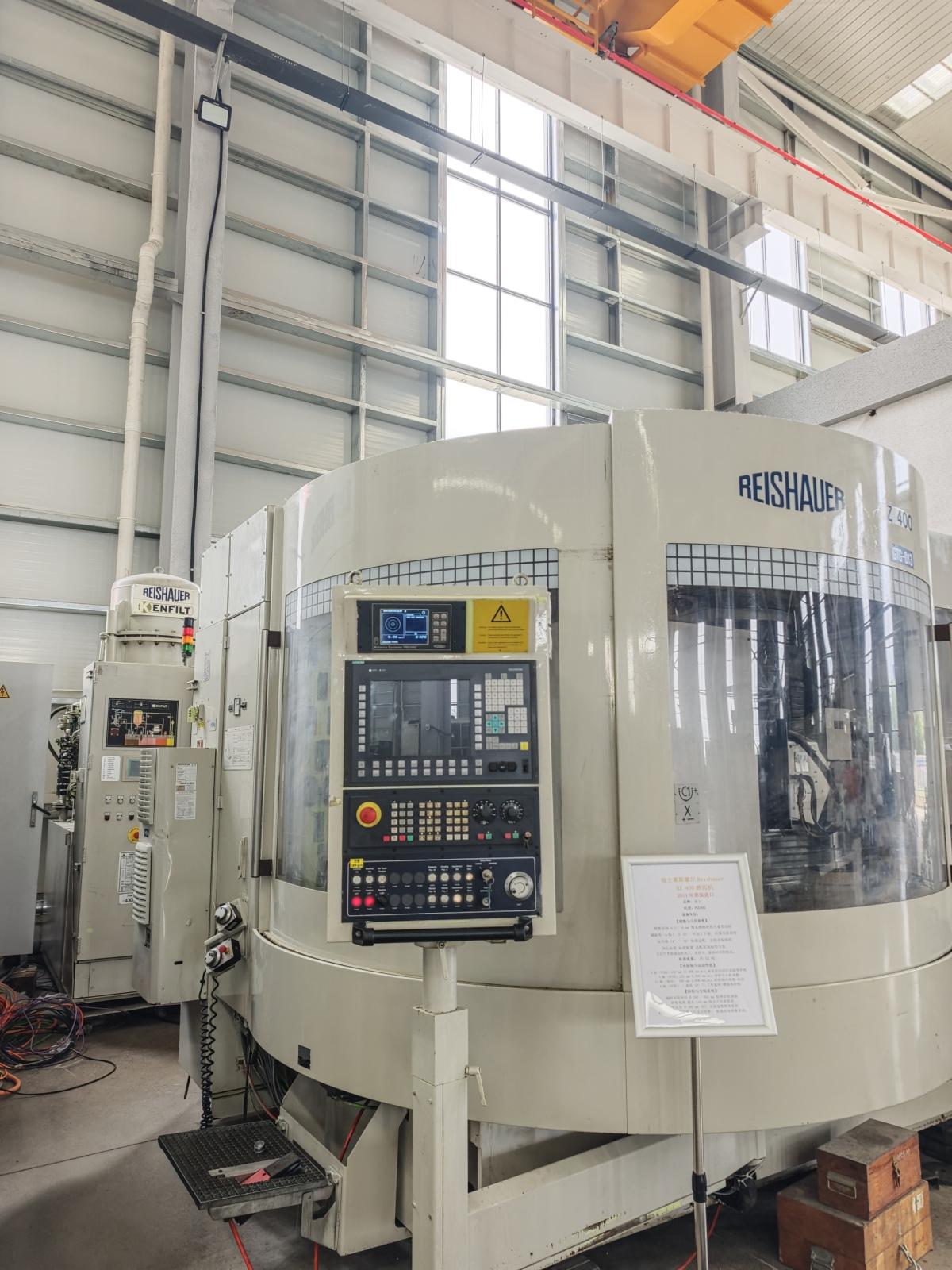

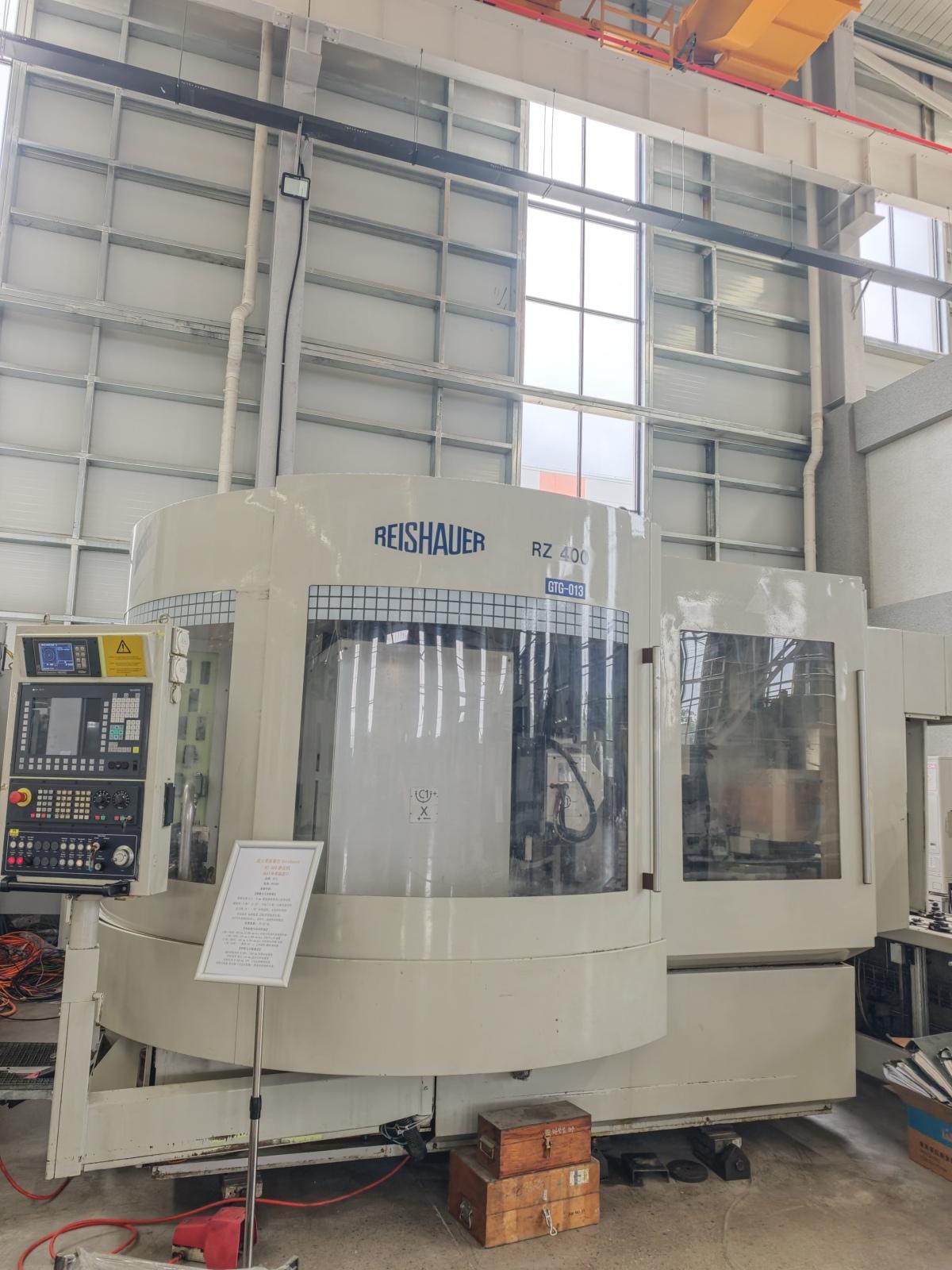

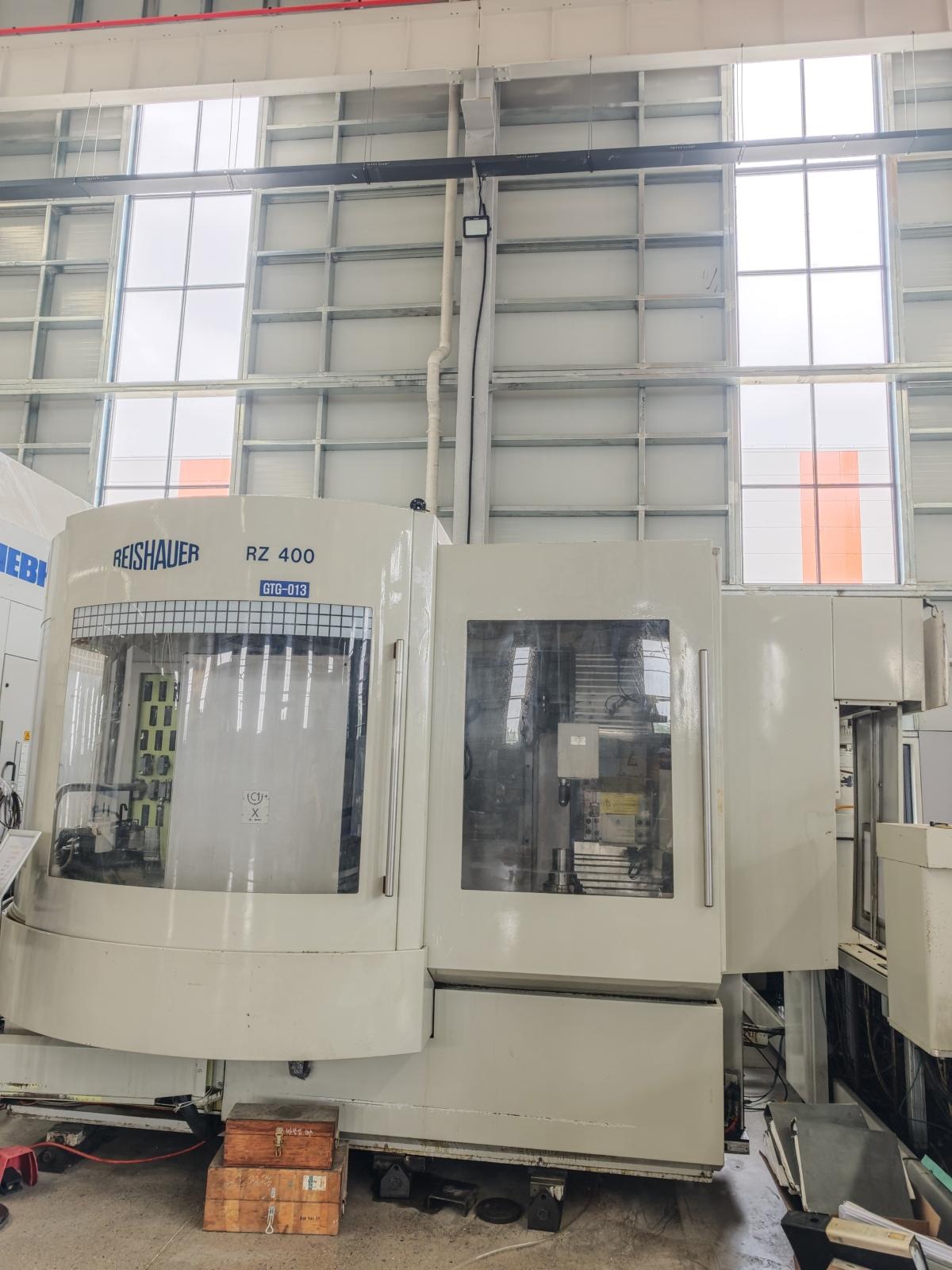

REISHAUER RZ 400 Gear grinding machine

CNC System: Siemens 840D
Three-axis travel (X/Y/Z): 490 × 220 × 300 mm
Three-axis rapid traverse speed: 15 × 5 × 5 m/min
Maximum workpiece diameter: 400 mm
Maximum gear width: 300 mm
Maximum module: 8
Grinding tooth range: 5–999
Pressure angle range: 14°–30°
Helix angle range: -45° to +45°
Maximum workpiece weight: 300 kg
Grinding wheel diameter: 205–300 mm
Maximum grinding wheel width: 125 mm
Center hole diameter: 160H7 mm
Number of starts: 1–5
Total power: 42 kW
Machine weight: 12 tons
