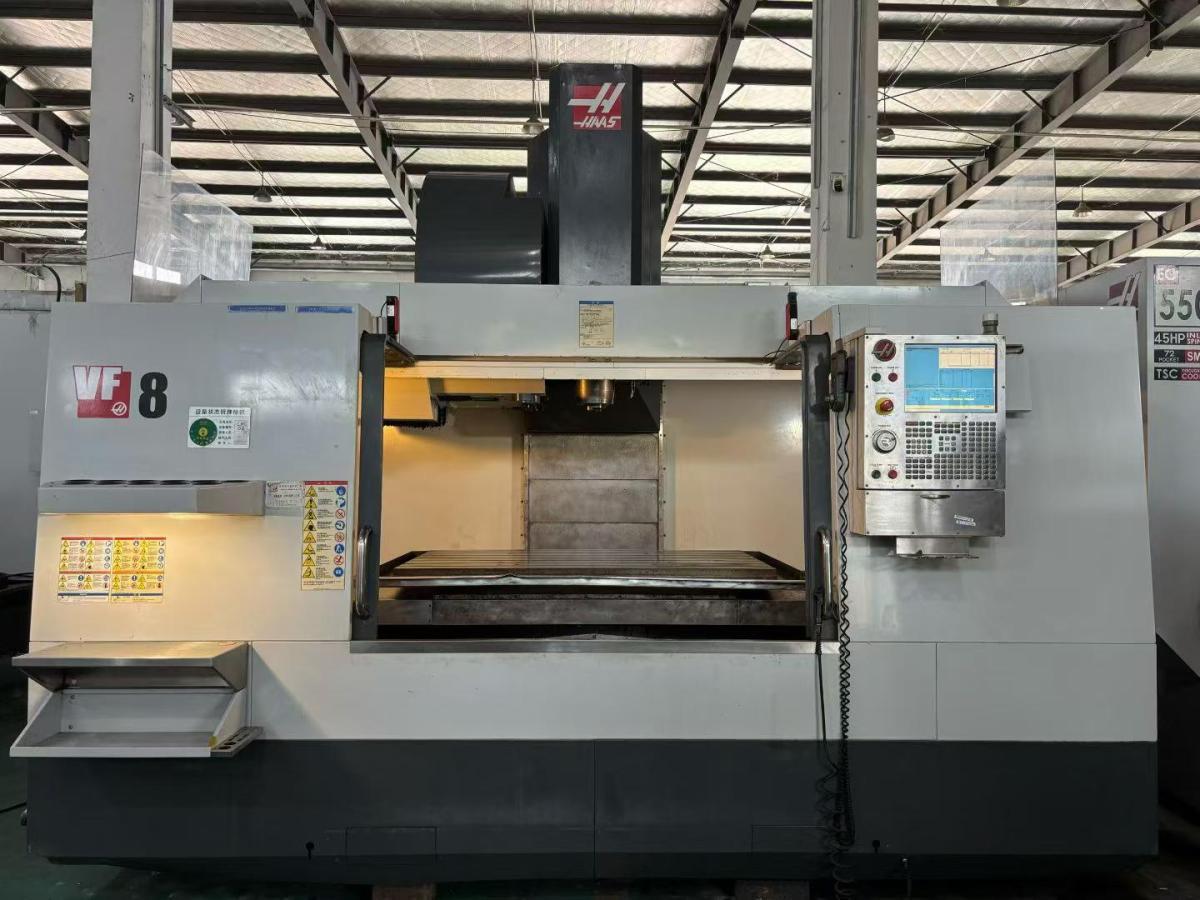

HAAS VF-8/50 Vertical Machining centre

[Product Information]:

Inventory number：812485
Brand：HAAS
Model：VF-8/50
Origin：The United States
Location：China
Year：2013
Create Time：2026-06-27

Specifications:

Three-axis travel: 1626 × 1016 × 762 mm

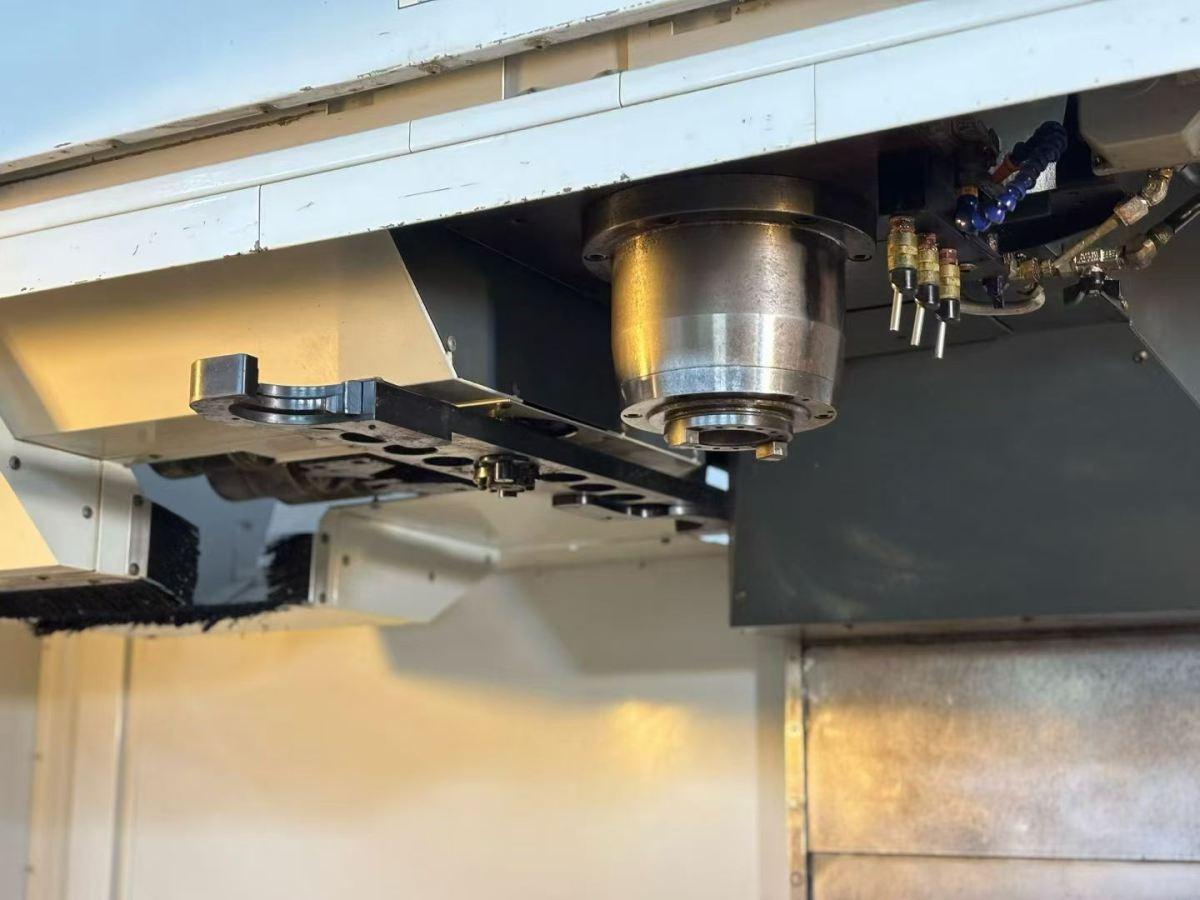

Distance from spindle nose to worktable: 102–864 mm
Spindle maximum power: 22.4 kW
Spindle maximum speed: 8100 rpm
Spindle taper: BT50
Spindle cooling system: Liquid cooling
Spindle torque: 122 Nm
X/Y/Z rapid traverse: 15.2 m/min

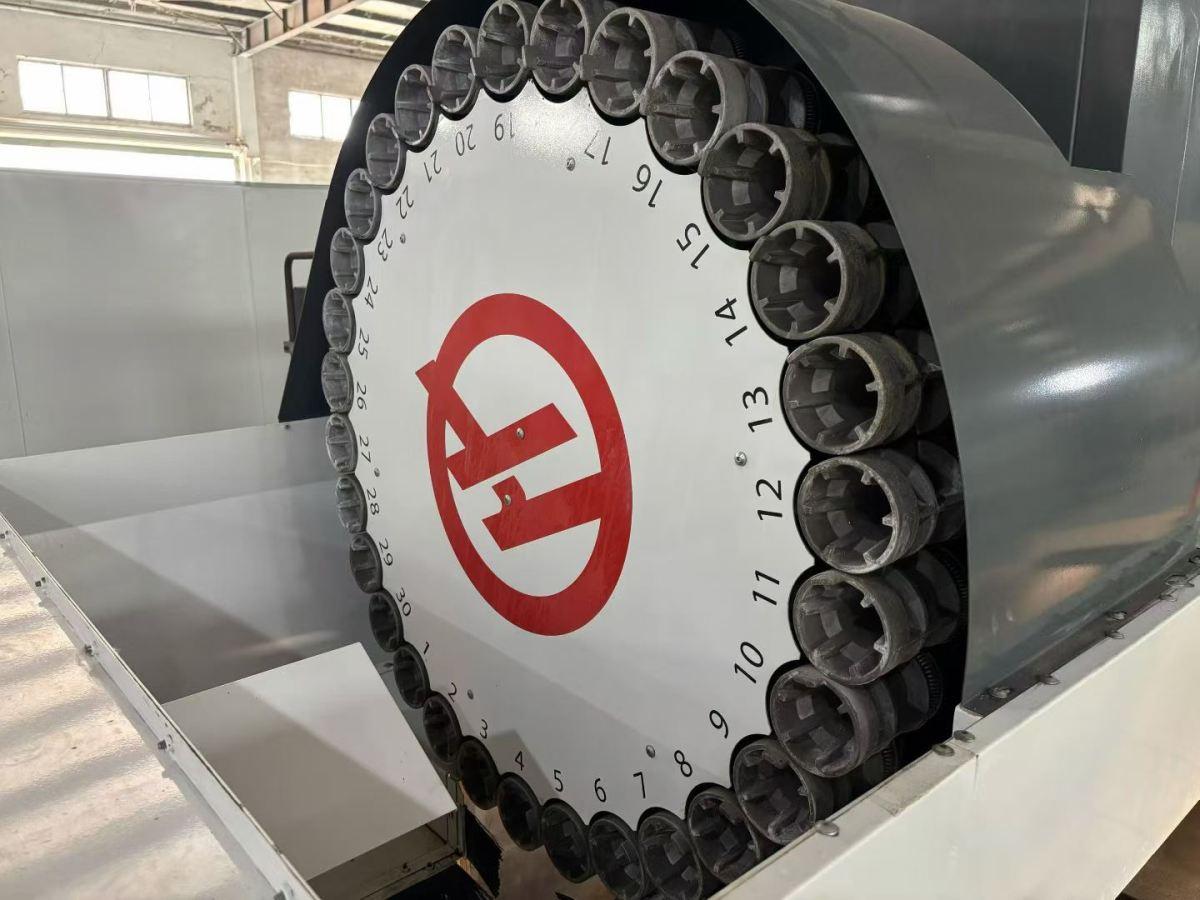

Tool magazine capacity: 30 + 1 tools
Maximum tool diameter: 76 mm
Maximum tool length: 406 mm
Maximum tool weight: 5.4 kg

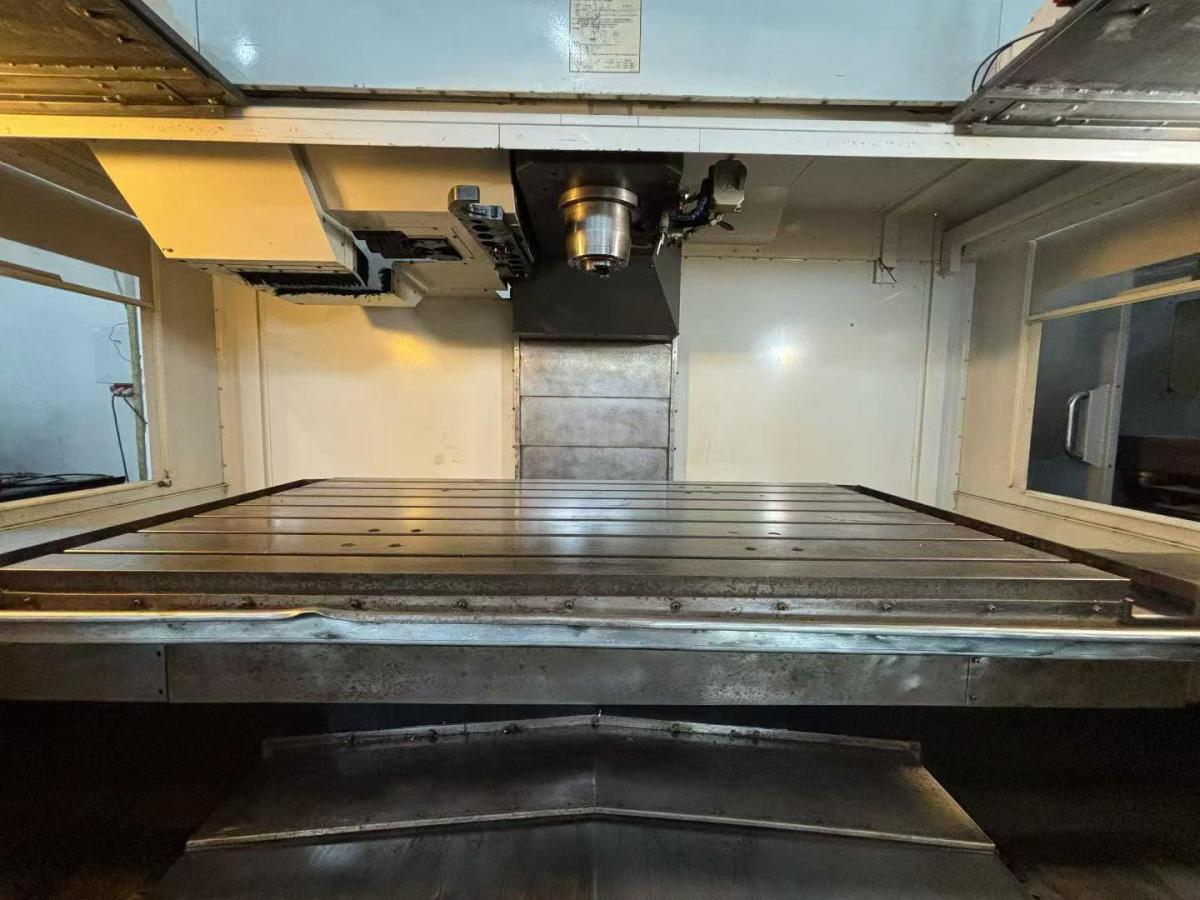

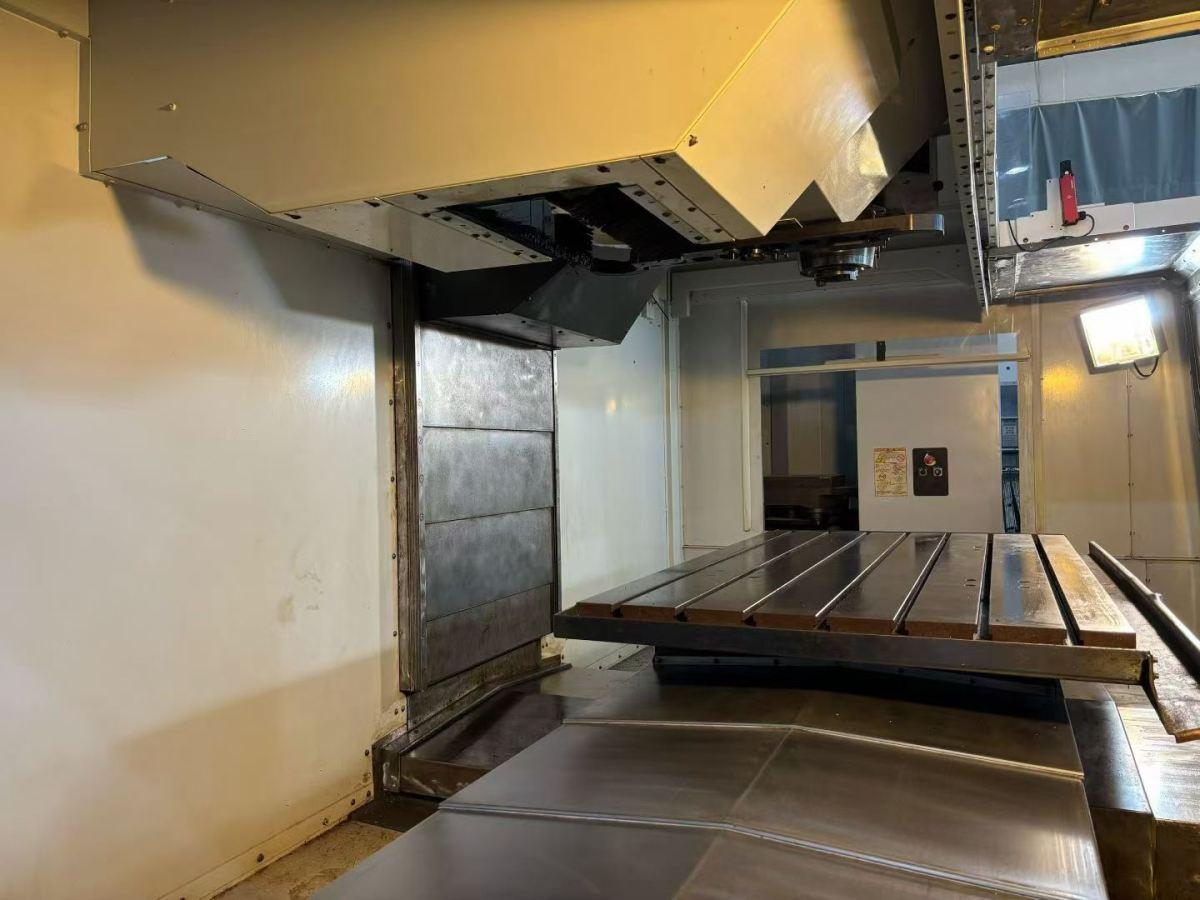

Worktable size (L × W): 1626 × 914 mm
T-slot size: 16 × 125 × 7 mm
Max table load: 1814 kg
