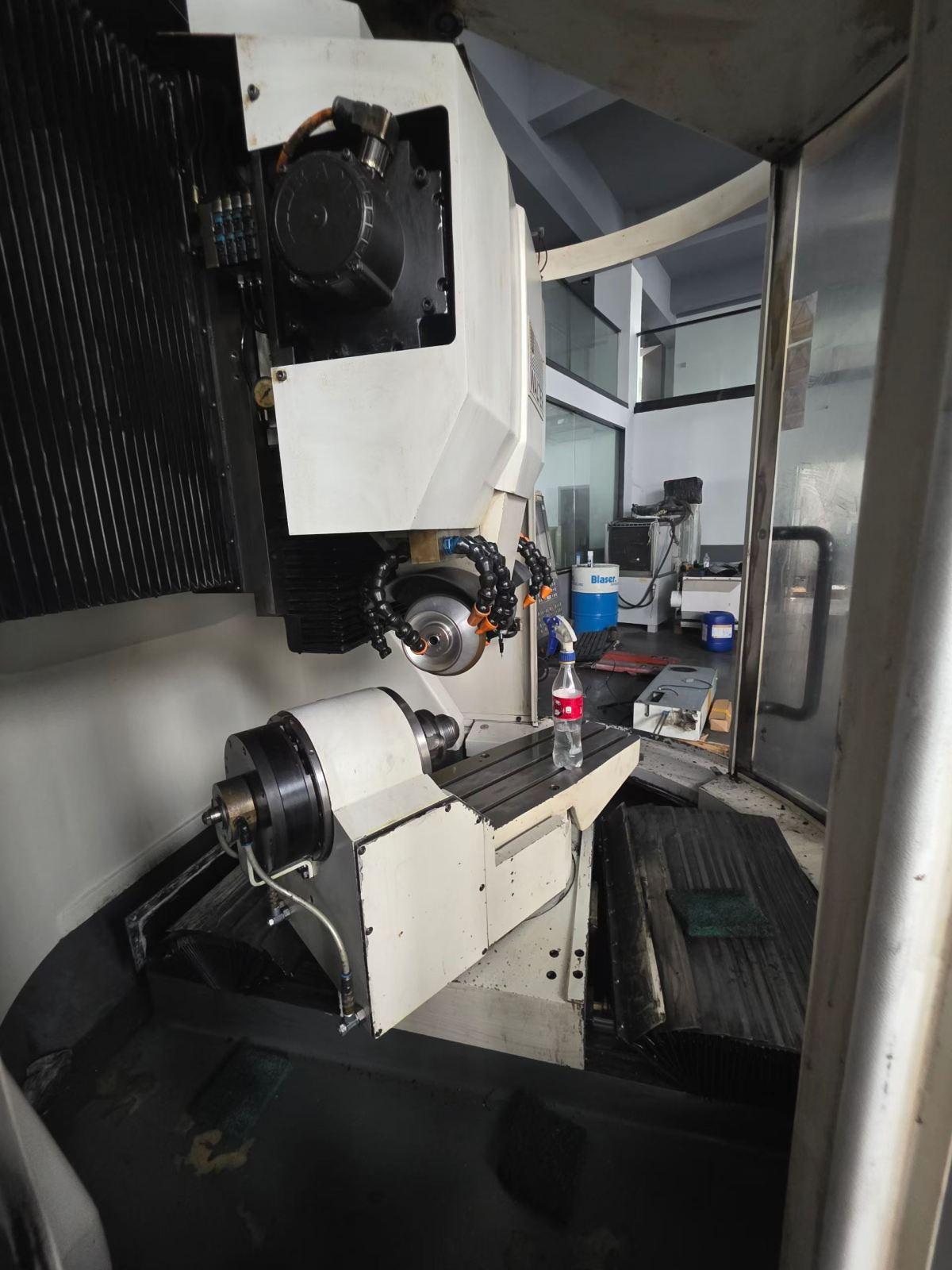

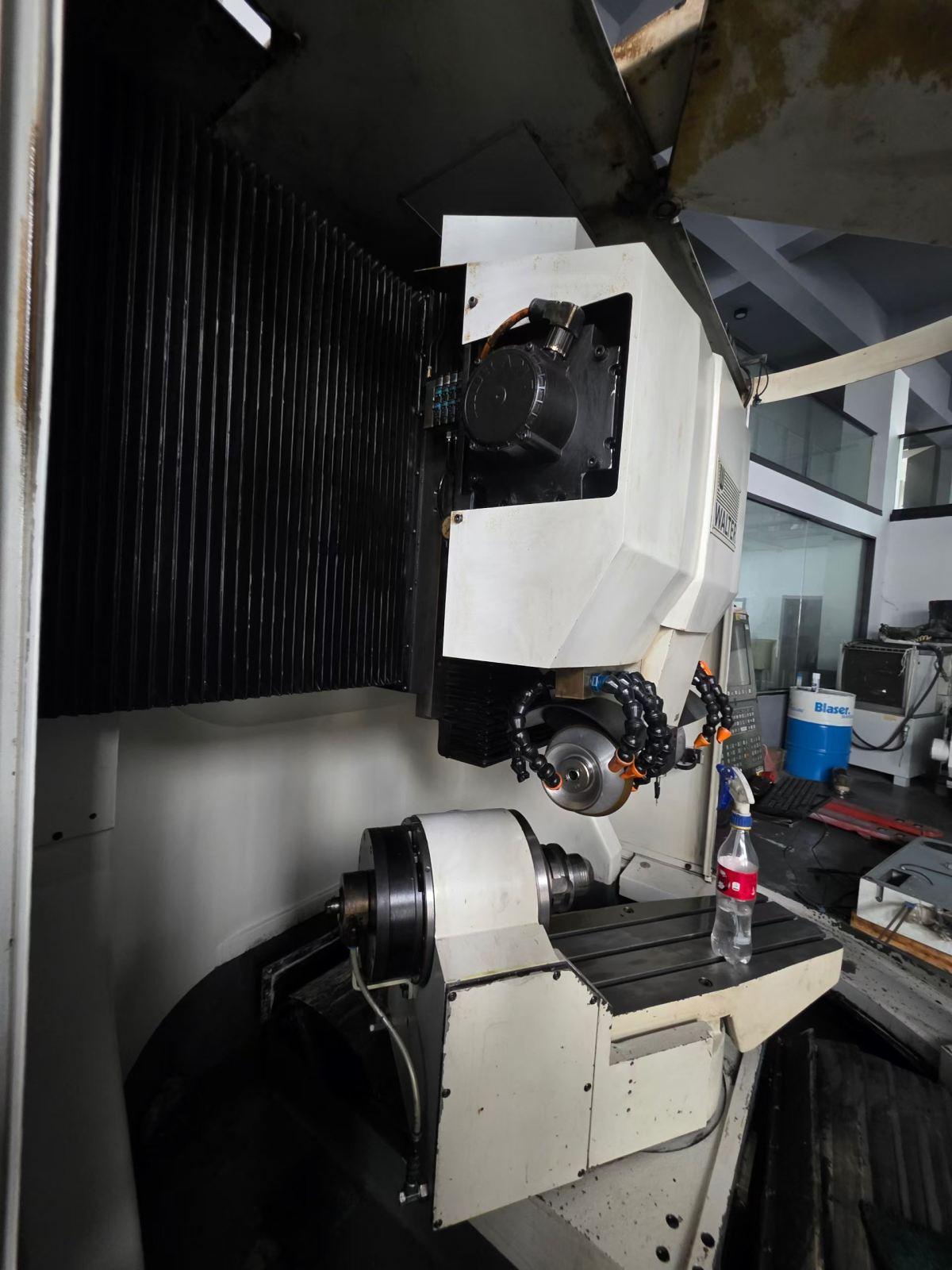

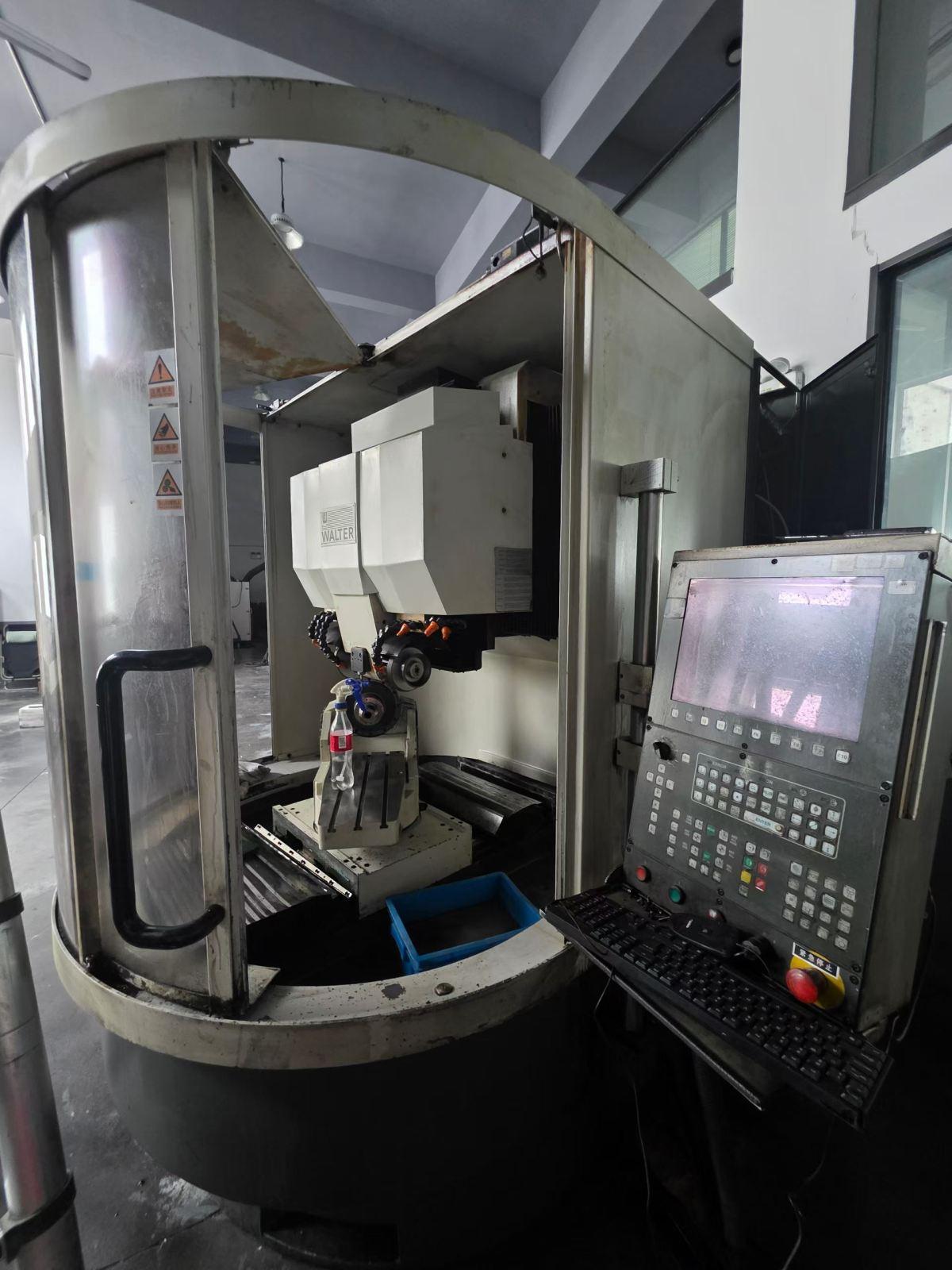

Walter HELITRONIC POWER Tool grinder

Three-axis travel (X/Y/Z): 460 × 320 × 660 mm
Maximum operating speed: 15 m/min
C-axis rotation range: ±200°
A-axis rotation: ∞ (continuous rotation)
Minimum workpiece diameter: 3 mm
Maximum workpiece diameter: 320 mm
Maximum workpiece diameter (with automatic worktable): 290 mm
Maximum workpiece length (external grinding): 350 mm
Maximum workpiece length (face grinding): 280 mm
Maximum workpiece weight: 50 kg
Linear axis control resolution: 0.0001 mm
Rotary axis control resolution: 0.0001°
Grinding spindle speed: 0–10,500 rpm
Maximum grinding wheel diameter: Ø200 mm
