AMADA AC255NT Punch / press

Impact force: 200 kN
Drive system: Servo-electric drive
Table load capacity: 150 kg
Machine weight: 12,000 kg
Working range (X × Y): 1270 × 1270 mm
Positioning speed: 60–80 mm/s
Maximum hit rate: 480 hits/min
Hit rate at 25 mm pitch: 370 hits/min
Engraving mode hit rate: 900 hits/min
Tool type: Turret-type tool magazine
Number of tool stations: 51
Rotatable stations: 4

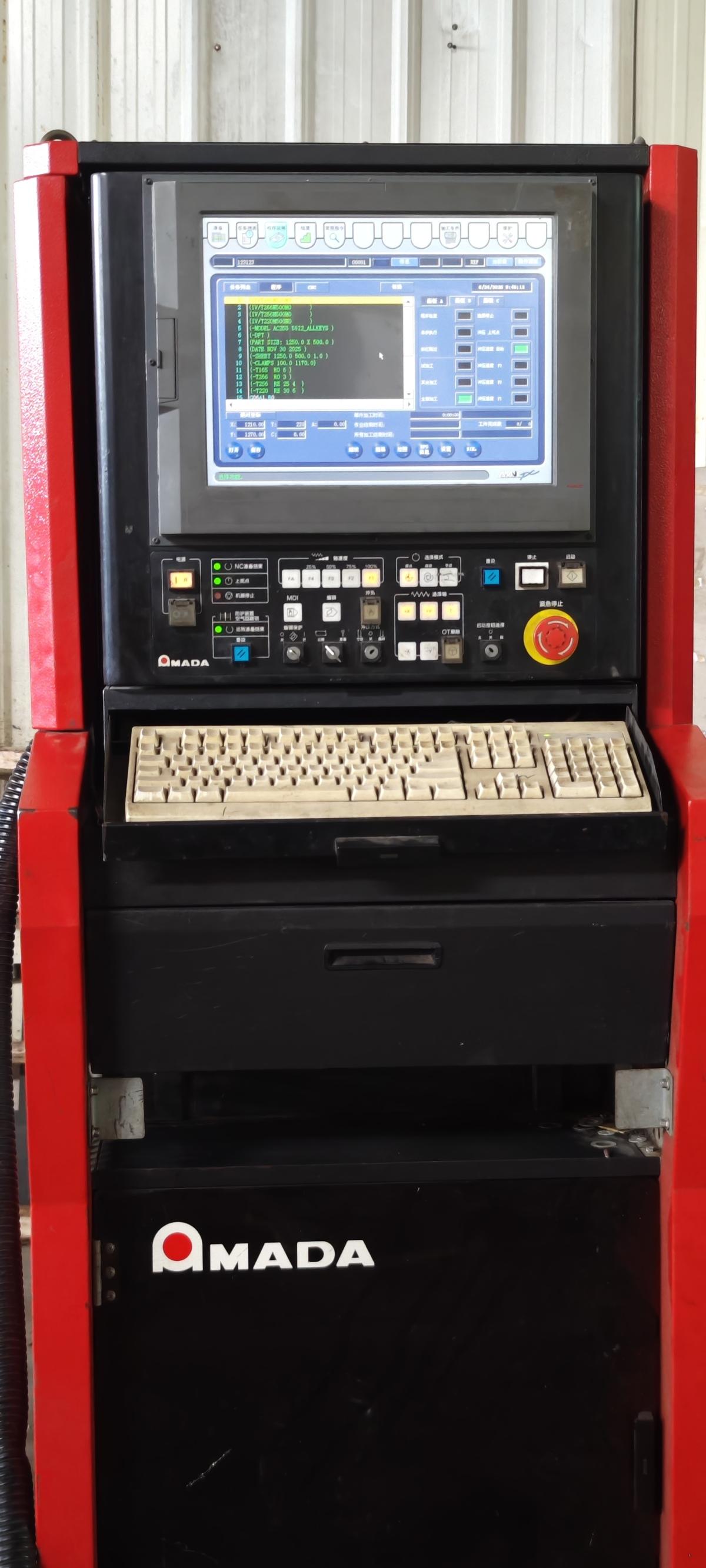

CNC system: Amada AMNC-F
Display: Color touchscreen
Screen size: 15 inch
Control axes: 5-axis control
Programming mode: Absolute / Incremental
Operating system: Windows XP
Memory: 128 MB
Machine Dimensions
Length: 4100 mm
Width: 2560 mm
Height: 2082 mm
