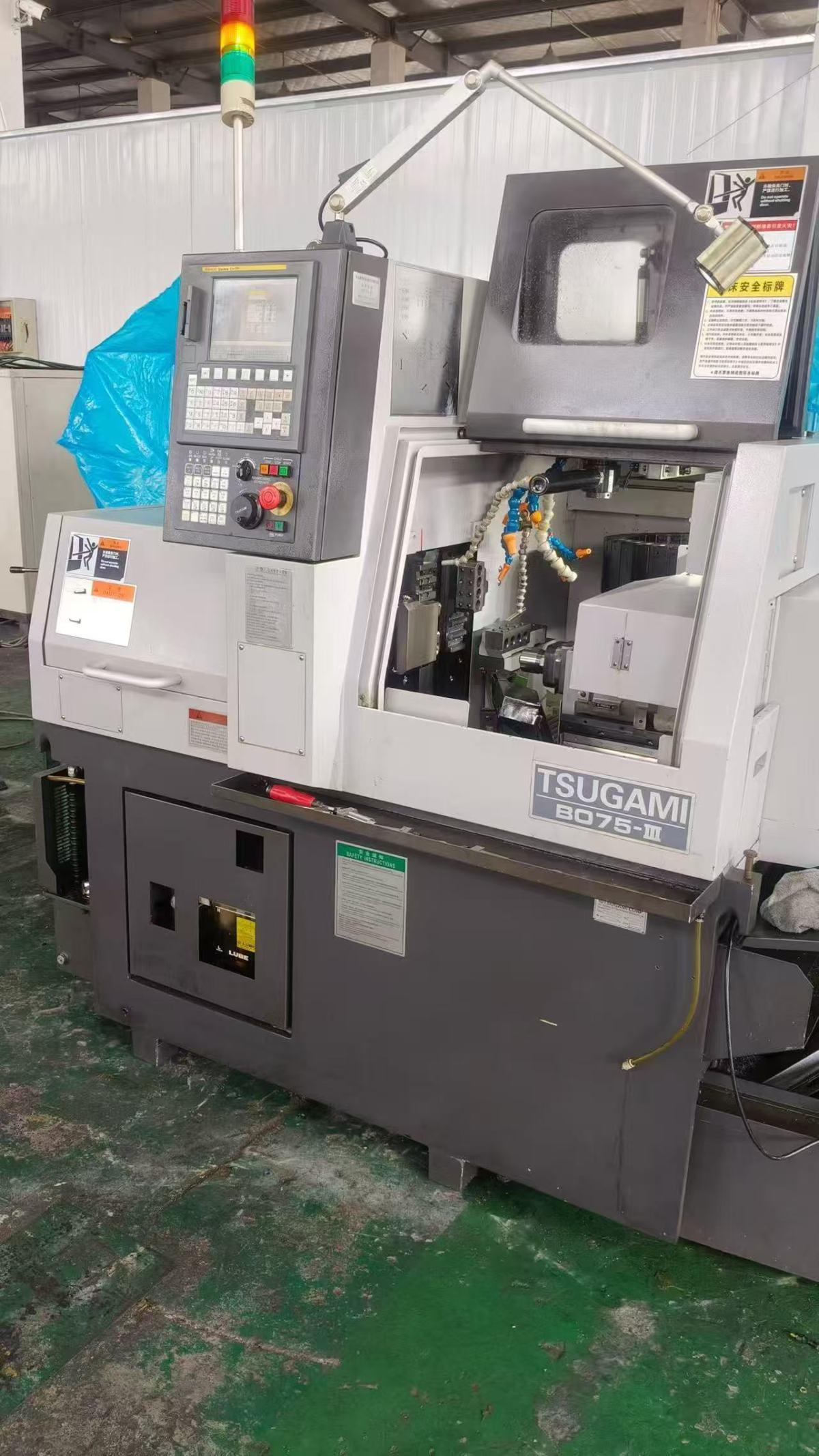

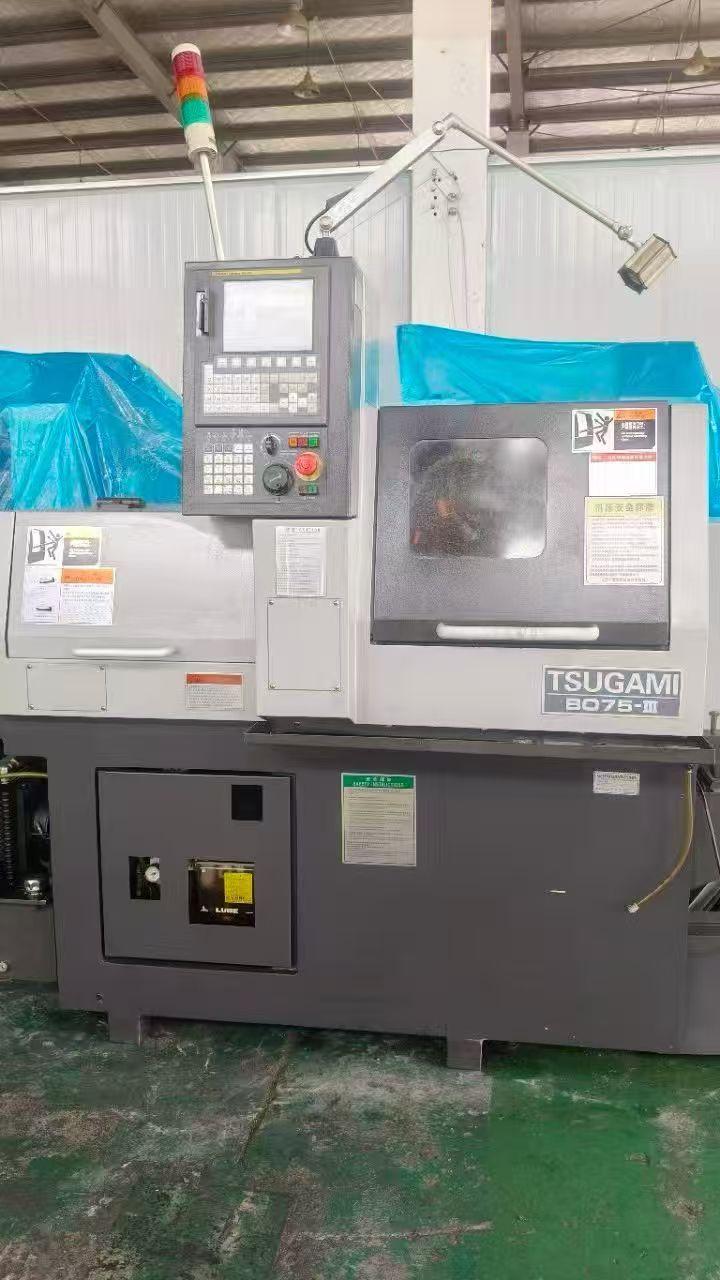

Tsugami B075-III Automatic lathe

The maximum diameter of the bar stock that can pass through: φ 7mm
The maximum machining length of the guide sleeve type: 70mm
spindle through hole diameter: φ 7mm
Spindle speed range: 200 to 15,000 rpm
spindle motor power: 1.1/1.5kW
Back axle speed range: 200 to 12,000 rpm
Backshaft motor power: 2.2/2.5 kW
X-1 axis travel: 60mm
Z1 axis travel: 70mm
Y1 axis travel: 20mm
X-2 axis travel: 40mm
Fast moving rate (X/Z axis) : 32 m/min
Total number of Tool workstations: 21
Maximum number of power Tool: 4
Overall dimensions: 1655 × 1135 × 1700 mm
