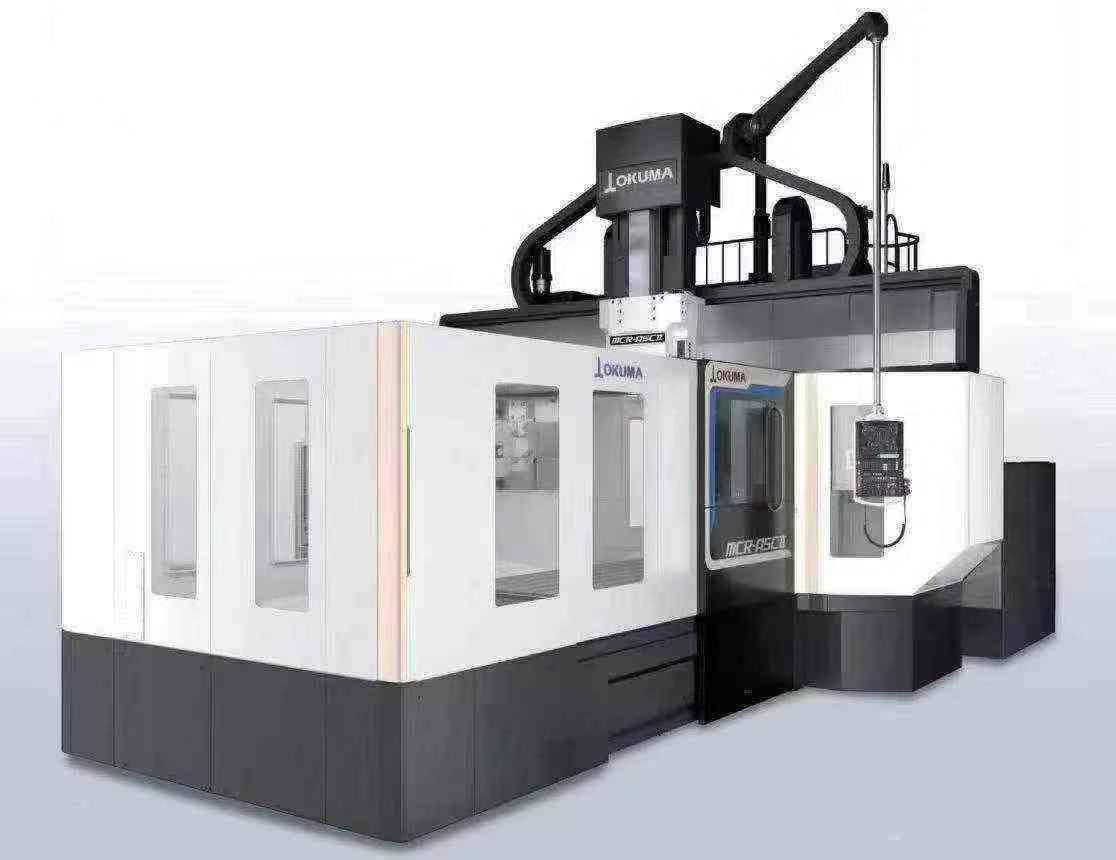

OKUMA MCR-A5Cll 25X40 5 axis machining centre

CNC System: Okuma OSP P500M
Three-axis travel: 4200 × 3100 × 800 mm
W-axis travel: 1000 mm
Worktable size: 4000 × 2000 mm
Gantry width: 2650 mm
Maximum load: 22 tons
Maximum speed of vertical spindle: 4000 rpm
Maximum speed of 90° side milling head spindle: 3000 rpm
Tool magazine capacity: 50
Configuration：
T301 / T302 tool head magazine
Glass scale
Tool setter
LCD handwheel
90° side milling head
Function：
AAC / ATC automatic tool changing system
