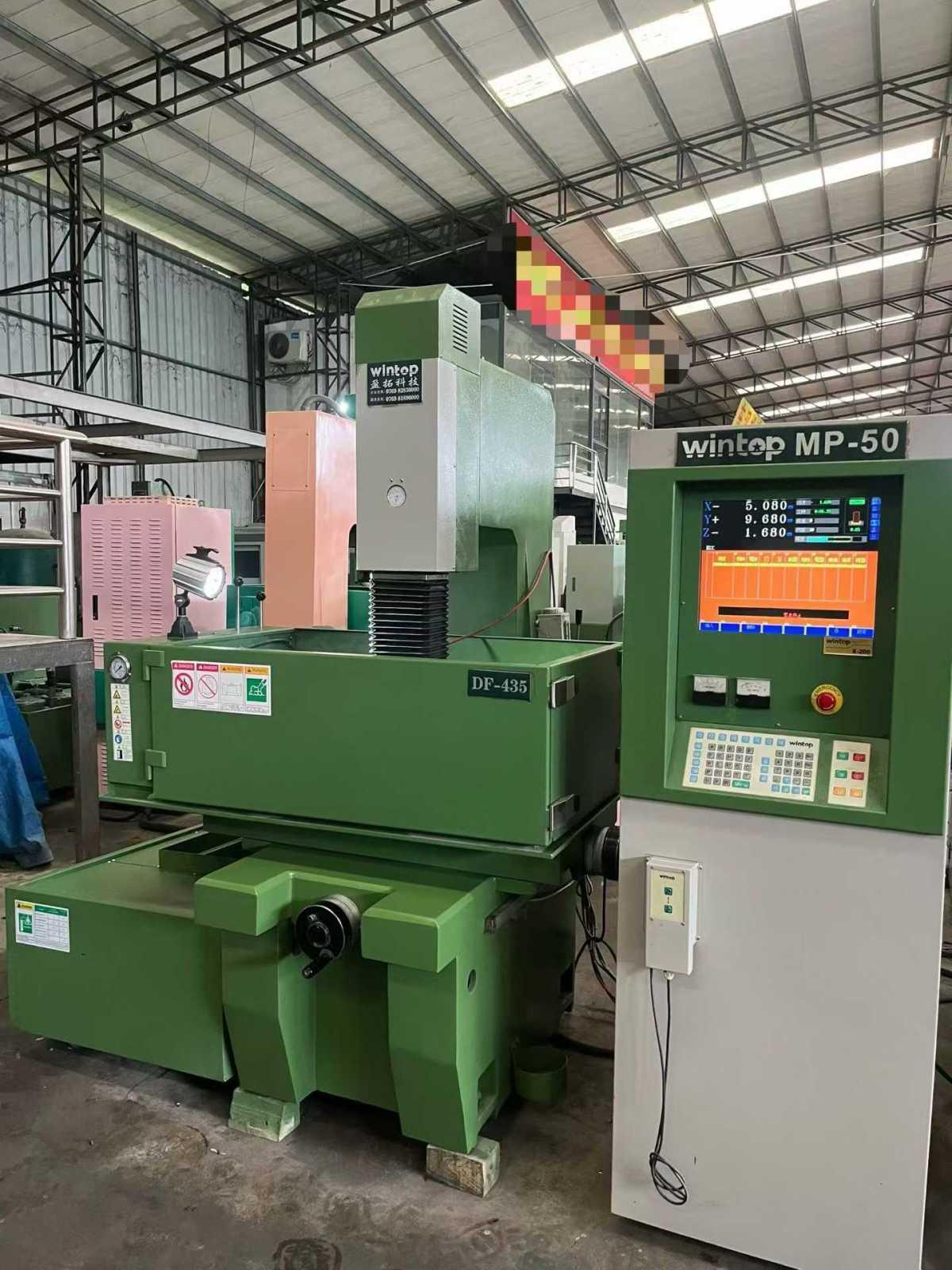

Wintop DF-435 Spark eroder

Worktable size: 700*400mm
Size of oil Water tank: 1080*660*350mm
three-axis travel: 400*350*200mm
Maximum load: 900kg
Weight: 1300kg
Host packing size: 1440*1420*2100mm
Maximum machining speed: 400 (mm/min)
Maximum machining current: 50 (A)
Minimum electrode consumption ratio: 0.1%
Surface roughness: 1.0 (um)

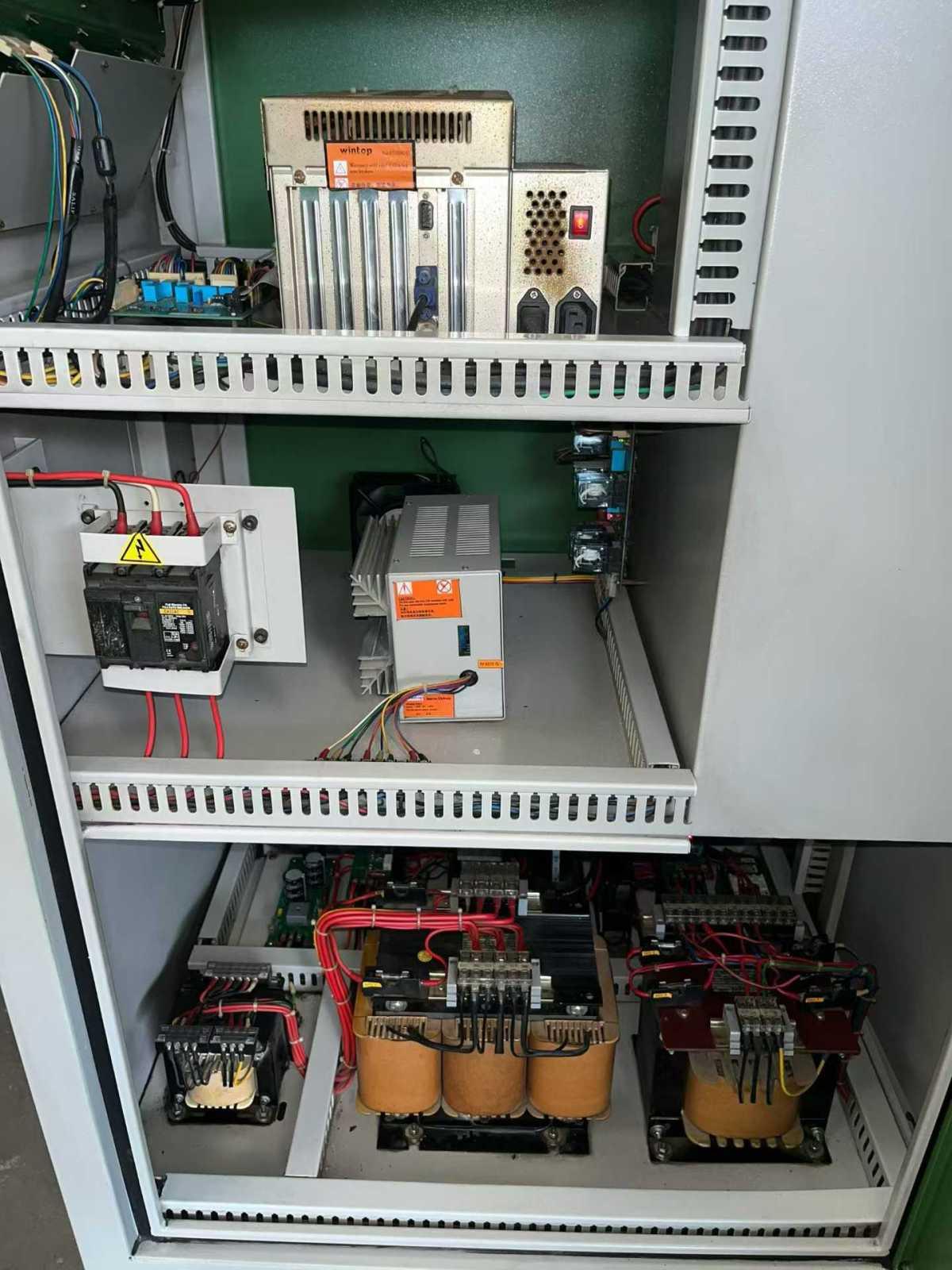

Control box weight: 260kg
Control box packing size: 650*1020*1800mm
