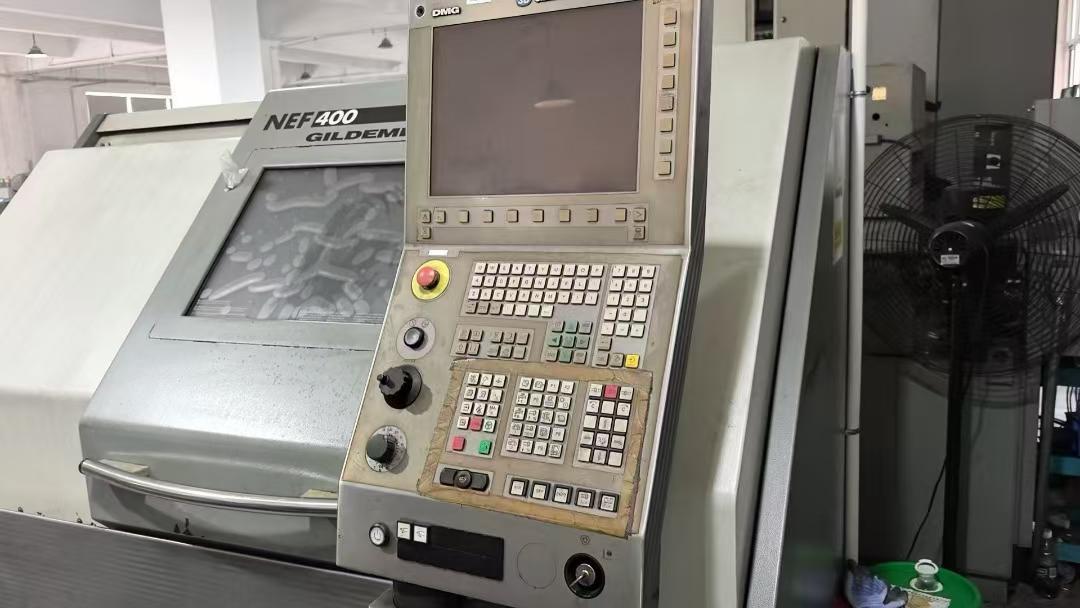

DMG NEF400 CNC turning lathe

[Product Information]:

Inventory number：467755
Brand：DMG
Model：NEF400
Origin：Germany
Location：China
Year：2010
Create Time：2026-06-21

Specifications:

Maximum rotational diameter (on the bed) : 385mm
Maximum machining diameter (on the tool turret) : 350 mm
Maximum machining length: 650-800 mm
X-axis travel: 255mm
Z-axis travel: 800 mm
spindle motor power: 11/15 kW
Spindle speed range: 0-4500 rpm
Maximum torque: 400 Nm
The diameter of spindle through hole is 52mm

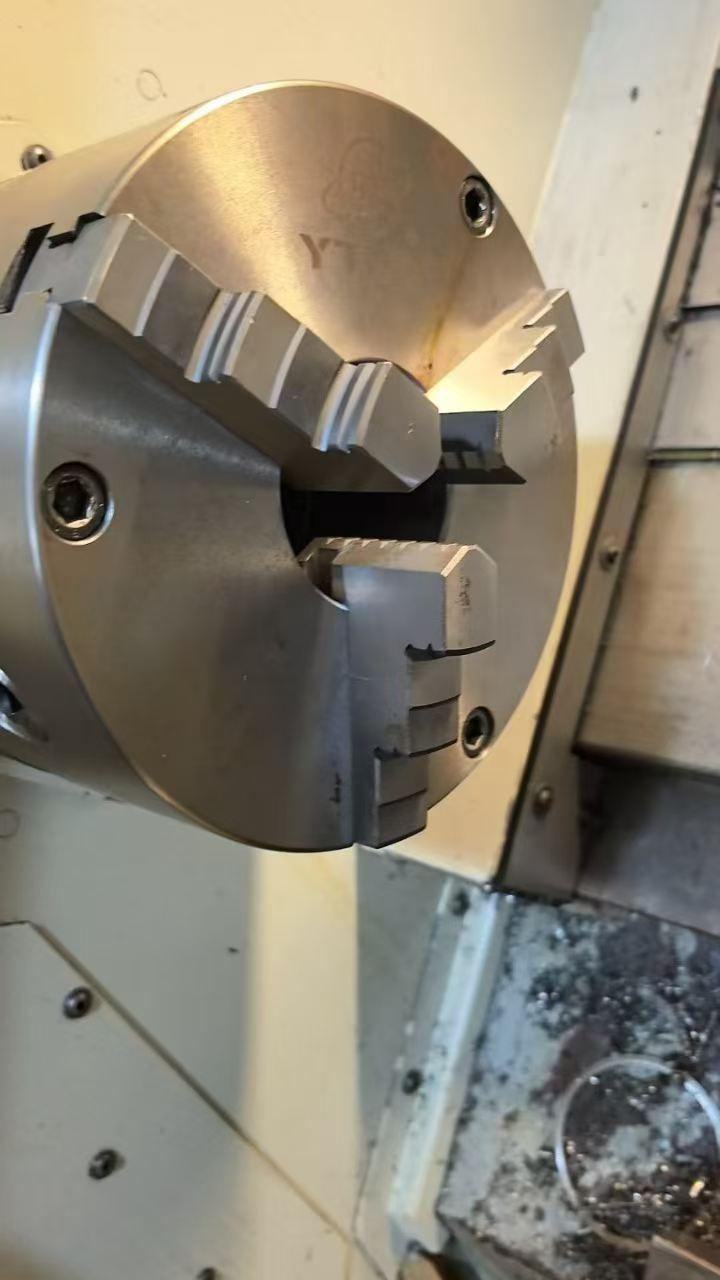

chuck specification: 8 inches
