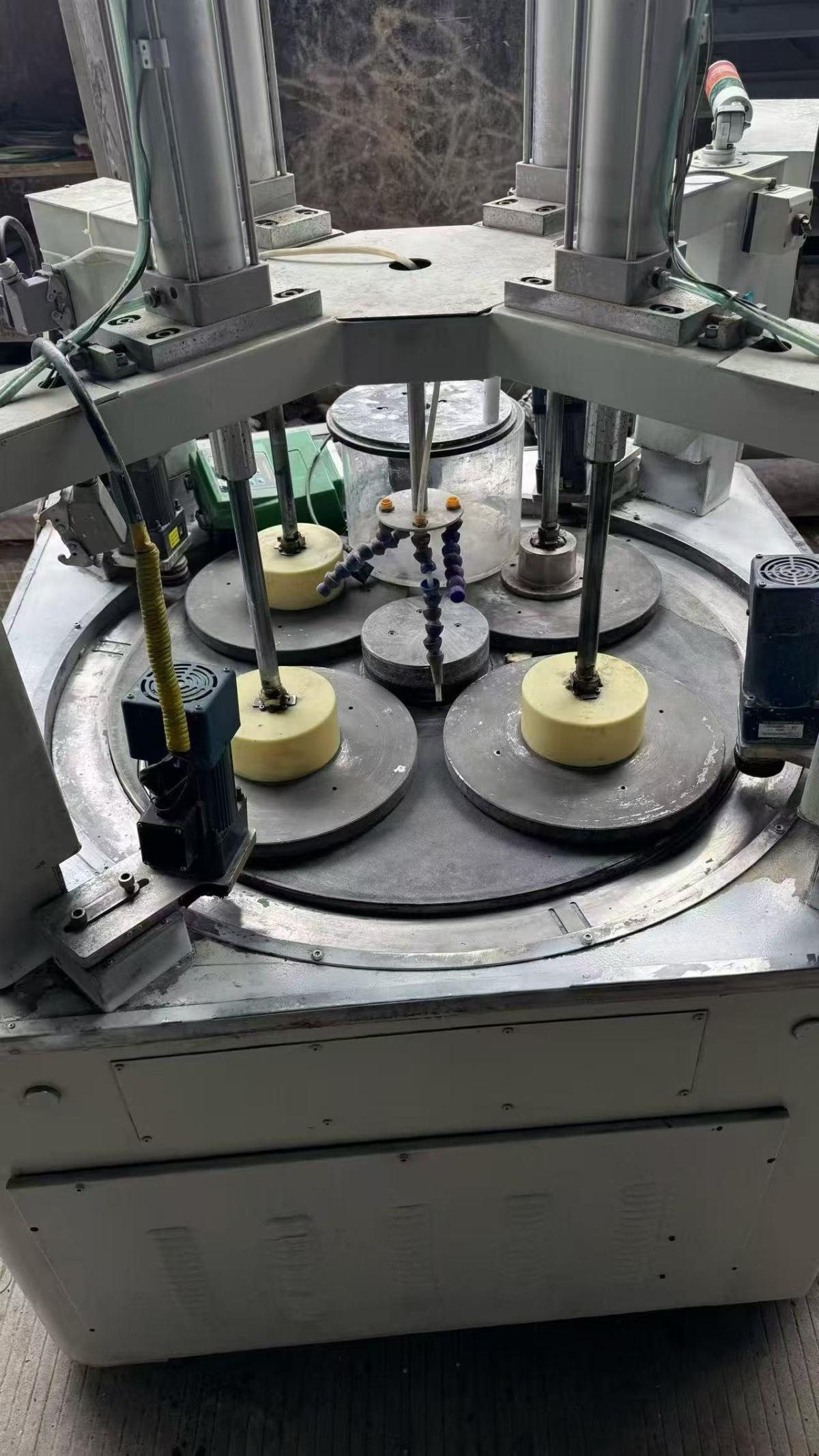

YUHUAN YT2M-8195 other

Grinding Disc Size (Outer Diameter × Thickness): Φ910 × 35 mm
Working Ring Size (Outer Diameter × Inner Diameter × Height): Φ400 × Φ375 × 60 mm (4 pcs)
Maximum Workpiece Size: Φ360 mm
Flatness Accuracy (Ground / Polished Parts): 0.005 μm (Φ80) / 0.008 μm (Φ80)
Surface Roughness (Ground / Polished Parts): Ra0.15 / Ra0.125
Grinding Disc Speed: 5–90 rpm (stepless speed regulation)
Grinding Disc Motor Power: 11 kW (rated speed 1440 rpm)
Working Ring Rotation Motor Power: 90 W (rated speed 1440 rpm)
Machining Stations: 4 pcs
Overall Dimensions (L × W × H): 1500 × 2200 × 2250 mm
Overall Weight: 2600 kg
