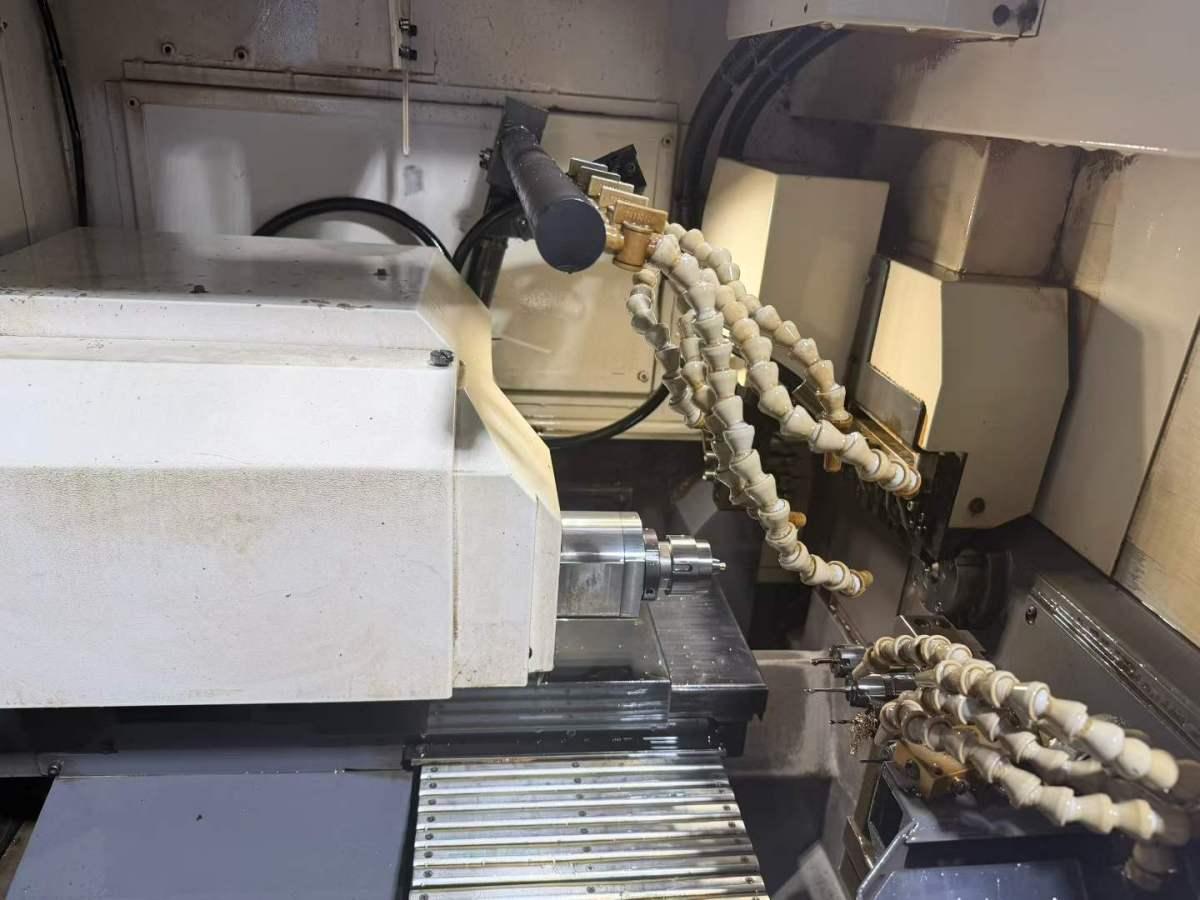

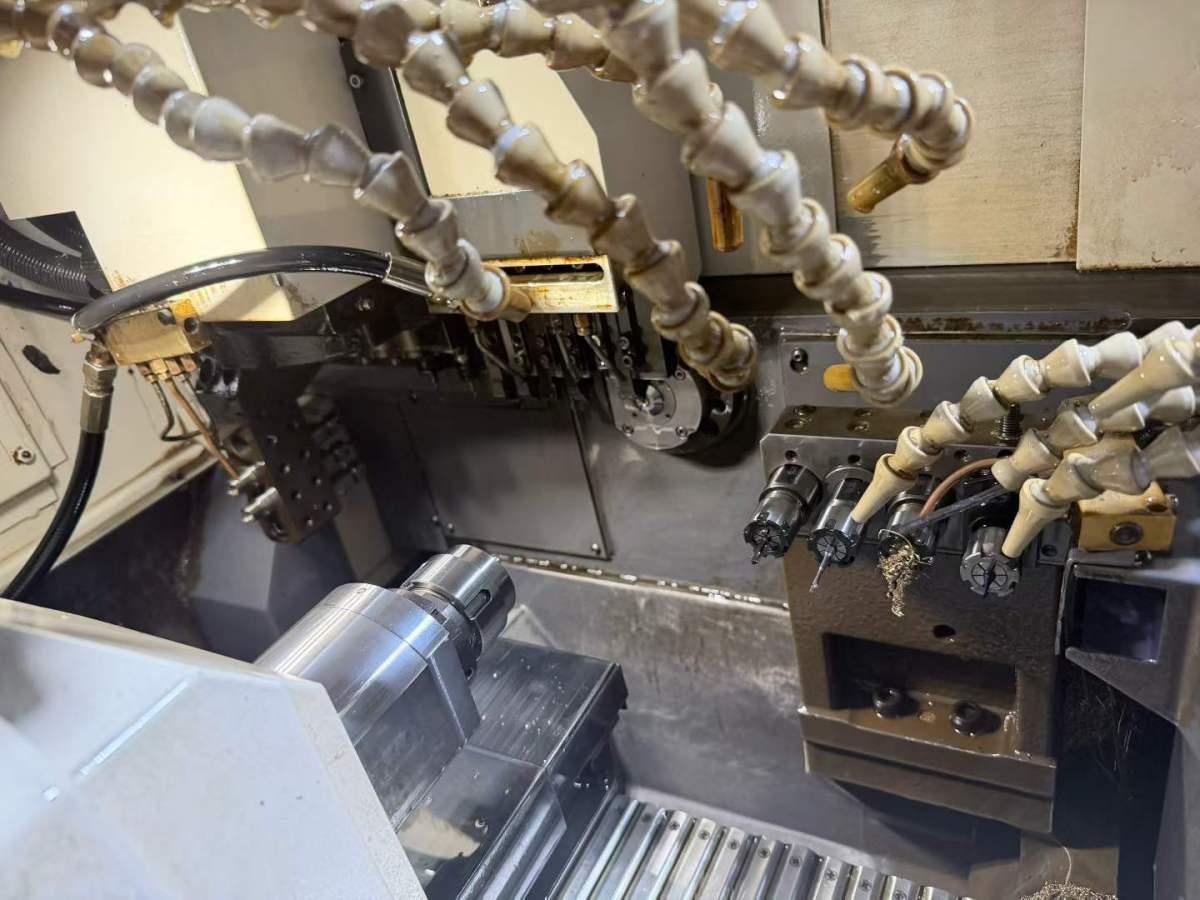

Citizen L12-1M7 Automatic lathe

Maximum machining diameter: 12 mm
Machining length: 135 mm
Spindle speed: 15,000 rpm
Maximum clamping diameter of the sub-spindle: Ø12 mm
Maximum drilling diameter for back machining: Ø6 mm
Maximum tapping diameter for back machining: M5
Sub-spindle speed: 10,000 rpm
Maximum front drilling diameter: Ø8 mm
Maximum tapping diameter on the front (tapping/die): M6
Maximum part ejection length: 80 mm
Maximum workpiece extension on the sub-spindle: 30 mm
