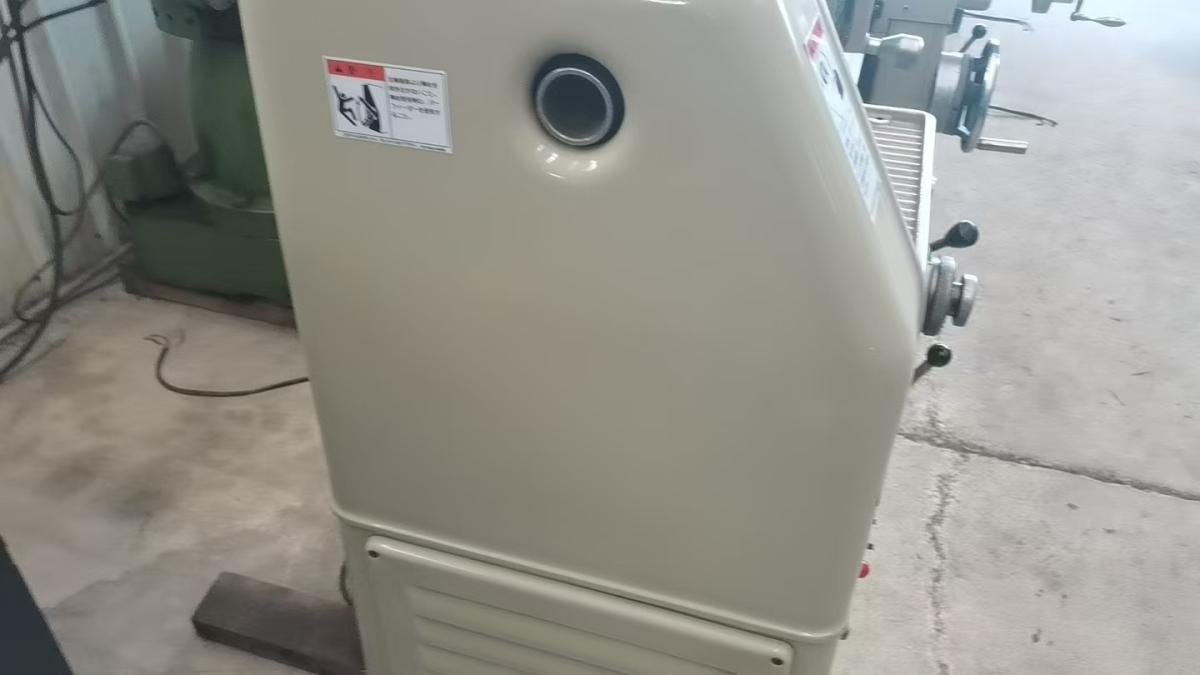

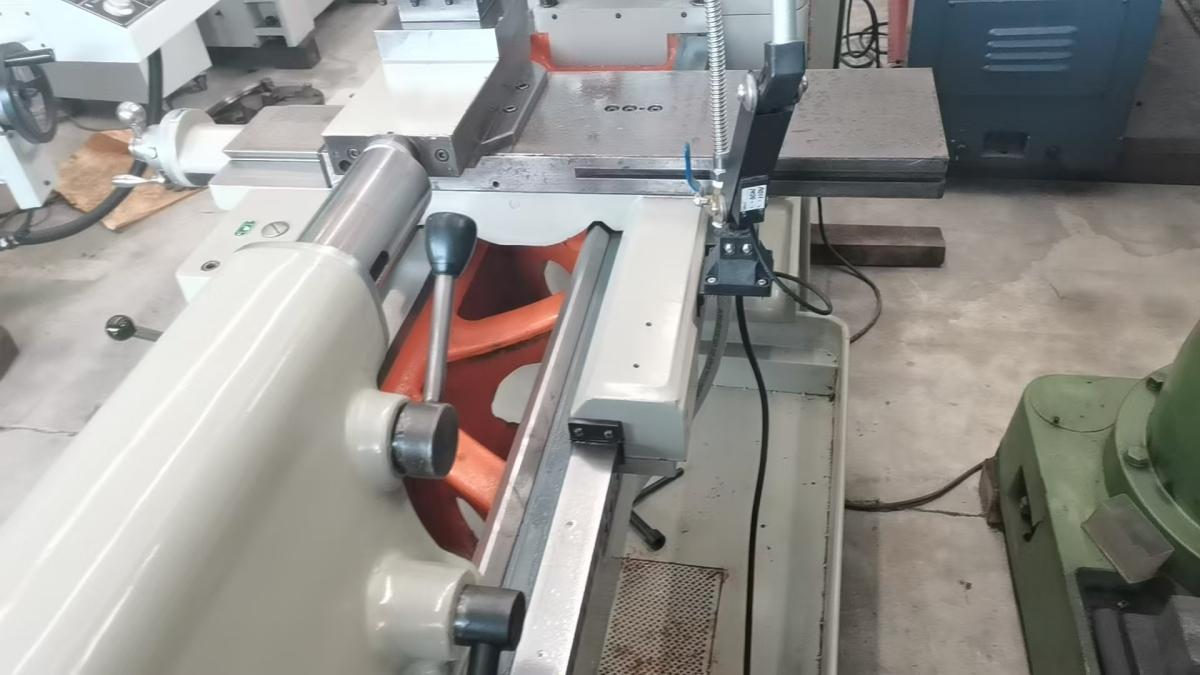

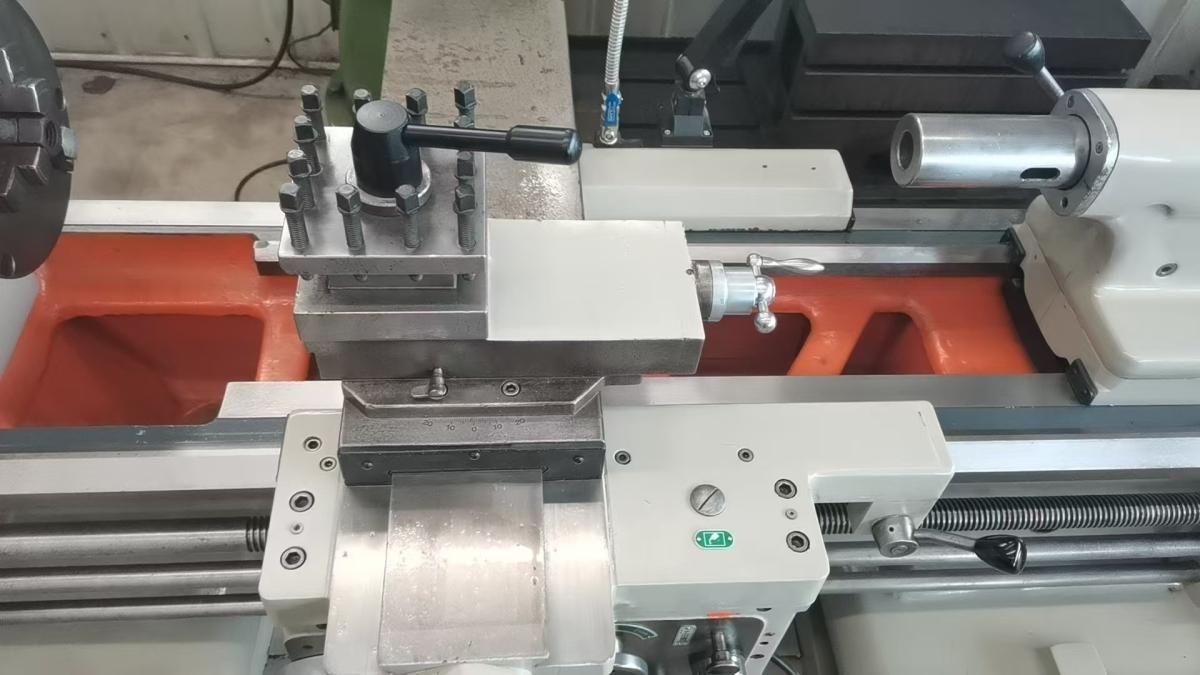

Takisawa TAL-460 Horizontal lathe

Machining Capacity：
Maximum swing over bed: 460 mm
Maximum swing over cross slide: 250 mm
Maximum machining length: 800 / 1000 mm
Spindle Parameters：
Spindle speed range: 25 – 1500 rpm
Number of spindle speeds: 12
Spindle motor power: 3.7 kW
Thread Cutting Range：
Metric thread range: 21 types / 0.5 – 7 mm
Inch thread range: 32 types / 4 – 56 TPI
Feed System：
Number of longitudinal feeds: 24
Longitudinal feed range: 0.071 – 0.5 mm/rev
Cross feed: 1/2 of the longitudinal feed
Machine Dimensions and Weight
Machine height: 1223 mm
Floor space depth: 1042 mm
Floor space width: 2274 / 2474 mm
Machine weight: 1950 / 2000 kg
