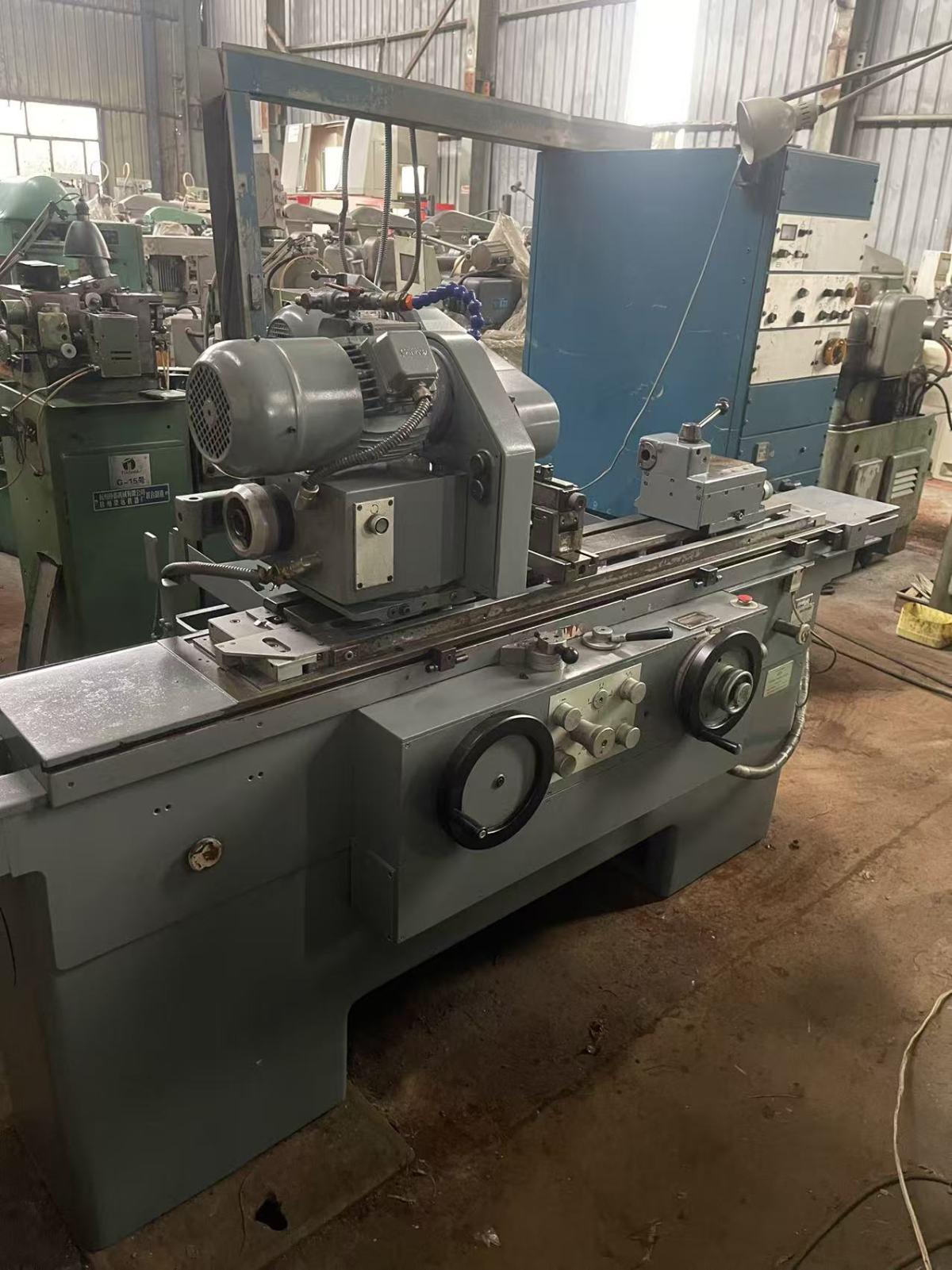

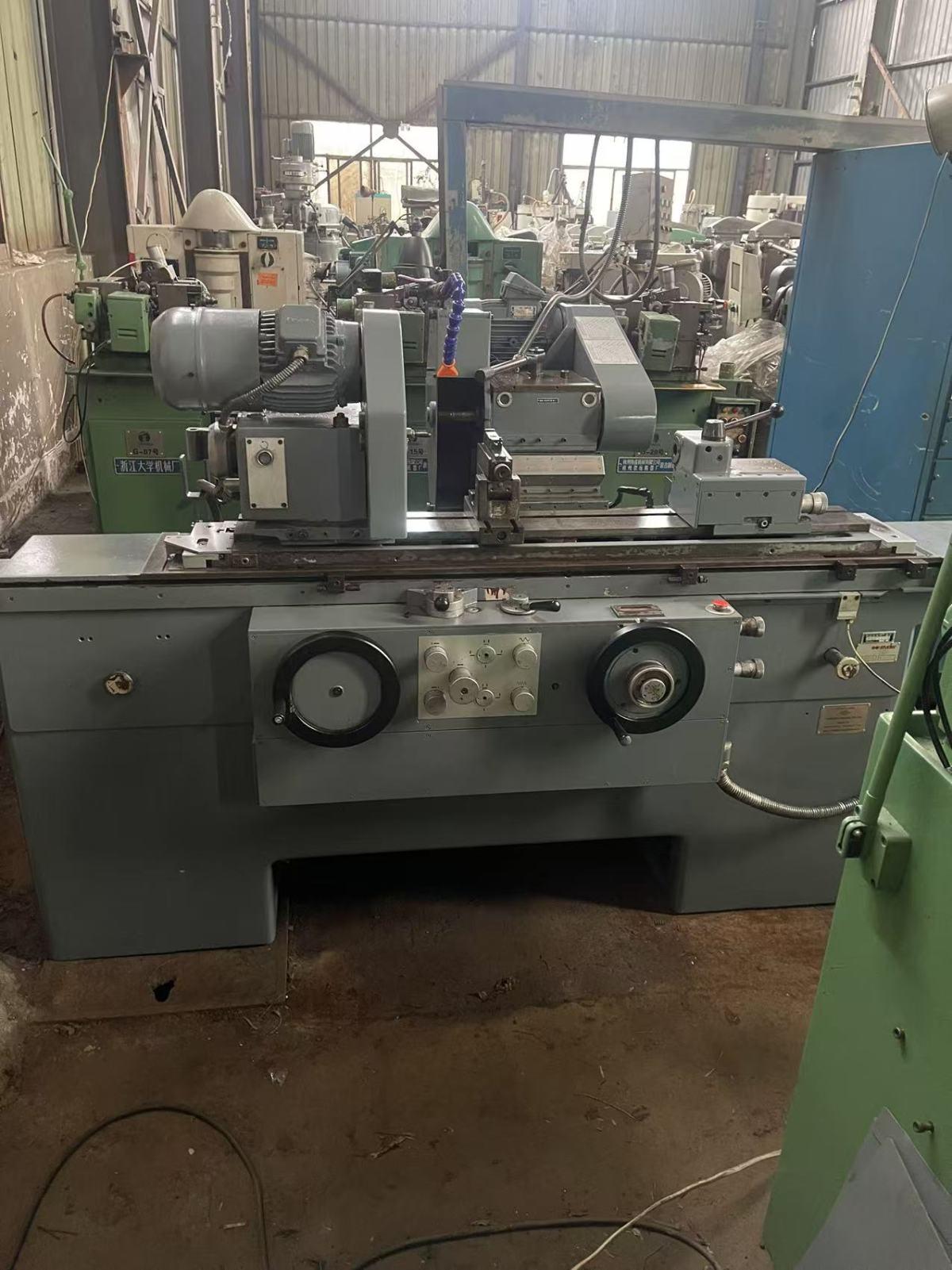

STUDER RHU650 Cylindrical grinder

[Product Information]:

Inventory number：467777
Brand：STUDER
Model：RHU650
Origin：Switzerland
Location：China
Year：1980
Create Time：2026-06-14

Specifications:

Center height: 125mm
Distance between centers: 650 mm
machining length: 650mm
Maximum grinding diameter: 250mm
Maximum weight of workpiece: 60 kg
grinding wheel specification: 400x50x127 mm
grinding wheel speed: 1500 to 2400 rpm
grinding wheel linear speed: 28 m/s

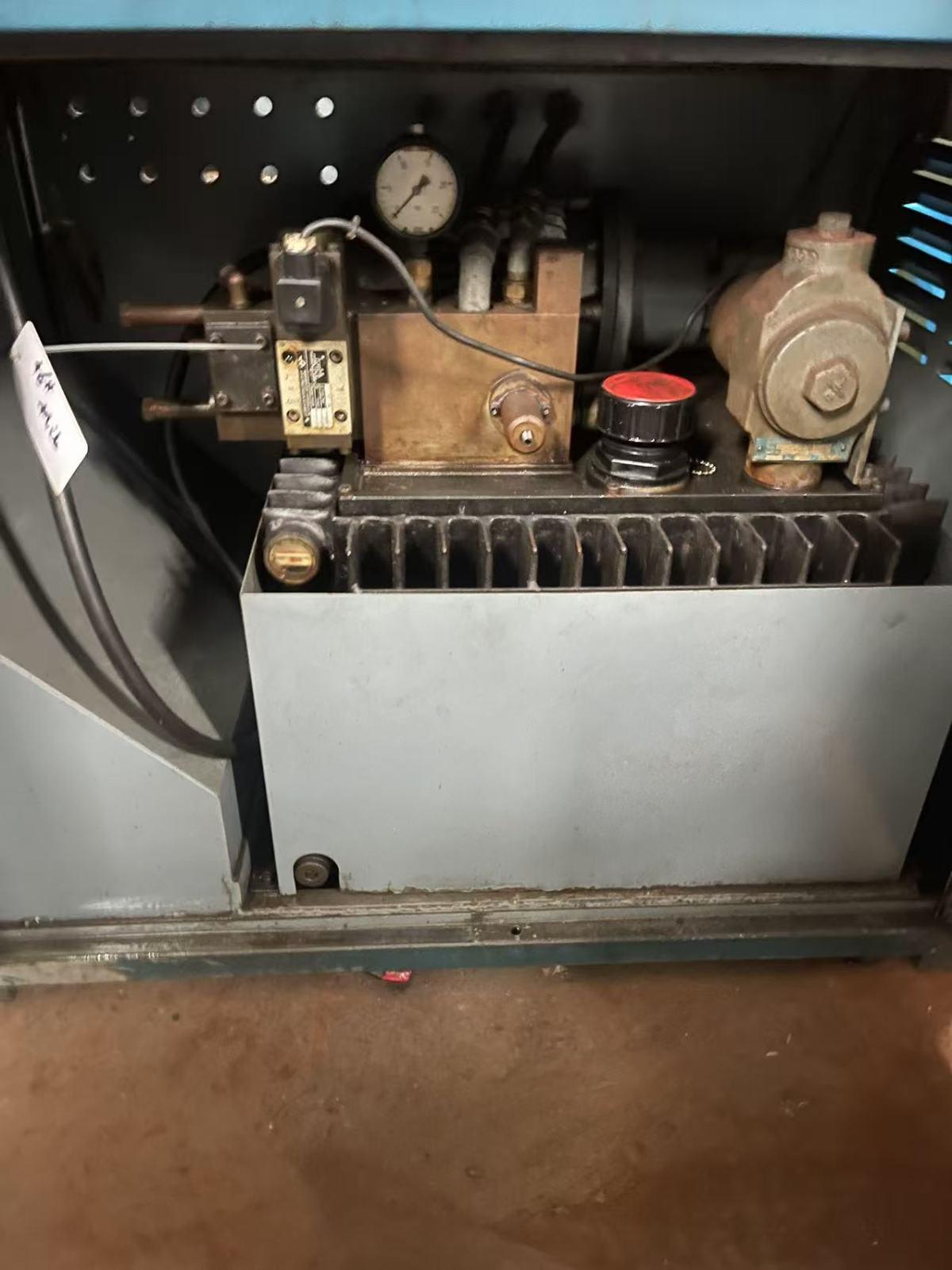

hydraulic lateral travel: 40 mm
Worktable rotation Angle: ±12°
The rotation Angle of the grinding wheel frame: ±90°
Main motor power: 4.7kW
