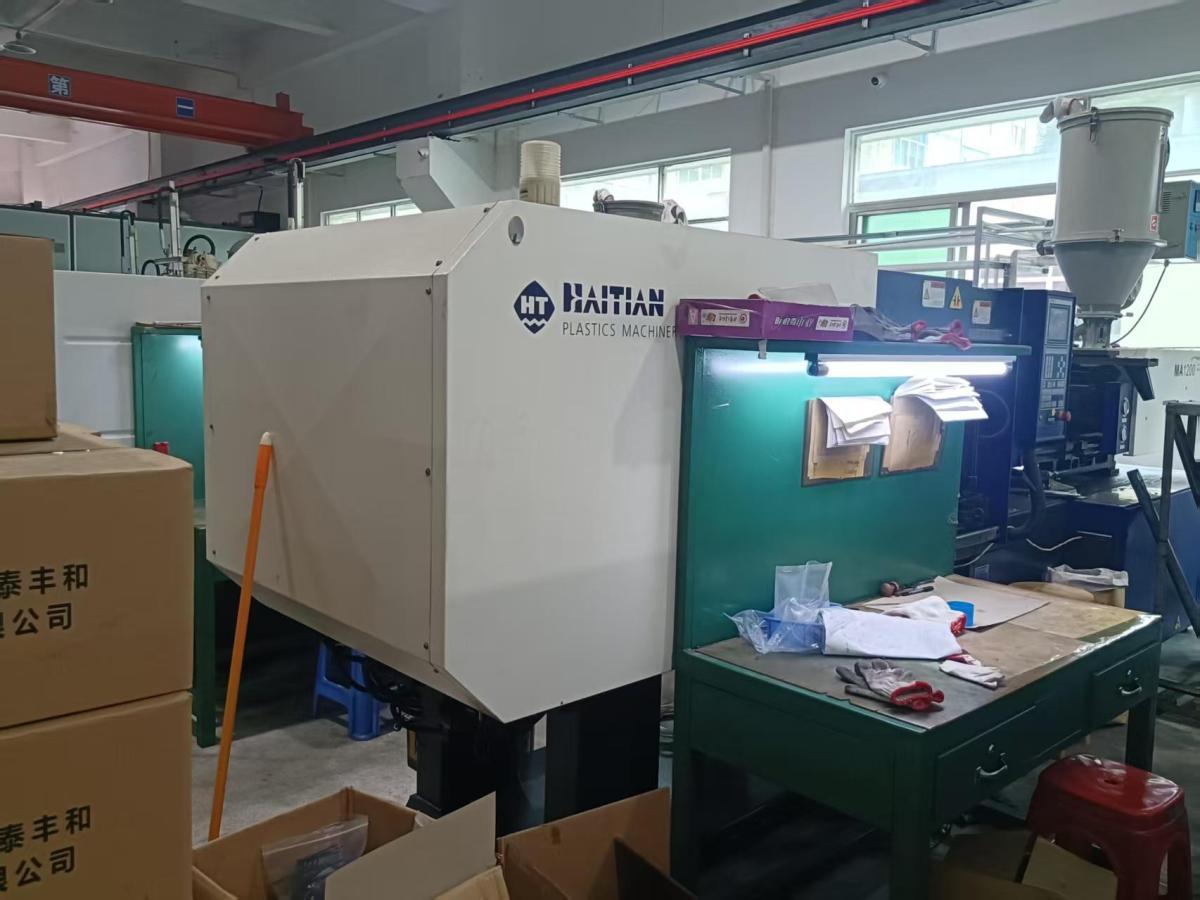

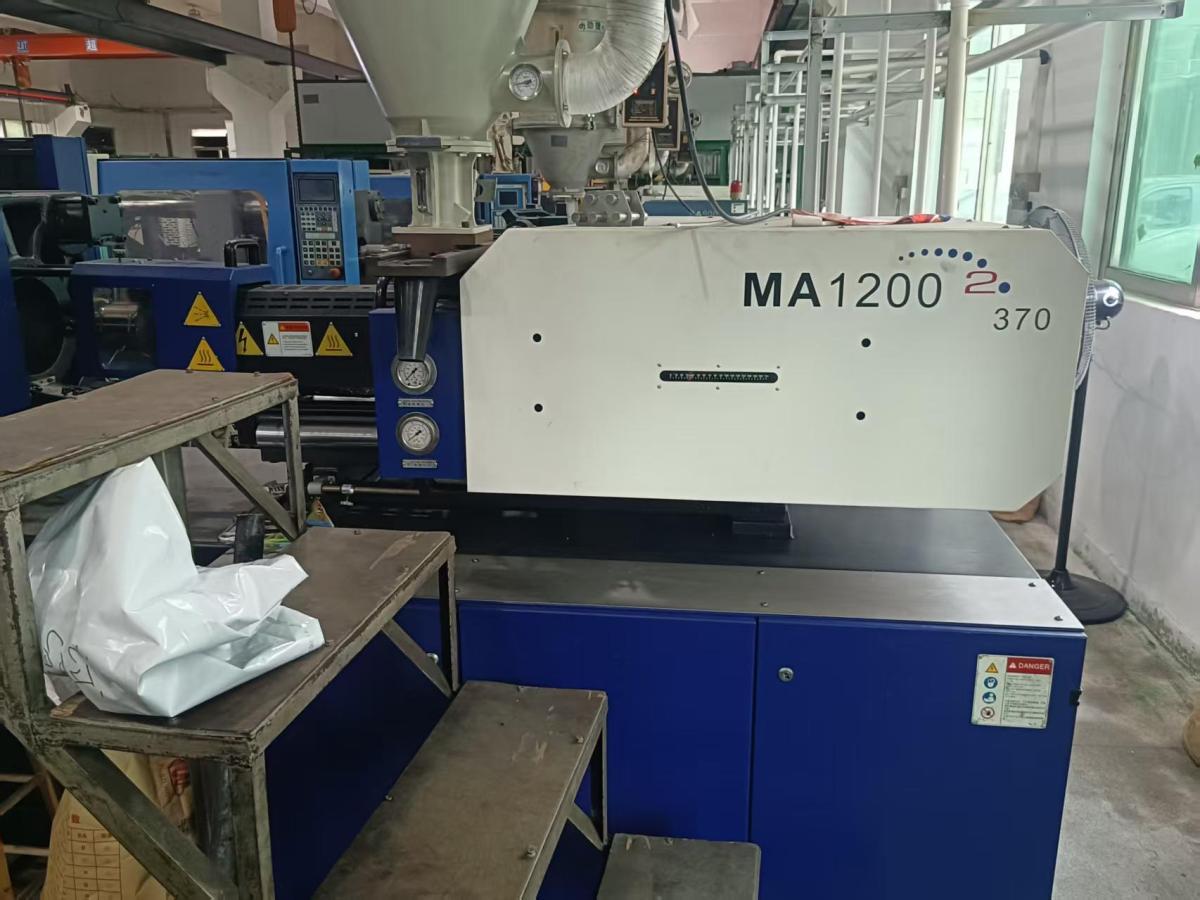

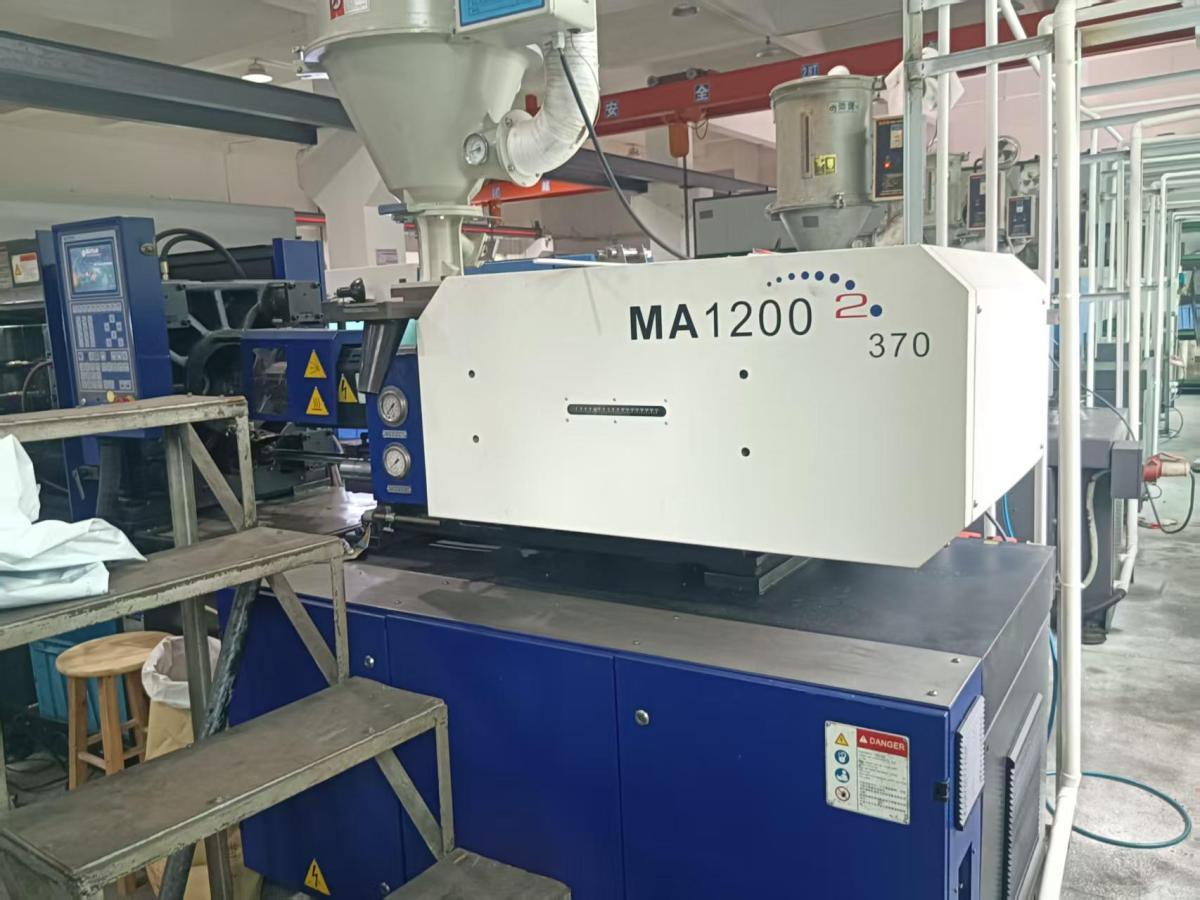

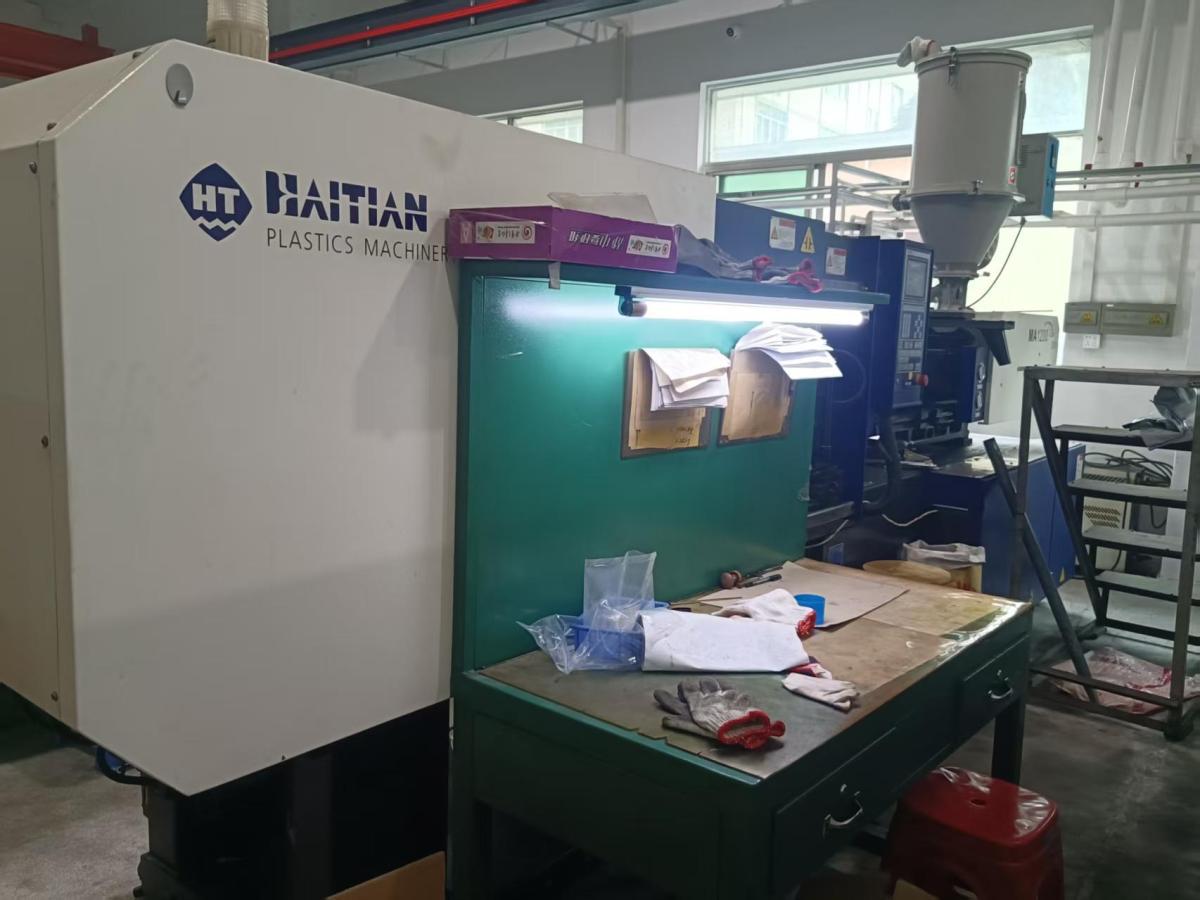

Haitian MA1200II/370 injection molding machine

Injection device
swing diameter: 36mm
Screw length-to-diameter ratio: 23.3 L/D
Theoretical injection volume: 173 cm³
Injection weight: 157 g
Injection rate: 95 g/s
Plasticizing capacity: 13.3g /s
Screw speed: 0-205 rpm
Injection pressure: 2141.37 kgf/cm²

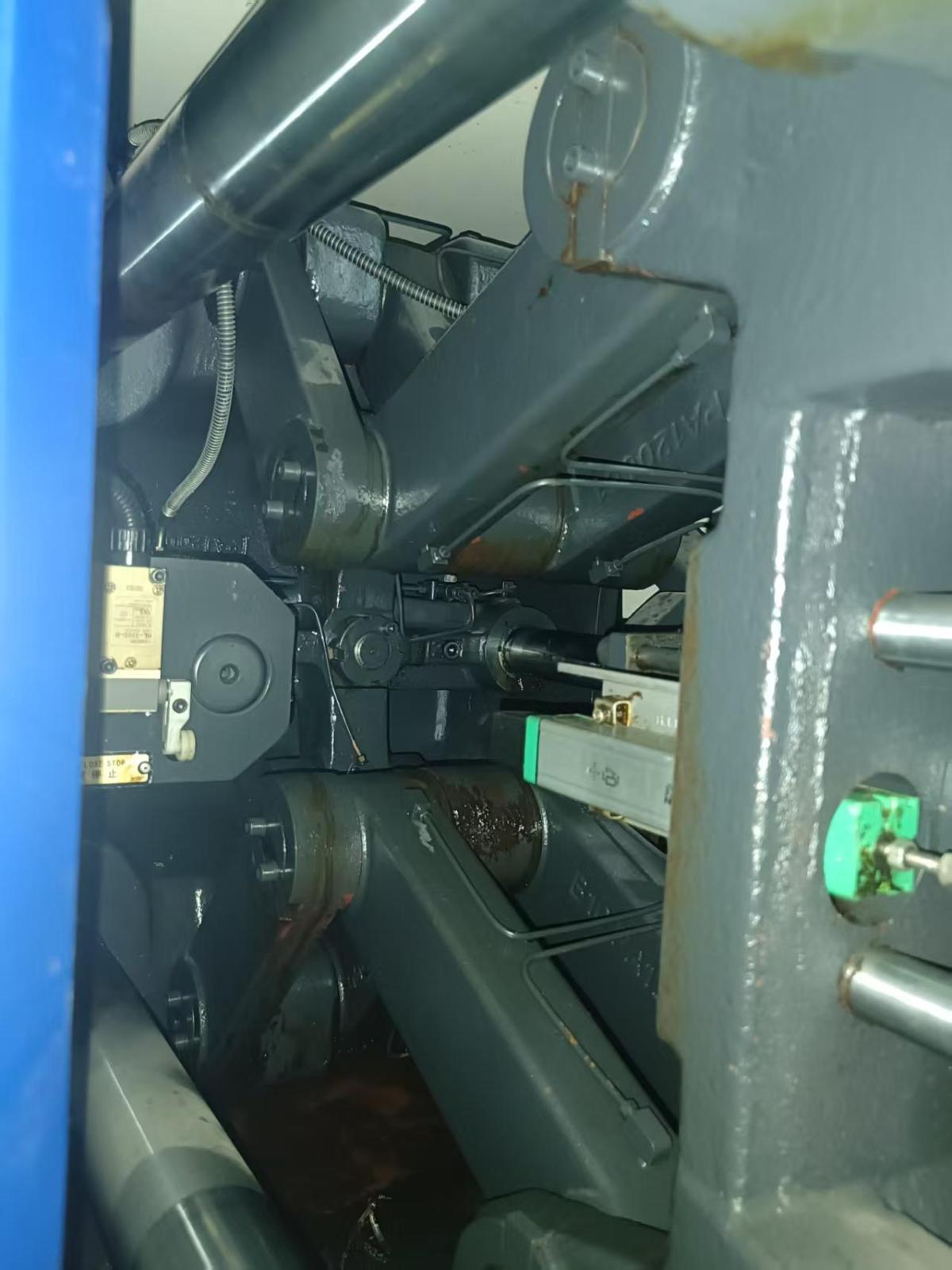

Mold closing device
Clamping force: 120 tons
Mold transfer travel: 360 mm
The inner spacing of the pull rod: 410×410 mm
Maximum mold thickness: 450 mm
Minimum mold thickness: 150mm
Ejection travel: 120mm
Top force: 3.3 tons
Others
Maximum oil pump pressure: 16 MPa
Oil pump motor: 13 kW
Electric heating power: 9.95 kW
External Footage: 4.88 × 1.20 × 2.03m
Machine weight: 4.35 tons
Hopper capacity: 25 kg
Fuel Water tank capacity: 185 liters
