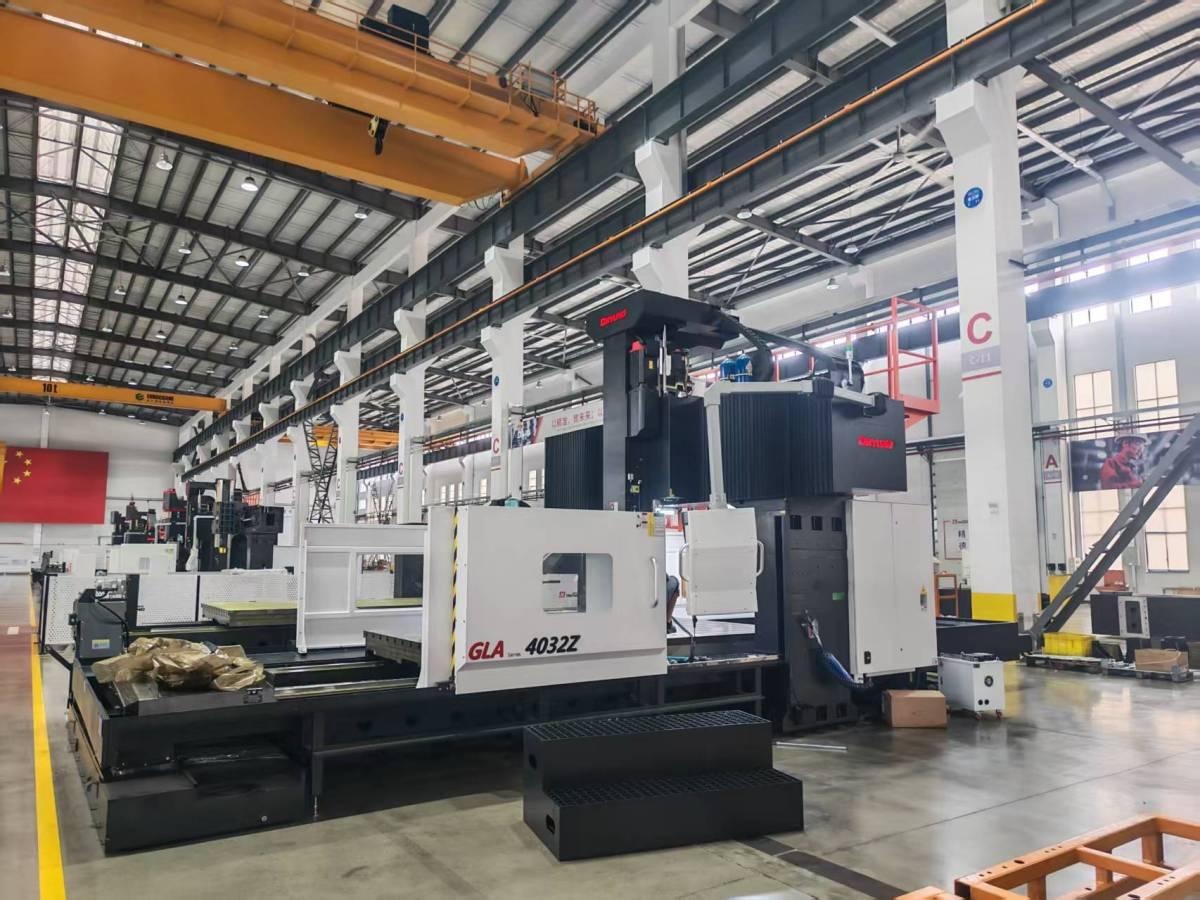

Deyung GLA-4032Z Gantry machining centre

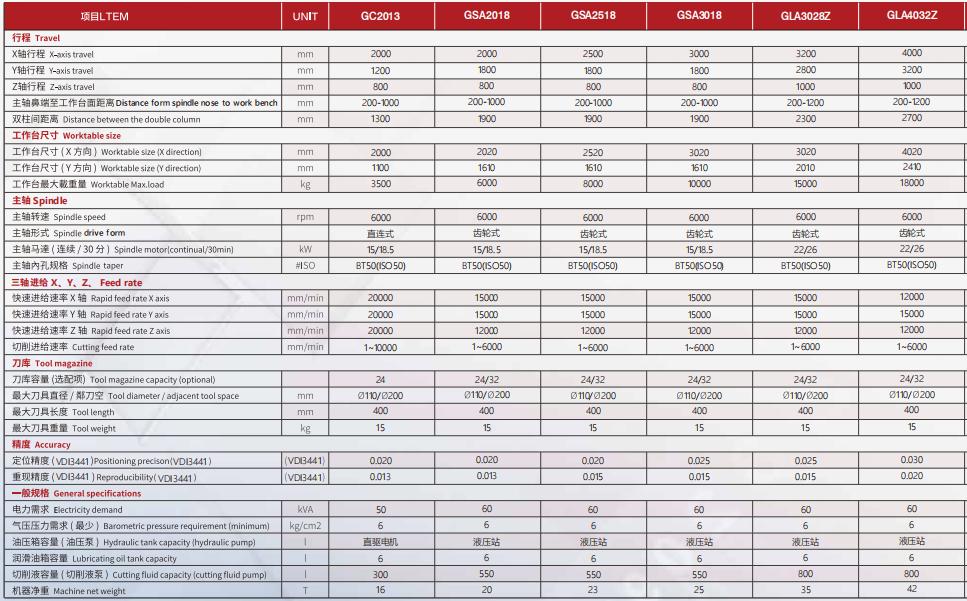

Three-axis travel: 4000 × 3200 × 1000 mm
Distance from spindle nose to worktable surface: 200–1200 mm
Double-column spacing: 2700 mm
Worktable size: 4020 × 2410 mm
Maximum load: 18,000 kg
Spindle speed: 6000 rpm
Spindle type: Gear type
Spindle motor (Continuous / 30 min): 22 / 26 kW
Spindle taper: BT50 (ISO50)
Rapid feed rate X/Y/Z: 1200 / 15000 / 12000 mm/min
Cutting feed rate: 1 to 6000 mm/min
Magazine capacity (Optional): 24 / 30 T
Maximum tool diameter / Adjacent tool clearance: Ø110 / Ø200 mm
Maximum tool length: 400 mm
Maximum tool weight: 15 kg
Positioning accuracy: 0.030 mm
Repeatability: 0.020 mm
Electricity demand: 60 kVA
Air pressure: 6 kg/cm²
Oil system: Hydraulic station
Lubricating oil: 6 L
Cutting fluid: 800 L
Machine weight: 42 Tons

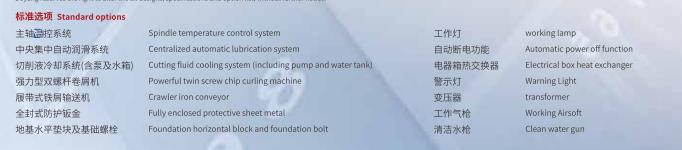

Standard Option：
Spindle temperature control system
Central automatic lubrication system
Cutting fluid cooling system (including pump and coolant tank)
Powerful double-screw chip conveyor
Hinge-type chip conveyor
Fully enclosed protective cover
Foundation leveling pads and foundation bolts
Work light
Automatic power-off function
Electrical cabinet heat exchanger
Warning light
Transformer
Air gun
Water gun
Optional Items：
Upgrade gear-type 6000 rpm full-torque spindle
Upgrade straight-drive spindle 8000 / 10000 rpm
Upgrade built-in 20000 rpm high-speed spindle
Upgrade built-in 8000 rpm electric spindle
Z-axis extended structure (1 m / 1.2 m / 1.4 m)
Column height increase: +200 / +300 mm
Through-spindle coolant (Gear box optional)
Fully enclosed sheet metal cover
3-axis linear scales
External encoder
Electrical cabinet air conditioner
24-disc tool magazine
32-chain belt tool magazine
