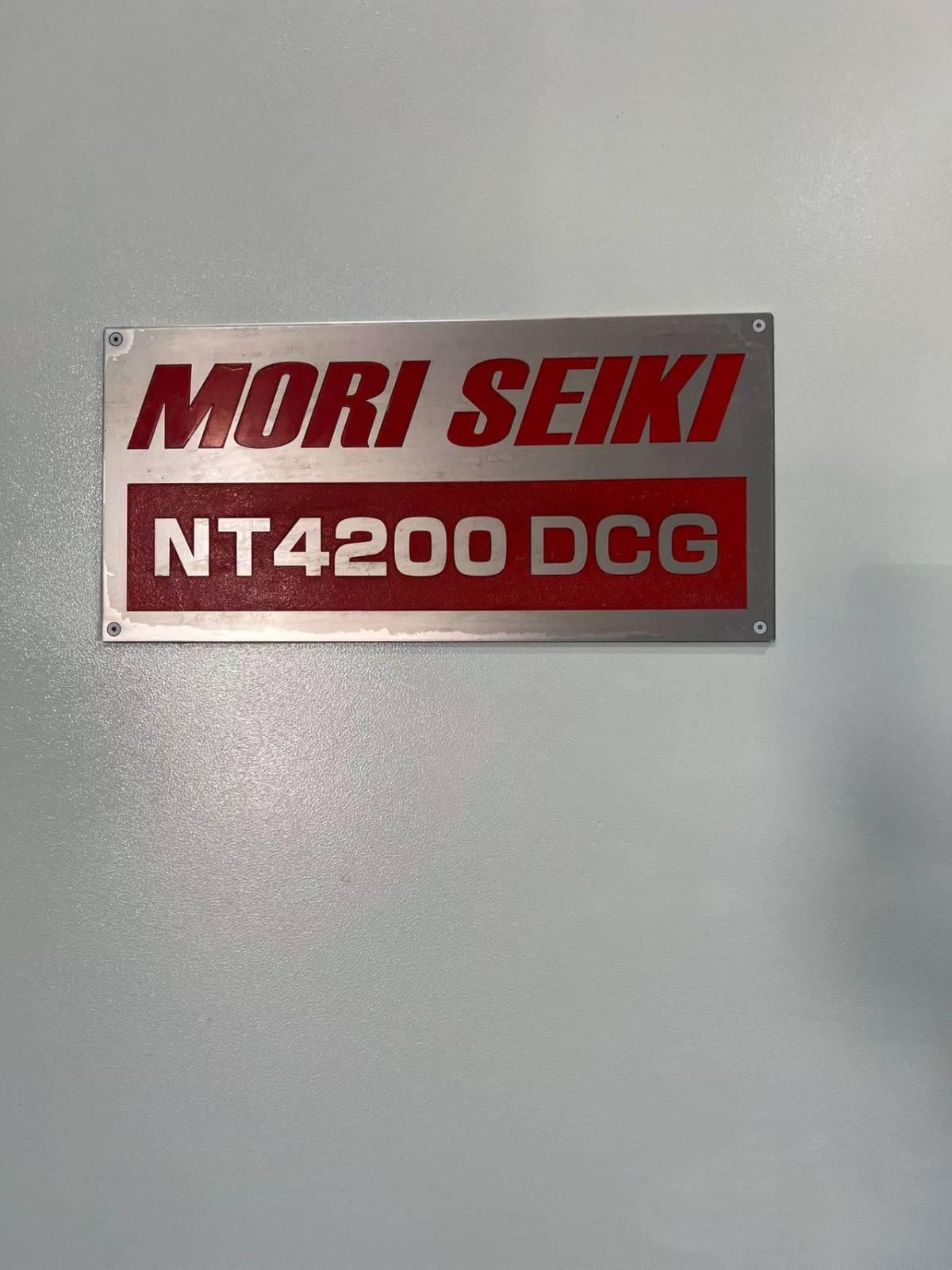

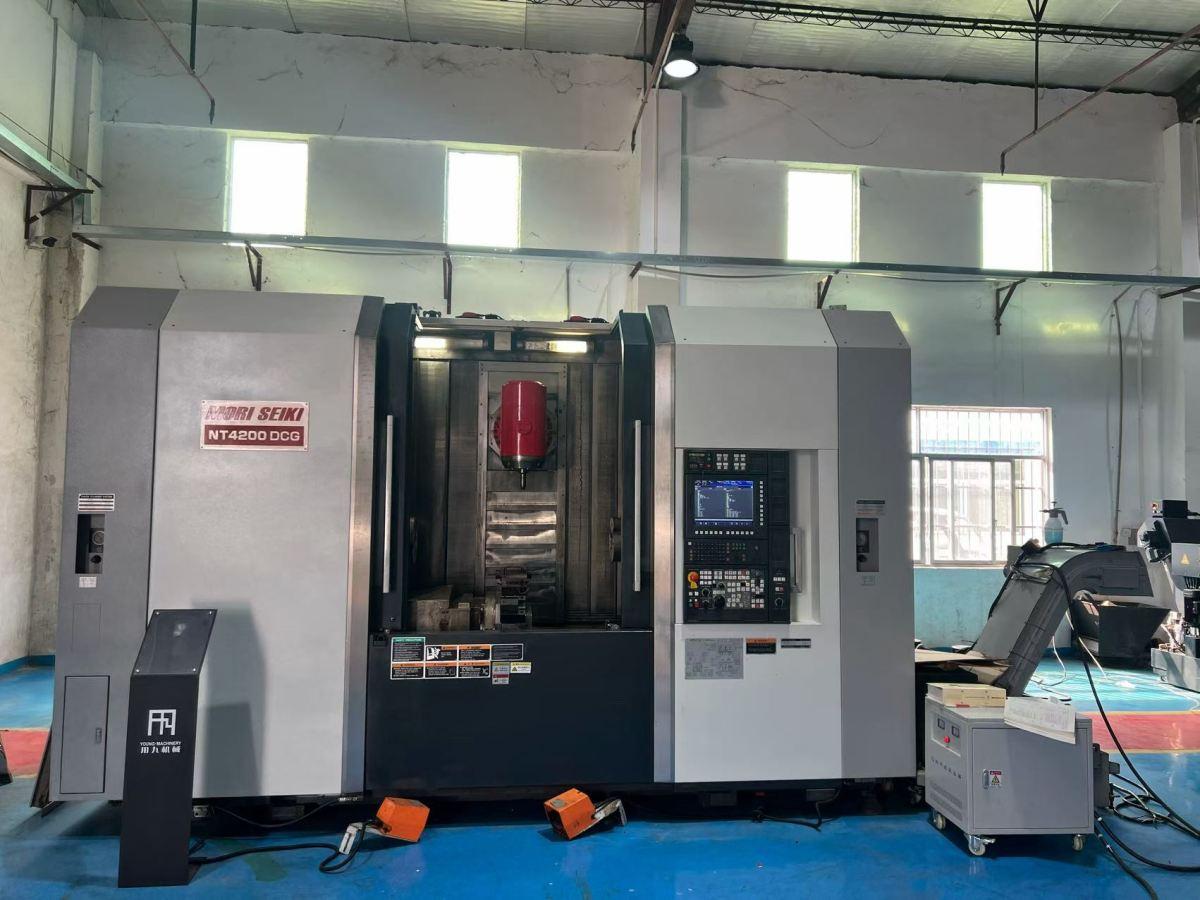

Mori Seiki NT4200 DCG Turn Mill Machining Centre

Maximum machining diameter: approximately 657.9 mm
Maximum swing diameter: approximately 728.0 mm
Maximum machining length: approximately 1,079.5 mm
Maximum swing diameter with Y-axis: approximately 500.4 mm
Maximum bar capacity (main spindle): approximately 66.7 mm
Maximum bar capacity (sub spindle): approximately 64.8 mm
Maximum load on main/sub spindle: approximately 599.7 kg
Maximum distance between main spindle and sub spindle: approximately 1,333.5 mm
X-axis travel: approximately 749.3 mm
Z-axis travel: approximately 1,120.1 mm
Y-axis travel: approximately 210.8 mm
W-axis travel: approximately 1,050.0 mm
C-axis: 360° (resolution 0.001°)
B-axis swing angle: ±120°
Rapid traverse rate:
X-axis: approximately 36.0 m/min
Z-axis: approximately 36.0 m/min
Y-axis: approximately 34.3 m/min
B-axis: approximately 1181 IPM
Spindle bore diameter: approximately 75.9 mm
Sub spindle bore diameter: approximately 75.9 mm
Spindle nose: A2-6
Sub spindle nose: A2-6
Spindle speed: 35–5000 rpm
Sub spindle speed: 35–5000 rpm
Spindle power: 22 kW
Sub spindle power: 22 kW
