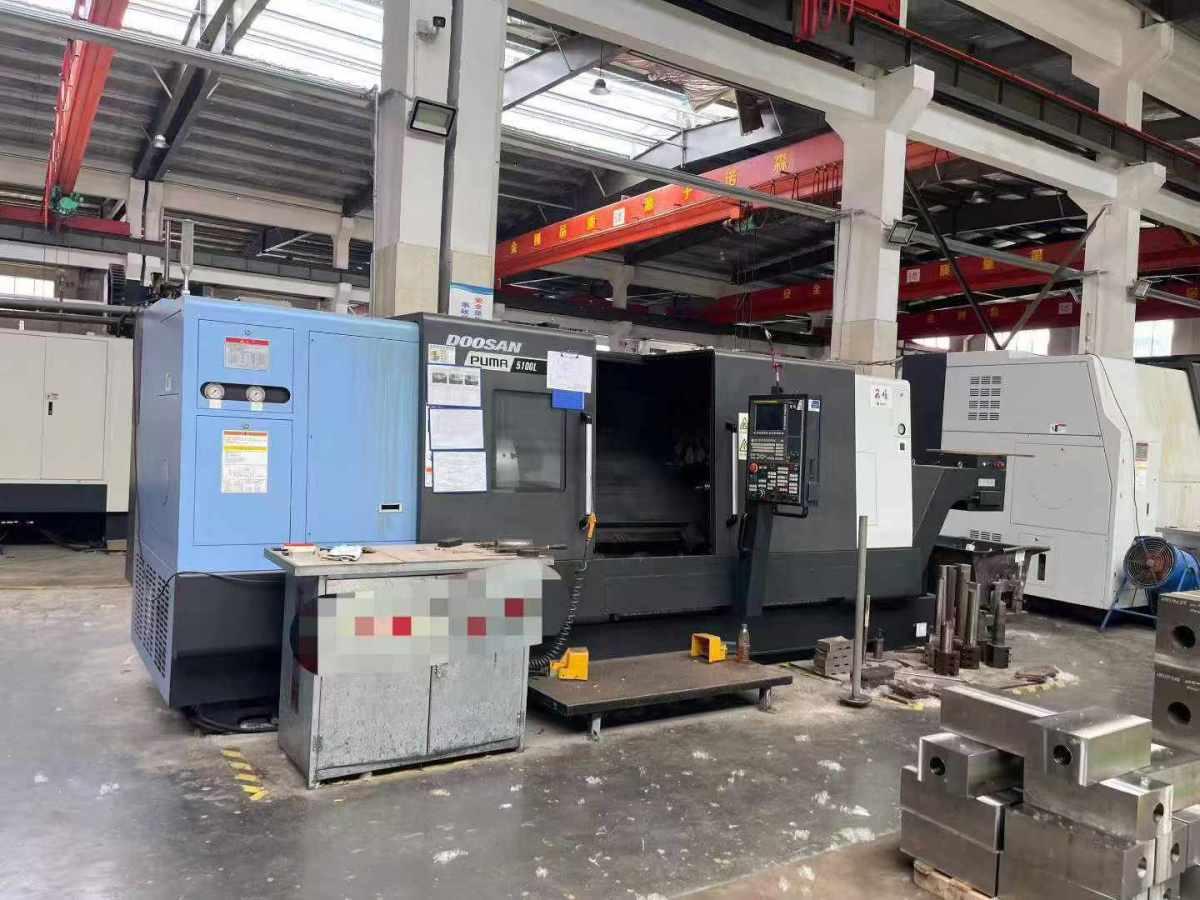

DOOSAN PUMA 5100LC CNC turning lathe

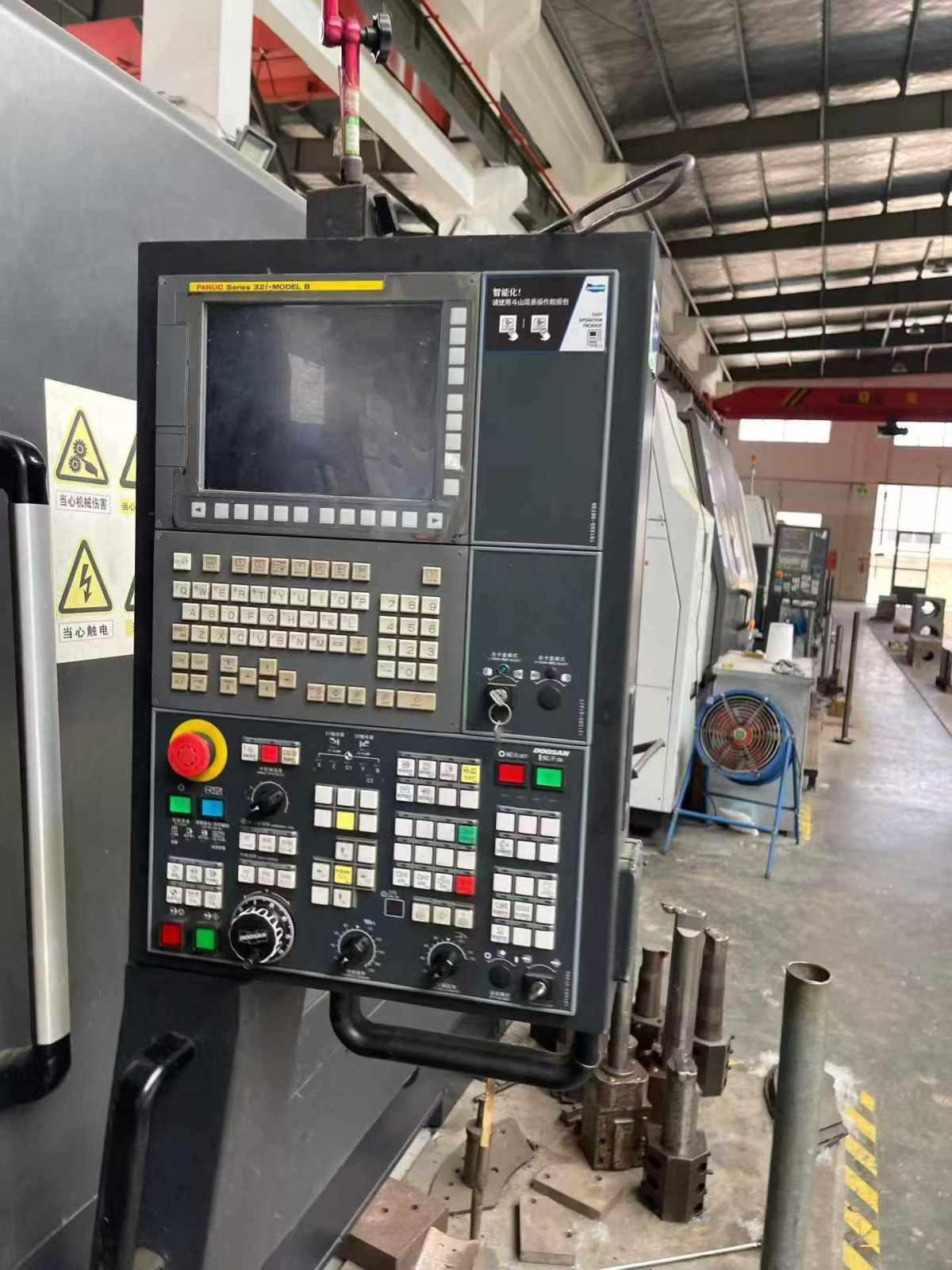

CNC System: FANUC
Maximum machining diameter: 650 mm
Maximum machining length: 2042 mm
Rotary diameter: 650 mm
Spindle speed: 1000 rpm
X-axis travel: 362 mm
Z-axis travel: 2155 mm
X-axis rapid traverse speed: 16 m/min
Z-axis rapid traverse speed: 20 m/min
Maximum spindle speed: 1000 rpm
Spindle maximum power: 45 kW (60 hp)
Maximum spindle torque: 4463 N·m
Spindle bore diameter: 274 mm

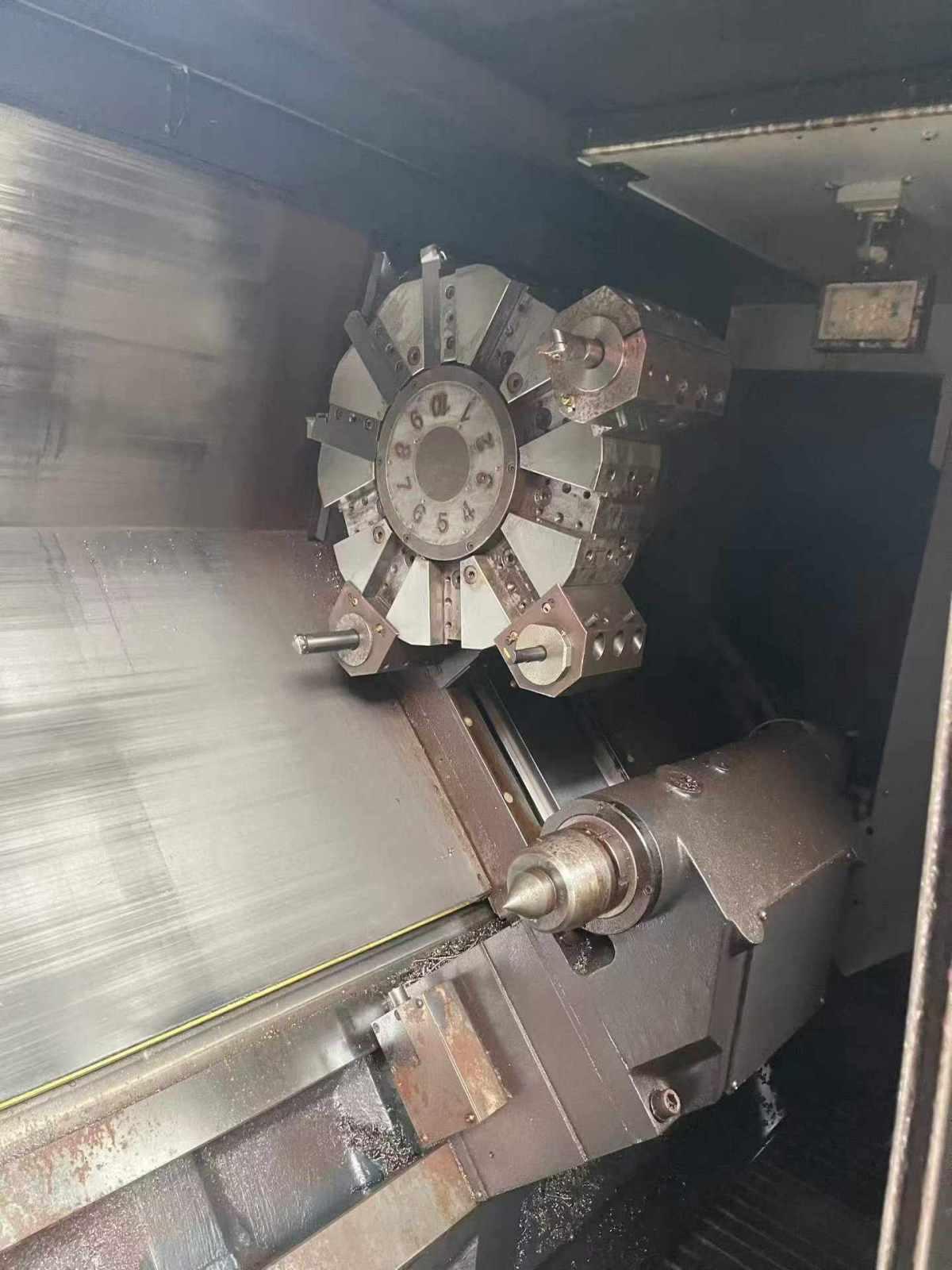

Turret stations: 12
