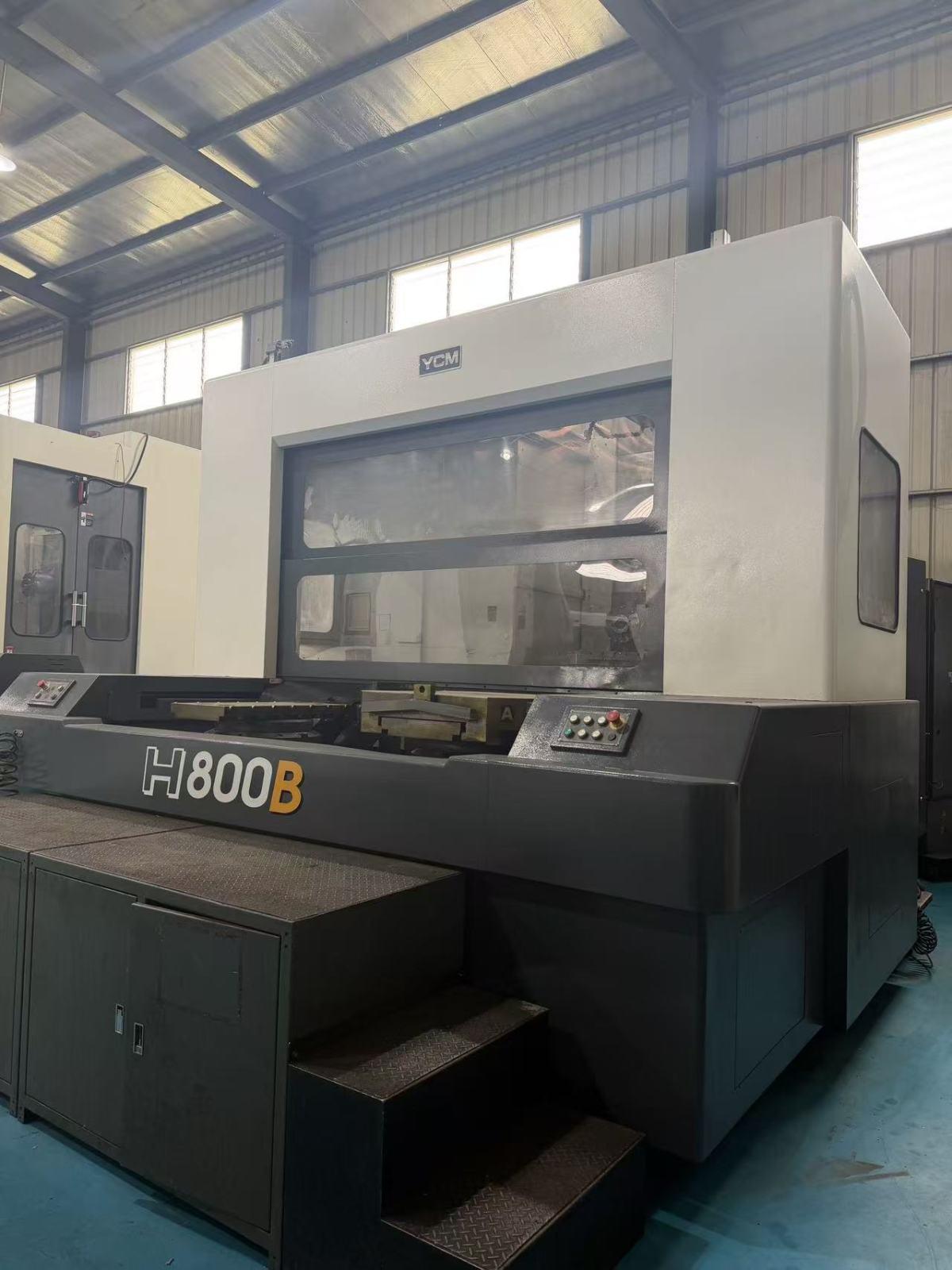

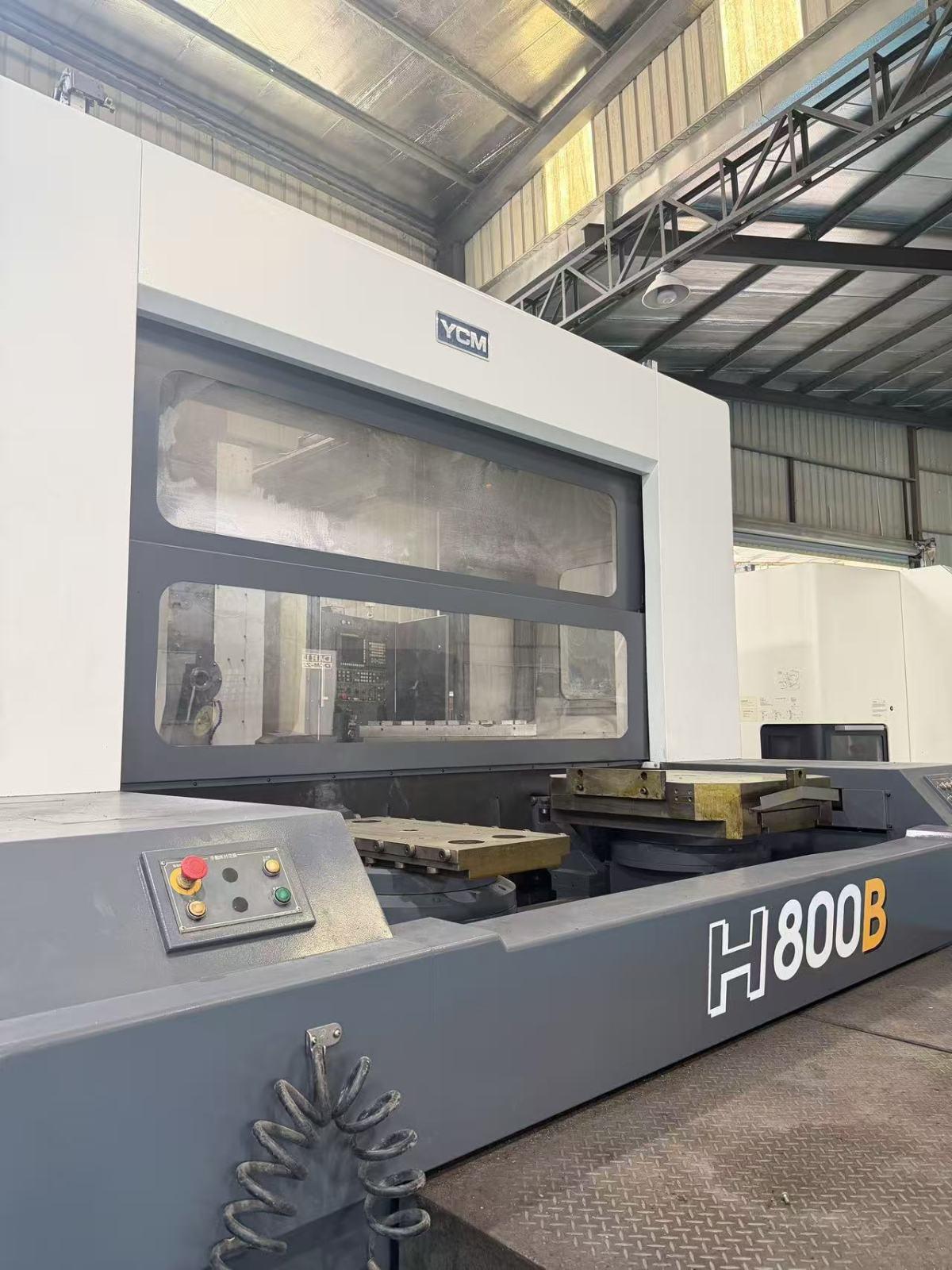

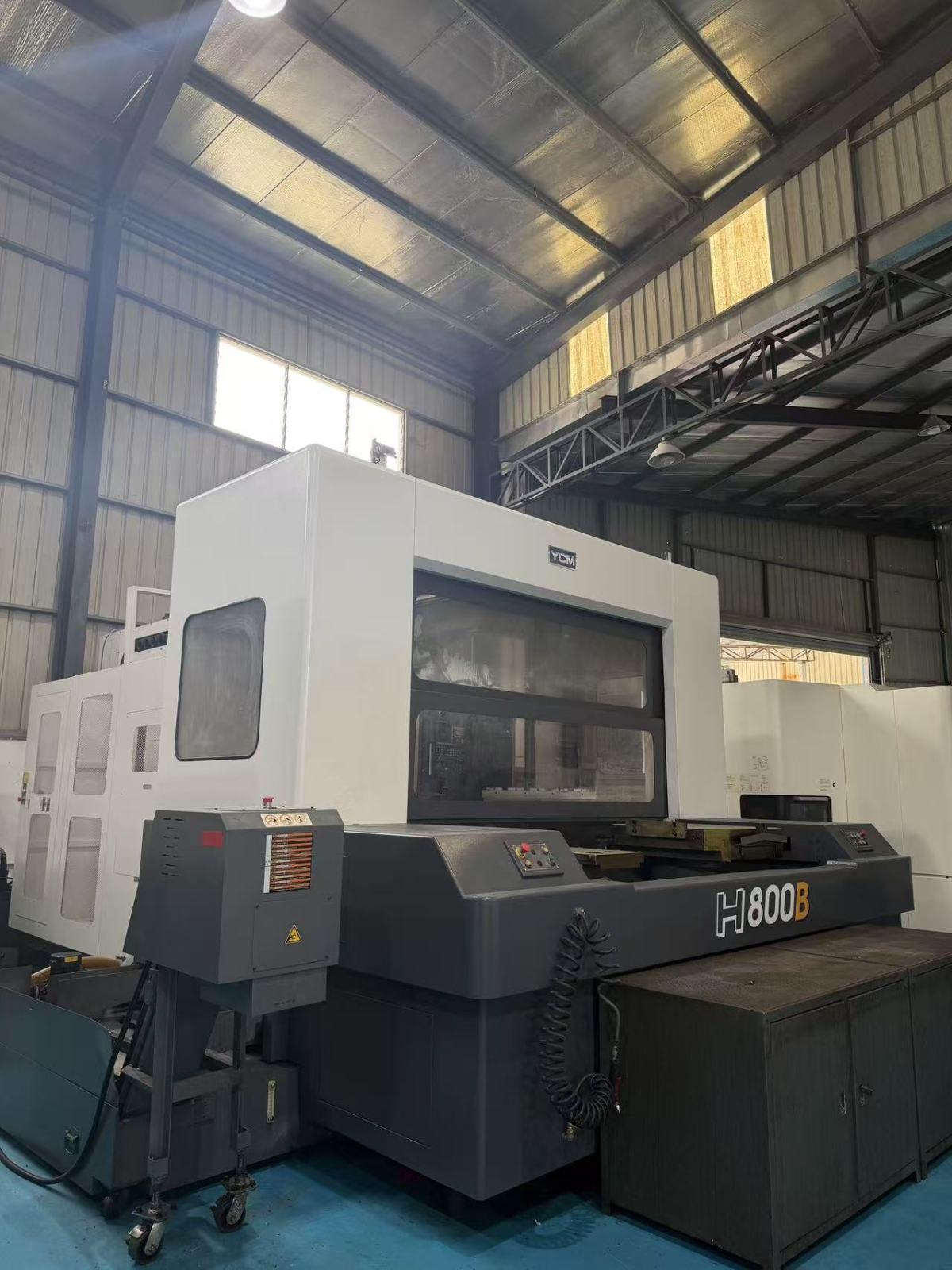

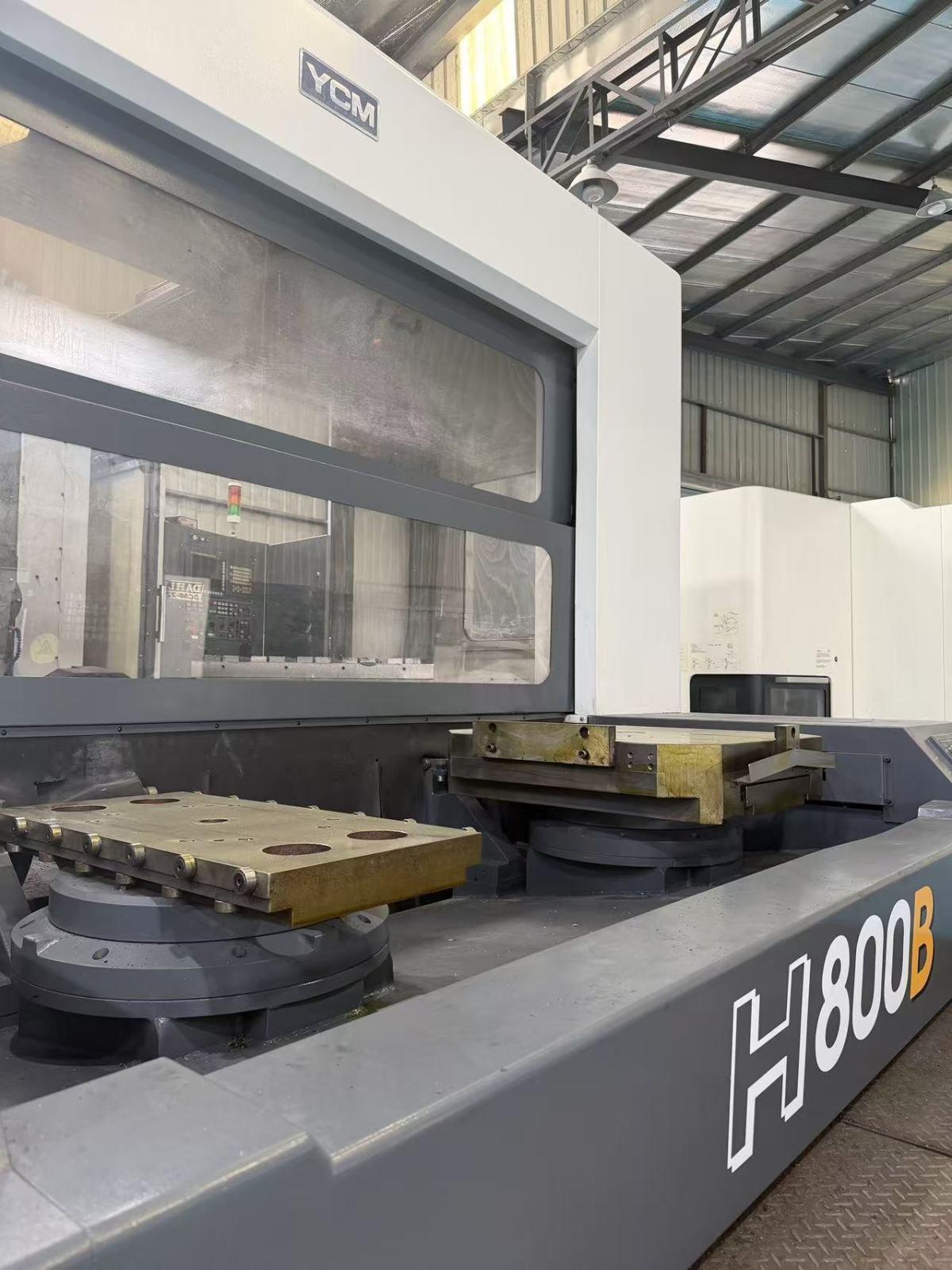

YCM H800B Horizontal Machining centre
[Product Information]:
- Inventory number：812159
- Brand：YCM
- Model：H800B
- Origin：Taiwan, China
- Location：China
- Year：2013
- Create Time：2026-05-30
Specifications:
Three-axis travel: 1300 × 1050 × 1150 mm
Spindle speed: 4500 rpm
Spindle power: 22 kW
Spindle taper: BT50
Distance from spindle center to worktable surface: 100–1150 mm
Distance from spindle nose to worktable center: 250–1400 mm
Worktable size: 800 × 800 mm
Maximum load of worktable: 2000 kg
Maximum workpiece size: 1150 × 1200 mm
Worktable indexing: 1° (Optional 5° / 0.001°)
Tool magazine capacity: 40 tools (60/80 optional)
Maximum tool weight: 20 kg
Maximum tool size: Ø120 × 400 mm
Tool changing time: 50 sec
Rapid feed rate: 15 / 12 / 12 m/min
Cutting feed rate: 1–5000 mm/min
Transformer capacity: 62 / 65 kVA
Machine weight: 26,560 kg
