KEDA KDG4800 other

Nominal pressing force: 48,000 kN
CNC System pressure: 16MPa
Theoretical suppression frequency: 15spm
Clear distance: 1750mm
Maximum blank holder force: 400kN
Maximum working travel: 300mm
Maximum impact force: 1300kN
Maximum stretching travel of the workpiece: 120mm
Feeding force: 100kN
Maximum feeding travel: 135mm
machine tool weight: 120,000 kg
Total power: 198kW

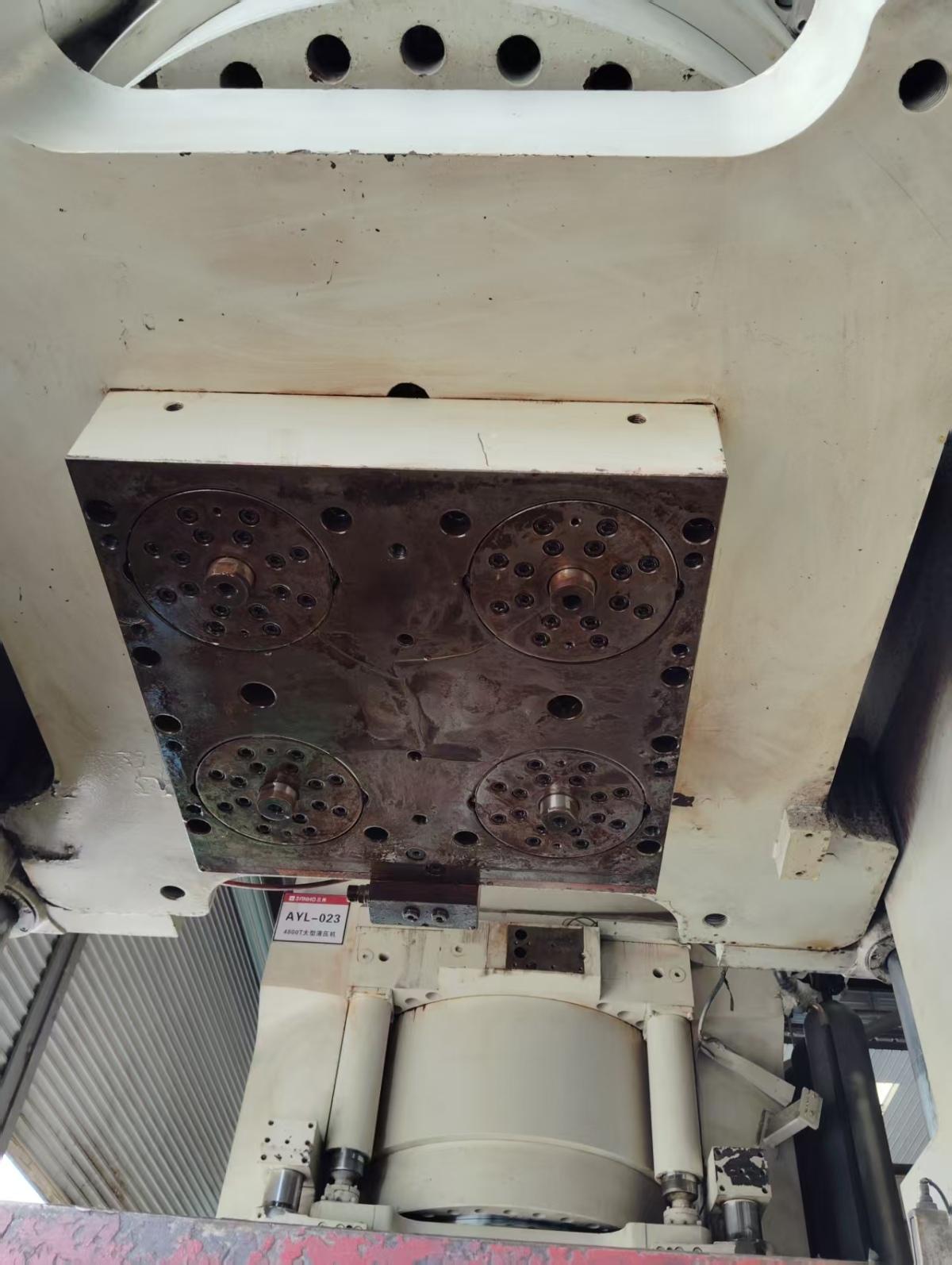

Worktable size: approximately 1600×1200mm
Distance between centers between the columns: approximately 2200×1800mm
