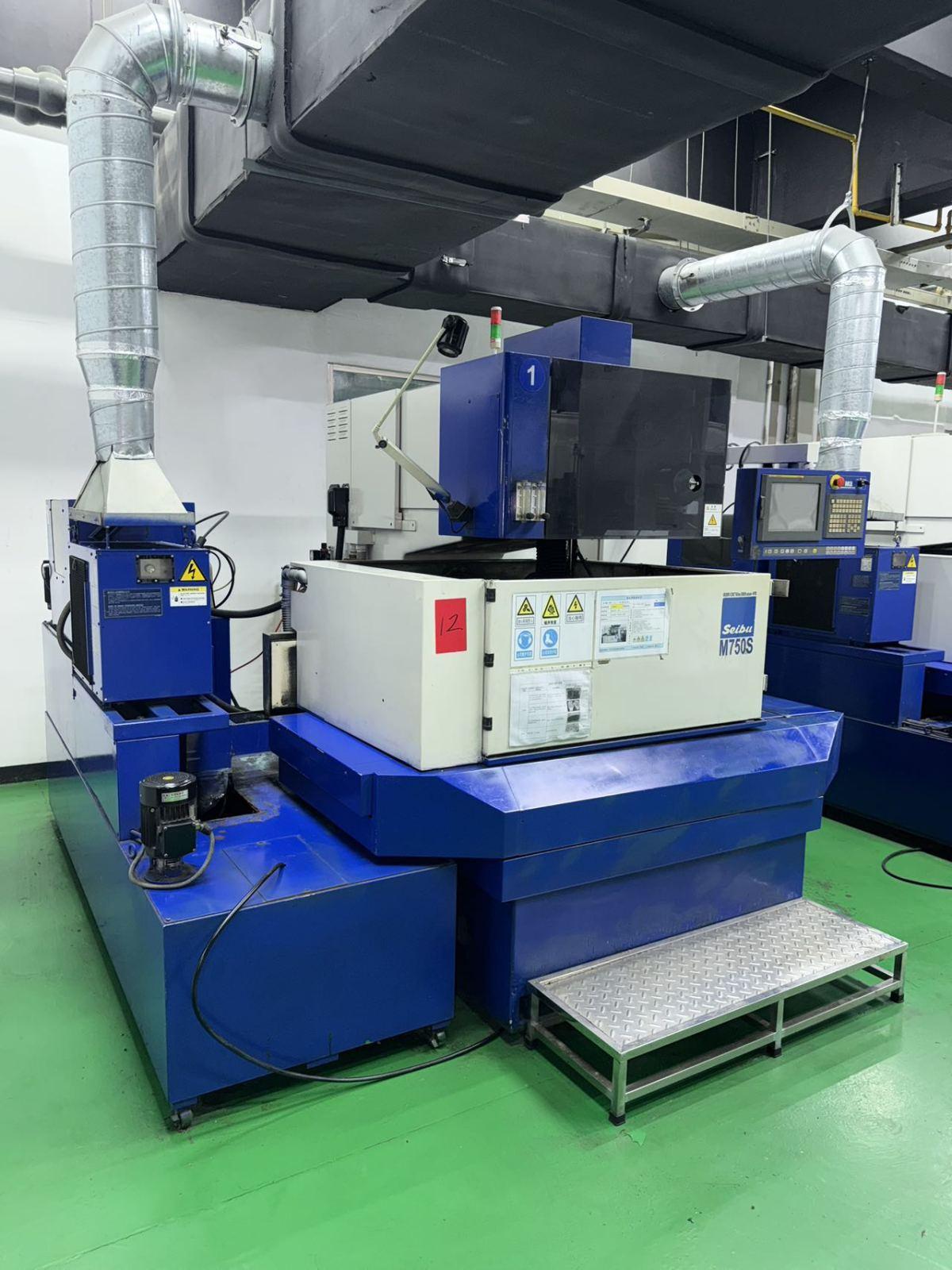

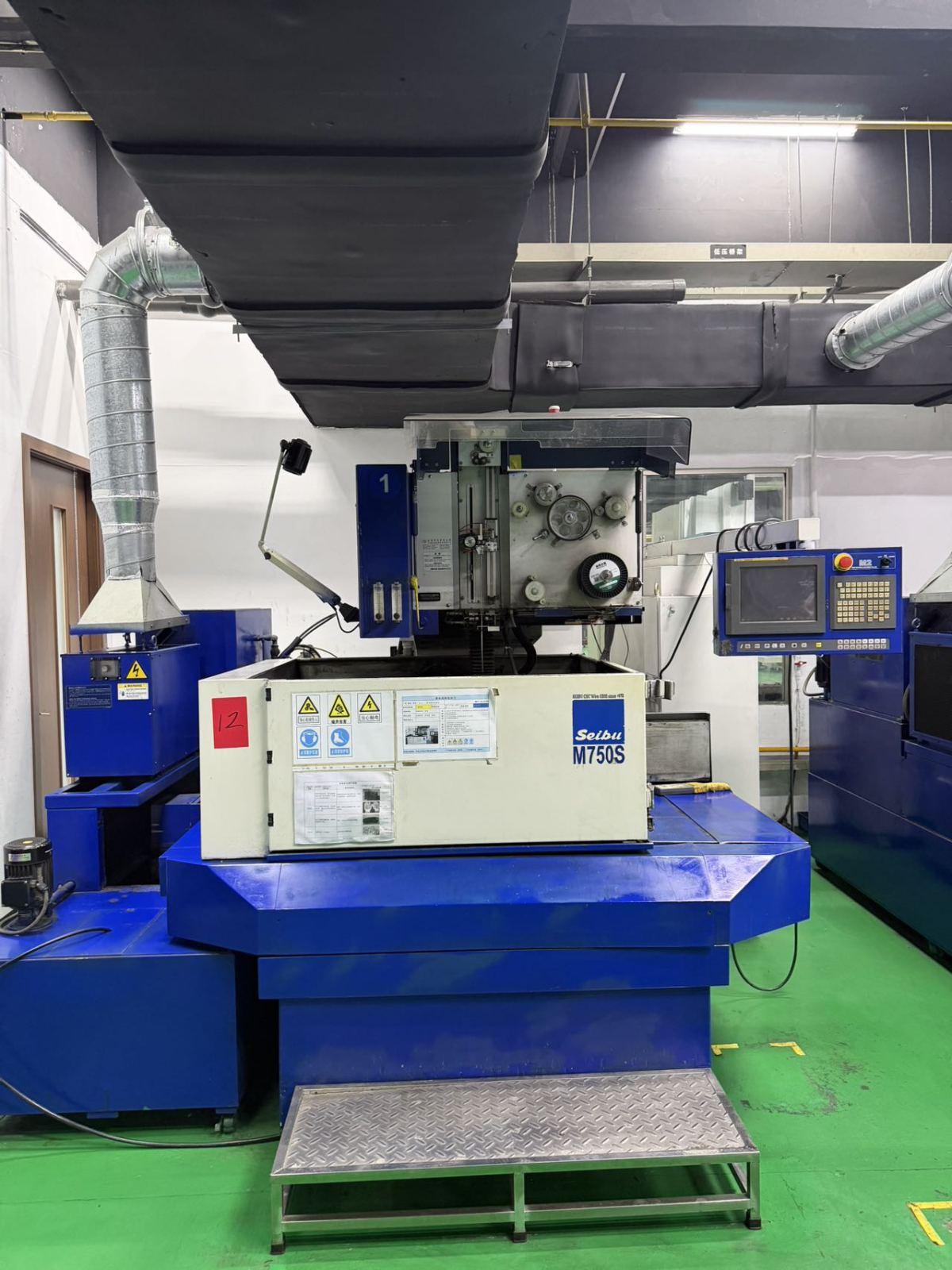

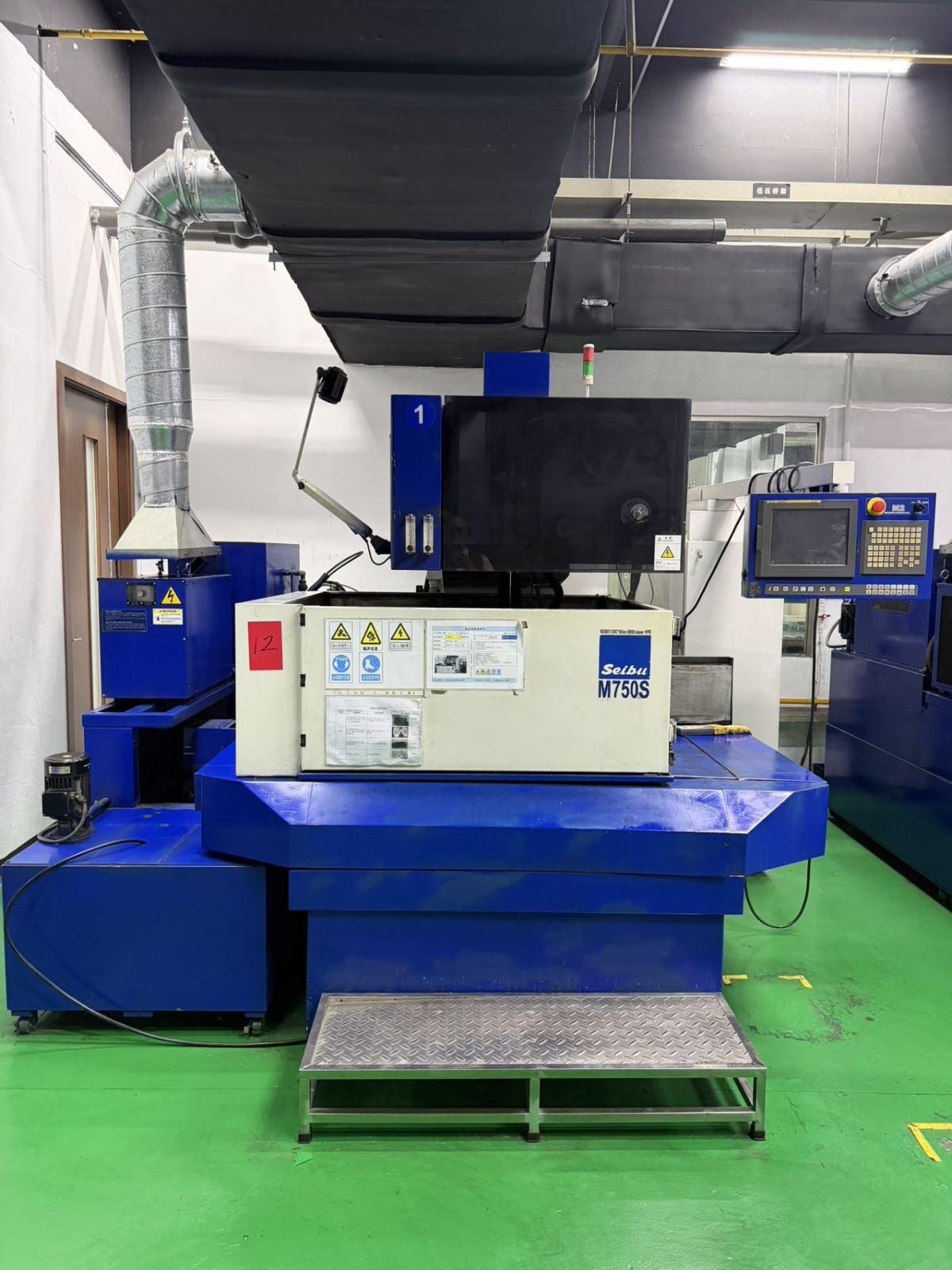

Seibu M750S Wire cutting machine

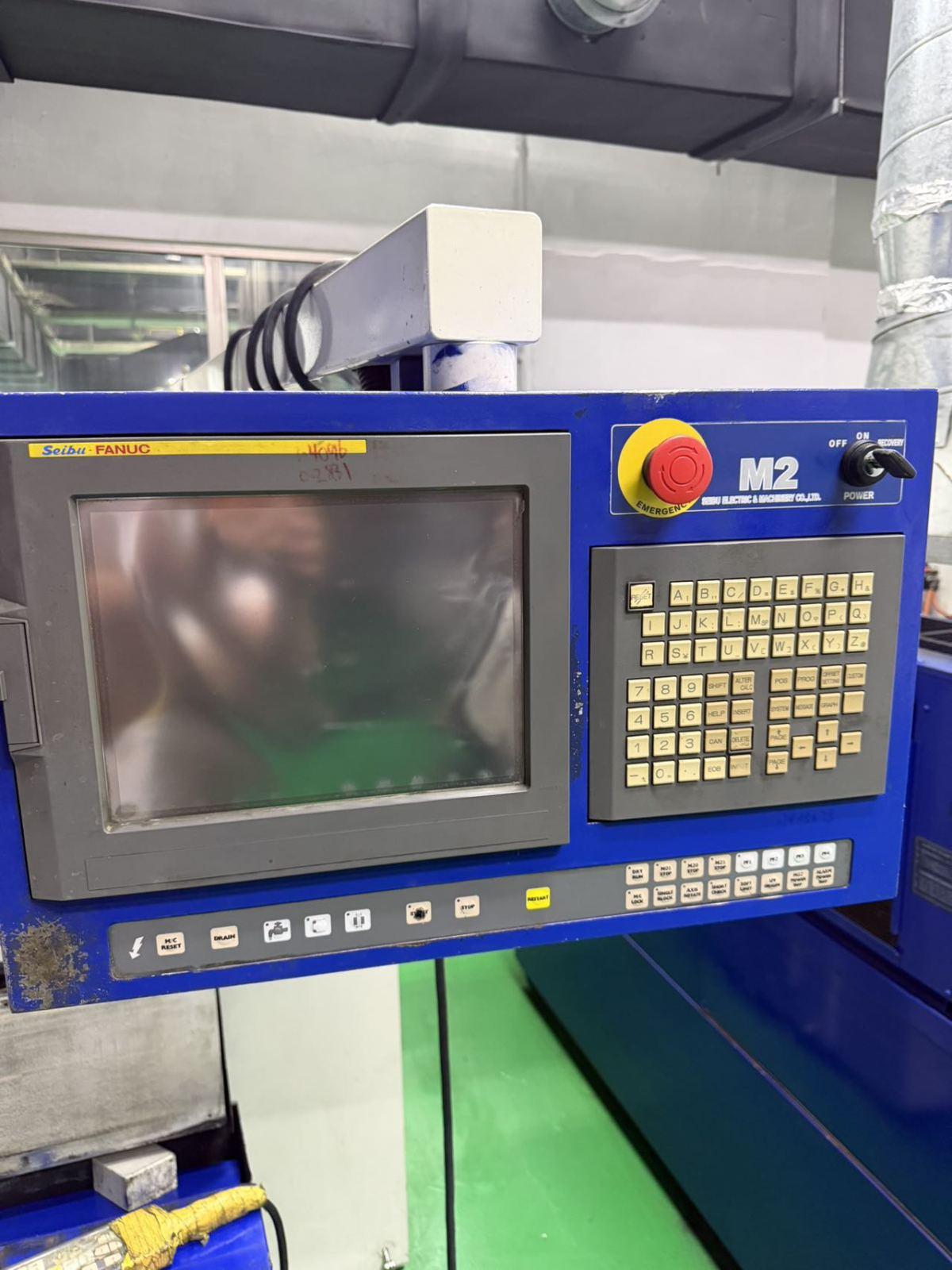

CNC System: FANUC M2/M3
Three-axis travel: 750 × 500 × 310 mm
Maximum machining height: 300 mm
U×V-axis travel: ±60 × ±60 mm
Maximum machining taper: ±30° (supports slope/taper machining)
Machining capacity:
Maximum workpiece size: 950 × 700 × 300 mm
Maximum workpiece weight: 1000 kg
Machine weight: 5000 kg
Configuration:
Standard equipped with automatic wire threading device (AWF-3M)
High-precision servo drive system
