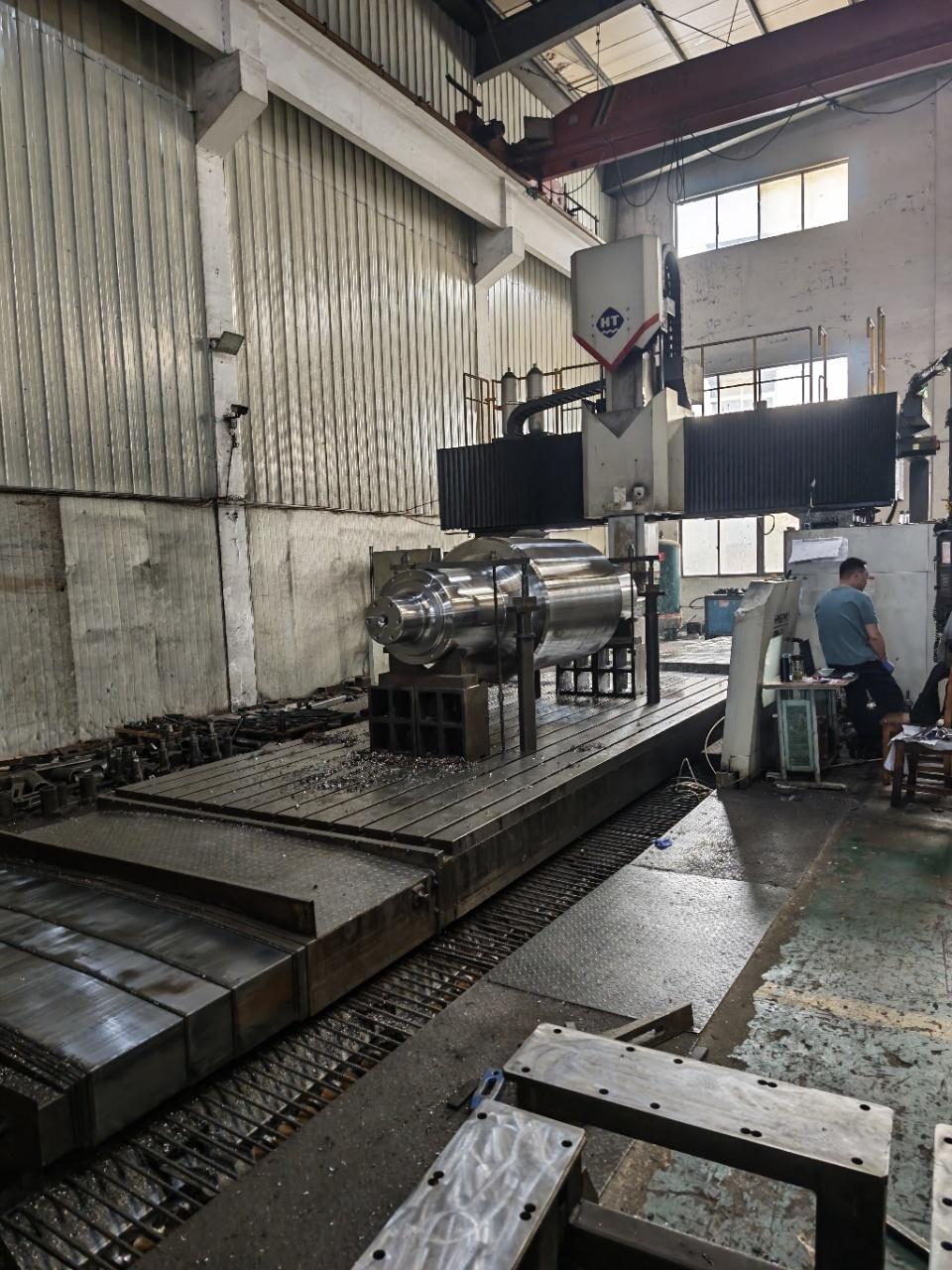

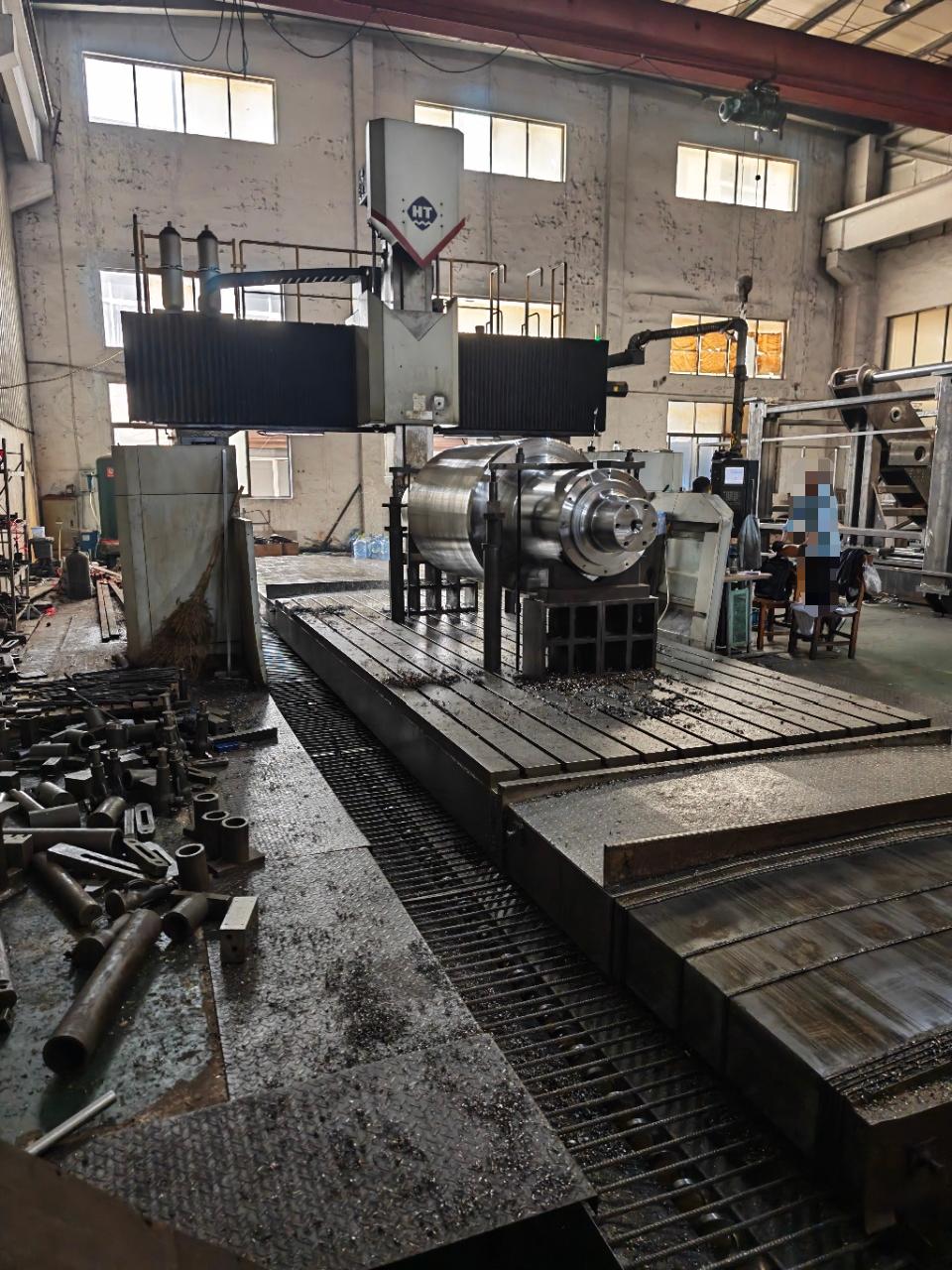

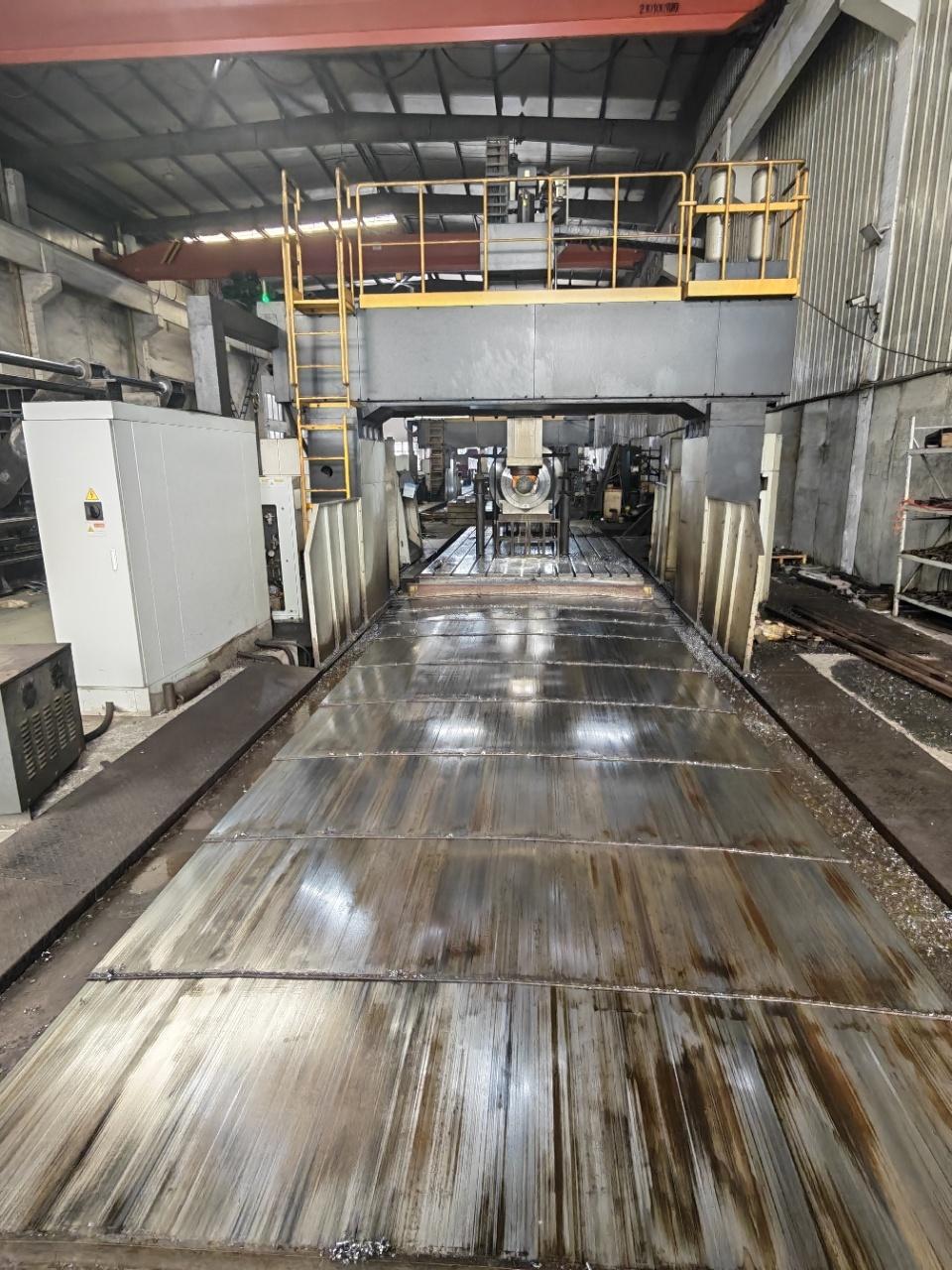

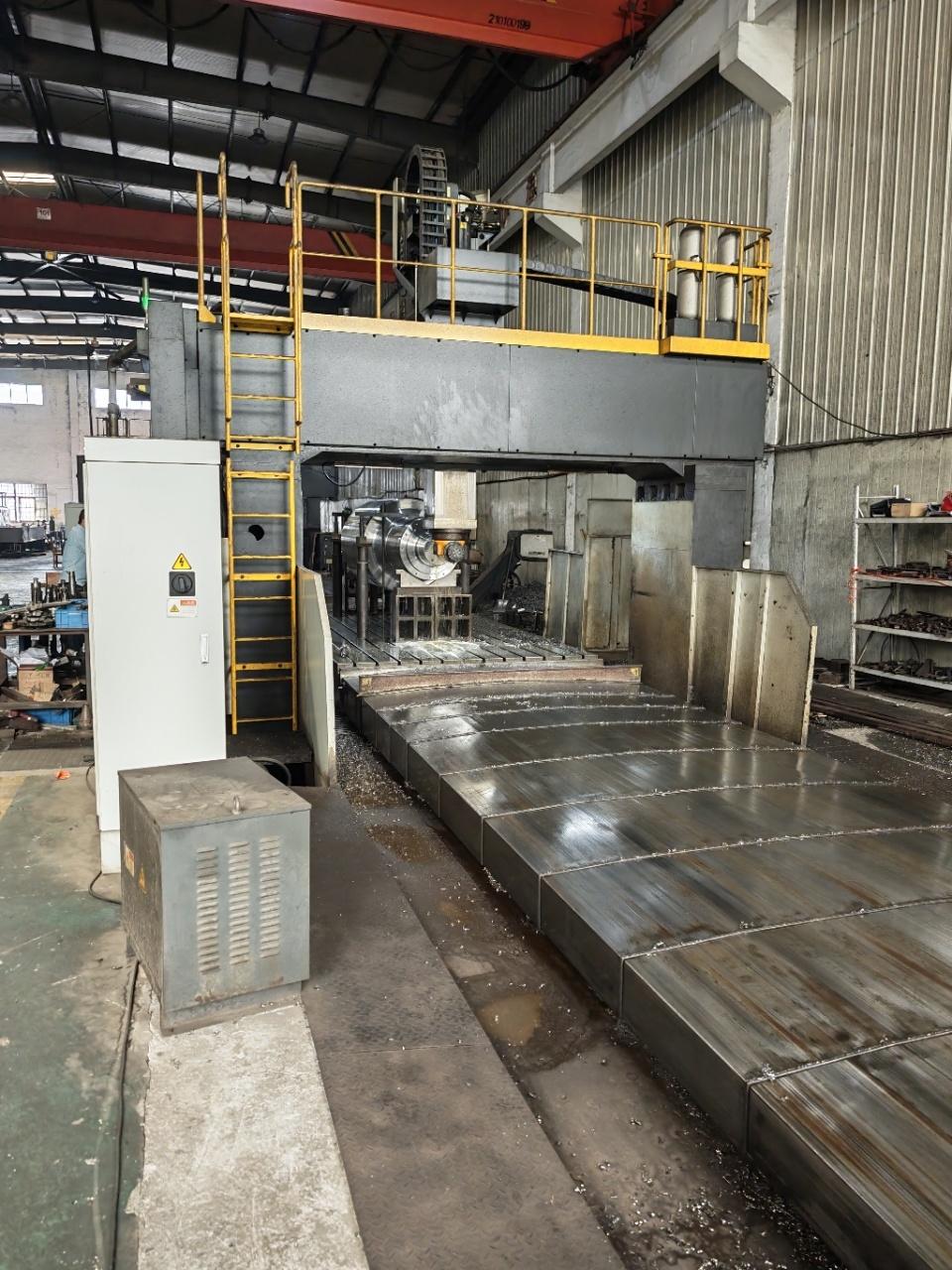

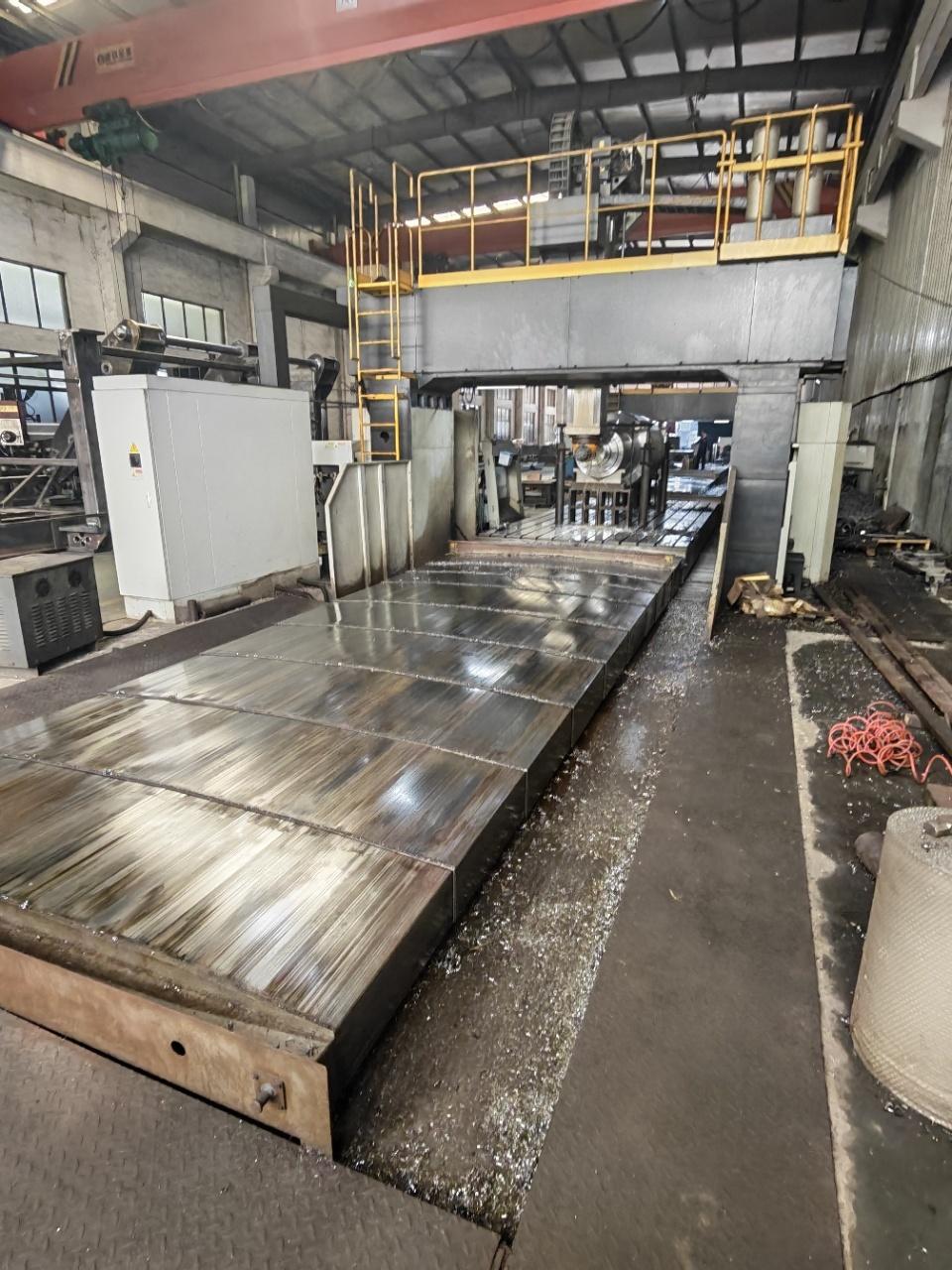

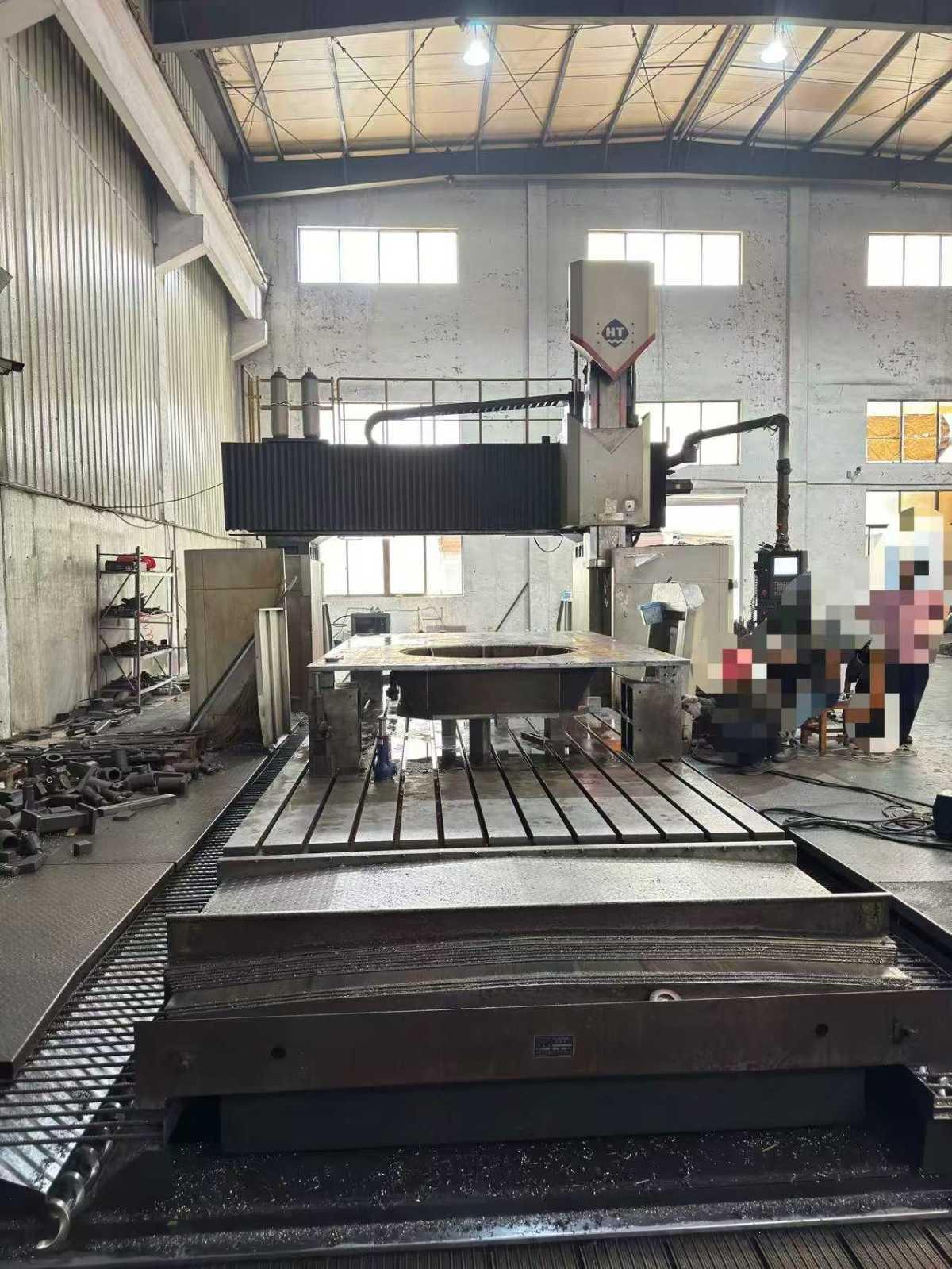

Haitian GRUII 32x60 Gantry machining centre

[Product Information]:

Inventory number：67870
Brand：Haitian
Model：GRUII 32x60
Origin：China
Location：China
Year：2018
Create Time：2026-05-18

Specifications:

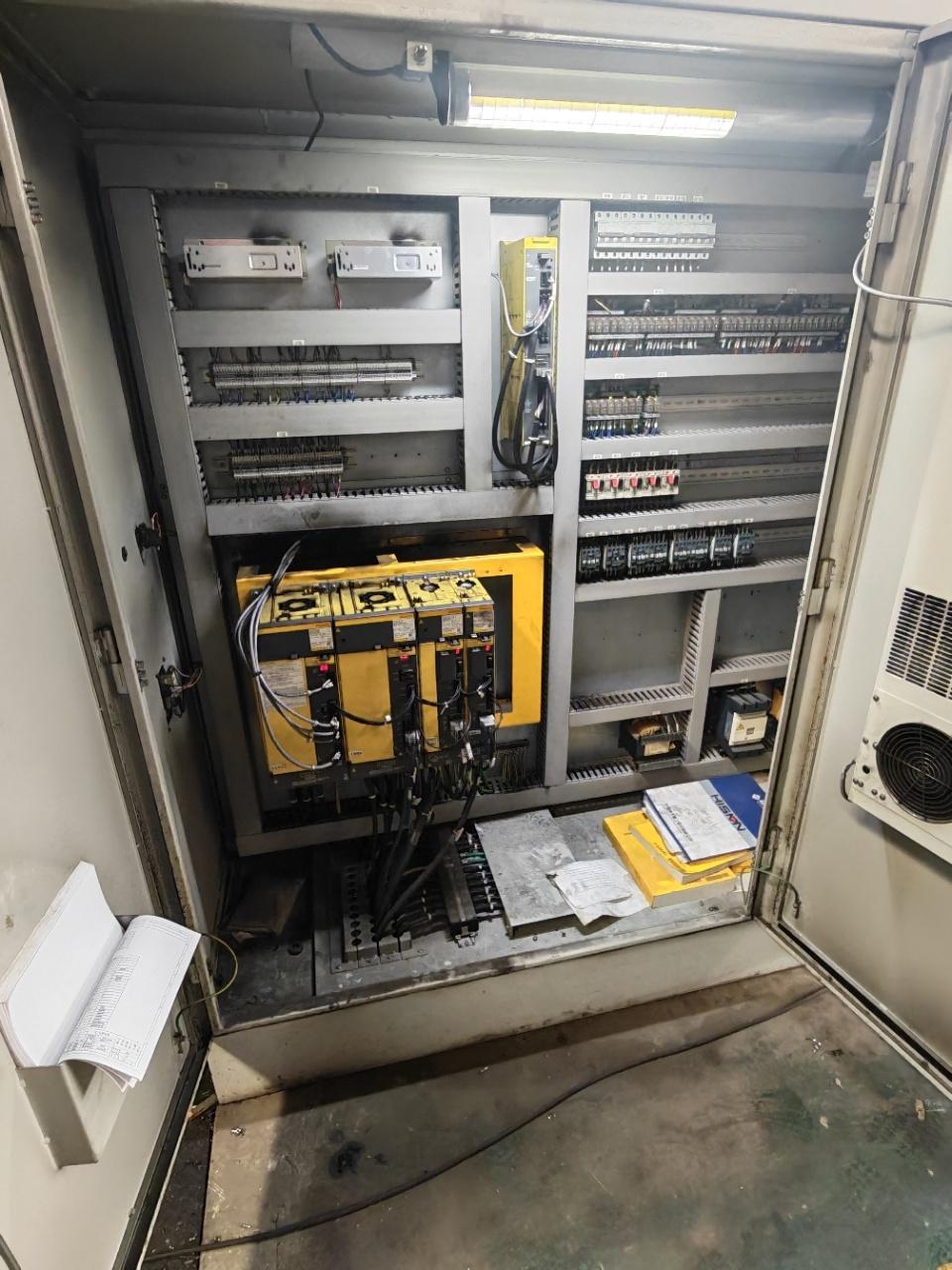

CNC System: FANUC oi-MF
Worktable size: 2500x6000mm
Worktable load: 15,000 kg
Gantry width: 3200mm
Gantry Height: 1780mm
Distance from spindle nose to Worktable surface: 200mm to 1000mm
three-axis travel: 6000x3200x1000mm
Ram cross-section: 480x480mm
Spindle type: BT50
Main motor power: 55kW-75kW
Spindle speed range: 60 to 6000 RPM
Maximum output torque: 2600N·m
