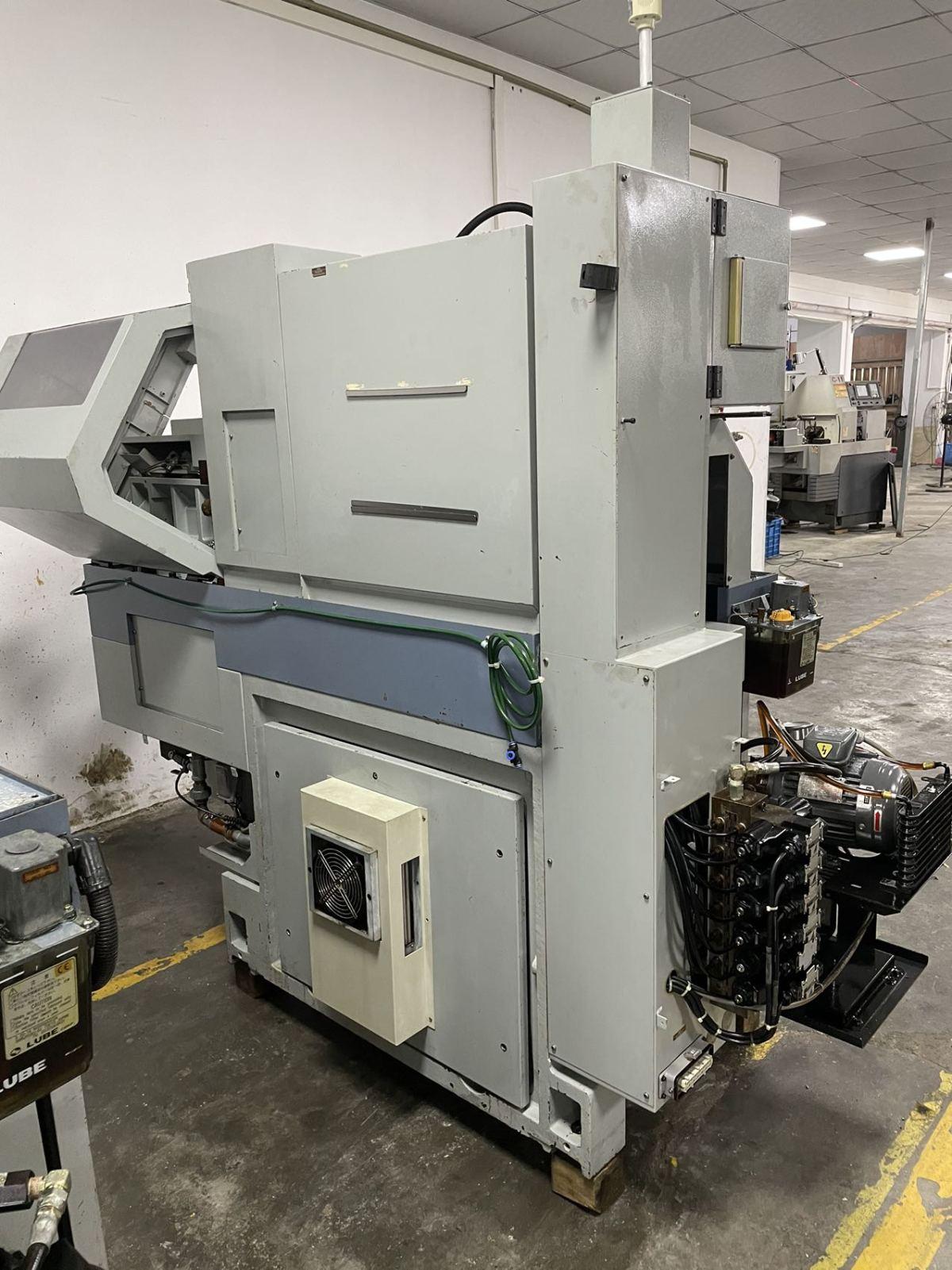

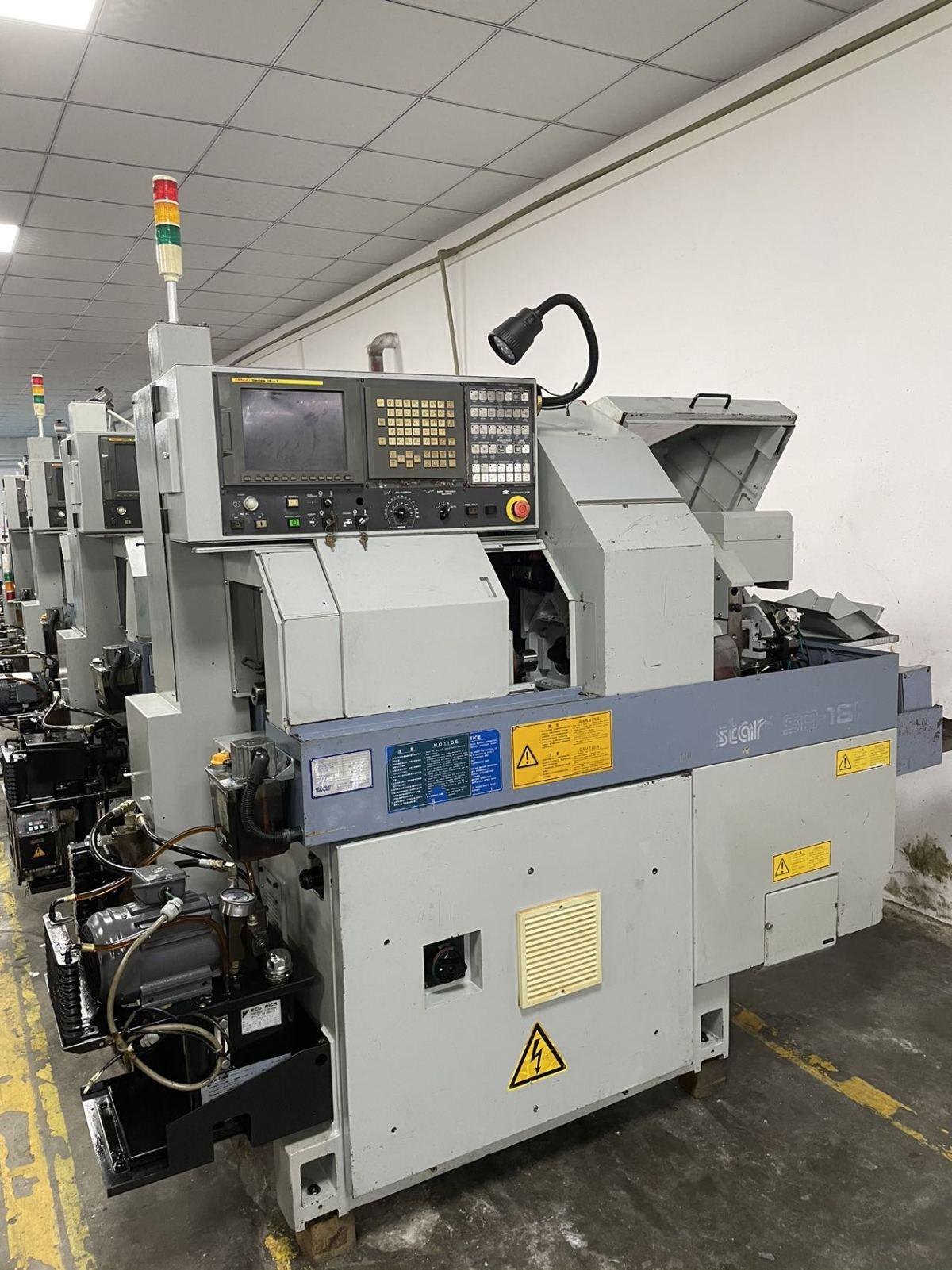

STAR SA-16R Automatic lathe

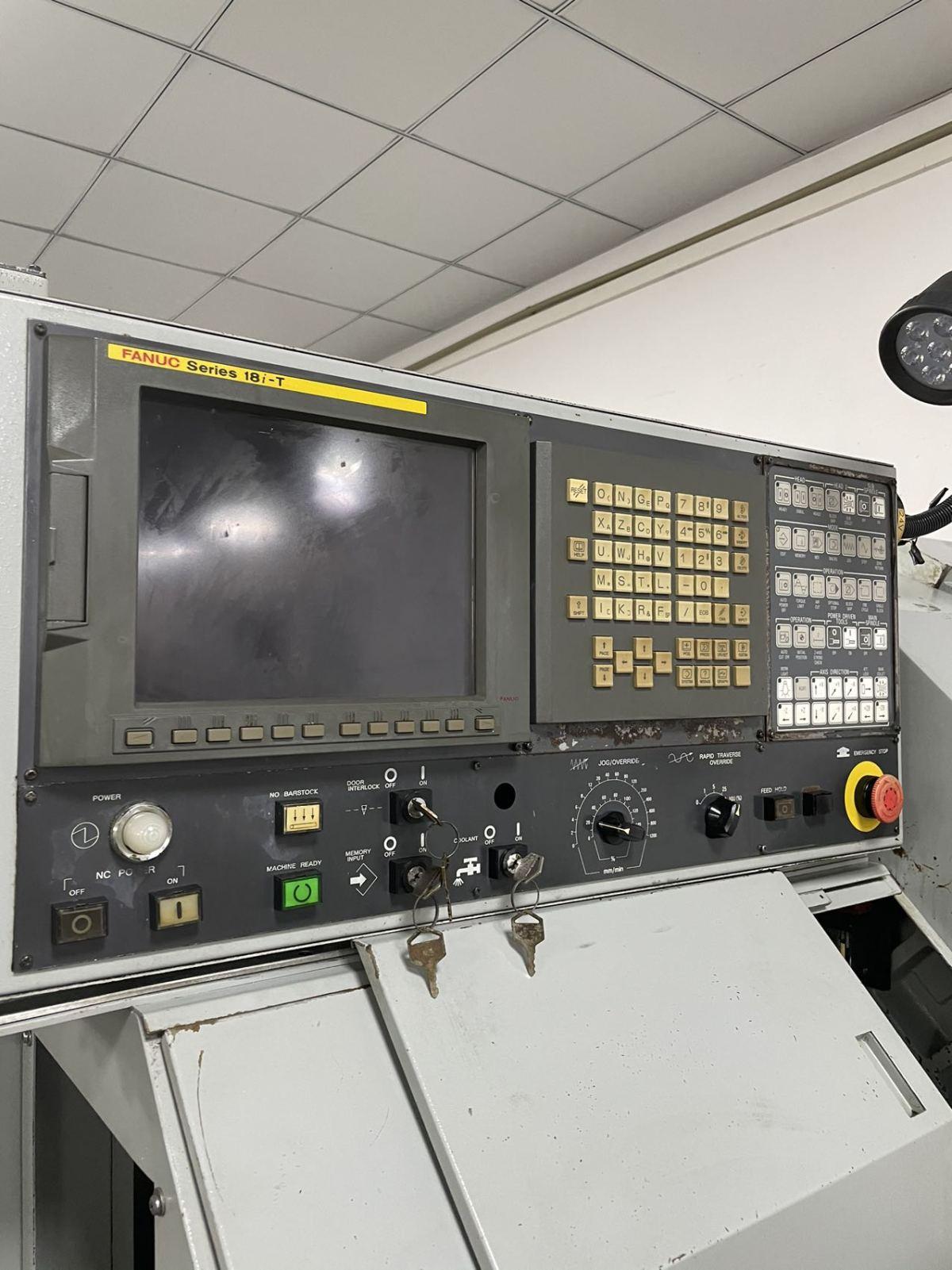

CNC System: Fanuc 18i-TB
Axis number: 5 axes
Number of spindles: 2 spindles
Maximum machining diameter: 16 mm
Maximum drilling diameter: 7 mm
Spindle stroke: 90 – 140 mm
Spindle speed: 500 – 12,000 rpm
Spindle power: 2.2 kW
Sub-spindle (counter spindle)
Sub-spindle speed: 500 – 8,000 rpm
Sub-spindle power: 0.5 kW
Number of tools: 4 tools
C-axis indexing: 15°
Cutting speed: 10,000 mm/min
Machine dimensions: 2090 × 770 × 1660 mm
Machine weight: 1700 kg
