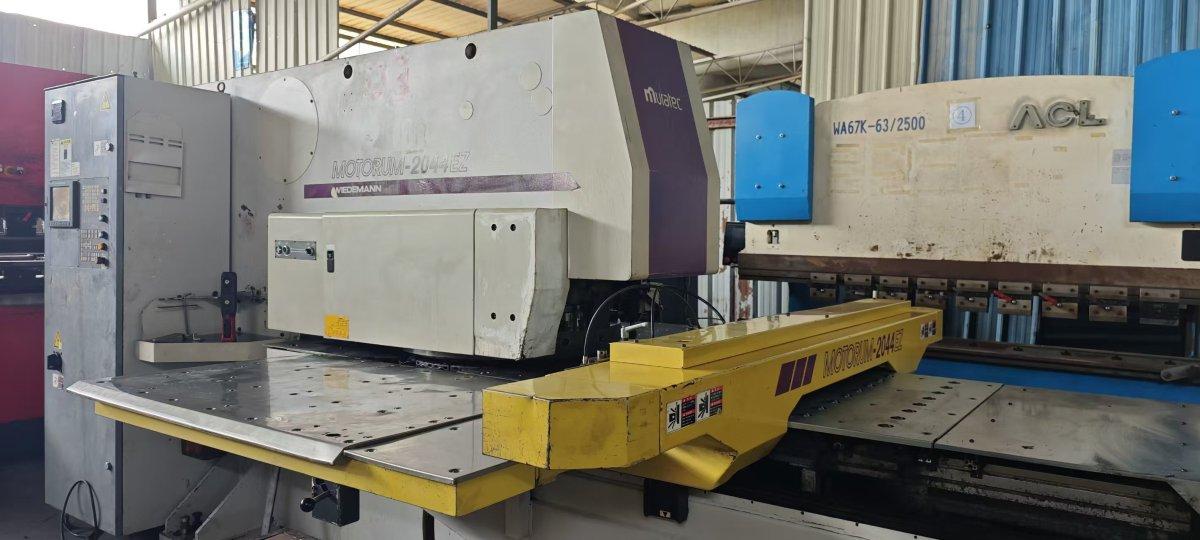

MURATA MOTORUM-2044EZ Punch / press

Punching capacity: 22 tons
Control system: Fanuc
Punching type: AC servo
Processing Capacity
Maximum sheet thickness: 6.35 mm
Processing sheet size: 1250 × 2500 mm
Maximum workpiece weight: 150 kg
Throat depth: 1300 mm
Axis Travel & Speed
X-axis travel: 1290 mm
Y-axis travel: 1335 mm
X-axis speed: 75 m/min
Y-axis speed: 90 m/min
Punching Speed
Continuous punching: 220 strokes/min (25 mm pitch)
Step punching: 600 strokes/min (1 mm pitch)
Accuracy
Positioning accuracy (high-speed mode): ±0.1 mm
Turret Configuration
Number of stations: 30
Auto-index stations: 2
Air Supply Requirements
Air consumption: 0.1 m³/min
Working pressure: 5.0 kg/cm²
Power Supply
Voltage: 380V / 50Hz
