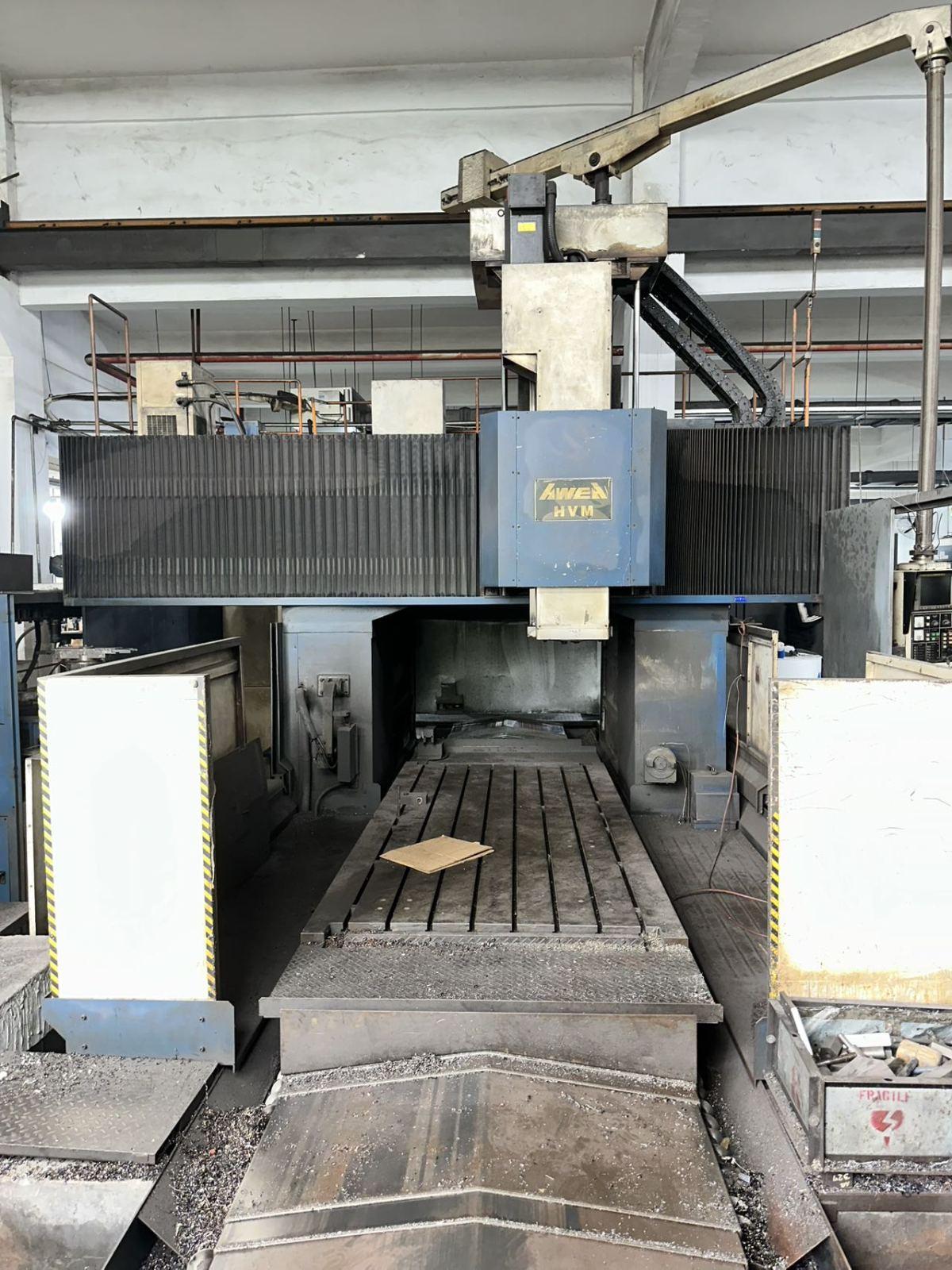

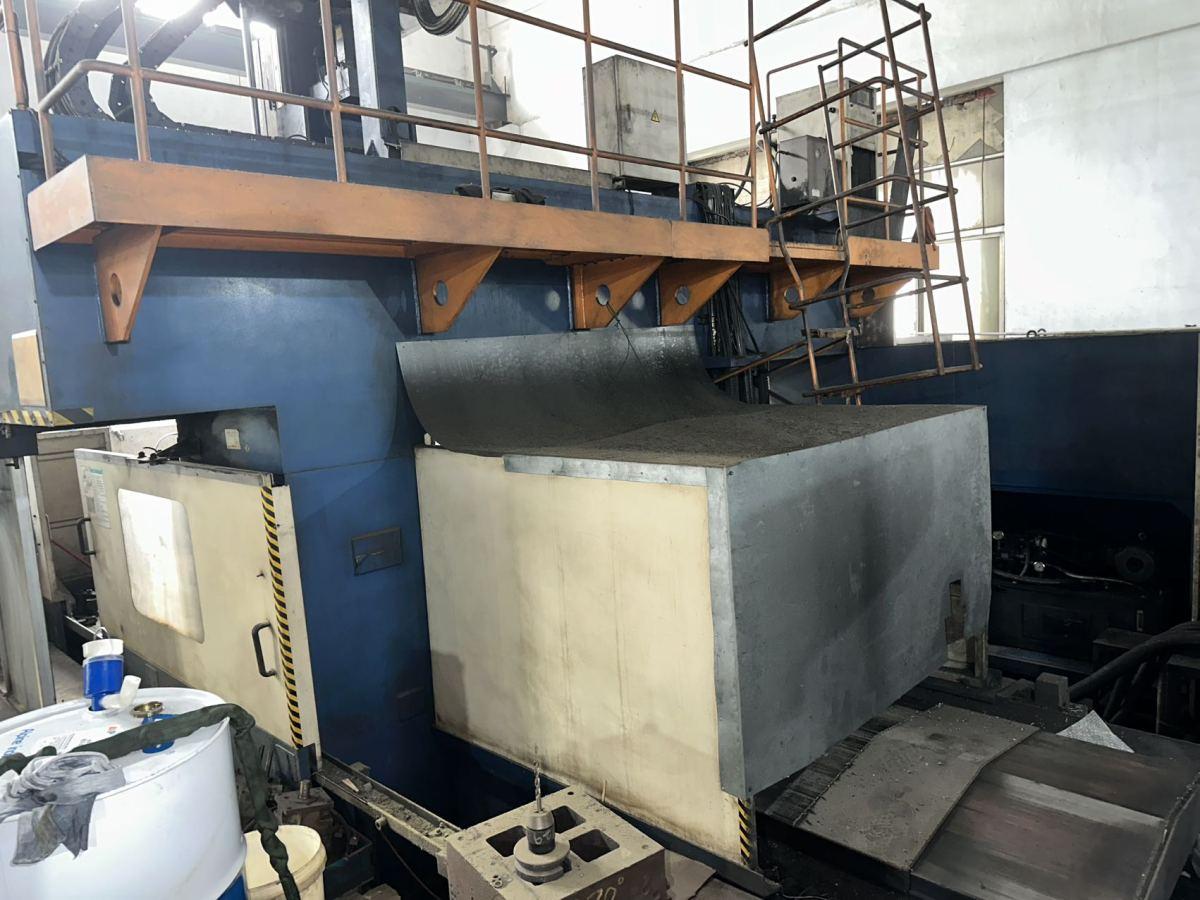

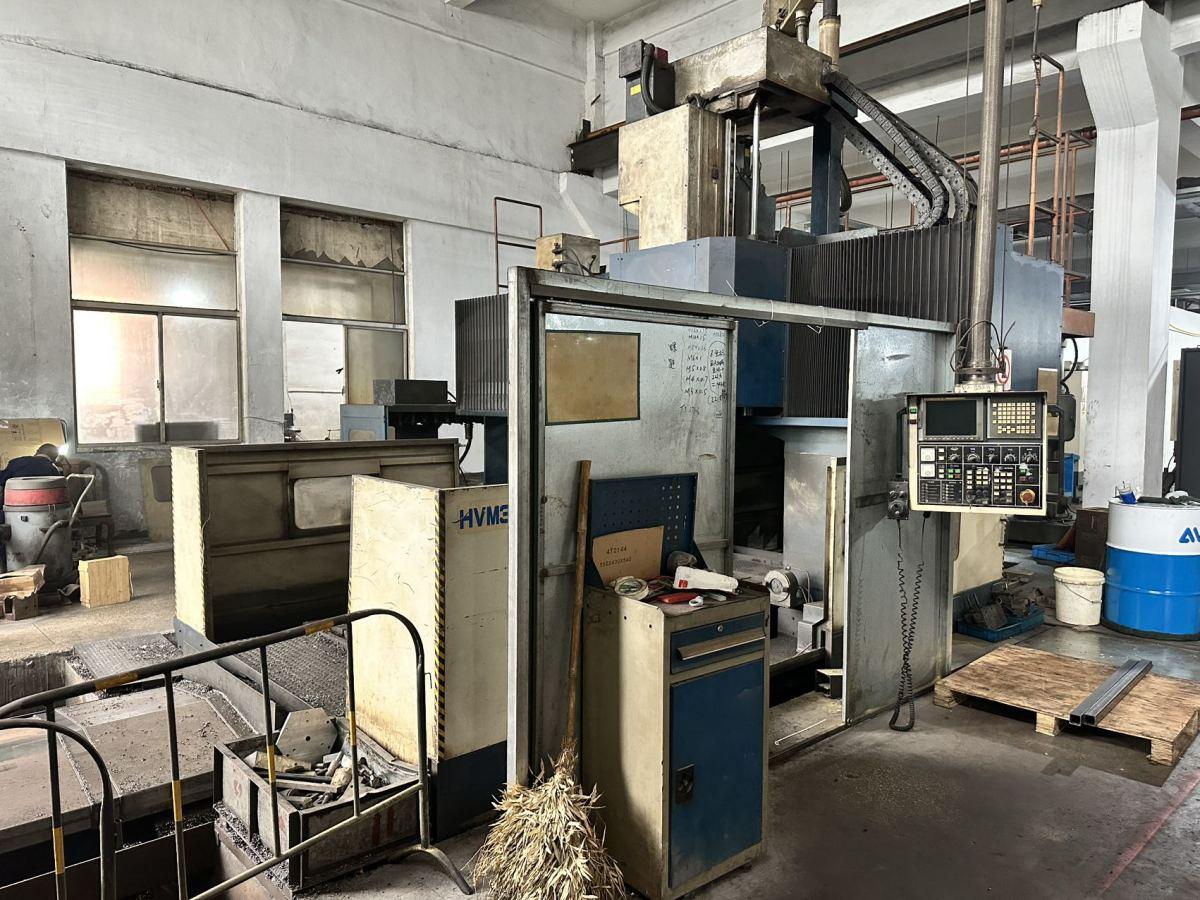

AWEA HVM3018 Gantry machining centre
[Product Information]:
- Inventory number：811853
- Brand：AWEA
- Model：HVM3018
- Origin：Taiwan, China
- Location：China
- Year：2005
- Create Time：2026-05-07
Specifications:

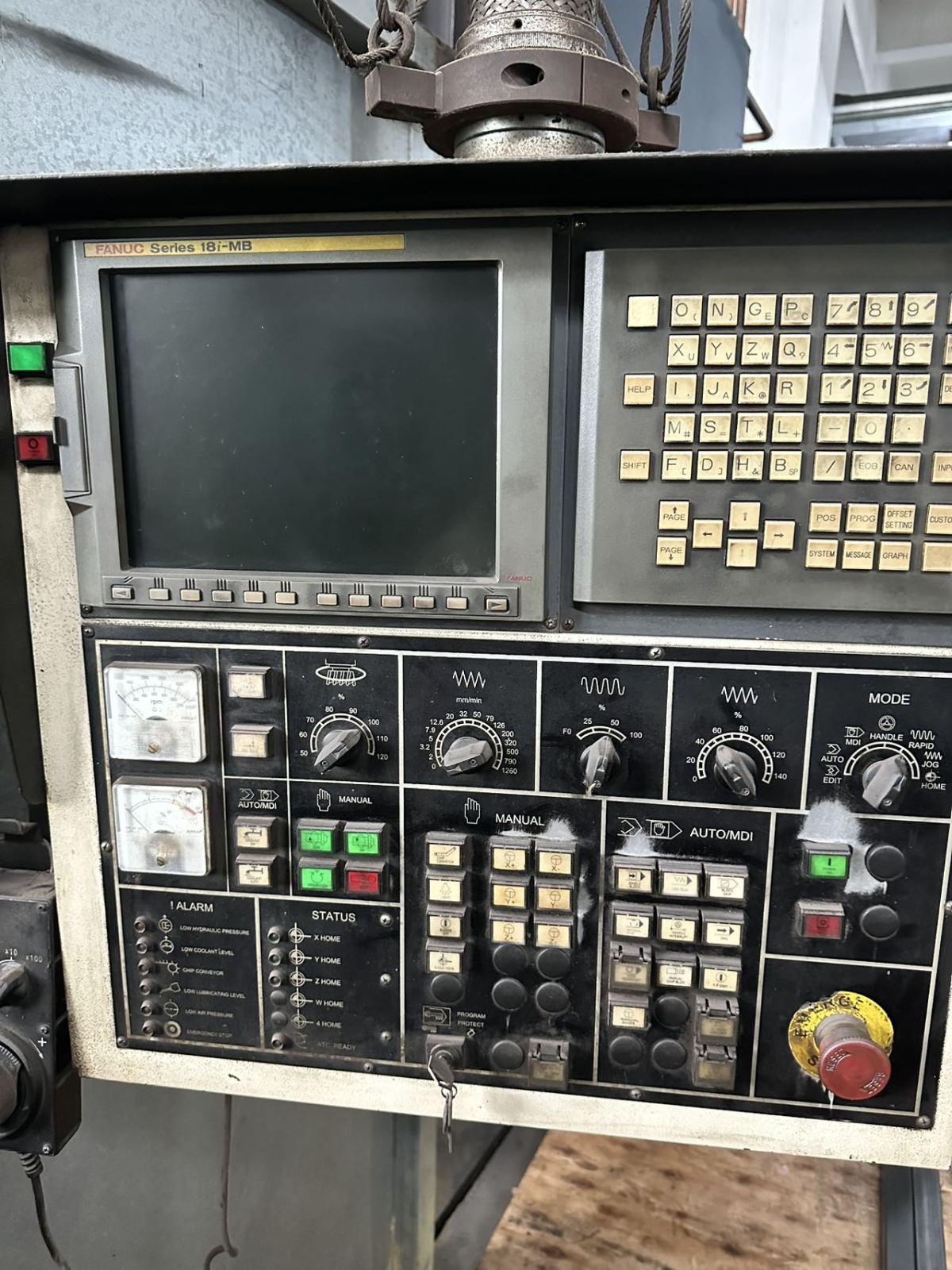

CNC System: FANUC 18i-MB

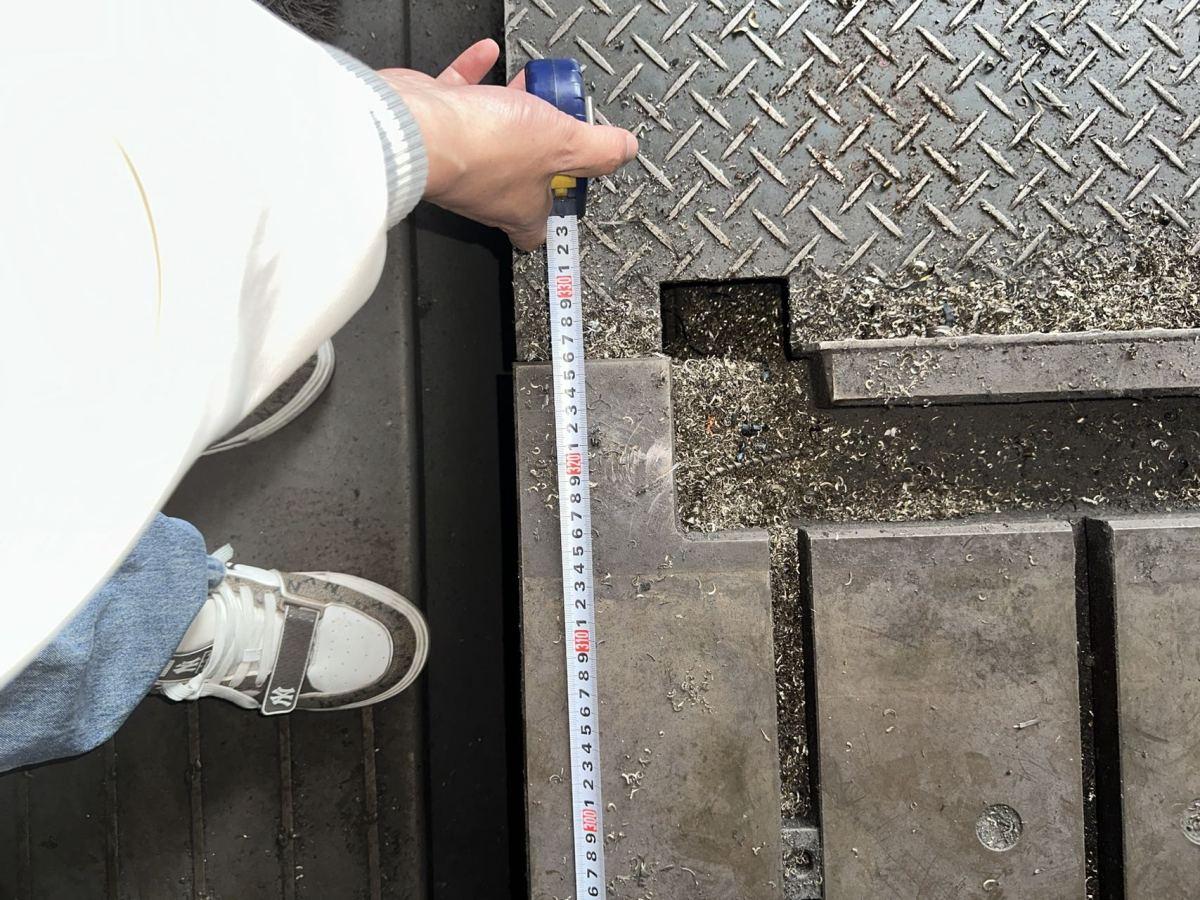

Worktable size: 3260 × 1500 mm
Maximum load: 10,000 kg
Travel (X/Y/Z): 3060 × 2500 × 1000 mm
Gantry width: 1800 mm
Distance from spindle nose to table surface: 200 – 1200 mm

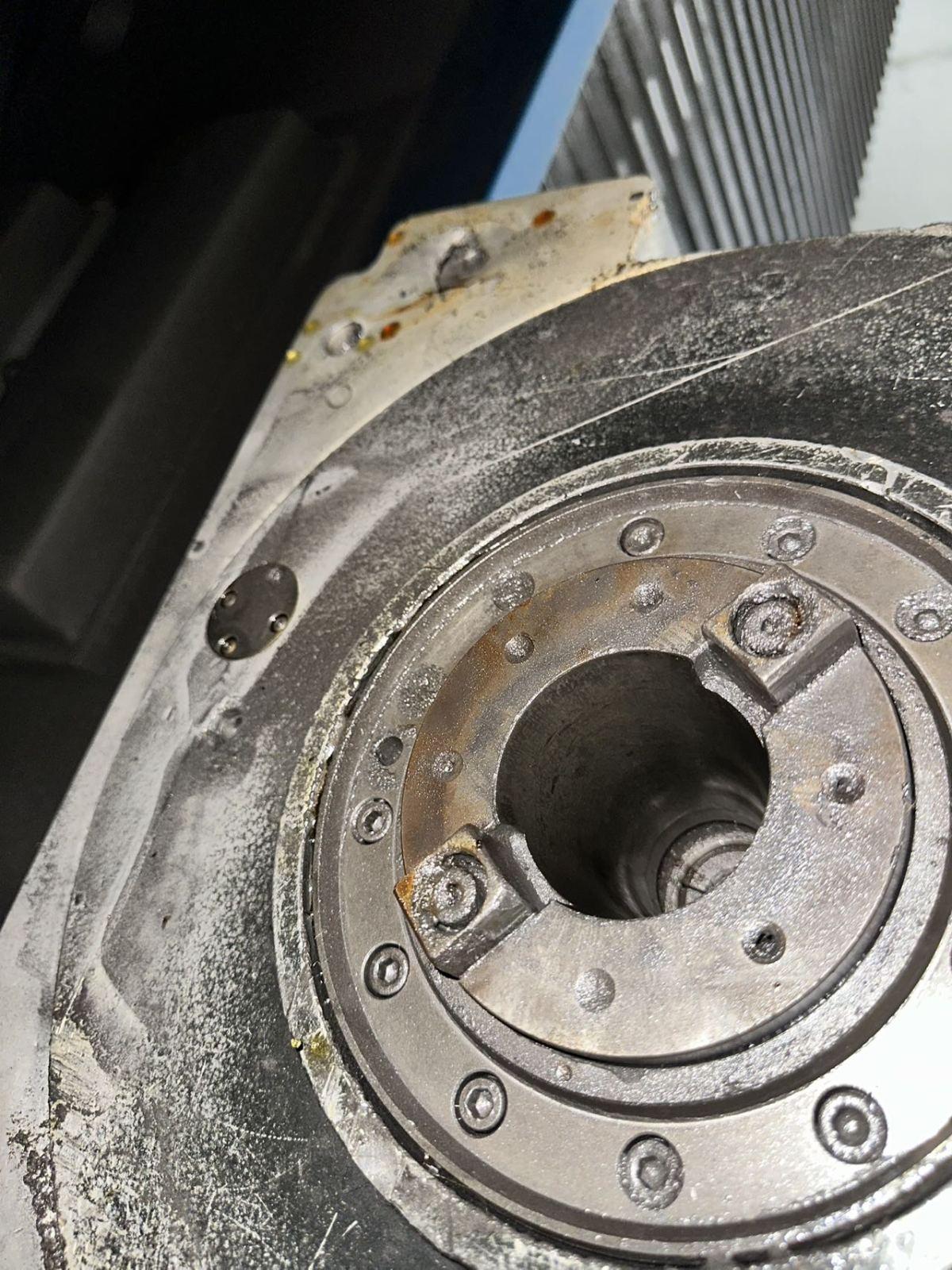

Spindle:
Taper: BT50 geared head
Spindle speed (vertical): 10 – 4000 rpm
Spindle motor power (vertical): 22 / 26 kW (continuous / 30 min)
Feed system:
Cutting feed rate: 1 – 10,000 mm/min
Rapid traverse:
X-axis: 20,000 mm/min
Y-axis: 15,000 mm/min
Z-axis: 10,000 mm/min
Tool magazine capacity: 60
Configuration:
Guideway: Three-axis linear guideways
Linear Scale: Heidenhain three-axis full glass scale

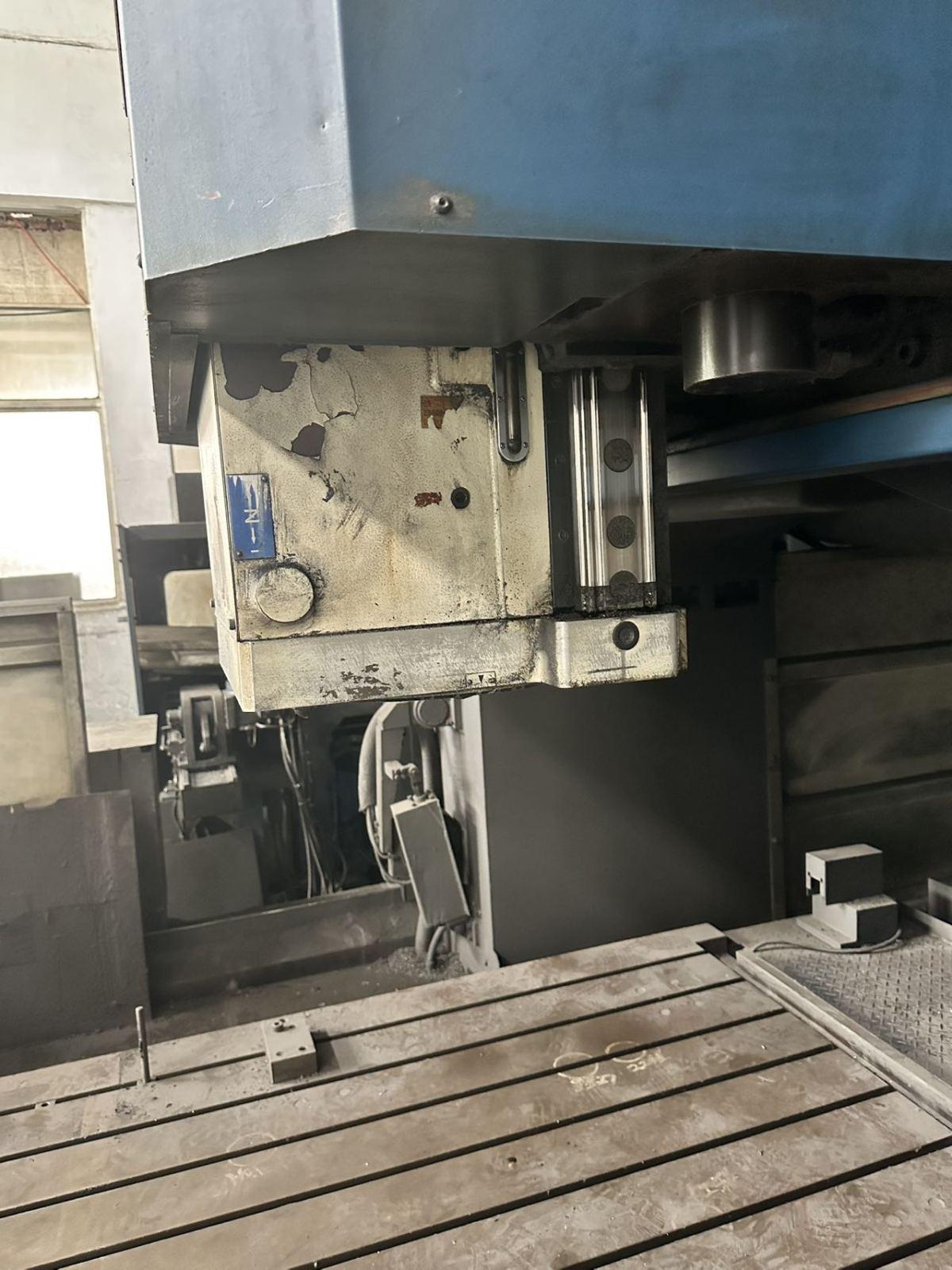

Automatic tool-changing horizontal milling head
Original tool setter (probing system)
360° automatic side milling head
Automatic interchangeable horizontal milling head
Twin-screw chip conveyor system
