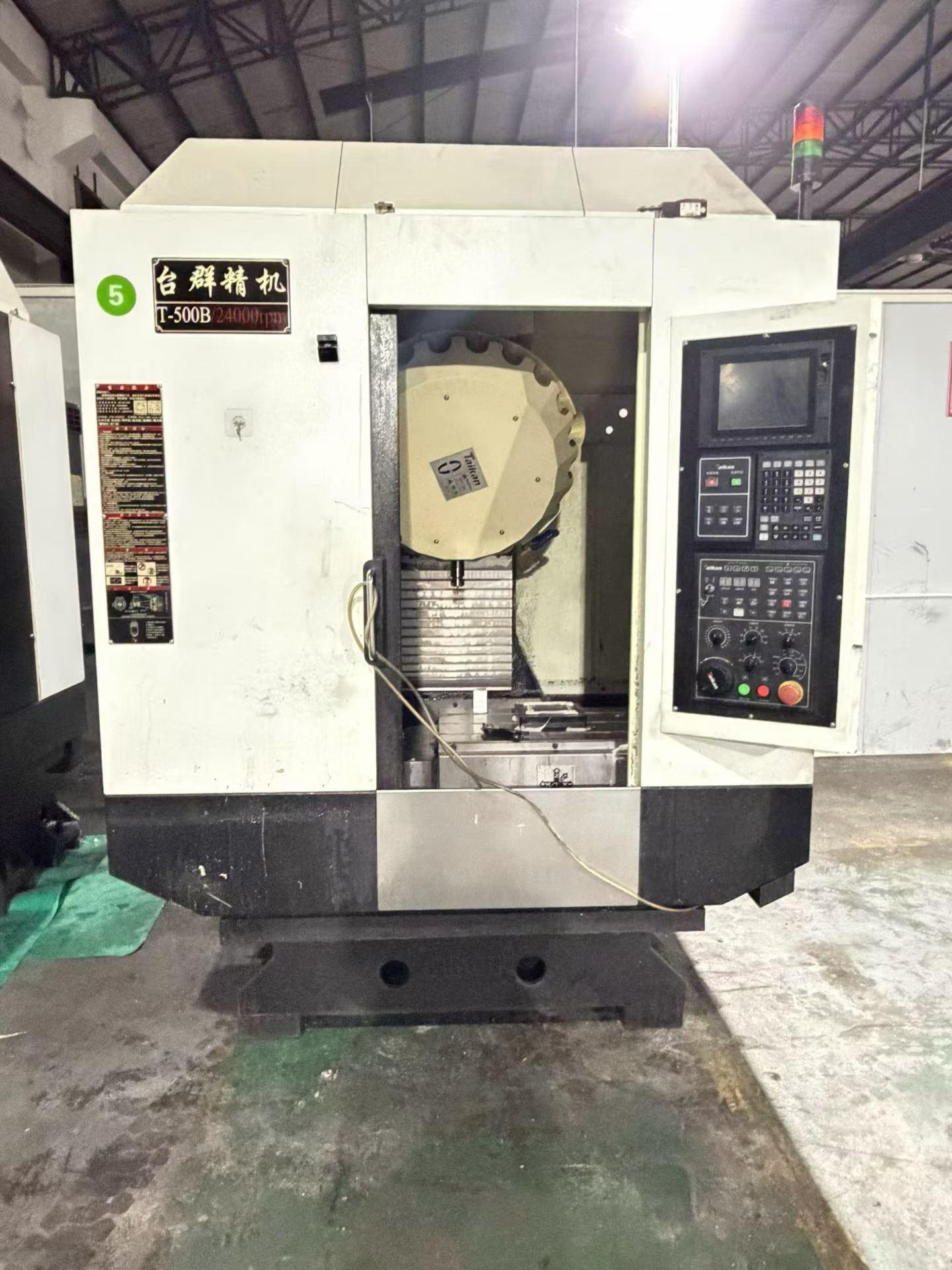

Taikan T-500B Tapping machine

Three-axis travel: 500*400*320mm
Distance from spindle nose to Worktable: 160-480mm
Distance from column center to column guideway surface: 445mm
Worktable size: 620*400mm
Worktable load: 250kg
T-slot: 3*14*120mm
Motor power: 2.2/3.7kw
Motor torque: 7/17.7Nm
Spindle Speed: 24000rpm
Spindle Diameter: 100mm
Spindle Taper: BT30
Machining feed rate: 1-30000mm/min
Three axes Fast moving rate: 48m/min
Positioning accuracy: 0.006mm
Repositioning accuracy: 0.004mm
Tools magazine Capacity: 21
Tool maximum length: 200mm
Tool maximum diameter: 60/80mm
Dimension: 1600*2600*2300mm
Machine weight: 3100kg

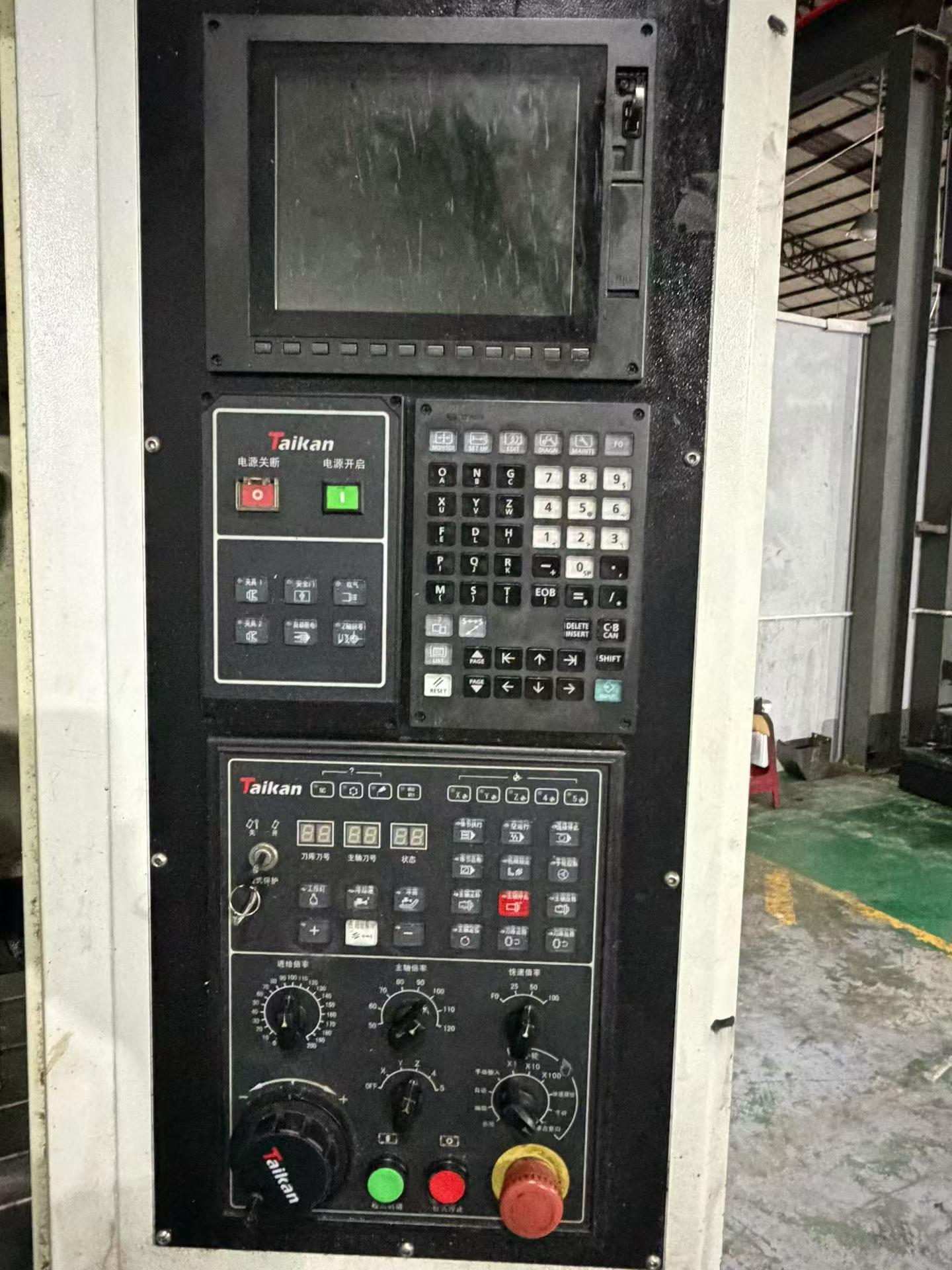

CNC System: Mitsubishi M80
