Tongtai TNL-100T CNC turning lathe

[Product Information]:

Inventory number：67618
Brand：Tongtai
Model：TNL-100T
Origin：Taiwan, China
Location：China
Year：2012
Create Time：2026-04-25

Specifications:

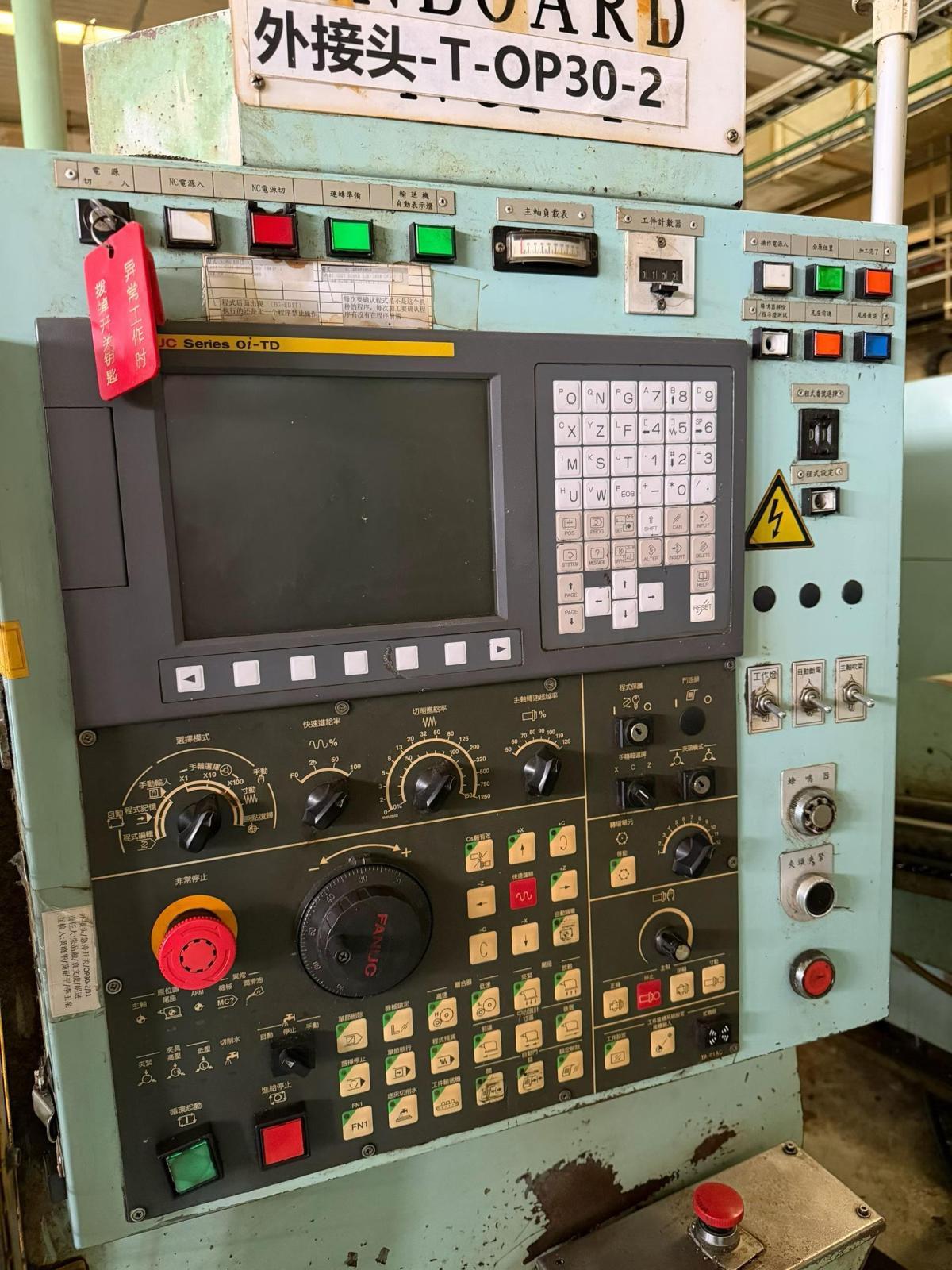

CNC system: FANUC 0i-TD
Electrical total power: 30 kVA
Power supply: AC 380 V, 3-phase, 50 Hz
X-axis travel: 220 mm
Z-axis travel: 550 mm
Maximum swing diameter: Φ420 mm
Maximum machining length: 450 mm
Spindle bore diameter: Φ65 mm
Configuration:
8-station hydraulic servo powered tool turret

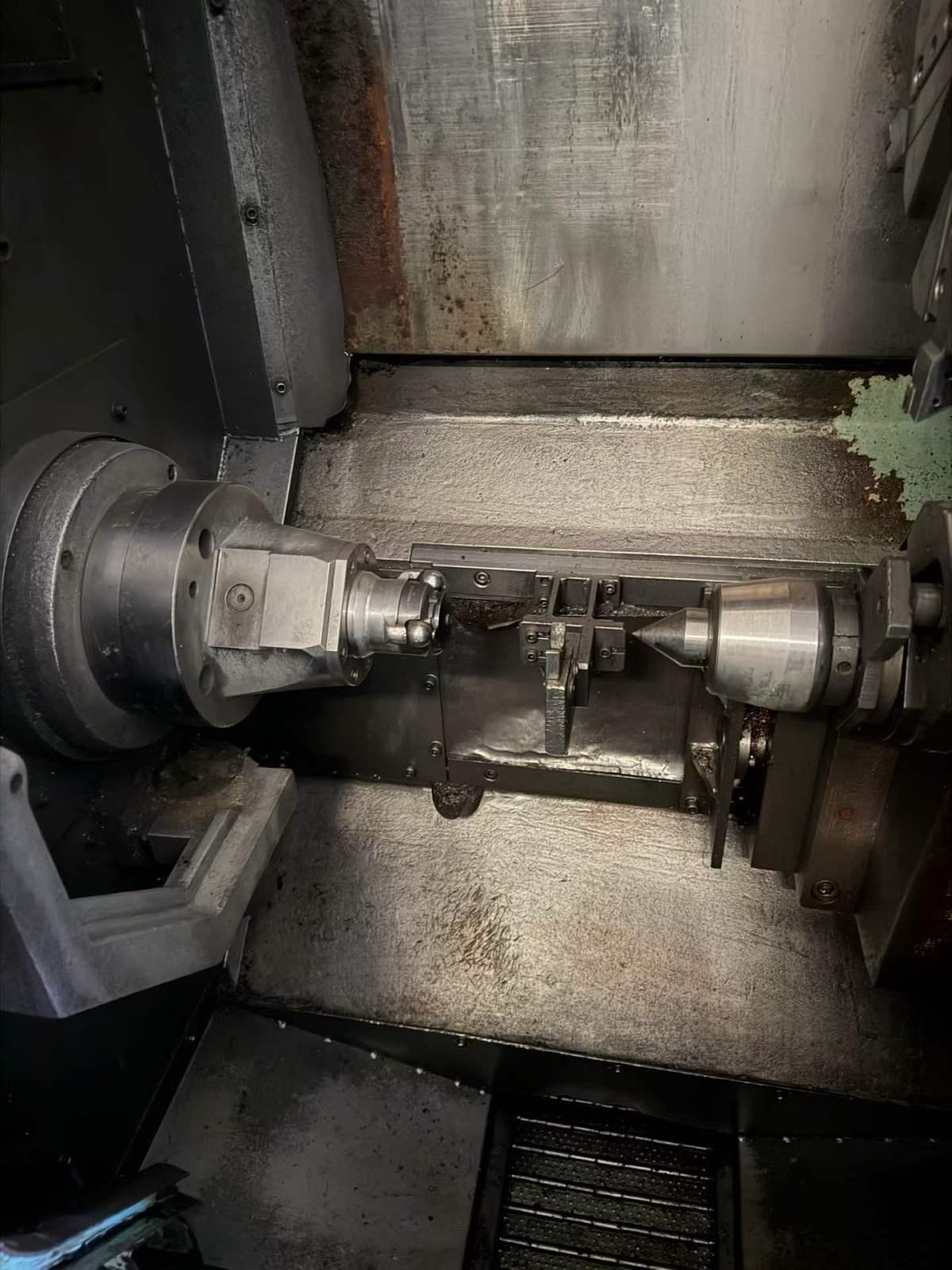

Hydraulic tailstock center support system
Standard spindle encoder

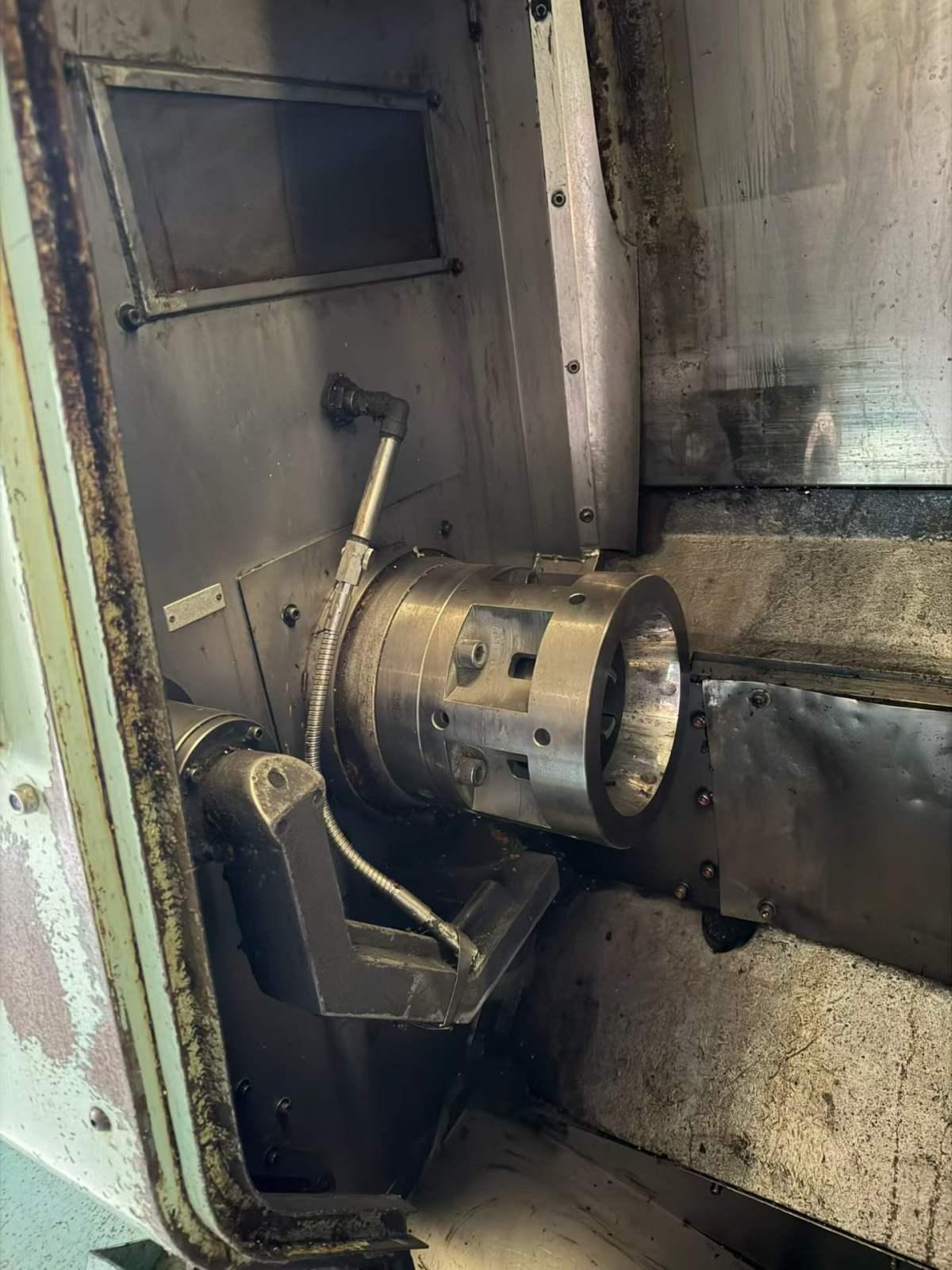

Hydraulic chuck unit
Cutting fluid chiller system
Fully enclosed machine guarding with chip protection sheet metal
