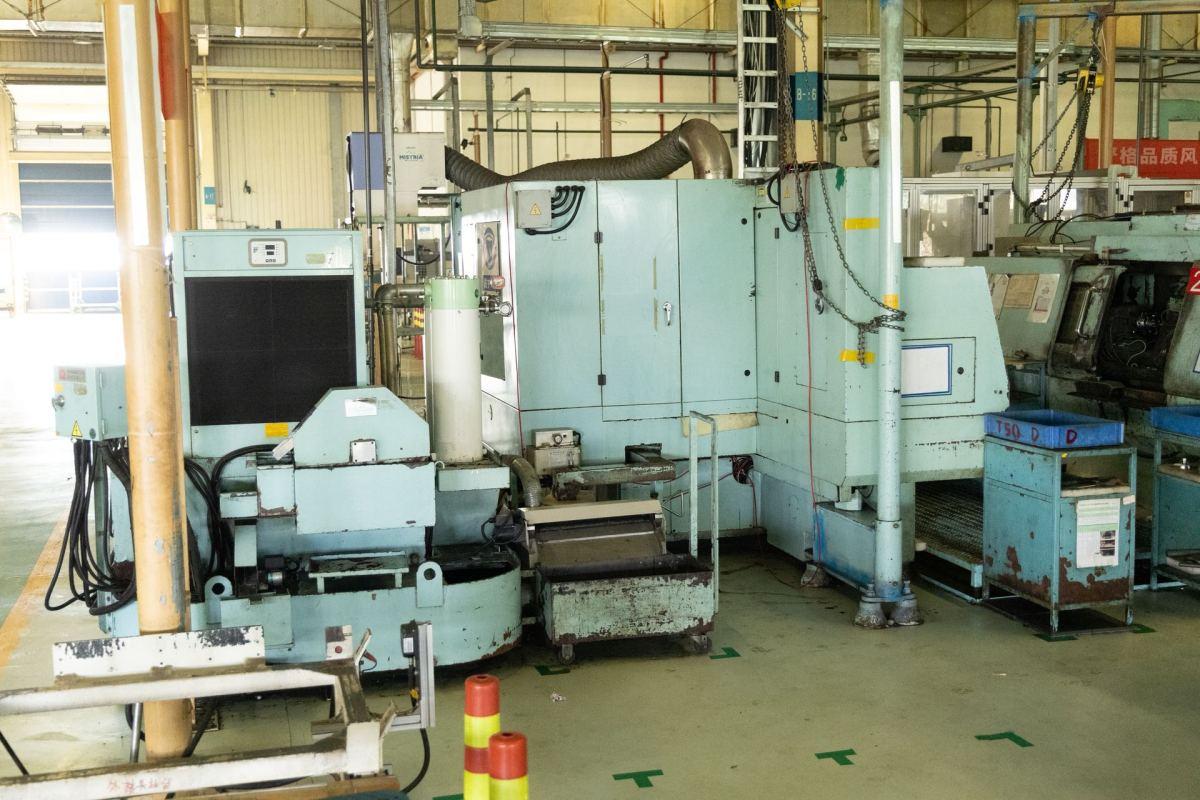

SUPERTEC G38 P-50CNC CNC Cylindrical grinder

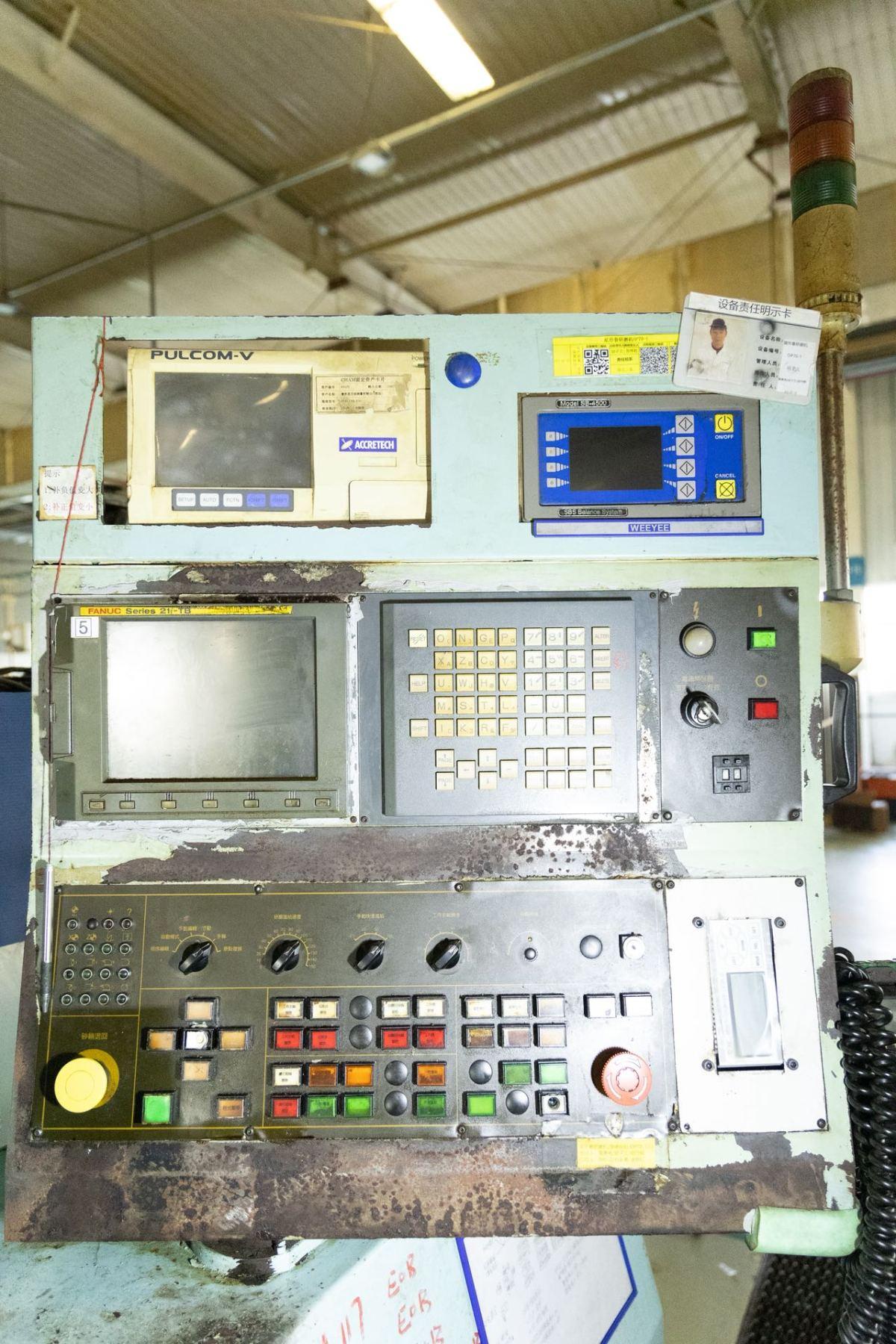

CNC system: FANUC 21i-TB
X-axis travel: 210 mm
Z-axis travel: 500 mm
Distance between centers (headstock to tailstock): 500 mm
Maximum grinding workpiece diameter: φ180 mm
Maximum grinding length: 400 mm
Maximum grinding wheel spindle speed: 2400 r/min
Main spindle motor: 15 HP (11 kW)
Auxiliary motor: 2.0 HP
Total installed power: 35 HP
Main power supply: 380 V, 3-phase, 50 Hz
Control voltage: DC 24 V
Configuration:
In-process external diameter measuring system: Tokyo Seimitsu ACCRETECH PULCOM-V
Wheel online dynamic balancing system: WEEYEE SS-4500

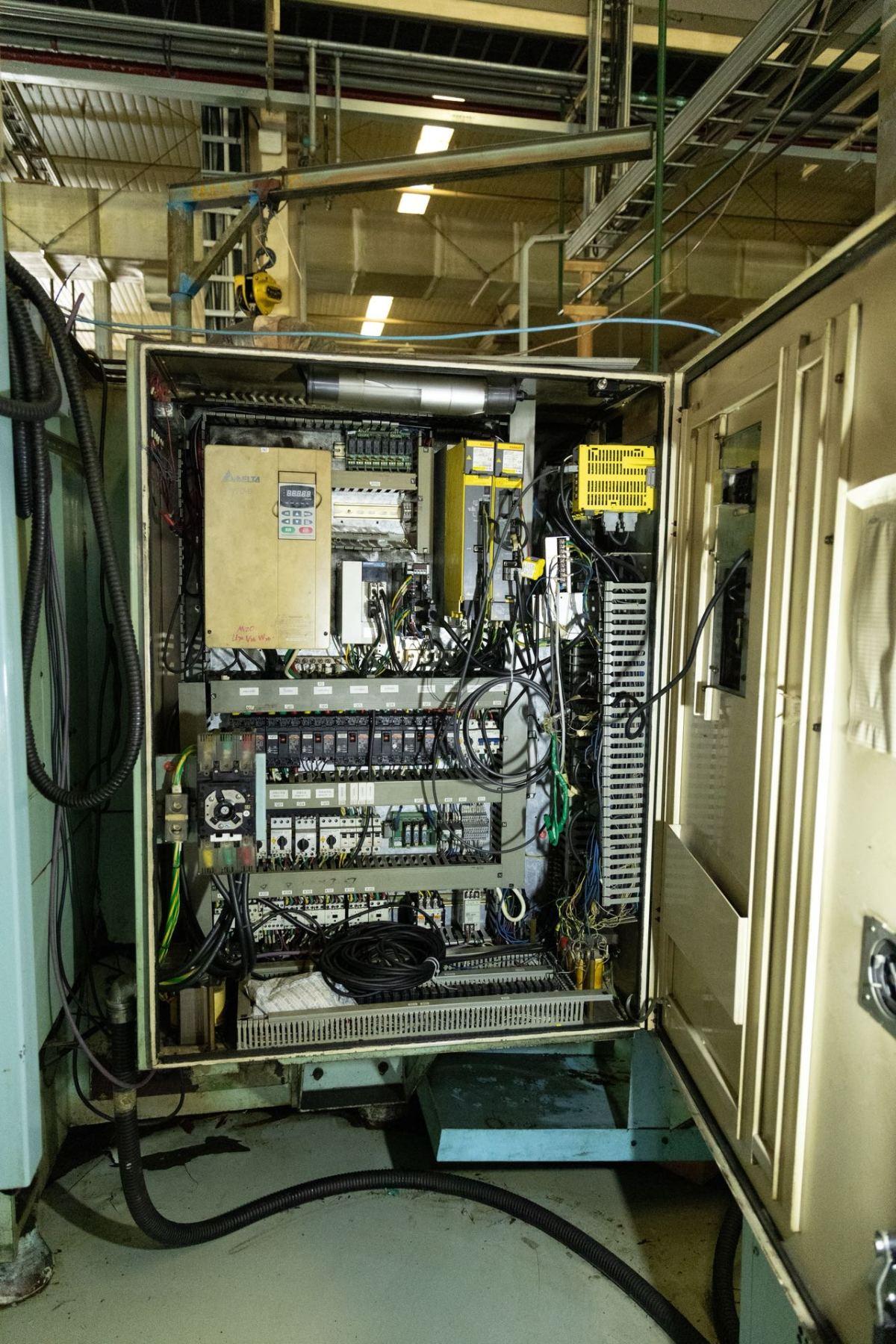

Inverter: Delta Electronics VFD-B heavy-duty inverter
Hydraulic system: BUNRI high-precision hydraulic station
Oil chiller: constant temperature oil cooling unit
Paper-band filtration system
Oil mist collector for grinding machine
0.2T cantilever workpiece crane
