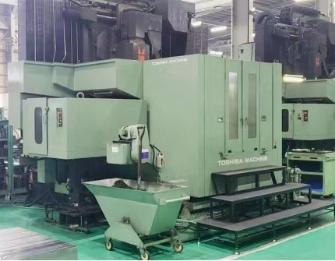

Toshiba MPF-5（C） Gantry machining centre

Gantry width: 1600 mm
Gantry height: 900 mm
Three-axis travel: 1000 × 1600 × 600 mm
A-axis swing: ±30°, resolution 0.0001°
C-axis rotation: ±360°, resolution 0.0001°
Spindle speed: 120–12,000 rpm
Maximum spindle torque: 205 / 300 Nm
Spindle internal diameter: 100 mm
Spindle motor power: AC 37 / 30 kW
Maximum worktable load: 4000 kg
Equipment footprint (L × W × H): 4320 × 4720 × 4420 mm
Equipment weight: approximately 29 tons
