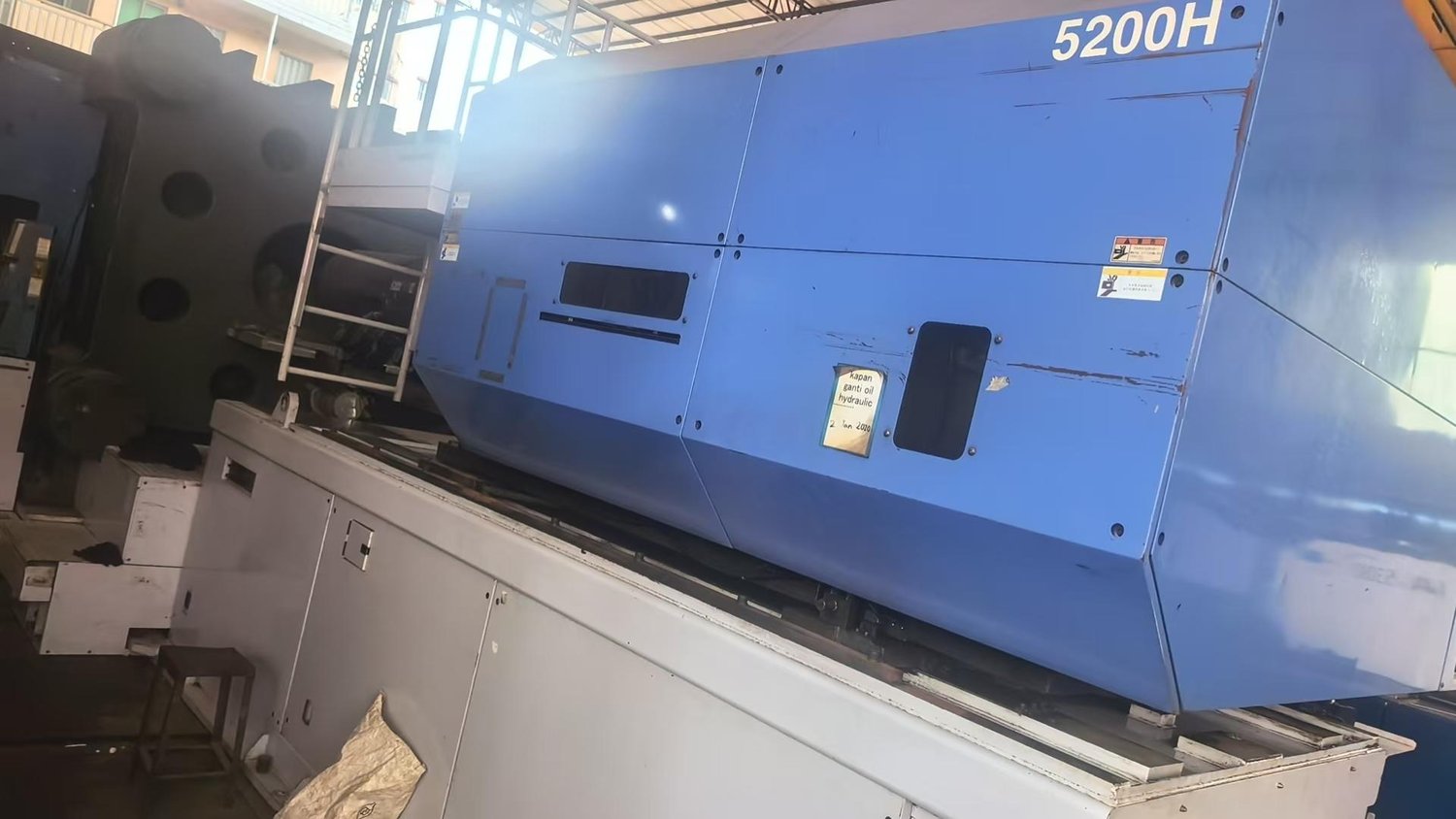

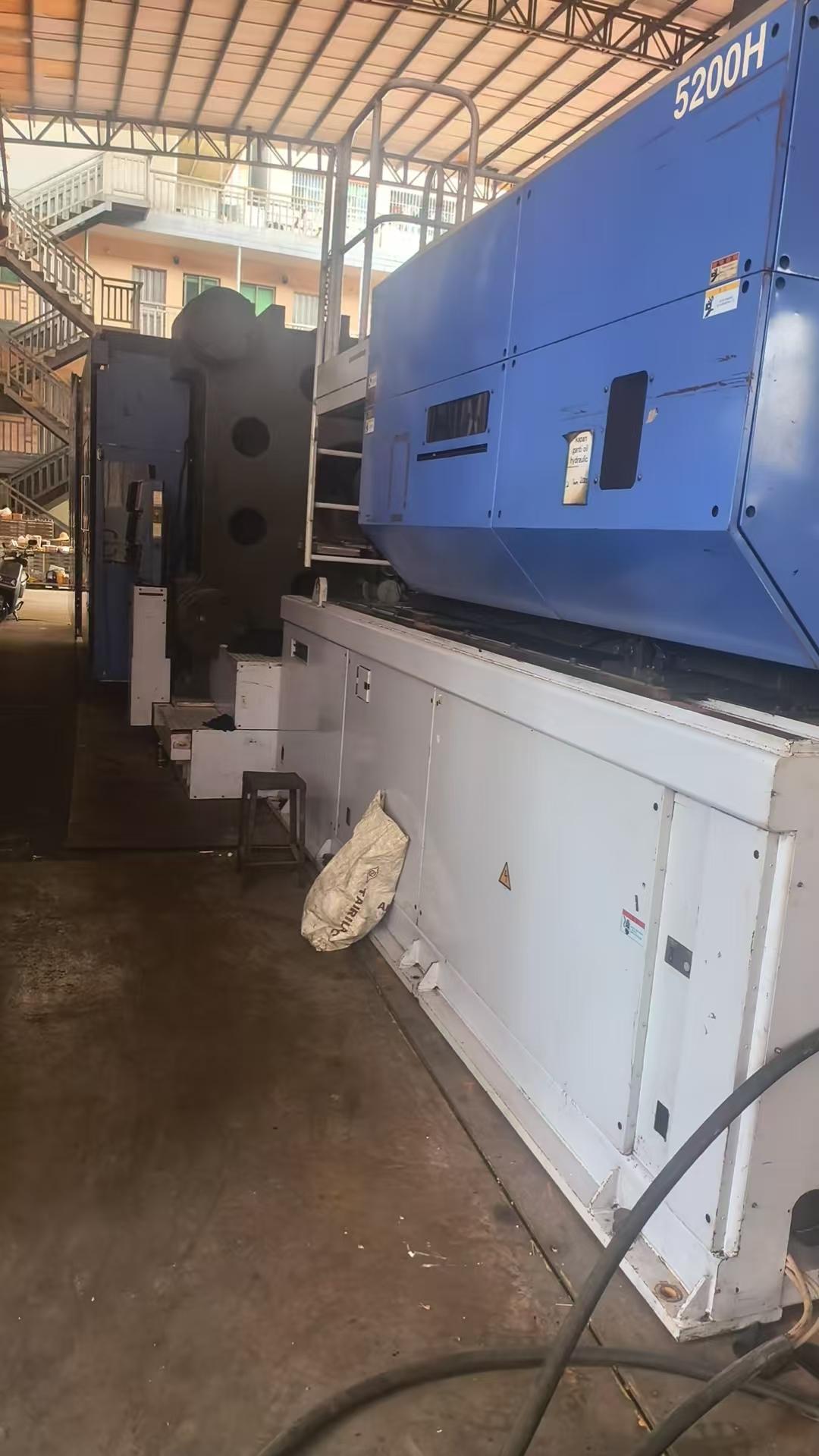

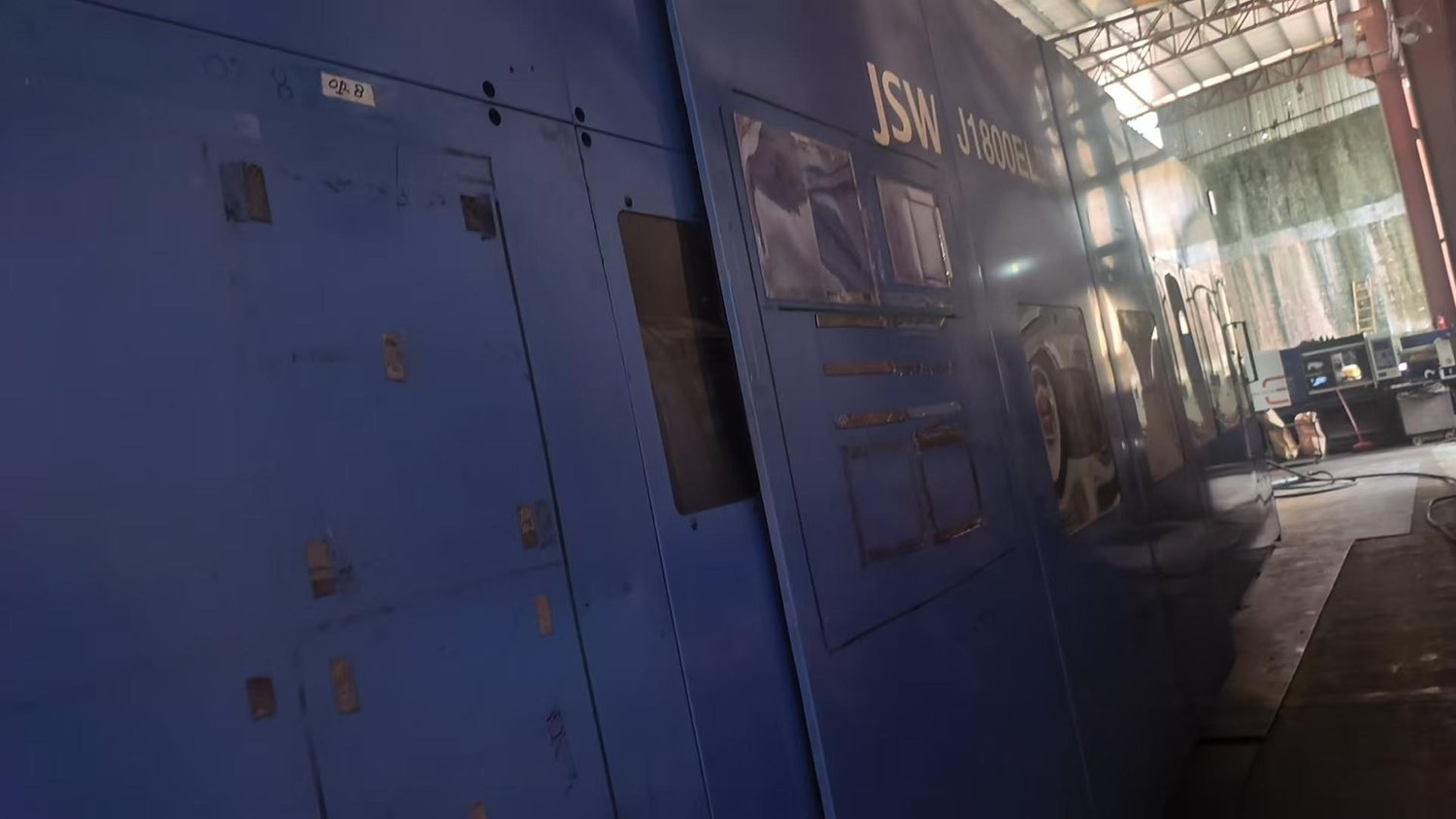

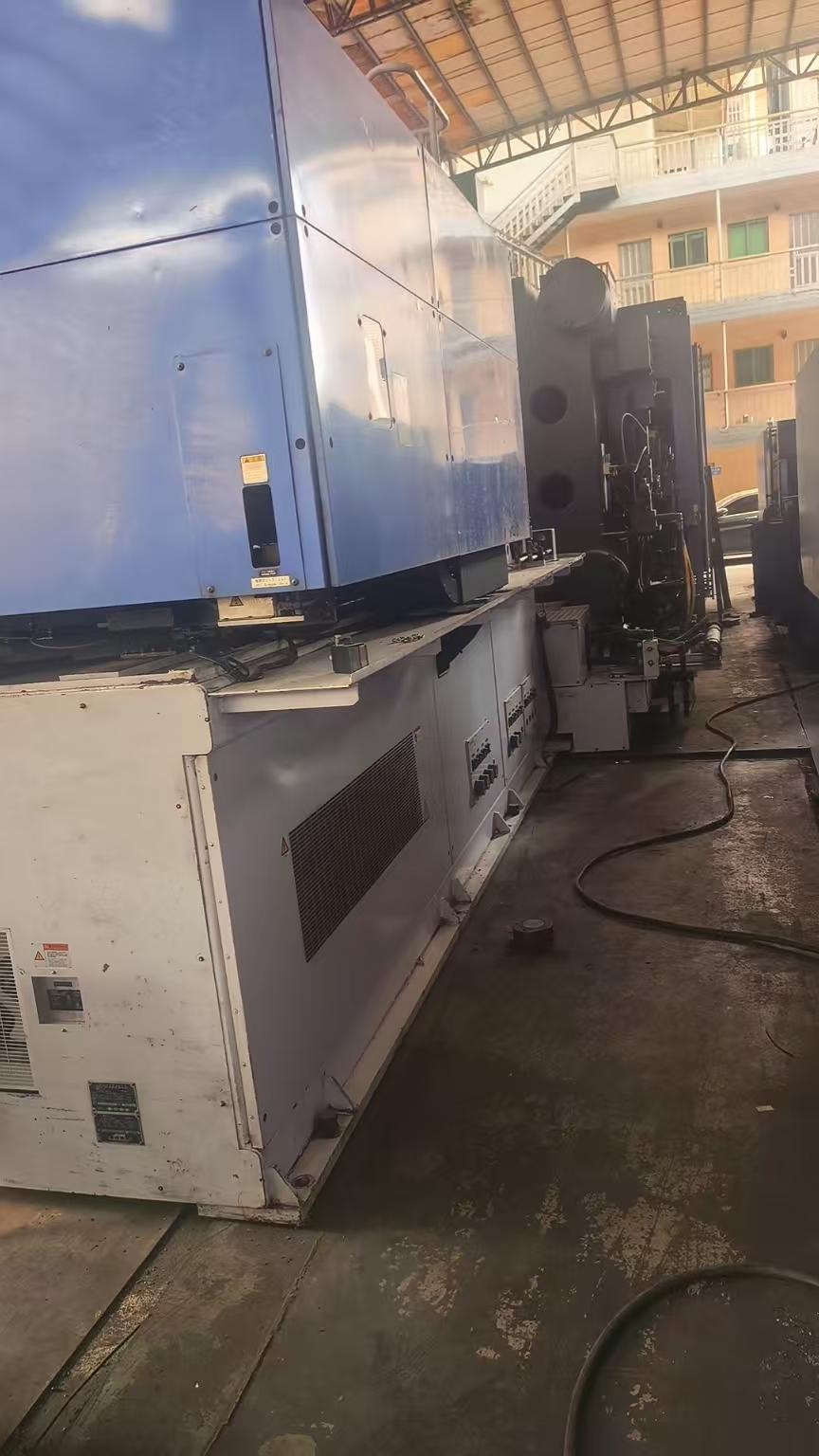

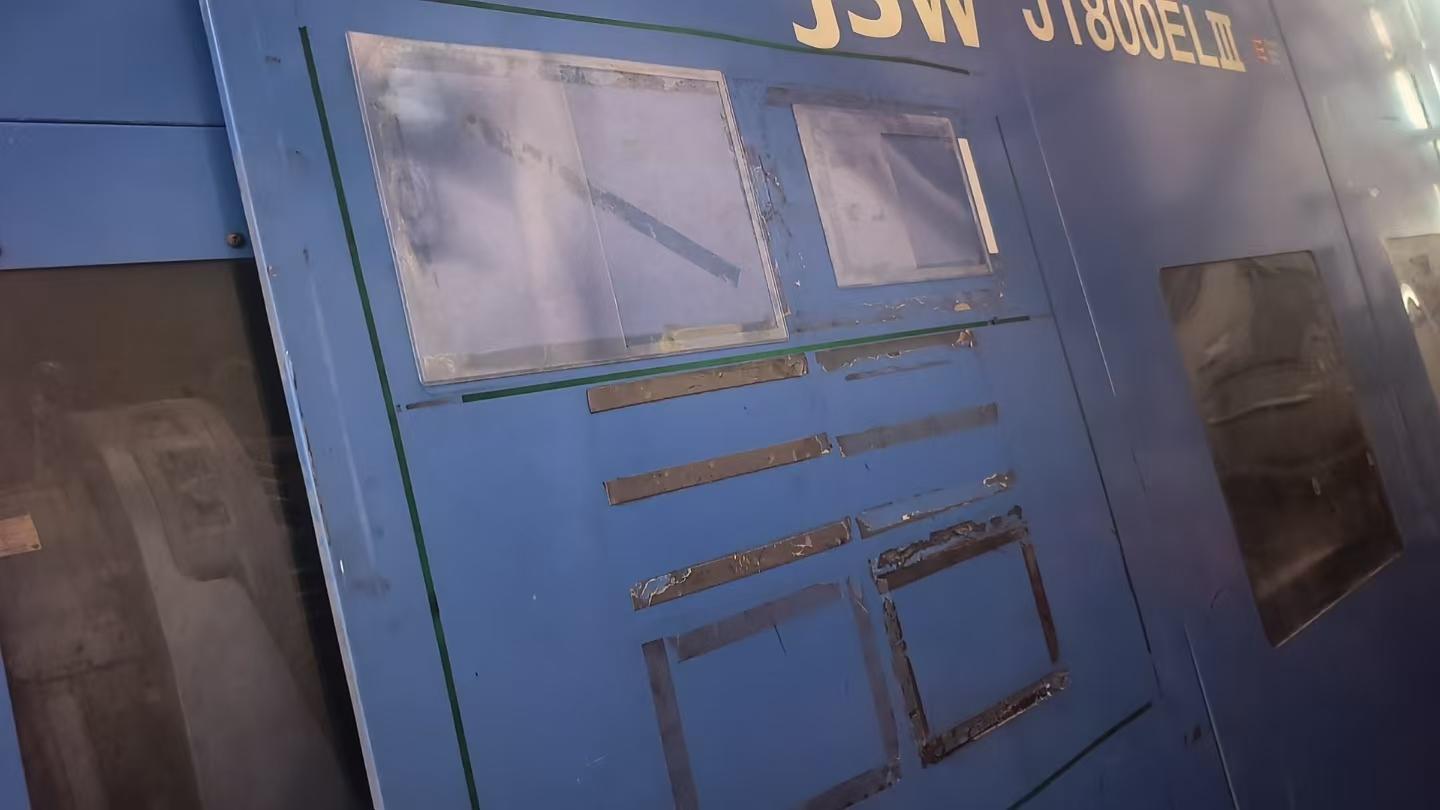

JSW J1800EL III-5200H injection molding machine

Injection Unit:
Screw diameter: 110 mm
Screw stroke: 550 mm
Theoretical injection volume: 5227 cm³
Injection weight (GP-PS): 4757 g
Max injection pressure: 172 MPa
Max holding pressure: 155 MPa
Injection speed: 160 mm/s
Injection rate: 1521 cm³/s
Plasticizing capacity: 580 kg/h
Screw speed: 130 rpm
Nozzle contact force: 59.0 kN (6.0 tf)
Nozzle stroke (distance to platen): 50 mm
Nozzle type: open nozzle
Temperature control zones: barrel 4 zones / nozzle 2 zones
Heating power: 55.0 kW

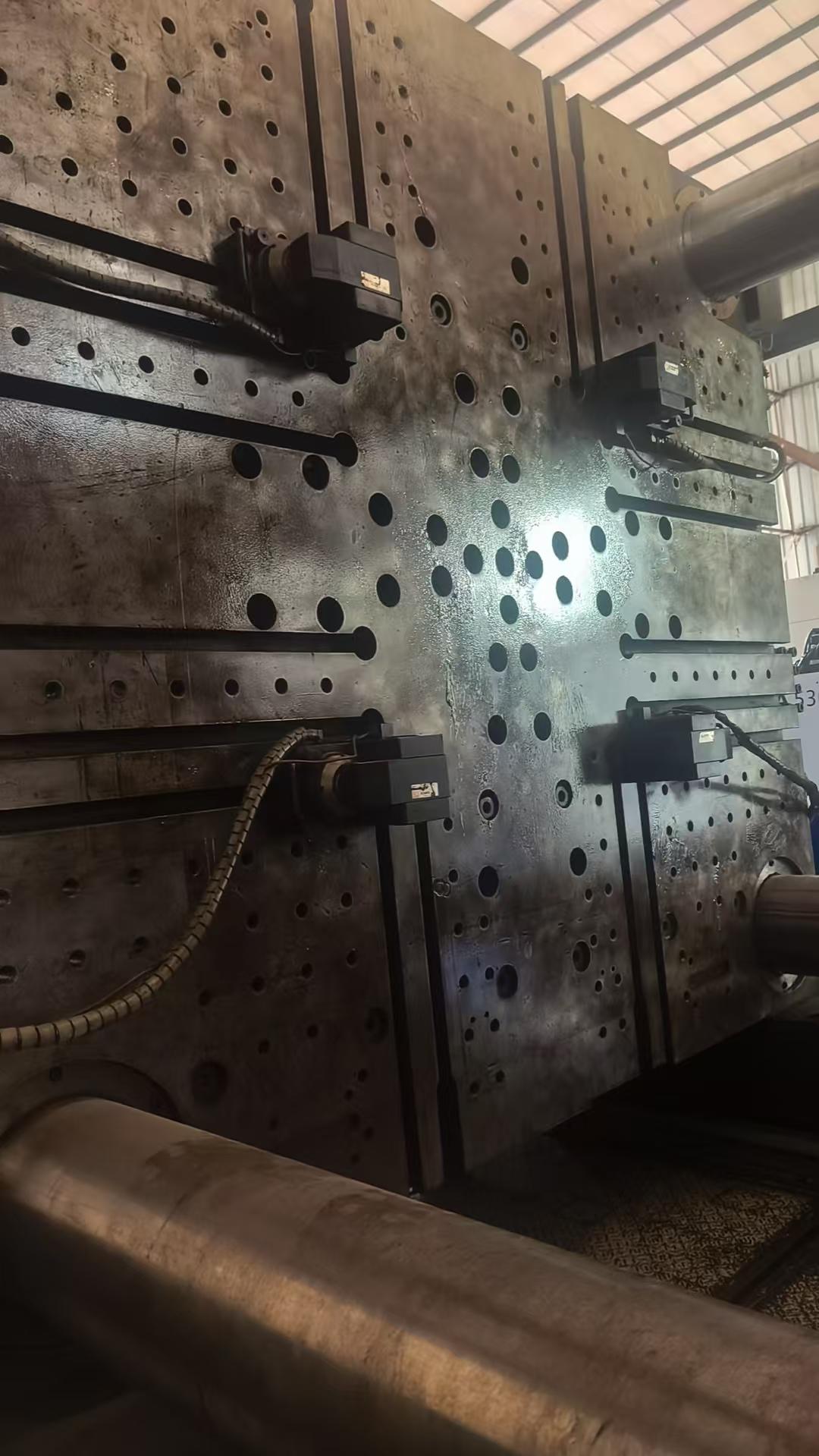

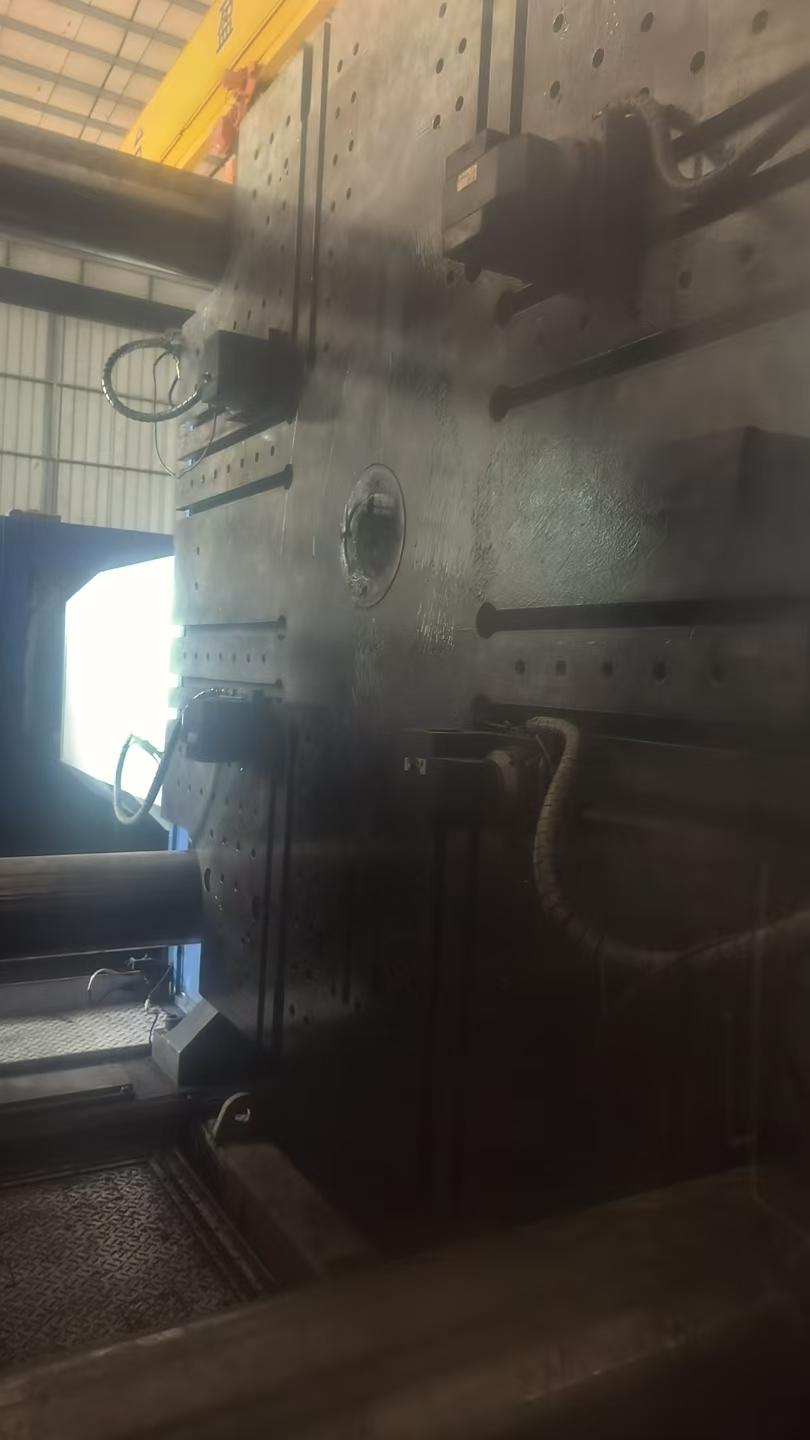

Clamping Unit:
Clamping force: 17,700 kN (1800 tf)
Max mold opening stroke: 1700 mm
Max daylight (open mold distance): 3200 mm
Mold height: 800–1500 mm
Tie bar spacing (H×V): 1850 × 1620 mm
Platen size (H×V): 2550 × 2320 mm
Ejector force: 380 kN (38.7 tf)
Ejector stroke: 300 mm
General Data:
Machine weight: 129 t
Machine dimensions (L×W×H): 1408 × 3720 × 3510 mm
“Official specifications, subject to actual machine.”
