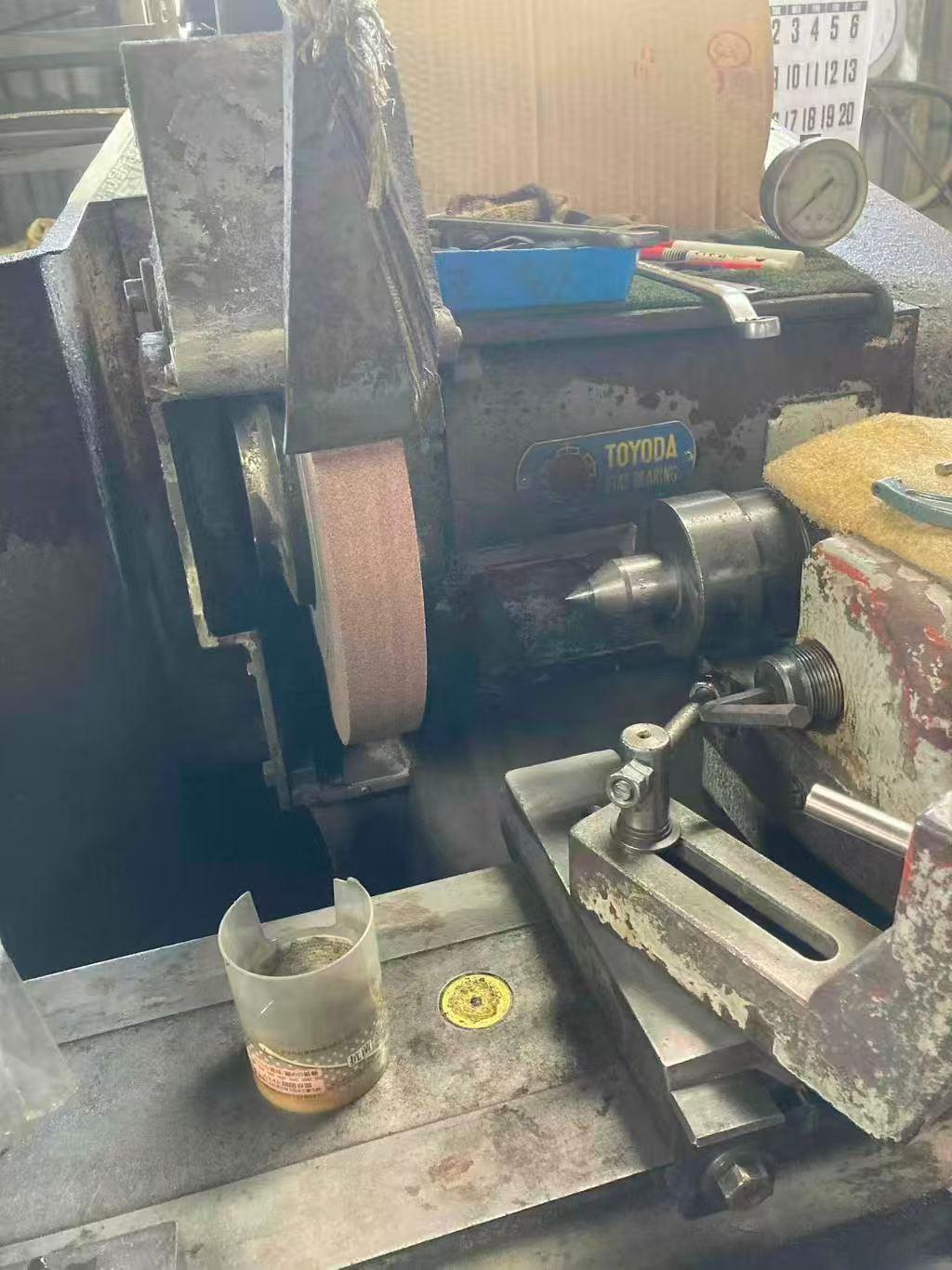

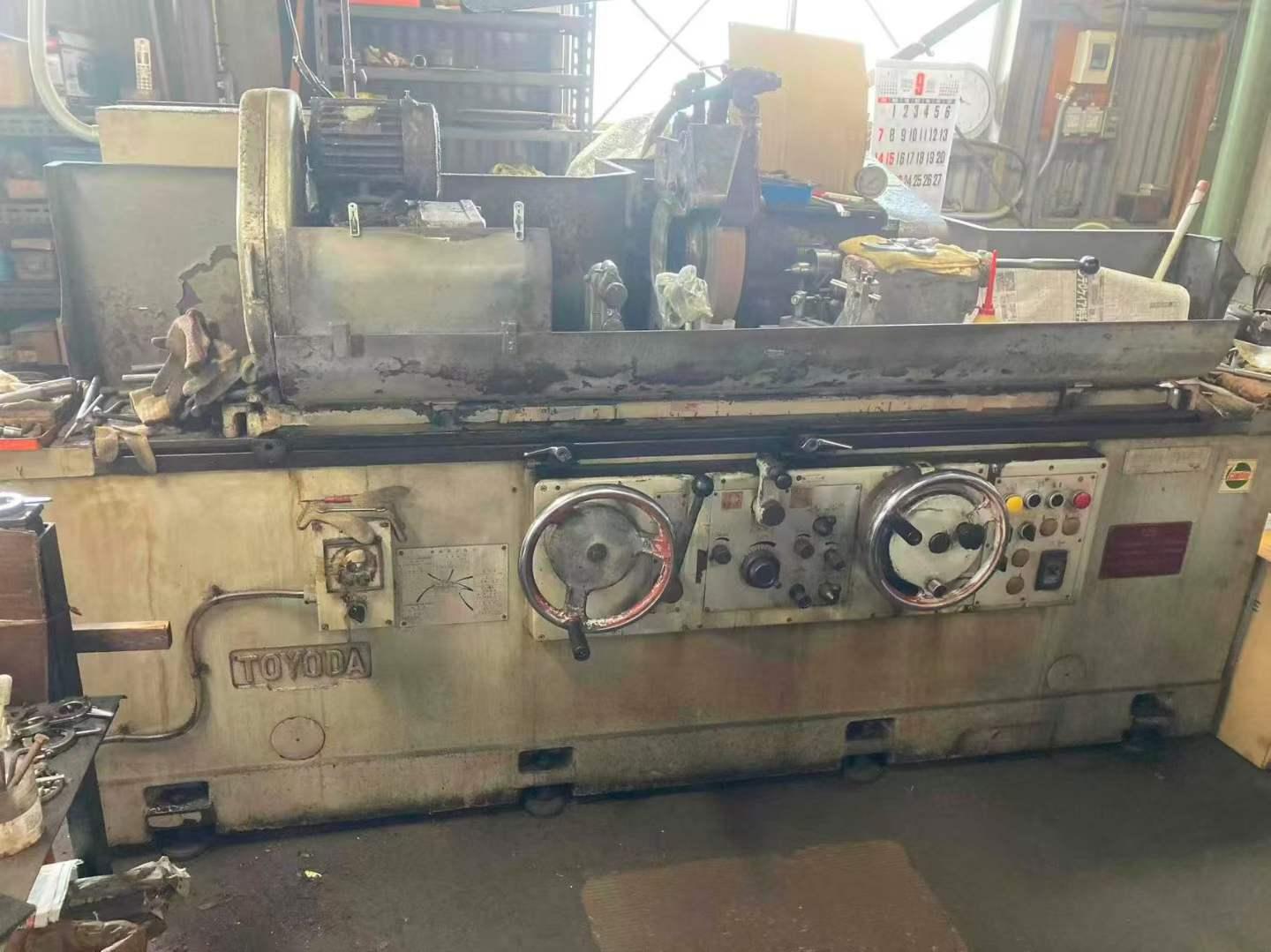

Toyota GOP32x100 Cylindrical grinder

Maximum grinding diameter: Φ 320mm
Maximum grinding length: 1000 mm
Tip distance: 1000mm
Center height: 175mm
Spindle speed range: 80-1800 rpm
spindle motor power: 5.5kW / 7.5kW
Longitudinal travel of Worktable: 1050mm
The lateral travel of the grinding wheel frame: 250mm
grinding wheel size: Φ405×50×127 mm
machining roundness: ≤ 0.002mm
machine tool weight: 4500 kg
Overall Footage: 3200×1800×1600 mm
