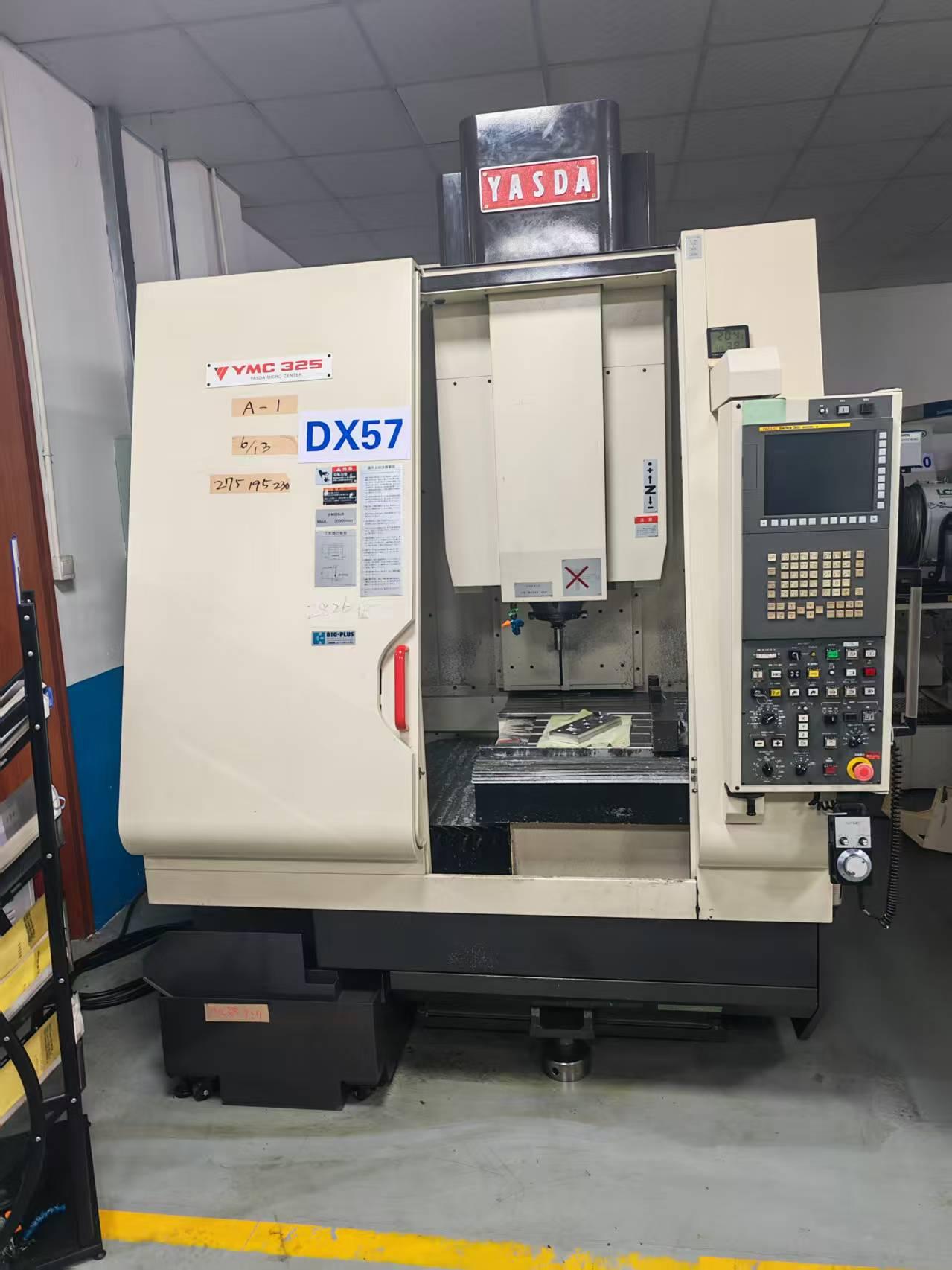

YASDA YMC-325 Vertical Machining centre

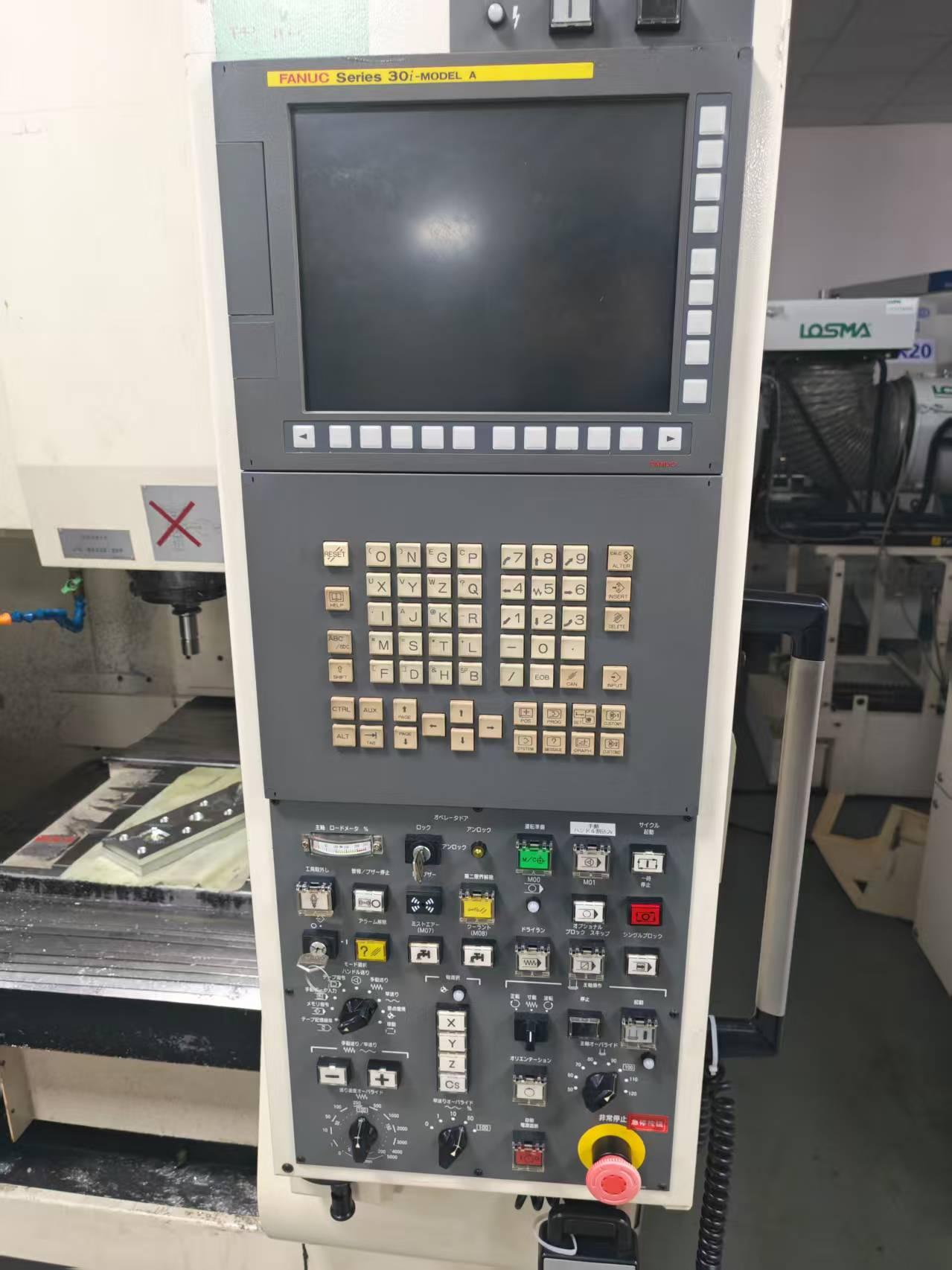

CNC System: FANUC Series 30i-MODELA
Three-axis travel (X/Y/Z): 300 × 250 × 250 mm
Spindle speed: 30,000 rpm
Tool holder: BBT30
Tool magazine capacity: 36
Z-axis travel: 250 mm
Worktable size: 350 × 350 mm
Maximum load: 50 kg
Distance from spindle to worktable surface: 300 mm
Drive mode:
Drive system for each axis: Linear motors
Spindle drive method: Built-in motor spindle
Chip removal method: Drawer type
Machine structure: C-type
Guideway type: Linear guideways (X/Y/Z axes are hydrostatic guideways)
Overall dimensions (L × W × H): 2,500 × 1,800 × 2,700 mm
