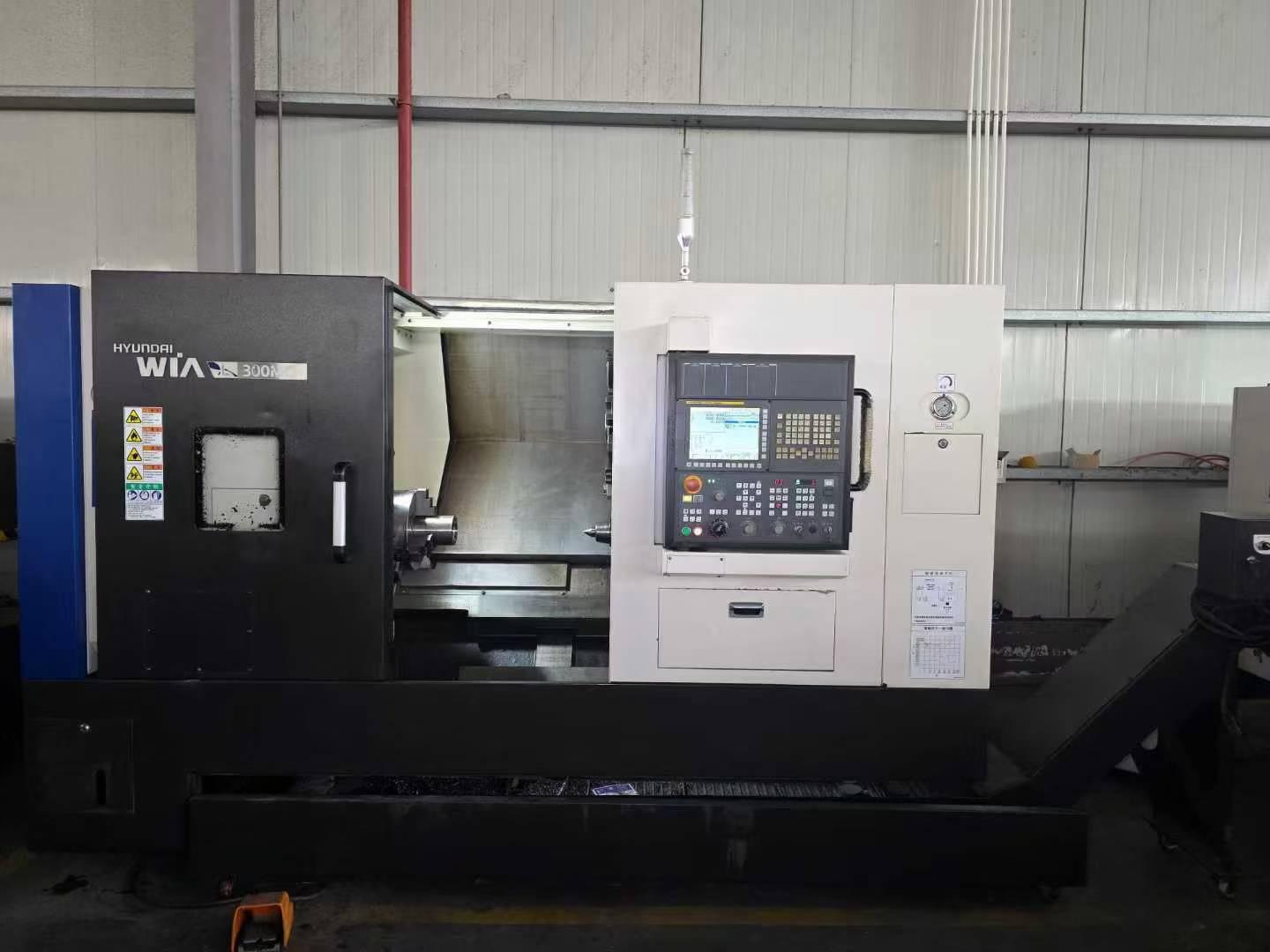

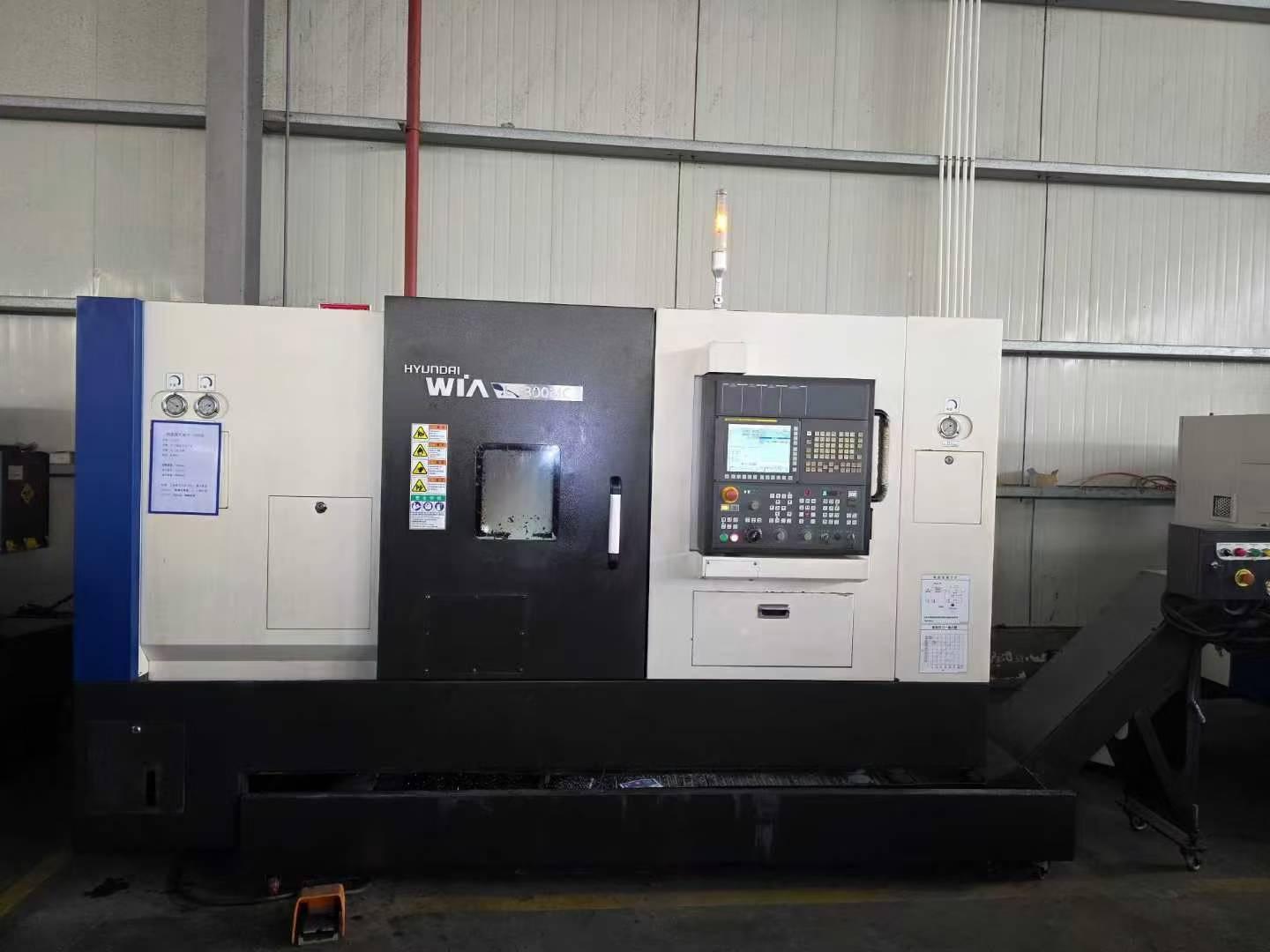

HYUNDAI WIA L300MC Turn Mill Machining Centre

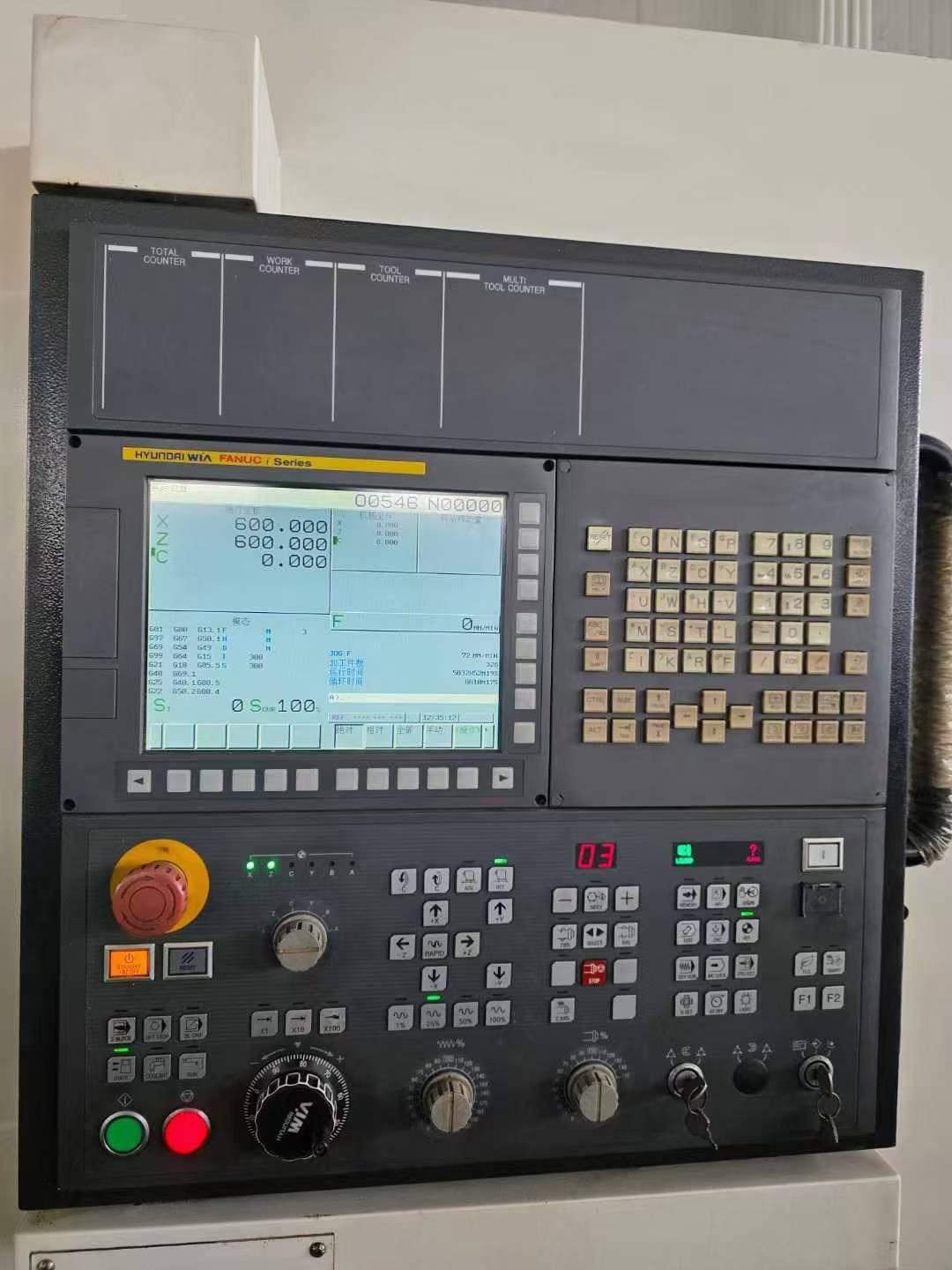

CNC System: FANUC i Series

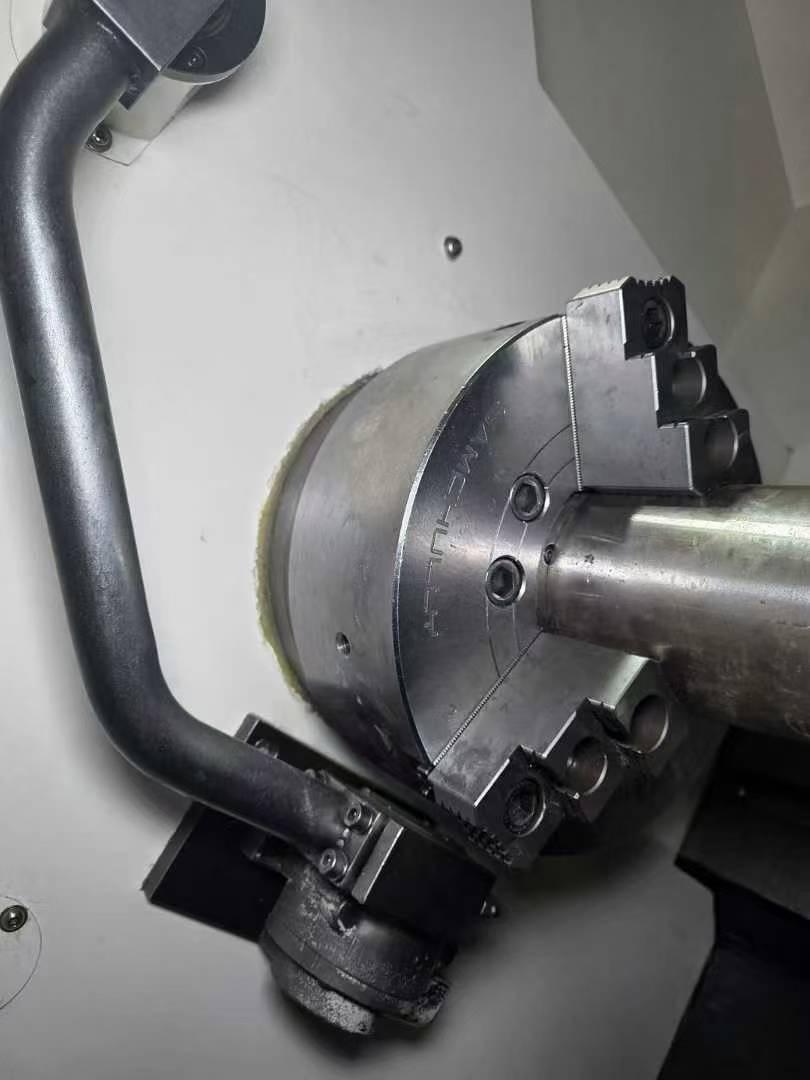

Standard Chuck Diameter: 254 mm (12-inch hydraulic interlocking chuck)
Maximum Swing Over Bed: 750 mm
Maximum Swing Over Tool Holder / Cross Slide: 480 mm
Maximum Turning Diameter: 410 mm
Maximum Machining Length: 600 mm
C-Axis Indexing resolution 0.001°
Spindle Nose Type: A2-8
Spindle Speed: 3,000 rpm
Bar Capacity (Through-Spindle Diameter): 95 / 76 mm
Spindle Power: 22.0 / 18.5 kW
Rapid Traverse Rate (X / Y): 20 / 24 m/min

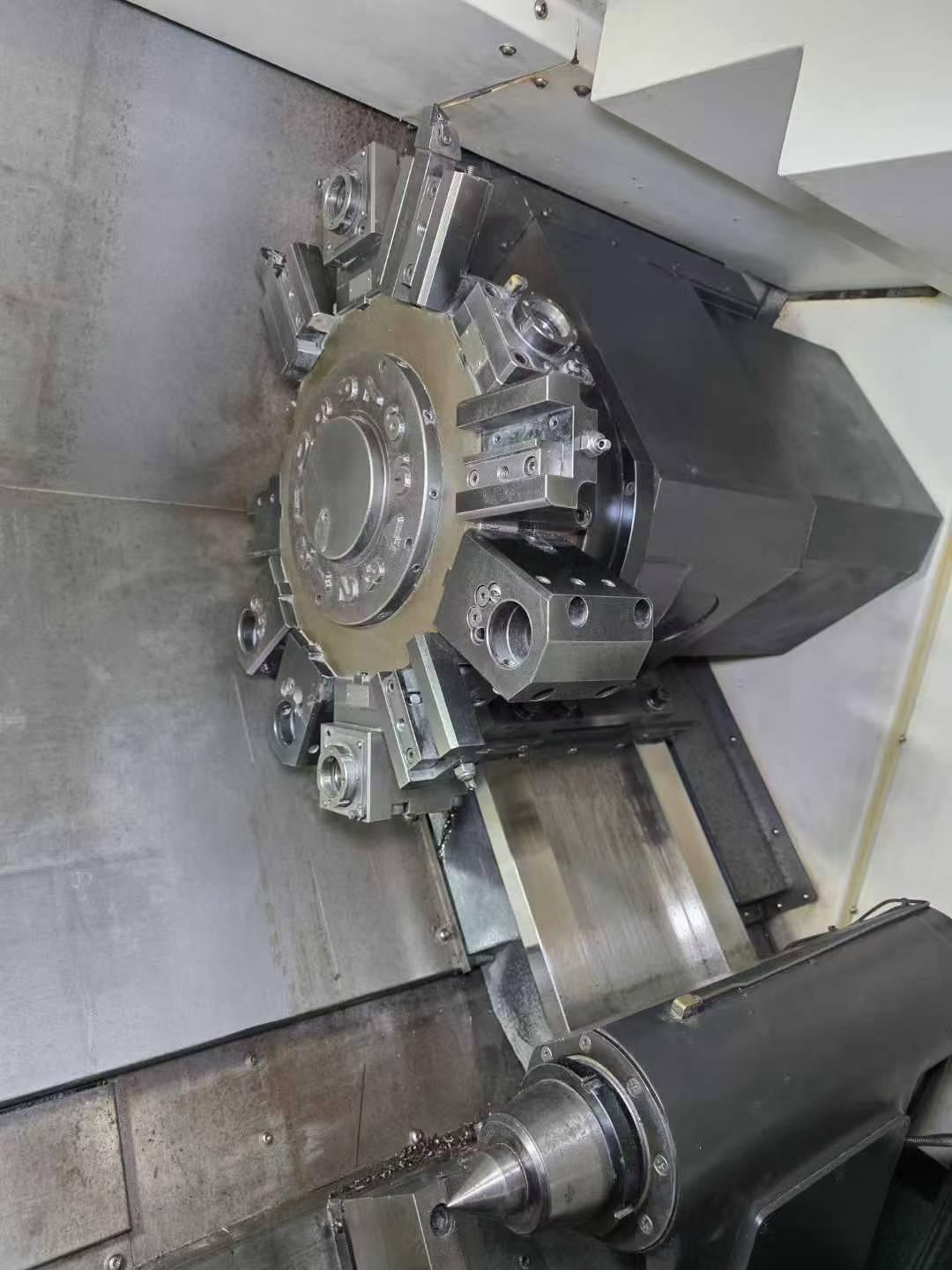

Turret Tool Positions: 12
Driven Tool Spindle Speed: 4,000 rpm
Driven Tool Motor Power: 5.5 / 3.7 kW
Configuration：
Additional Features: Equipped with C-Axis on the turret
Three powered spindles
Machine dimensions: 4900 × 2100 × 2250 mm
Machine weight: 6600 kg
