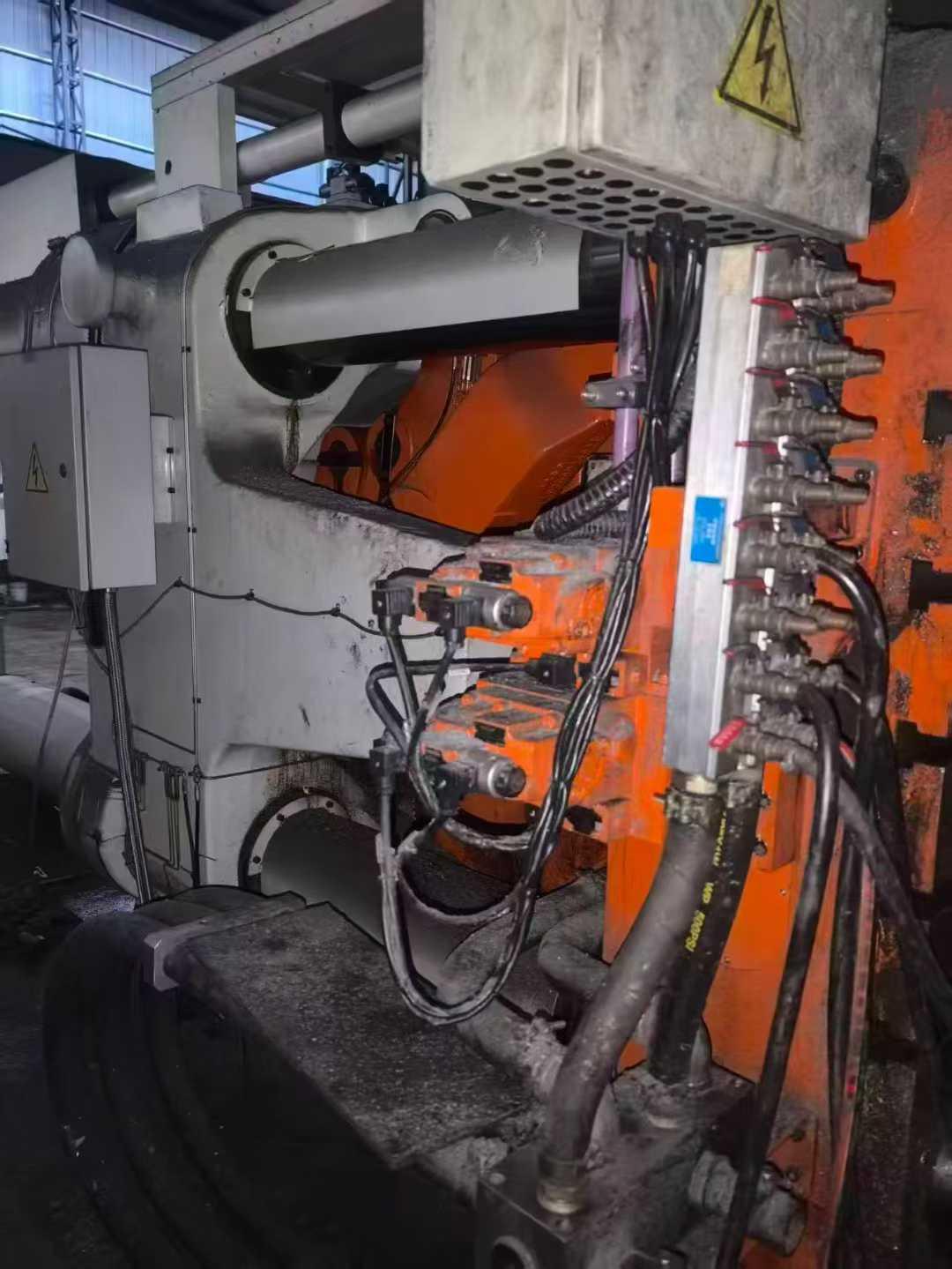

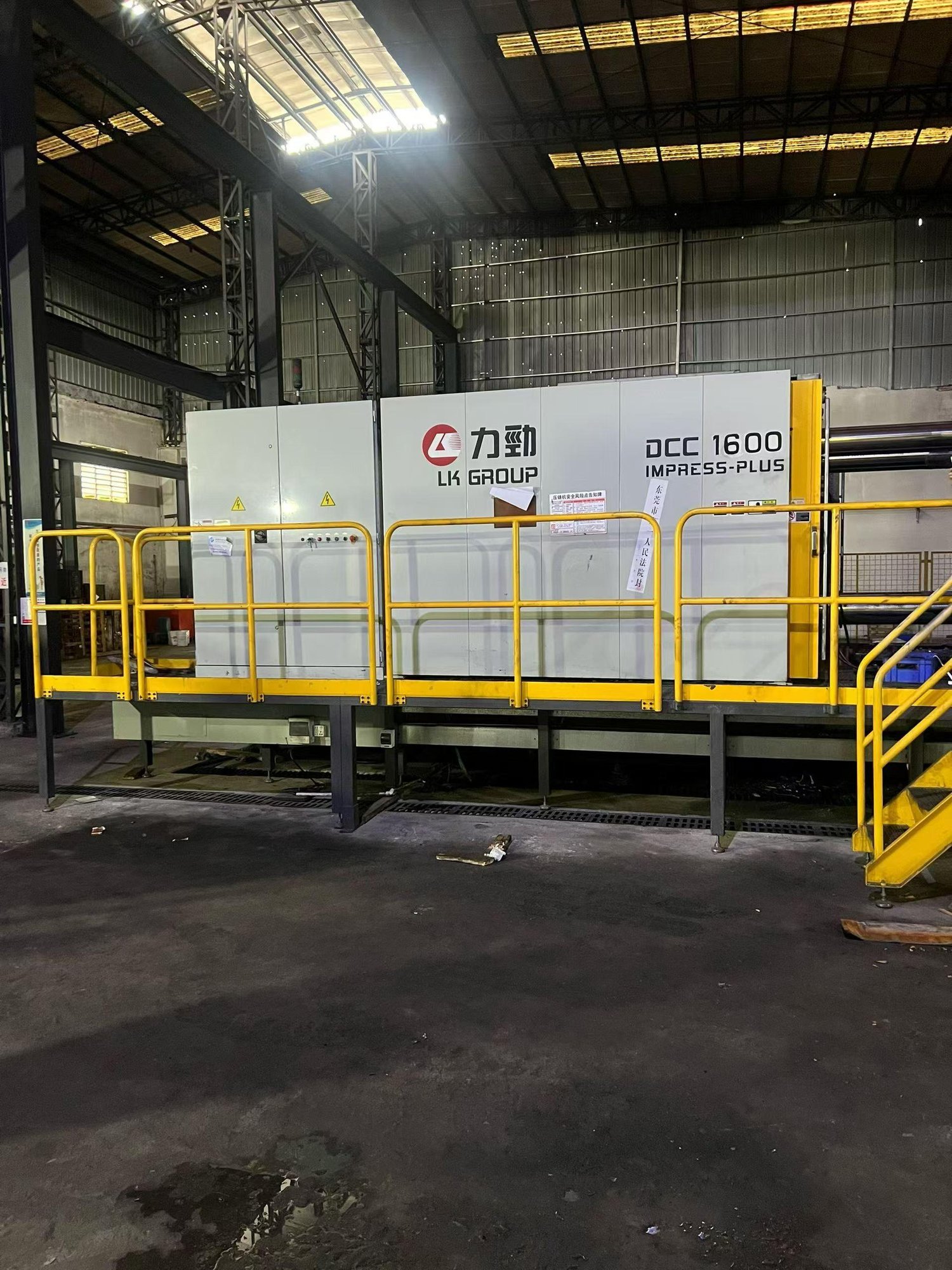

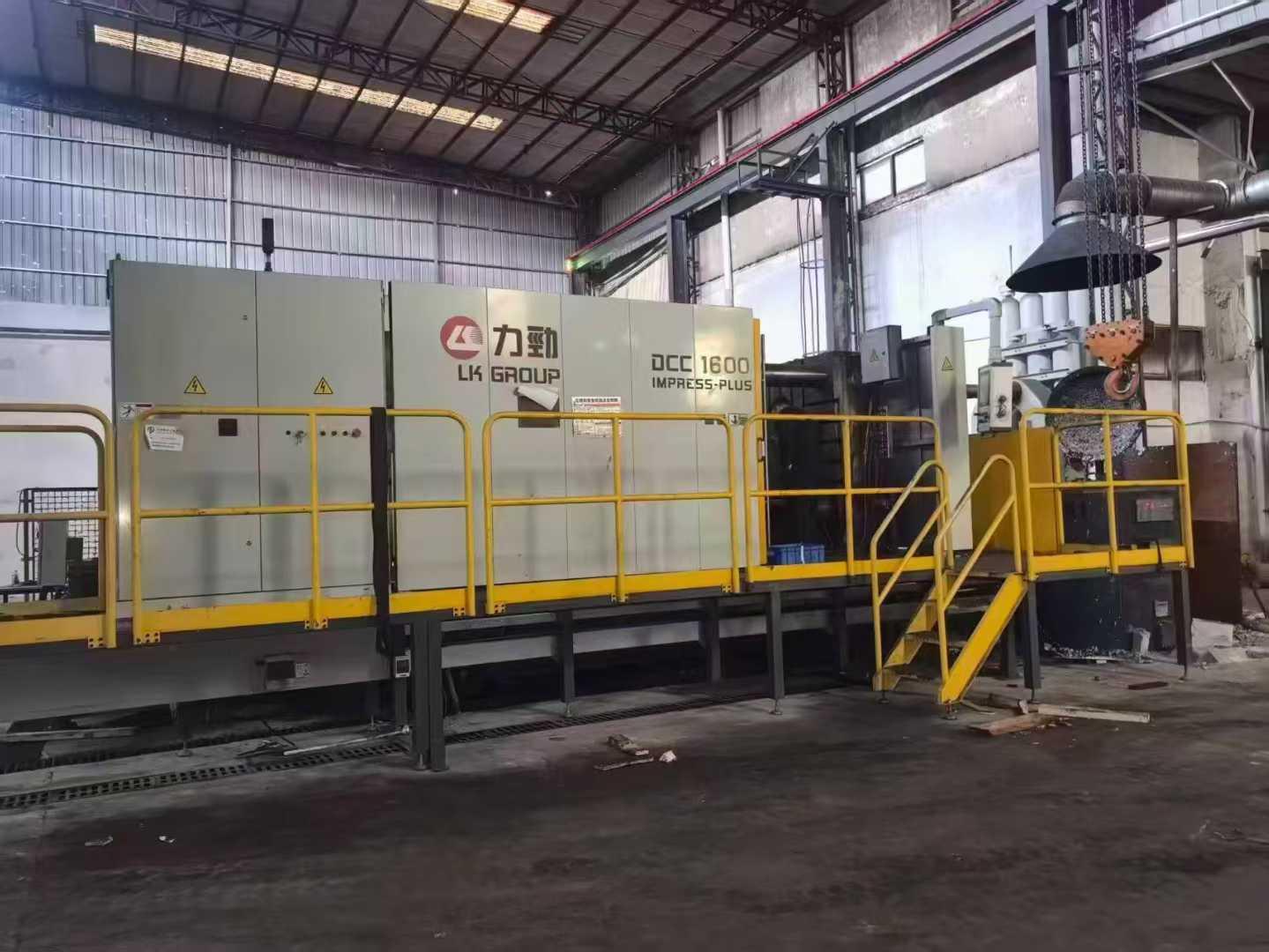

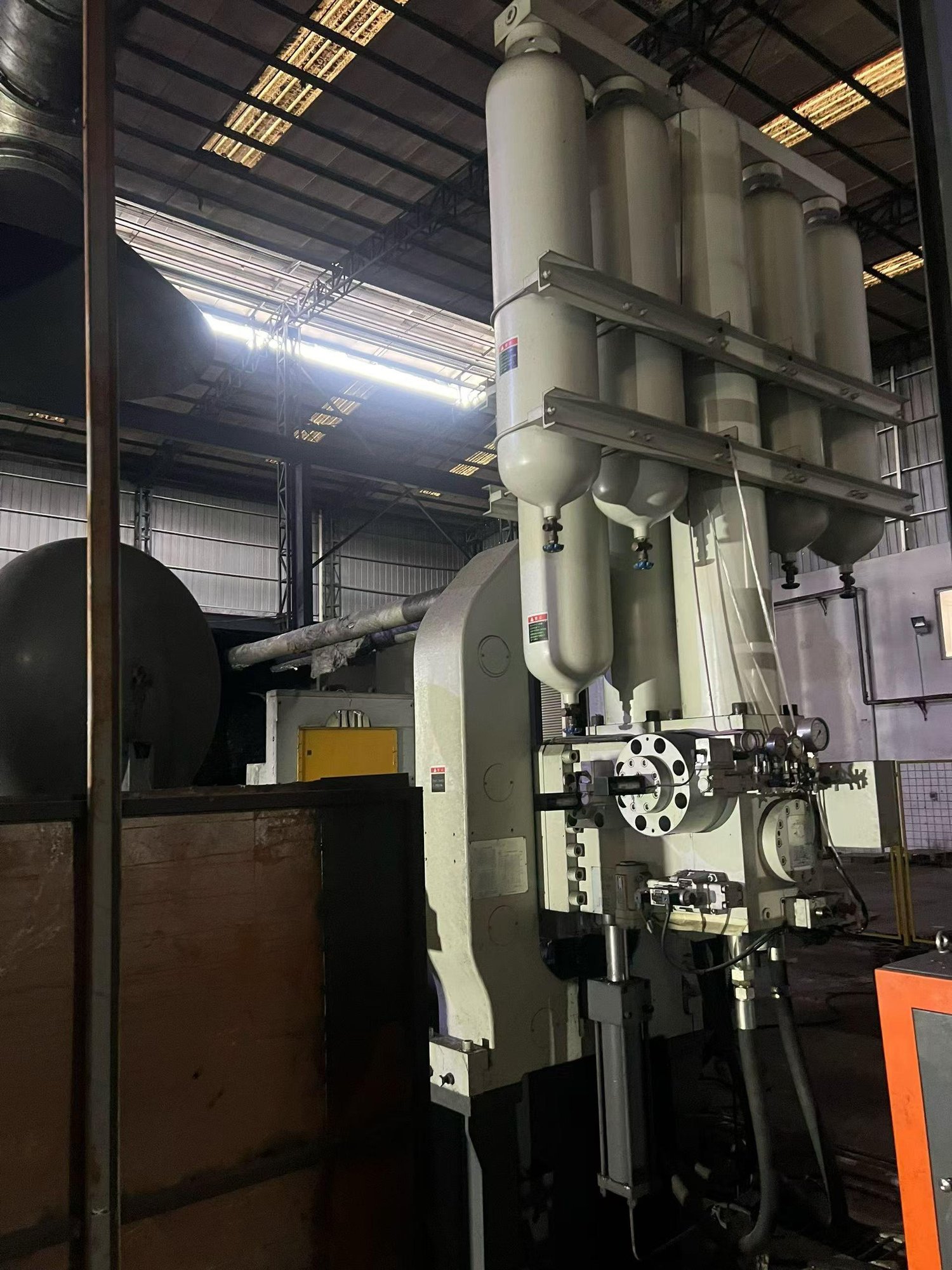

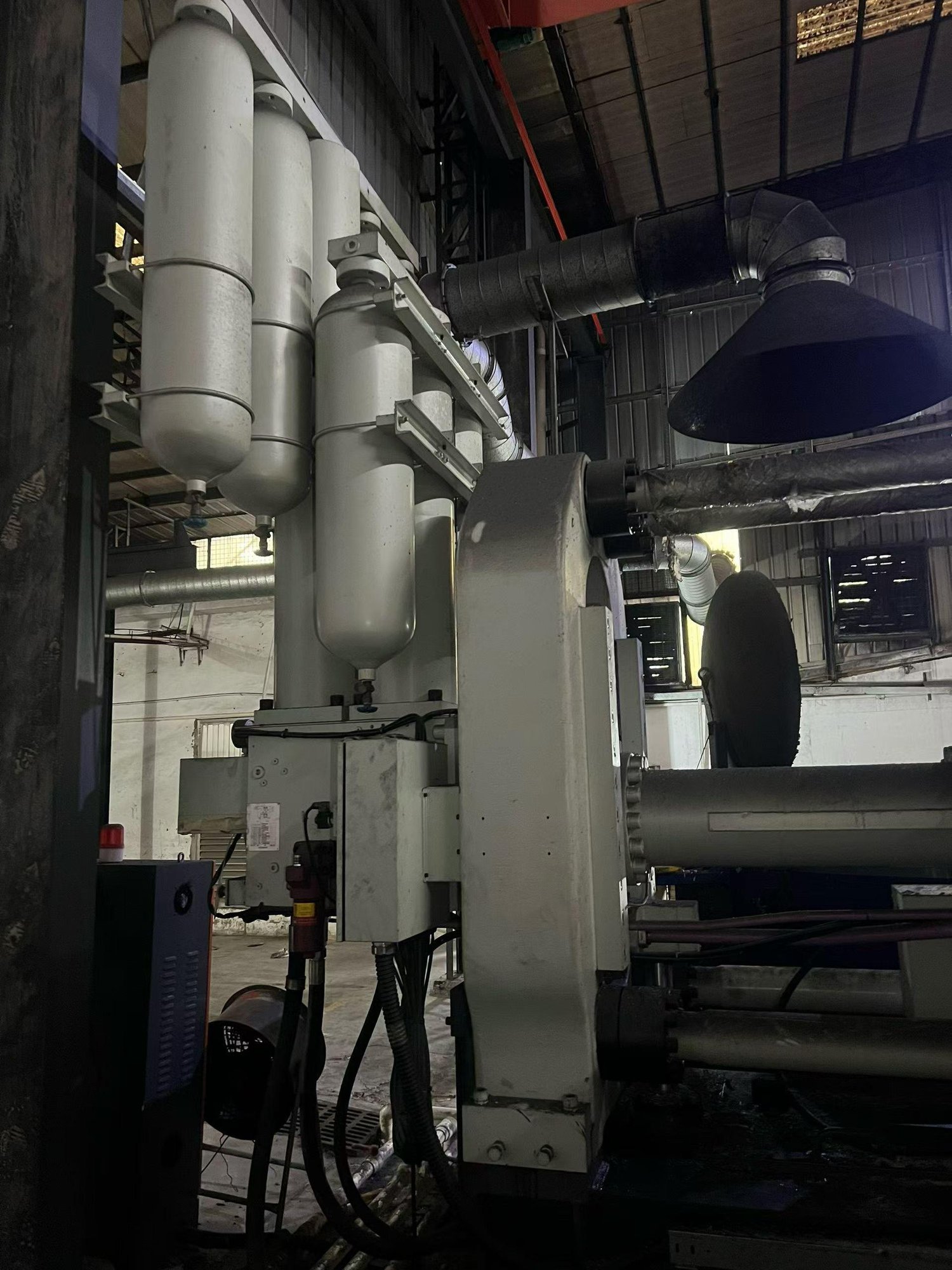

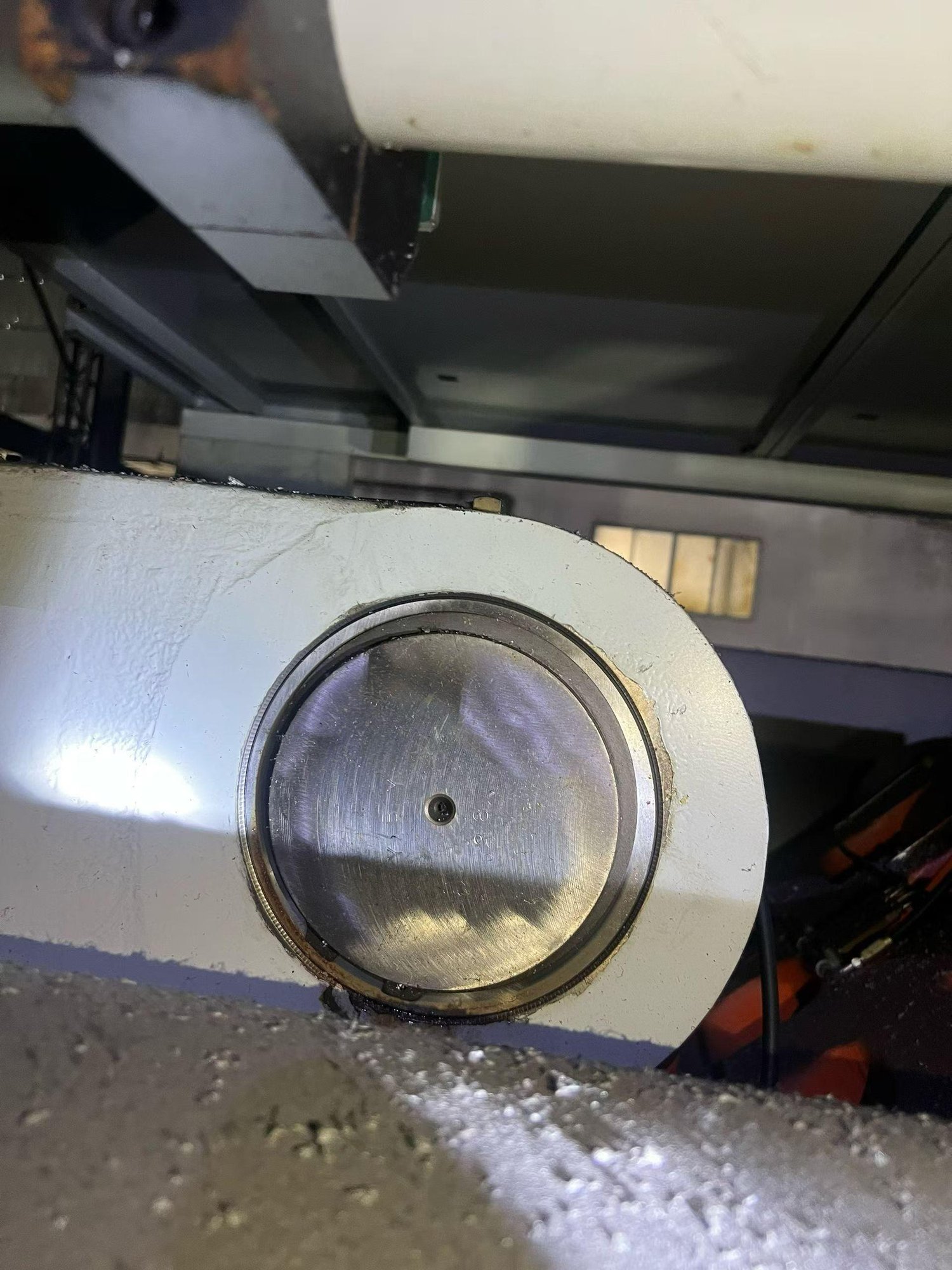

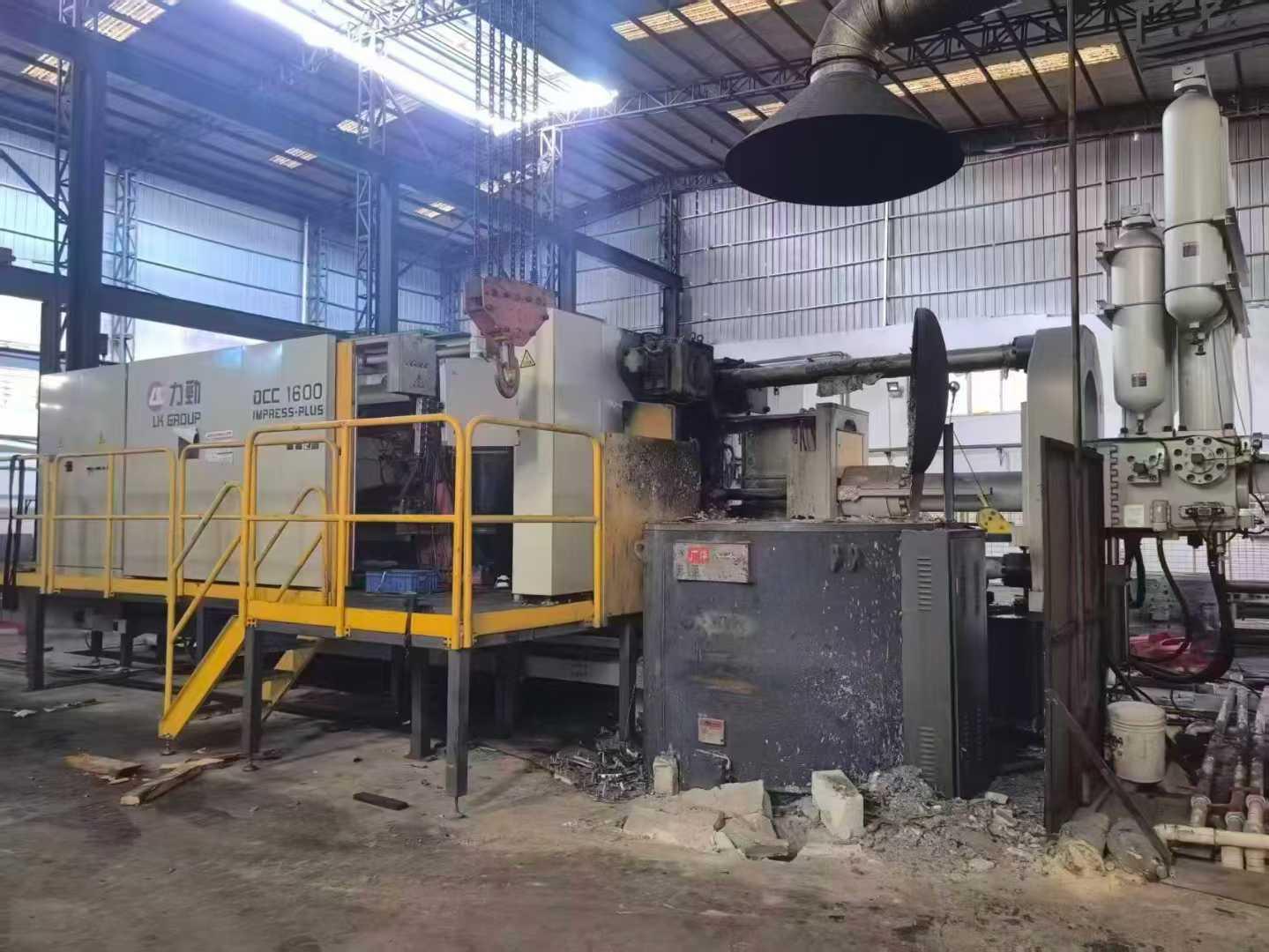

LK GROUP DCC-1600 IMPRESS-PLUS other

Clamping Force: 16,000 kN
Transverse Die Travel: 1200 mm
Mold Thickness: 500–1,400 mm
Template Size (Width × Height): 2,010 × 1,960 mm
Internal Diameter of Guide Columns: 1,180 × 1,180 mm
Guide Column Diameter: 250 mm
Injection Force: 1,285 kN
Injection Stroke: 930 mm
Punch Diameter: 110–150 mm
Injection Volume: 11.9–22.1 k
Melting Pressure: 73–137 MPa
Melting Area: 1,769–3,030 cm²
Maximum Melting Area: 5,000 cm²
Injection Position: -175 mm
Injection Punch Stroke: 360 mm
Injection Nozzle Diameter: 260 mm
Flange Protrusion Height: 30 mm
Ejection Force: 570 kN
Ejection Stroke: 250 mm
System Working Pressure: 14 MPa
Motor Power: 2 × 45 kW
Hydraulic Tank Capacity: 2,600 L
Machine Weight: 105,000 kg
Machine Dimensions (L × W × H): 1,150 × 400 × 420 cm
