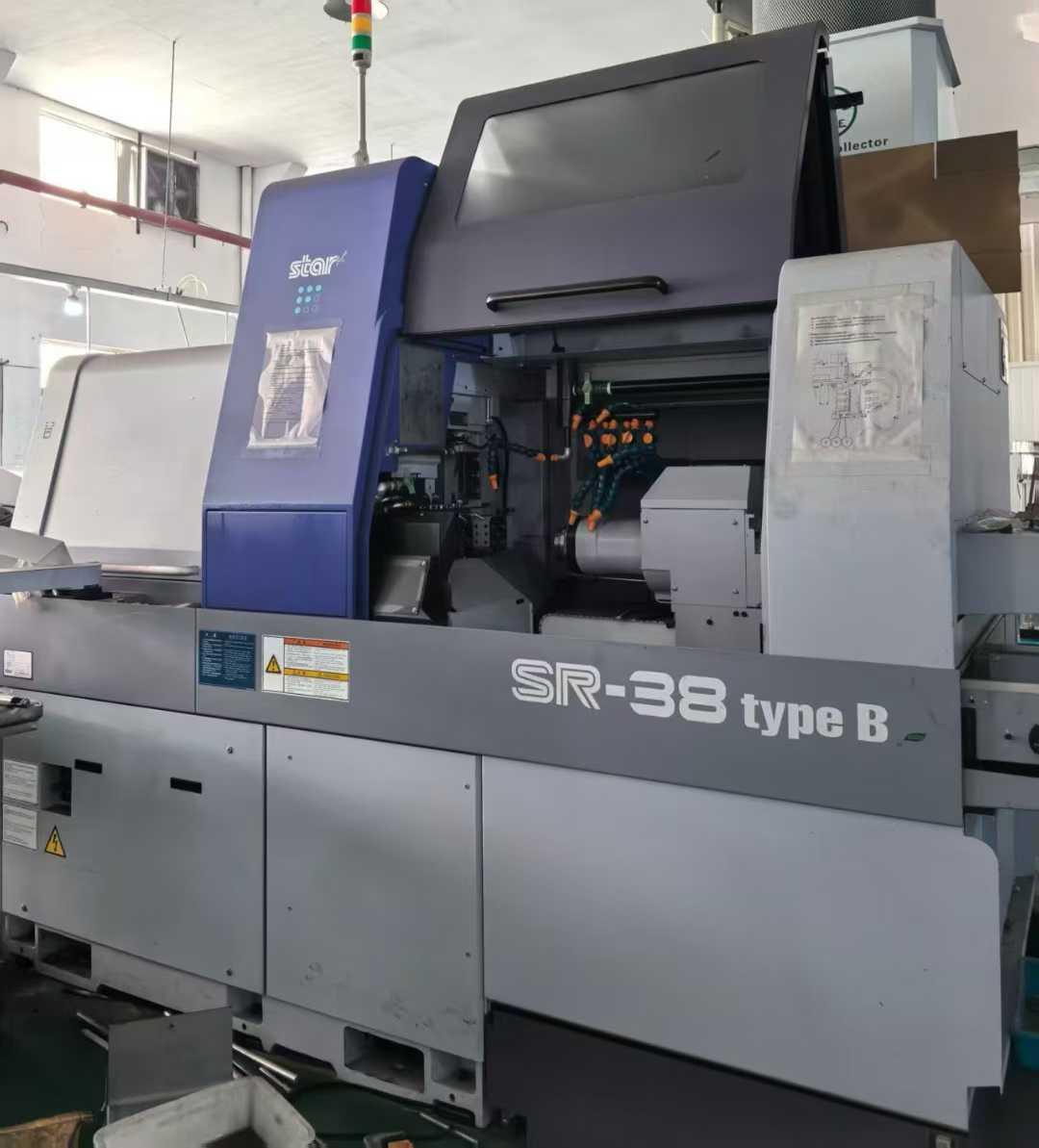

STAR SR-38 type B Automatic lathe

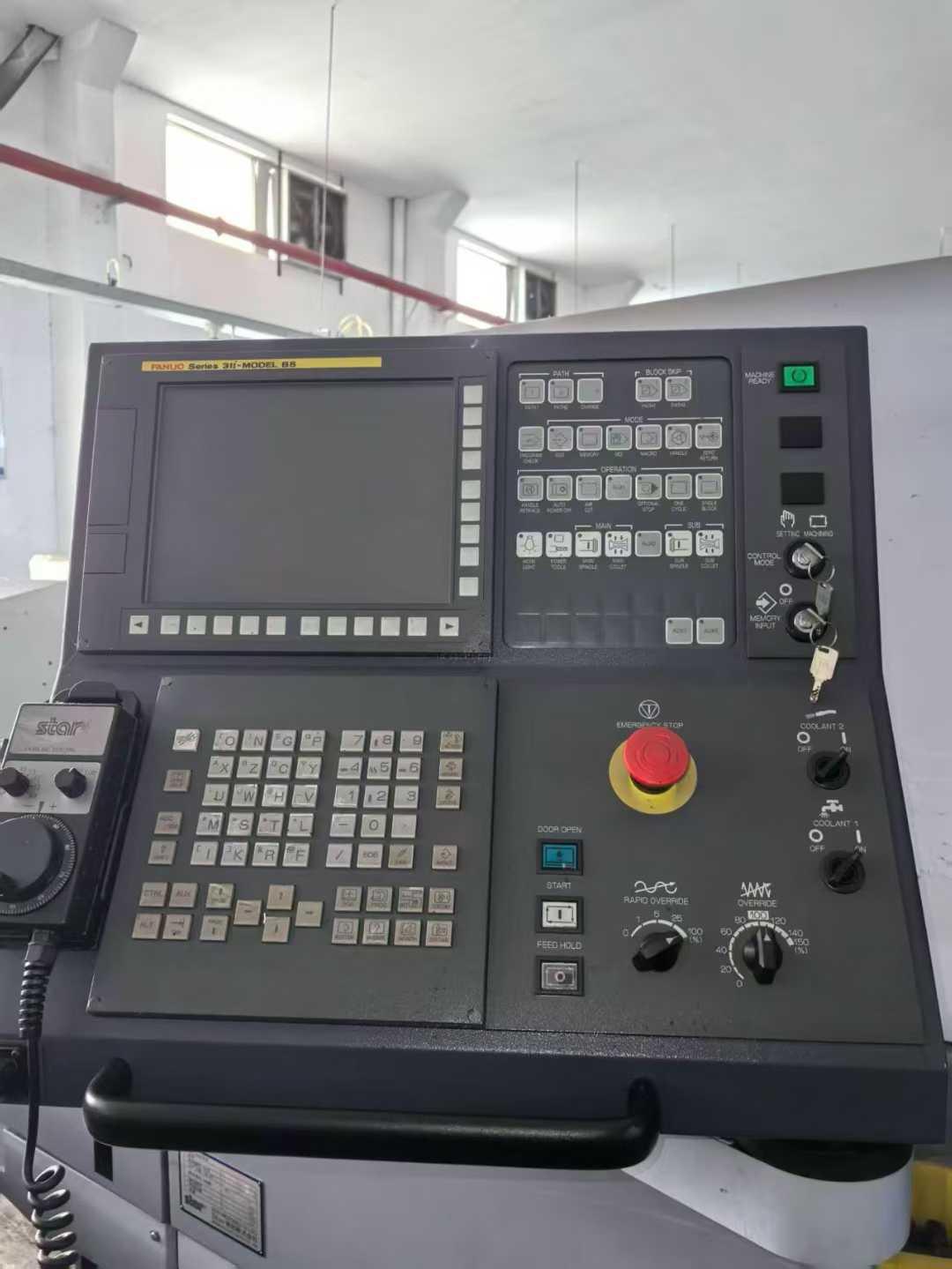

CNC System: FANUC
Machining Capacity
Maximum Machining Diameter: Ø38 mm (1-1/2 inch)
Spindle Headstock Travel:
Equipped with R.G.B. Unit: 320 mm (12-19/32 inch)
Equipped with R.M.G.B. Unit: 288 mm (11-3/32 inch)

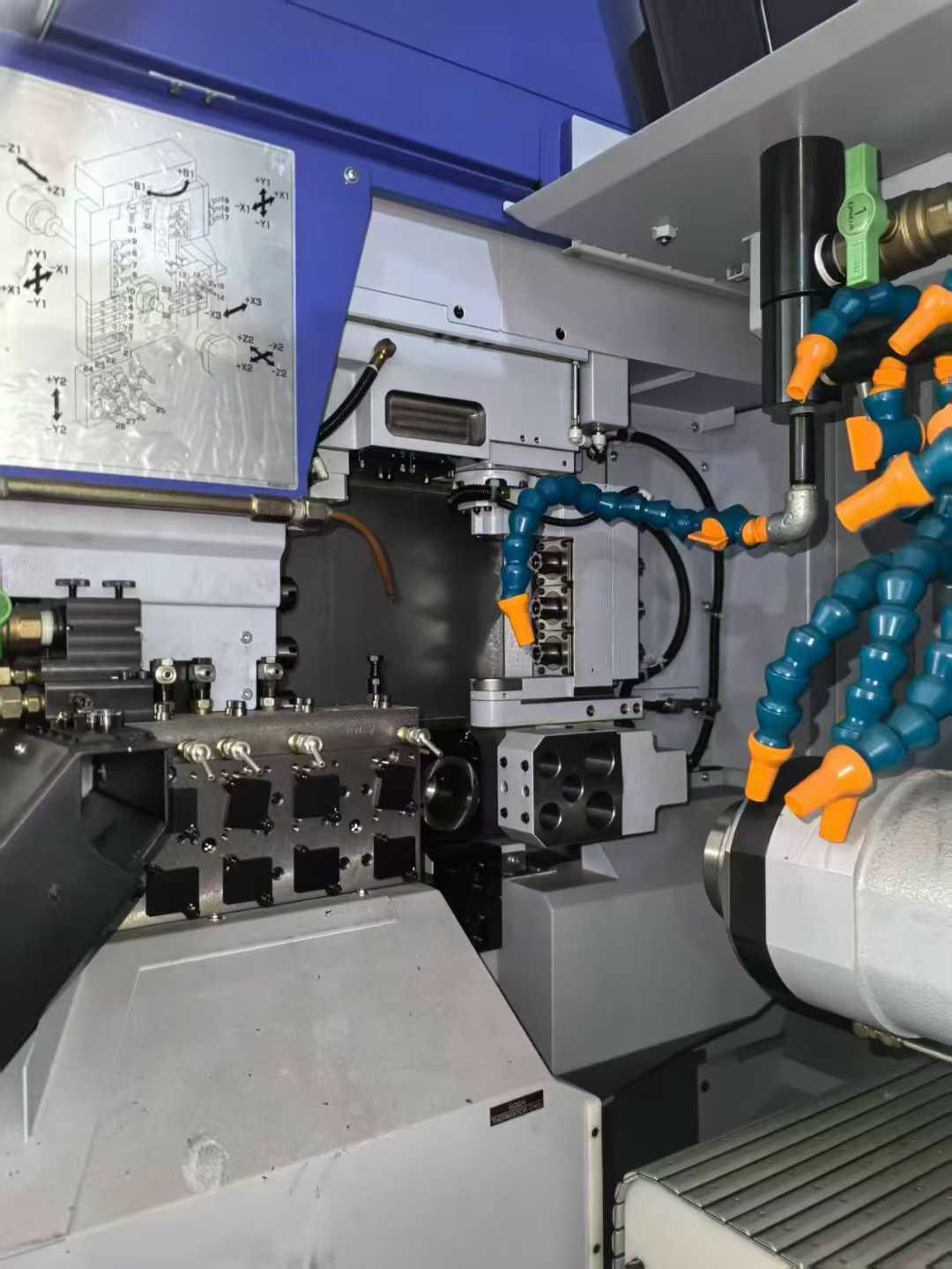

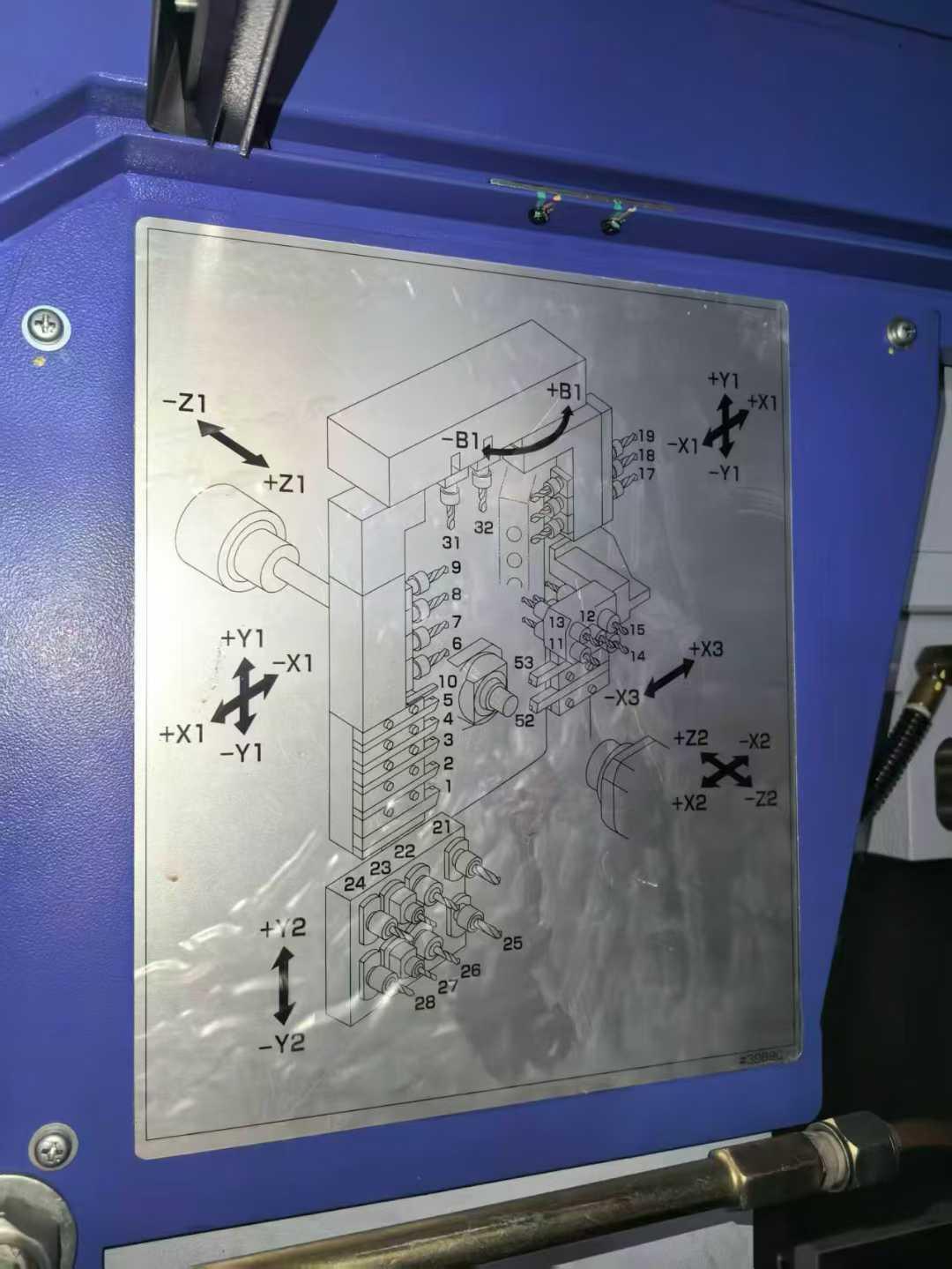

Tool Configuration
Front Tools: 5 (fixed type)
Rear Tools: 2 (X3 axis control)
5-Spindle Tool Holder:
Front Tools: 5
Rear Tools: 5
Drilling/Tapping Capability
Maximum Drilling Capacity: Ø23 mm (29/32 inch)
Maximum Tapping Capacity: M16 × P2.0
Drilling Capacity for Power-Driven Accessories: Ø10 mm (25/64 inch)
Tapping Capacity for Power-Driven Accessories: M8 × P1.25
Power-Driven Tools
Cross Milling Tools: 4
Cartridge Type: 2 positions
Adjustable-Angle Power-Driven Tool (Type A): Front 3 + Rear 3 (1 position)
B-Axis ontrolled Power-Driven Tool (Type B): Front 3 + Rear 3 (1 position)

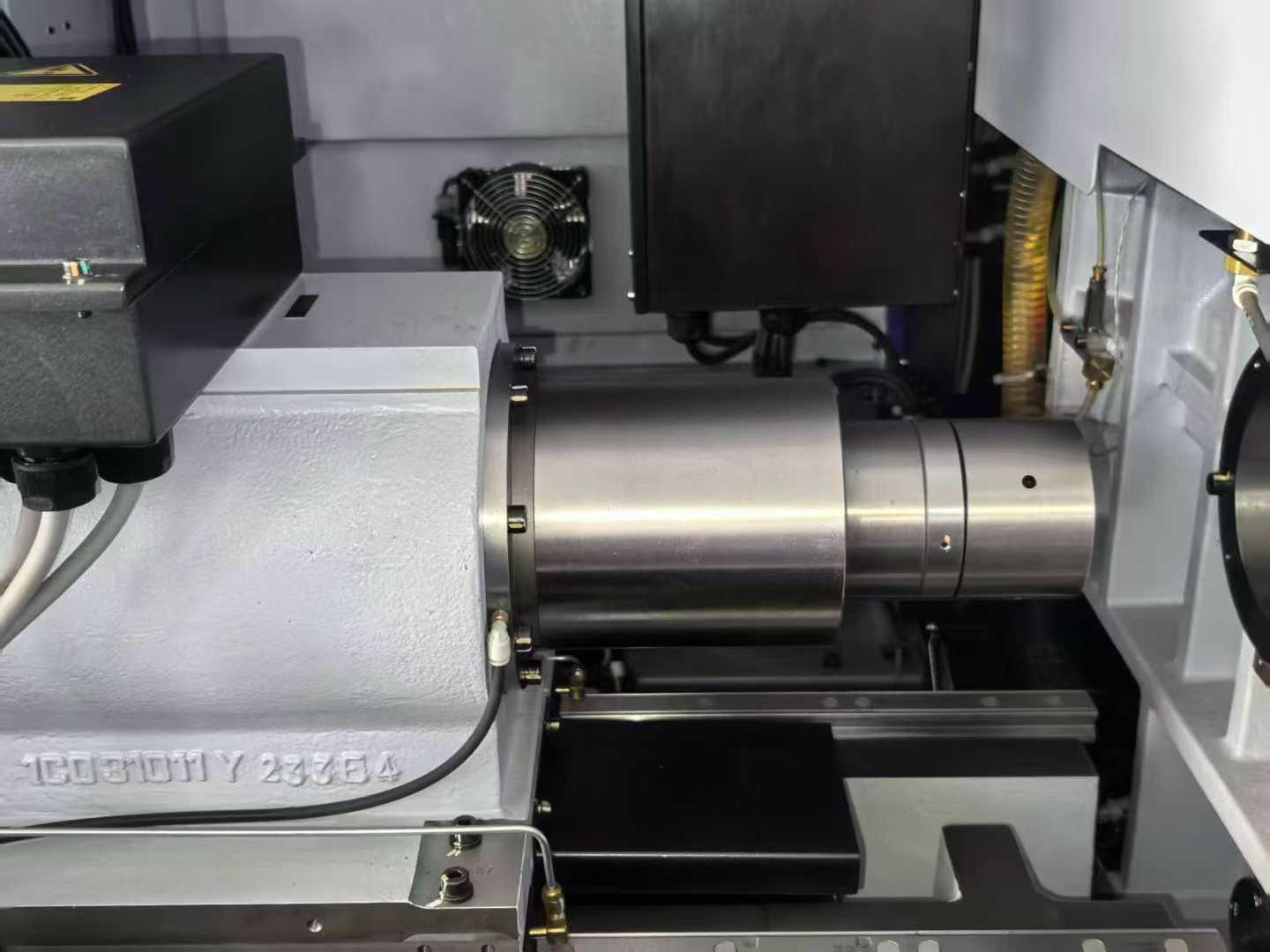

Spindle Parameters
Spindle Speed: Max. 7,000 rpm
Spindle Motor: 7.5 kW (continuous) / 11 kW (10 min / 25% ED)
Spindle Indexing Angle: C-axis control
Additional Power / Feed
Power-Driven Accessory Motor: 2.2 kW (continuous) / 4.0 kW (5 min / 30% ED)
Rapid Feed Rate: 36 m/min (X1, Y1, Z1, X2, Z2), 24 m/min (Y2, X3)
Cooling and Electricity
Coolant Tank Capacity: 253 liters
Power Consumption: 16.9 kVA
Mechanical Dimensions and Weight
Machine Dimensions (Width × Depth × Height): 2,740 × 1,315 × 2,120 mm
Machine Weight: 4,300 kg
The data on the official website is for reference only.
