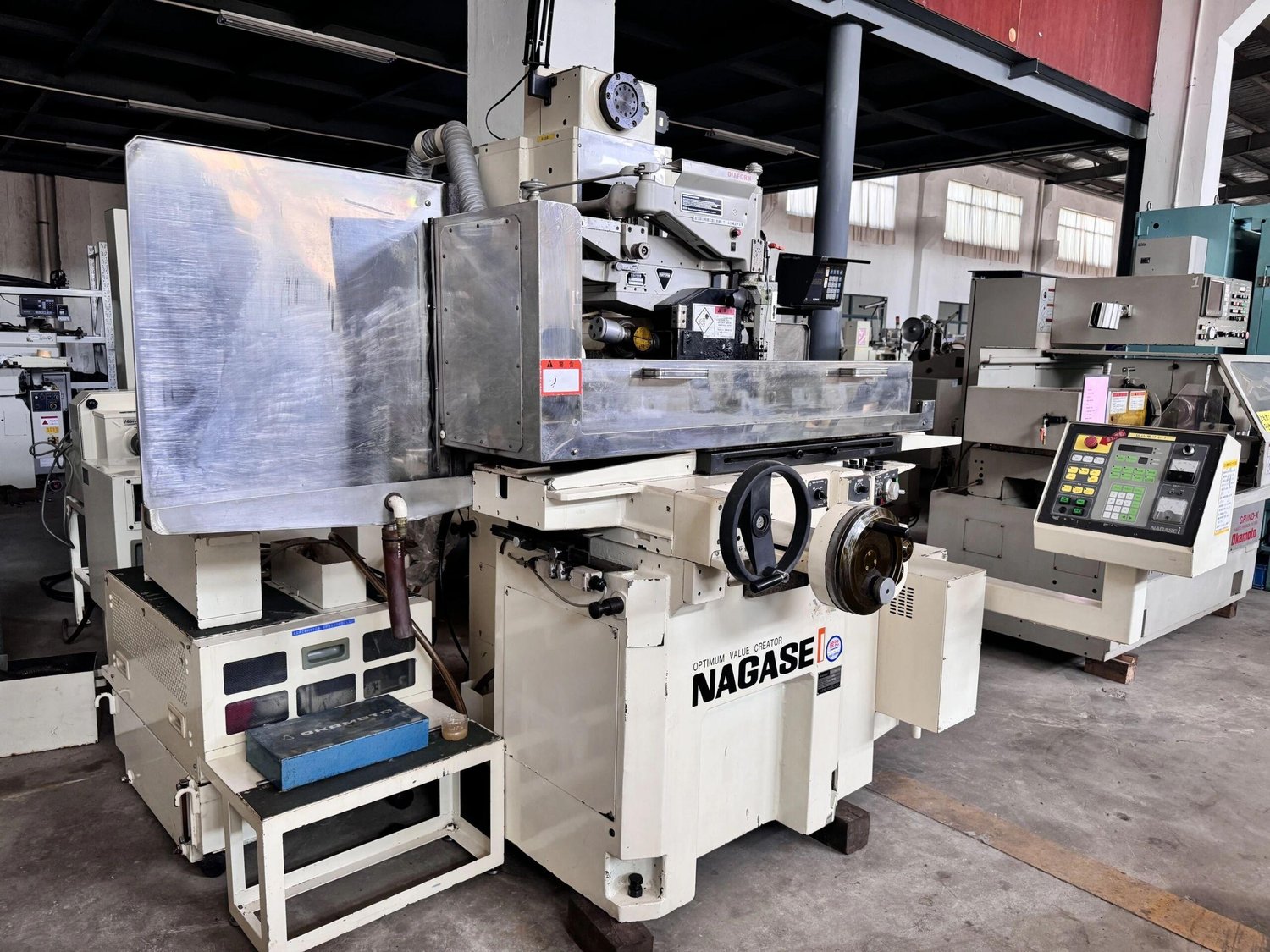

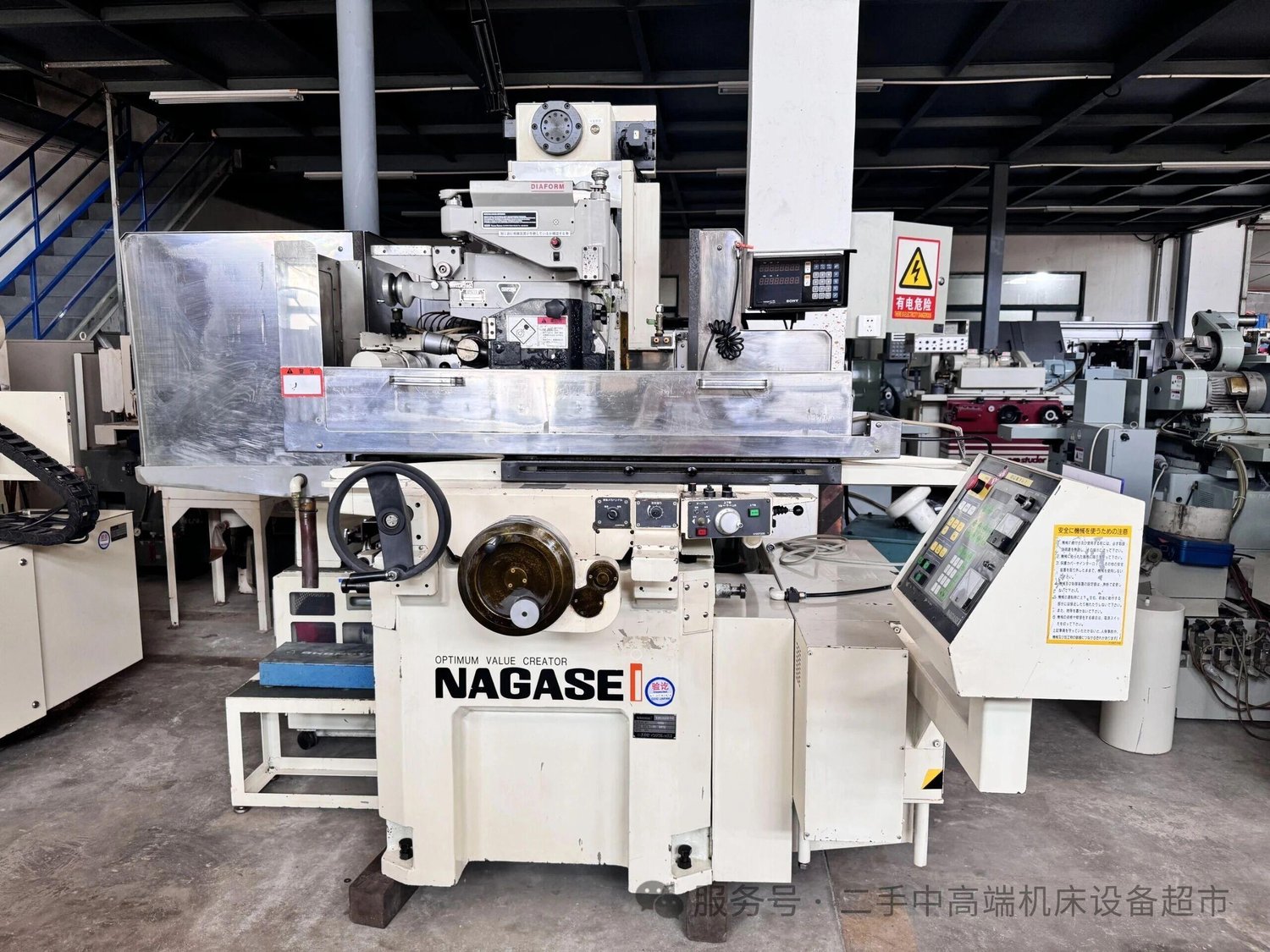

NAGASE SGM-520E1MD Surface grinder

Travel (X × Y): 500 × 200 mm
Maximum Travel (X × Y): 580 × 230 mm
Distance from Worktable to Grinding Wheel Axis: 490 mm
Maximum Load: 200 kg
Grinding Wheel Size (Diameter × Thickness × Bore): 250 × 25 × 51 mm
Rotational Speed: 3,200 rpm
Voltage: Three-phase 200 V
Total Power: 12 kVA
Machine Dimensions (Length × Width × Height): 2,400 × 2,500 × 2,000 mm
Machine Weight: 2,200 kg
