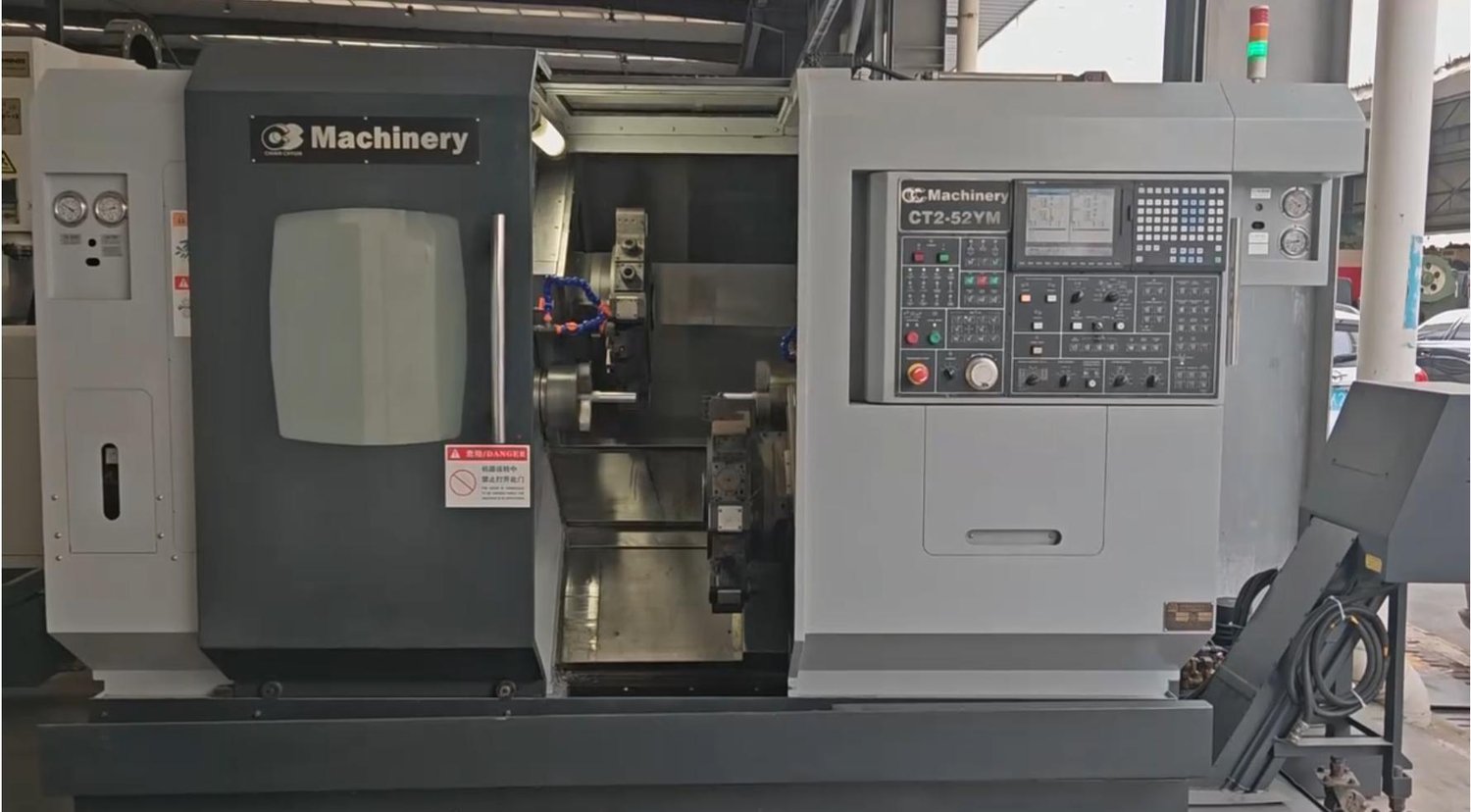

CHIAH CHYUN CT2-52YM CNC turning lathe

CNC System: Mitsubishi M700
Machining external diameter: 210 - 360 mm
Swing over bed: 830 mm
Machining length: 440 mm
Bar machining capacity: 51 mm
Distance between centers: 920 mm
B-axis travel: 650 mm
Z-axis travel: 440 mm
Spindle speed: 6000 rpm
Spindle through-hole diameter: 60.5 mm
Spindle center height: 1188 mm
Spindle bar machining capacity: 51 mm
Main motor power: 11 - 15 kW
Spindle bearing outer diameter: 90 mm
Machine tool weight: 10,200 kg
Machine tool dimensions: 4216 x 2342 x 2144 mm
Configuration:
Equipped with a chip conveyor
Equipped With Y-axis
16-station dual-power turret
