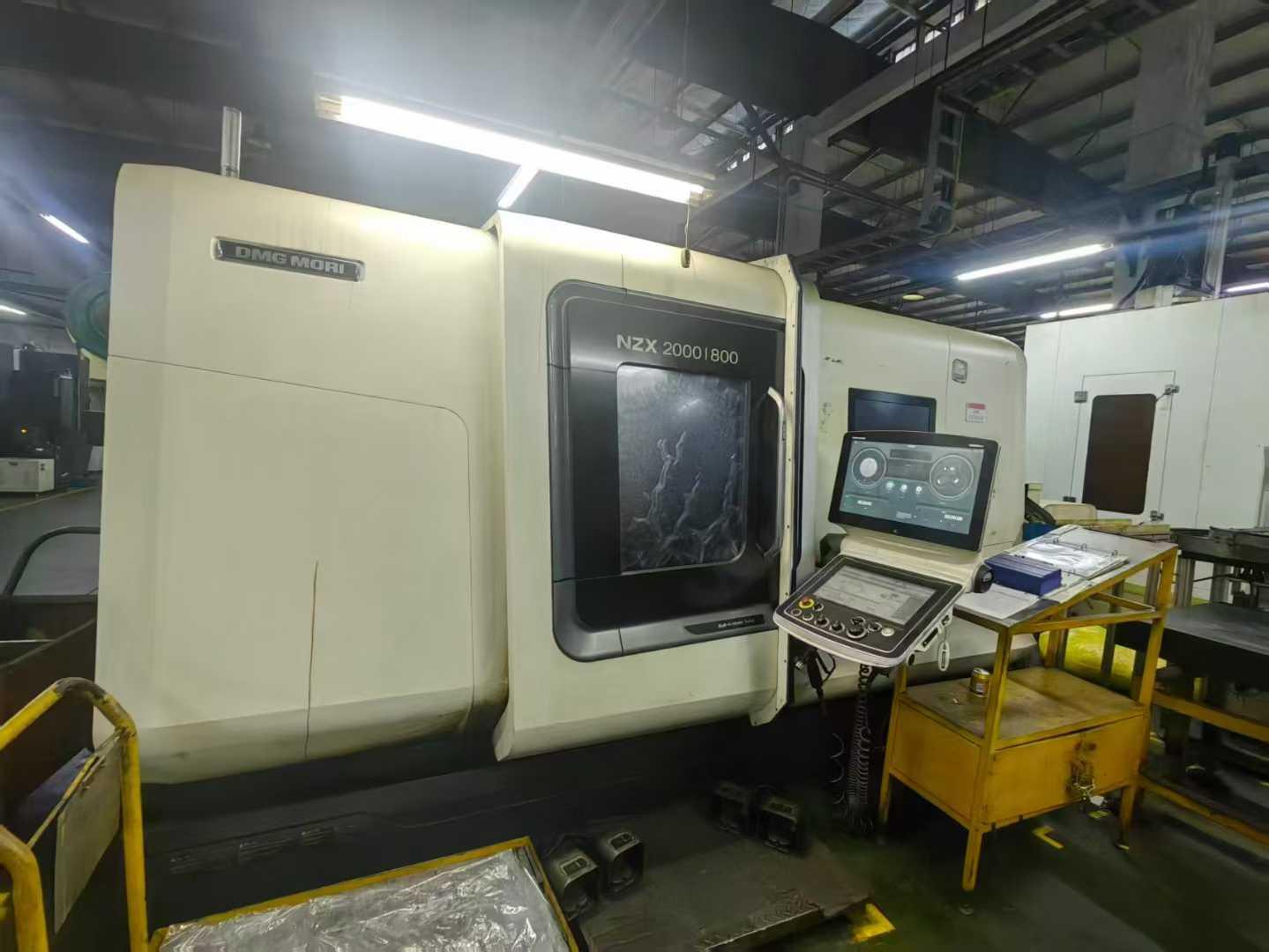

DMG MORI NZX2000/800STY3 CNC turning lathe

Swing Diameter over the bed: 800 mm
Swing Diameter over the horizontal slide worktable: 800 mm
Maximum distance between the large nose ends of the spindle: 1,130 mm
Maximum machining diameter: 318 mm
Standard machining diameter: 200 mm
Maximum workpiece diameter: 300 mm
Maximum machining length: 808 mm
Maximum capacity of bar stock: 63.5 mm
X1, X2, X3 axis travel: 208 mm
Y1, Y2, Y3 axis travel: 110 mm
Z1, Z3 axis travel: 300 mm
Z2 axis travel: 808 mm
B-axis travel: 868 mm
Chuck size (spindle 1 & 2): 203 mm
Spindle through hole diameter: 73.7 mm
Internal diameter of spindle bearing: 119.4 mm
Minimum spindle indexing increment: 0.001°
Maximum spindle speed: 5,000 RPM
Spindle motors (1 & 2): 30 hp
Maximum spindle speed of the rotating tool: 6,000 RPM
Rapid traverse rate (X1, X2, X3): 30 m/min
Rapid traverse rate (Y1, Y2): 20 m/min
Rapid traverse rate (Z1, Z2, Z3): 50 m/min
