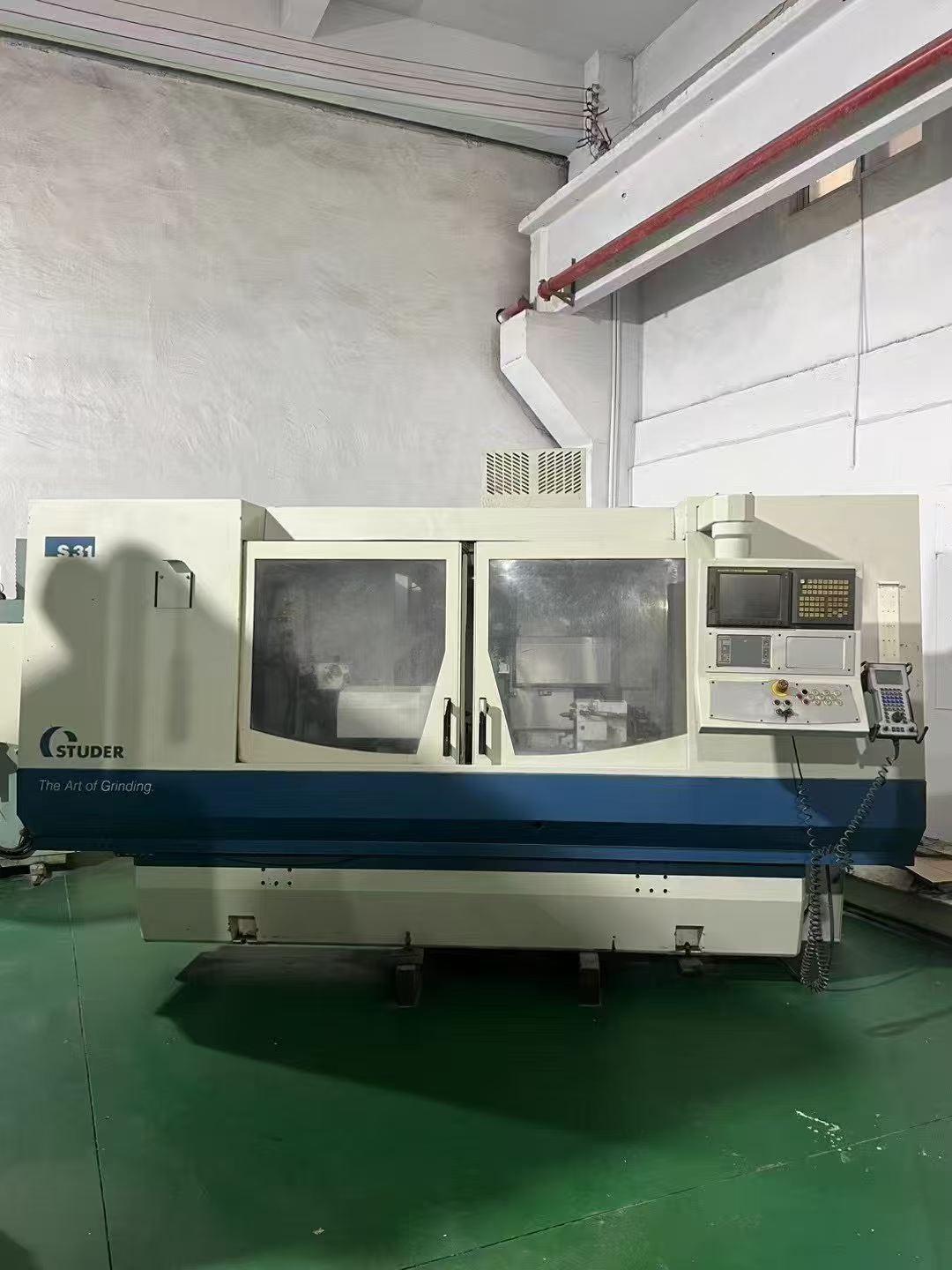

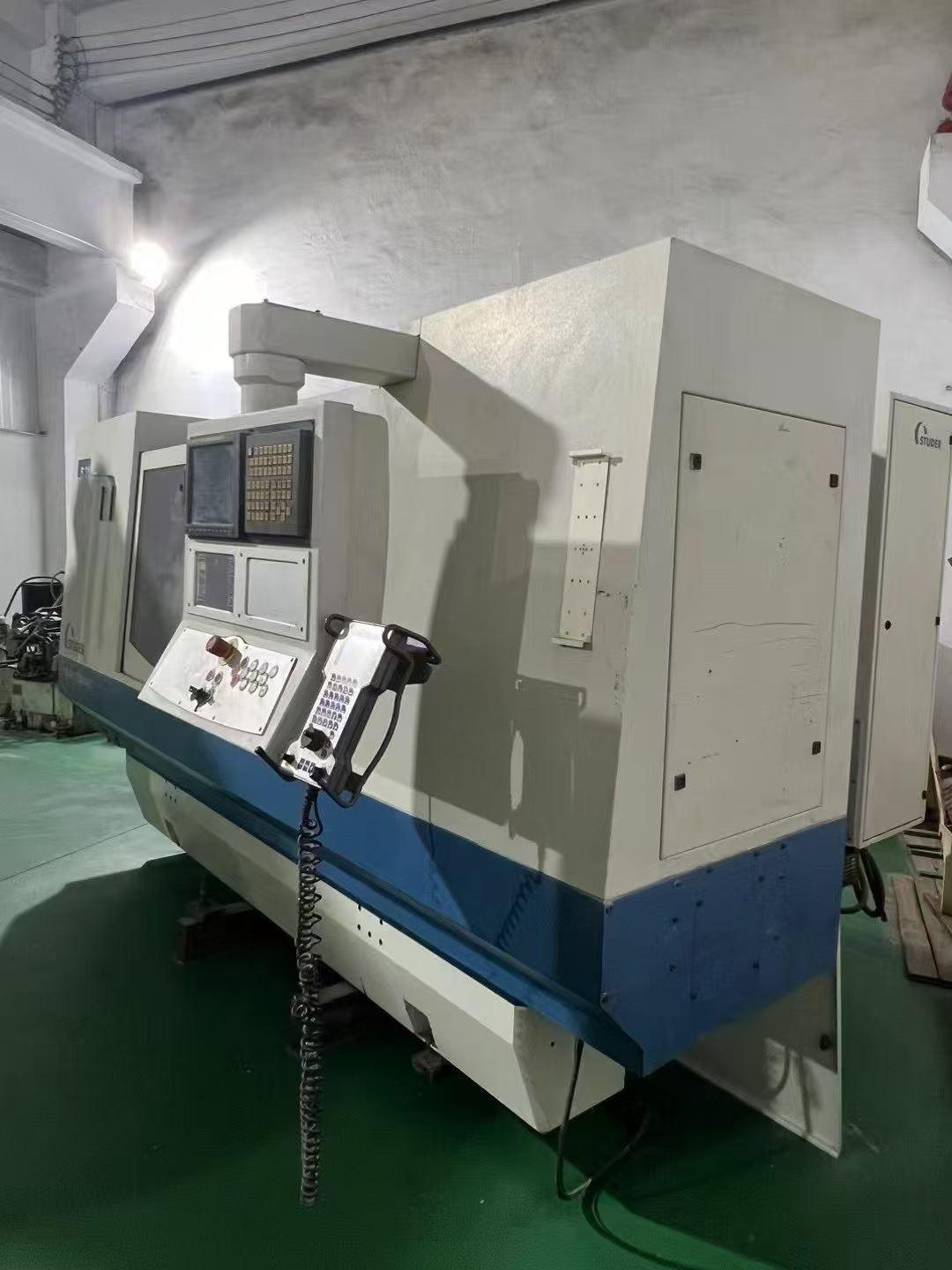

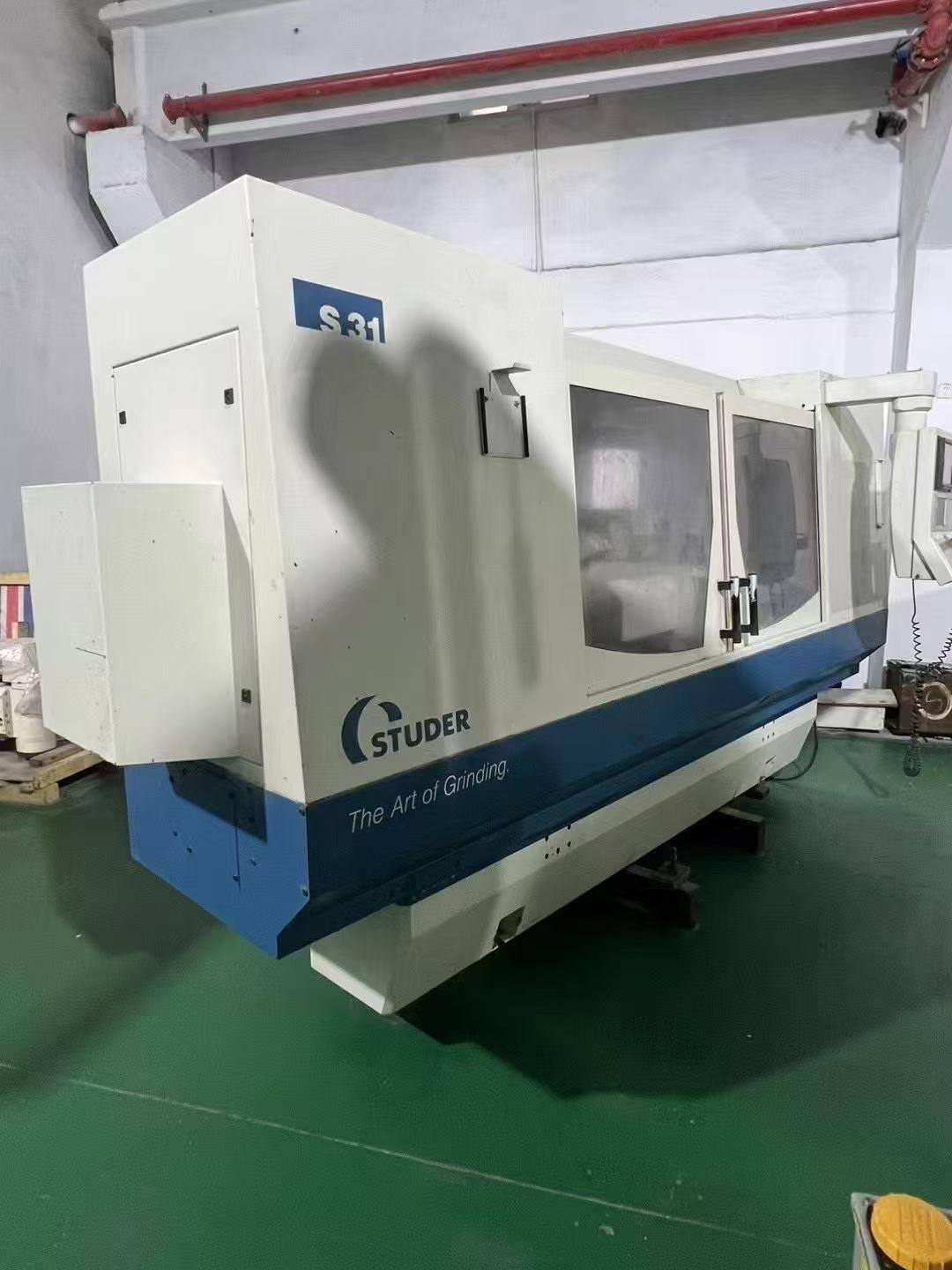

STUDER STUDER S31 other

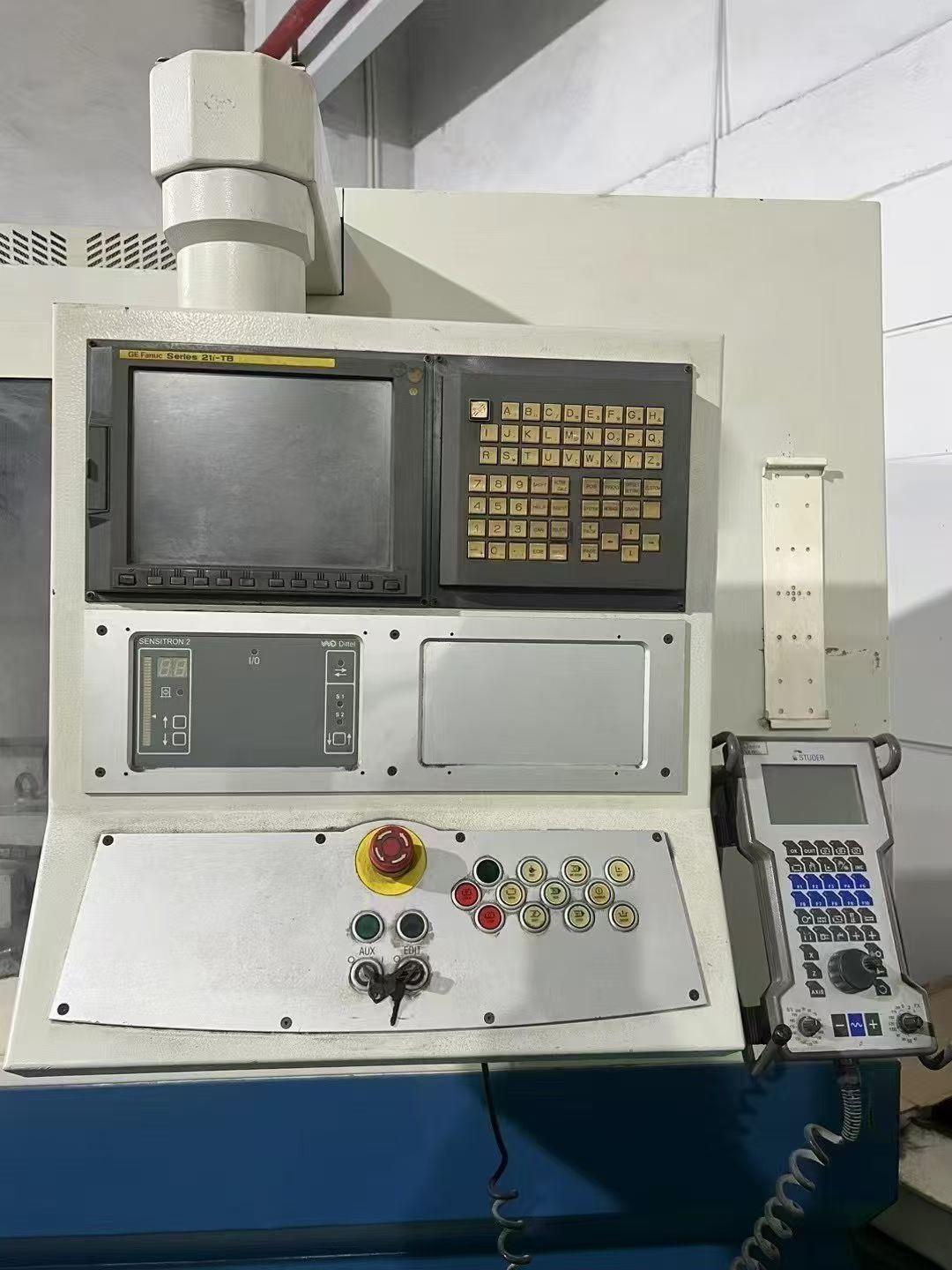

CNC System: FANUC SEREINes 21I-TB
Main Footage, main Footage of the shaft
Distance between centers is 650mm
Option: Distance between centers 1,000mm
The center height is 175 mm
Desktop longitudinal slide plate (Z-axis)
Distance between centers: 650mm - 800mm - 1000mm
Maximum travel: 1,150mm
The speed resolution is 0.00010.001-20.000mm/min
Transverse slide plate (X-axis)
The maximum travel is 280mm
Speed resolution: 0.0001mm, 0.001-10.000mm/min

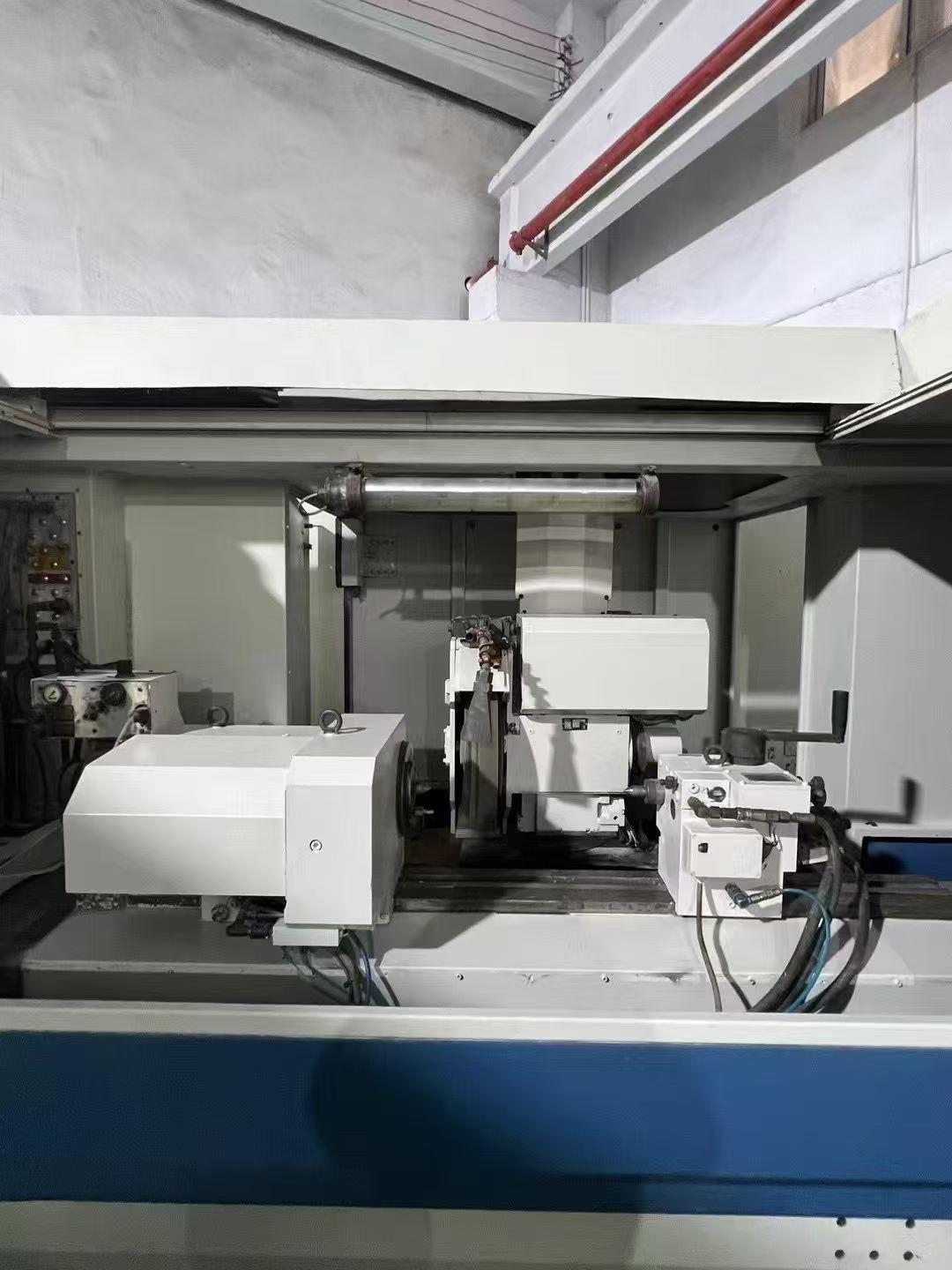

grinding wheel headstock
Turret type grinding wheel headstock, universal type
RotaWorktable, suiWorktable for external grinding and/or internal grinding
The rotation Angle of the B-axis ranges from -15° to +195°
Option: Manual rotary shaft
external grinding grinding wheel 0 500 x 63 x 203 mm
Option: grinding wheel 0 400 x 40 x 127 mm
The driving power is 7.5 kilowatts
The maximum linear speed is 50m/s
internal grinding
Option: internal grinding tooling 0120m
Turret type grinding wheel frame, left/left grinding wheel
It can be rotated and is used for external grinding
The rotation Angle of the B-axis ranges from -15° to +195°
The maximum linear speed is 50m/s
