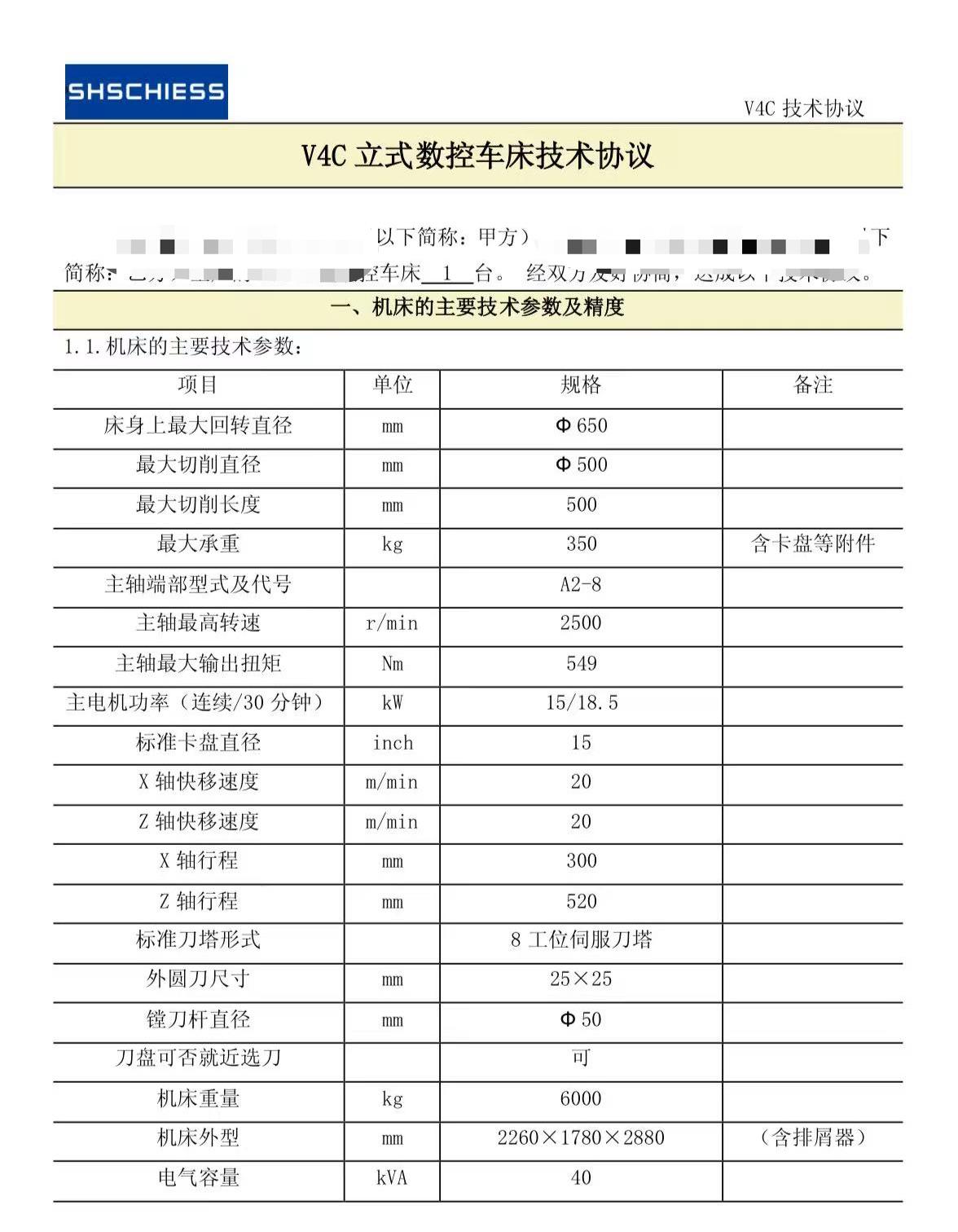

SCHIESS V4C CNC vertical lathe

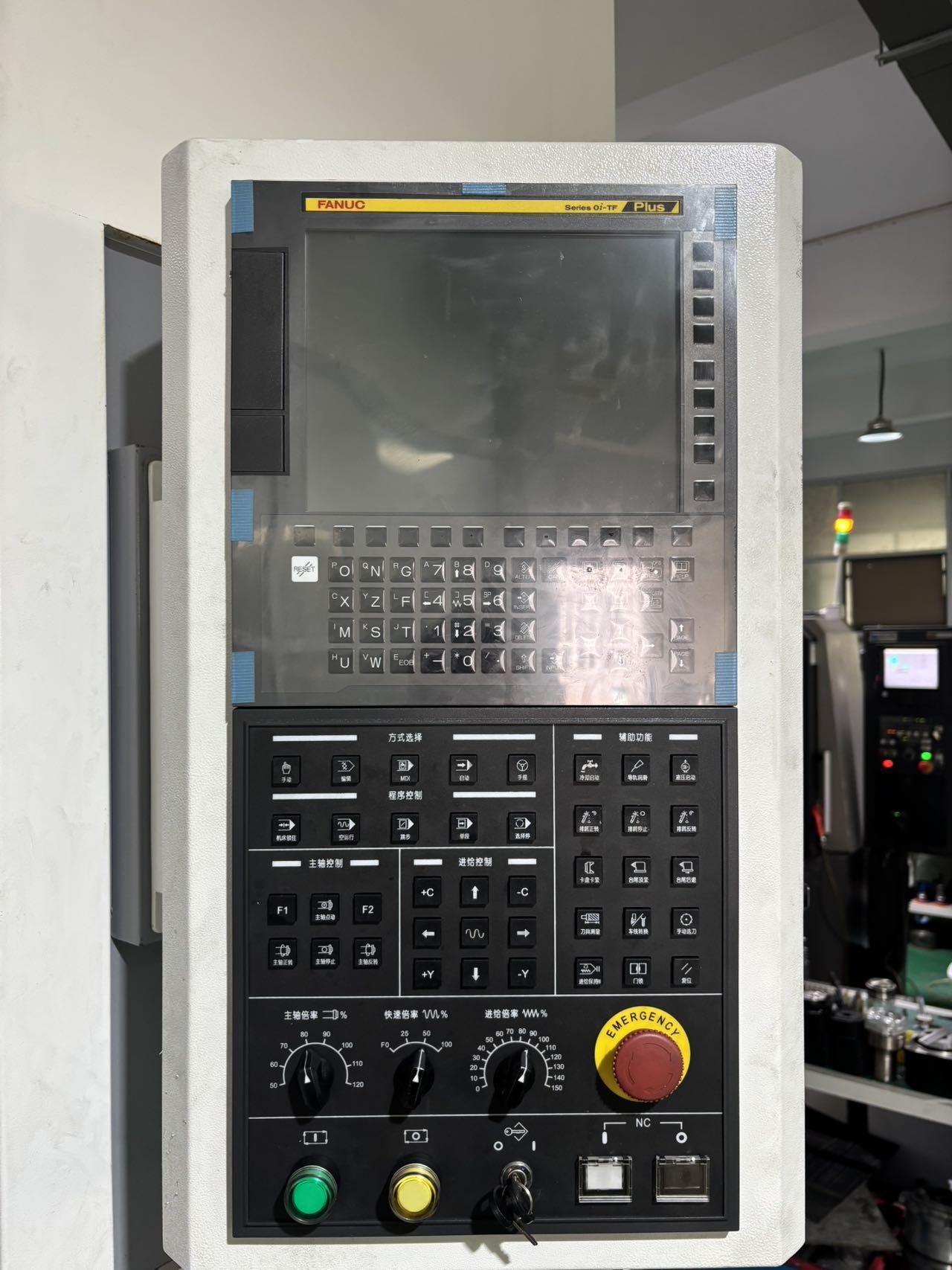

CNC System: FANUC Oi-TF
Maximum rotation diameter on the bed: 650 mm
Maximum machining diameter: 500 mm
Maximum machining length: 500 mm
Maximum load: 350 kg (including chuck and accessories)
Spindle nose type and code: A2-8
Maximum spindle speed: 2500 rpm
Maximum output torque of the spindle: 549 Nm
Main motor power (continuous / 30 minutes): 15 / 18.5 kW
Standard chuck diameter: 15 inches
X-axis fast moving rate: 20 m/min
Z-axis fast moving rate: 20 m/min
X-axis travel: 300 mm
Z-axis travel: 520 mm
Standard tool turret type: 8-station servo tool turret
Outer tool size: 25 × 25 mm
Boring tool bar diameter: 50 mm
Machine tool weight: 6000 kg
External dimensions of the machine tool: 2260 × 1780 × 2880 mm (including chip conveyor)
Configuration:
Chip conveyor
Including chuck
Can the tool head select tools nearby? Yes
