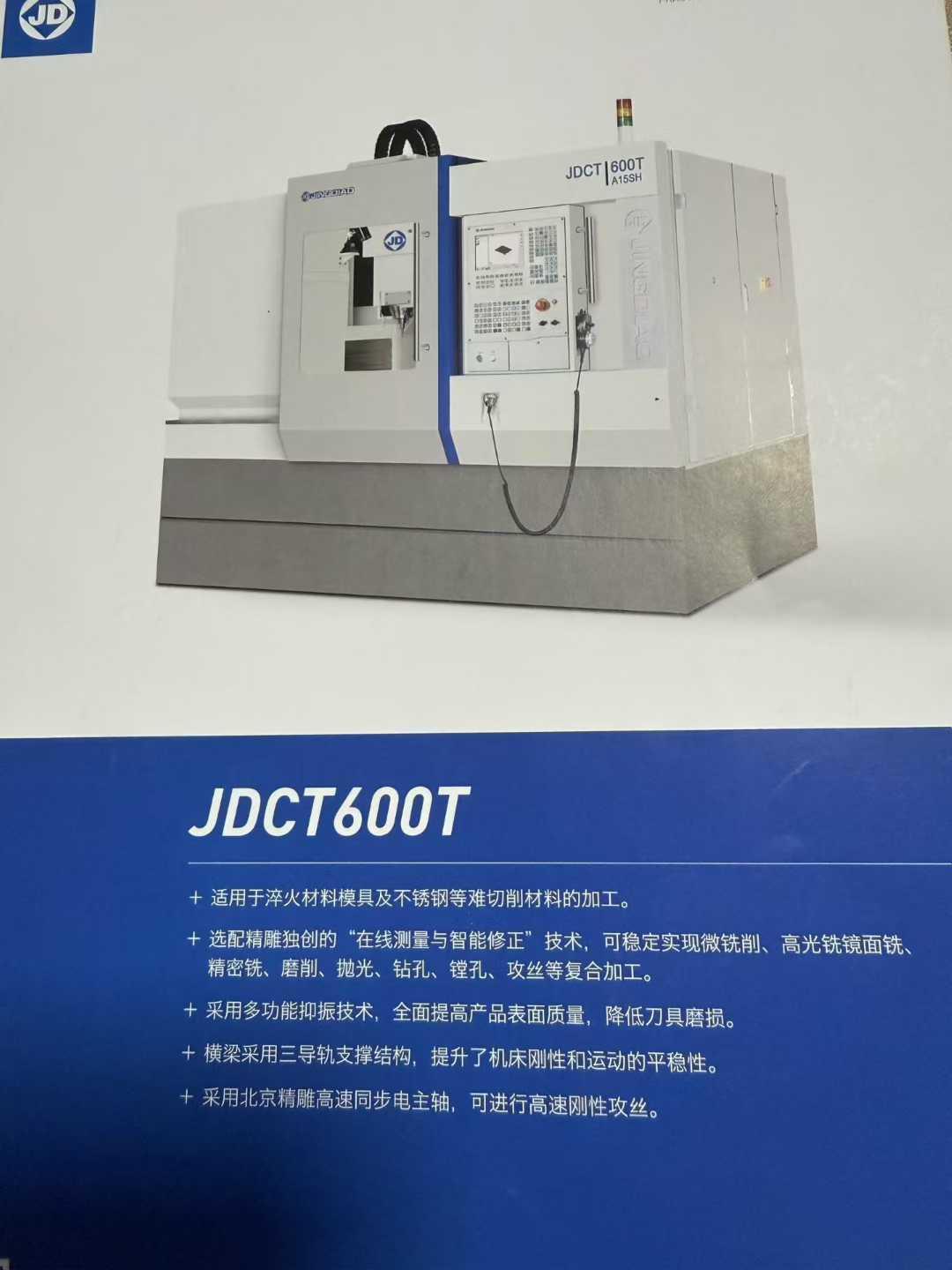

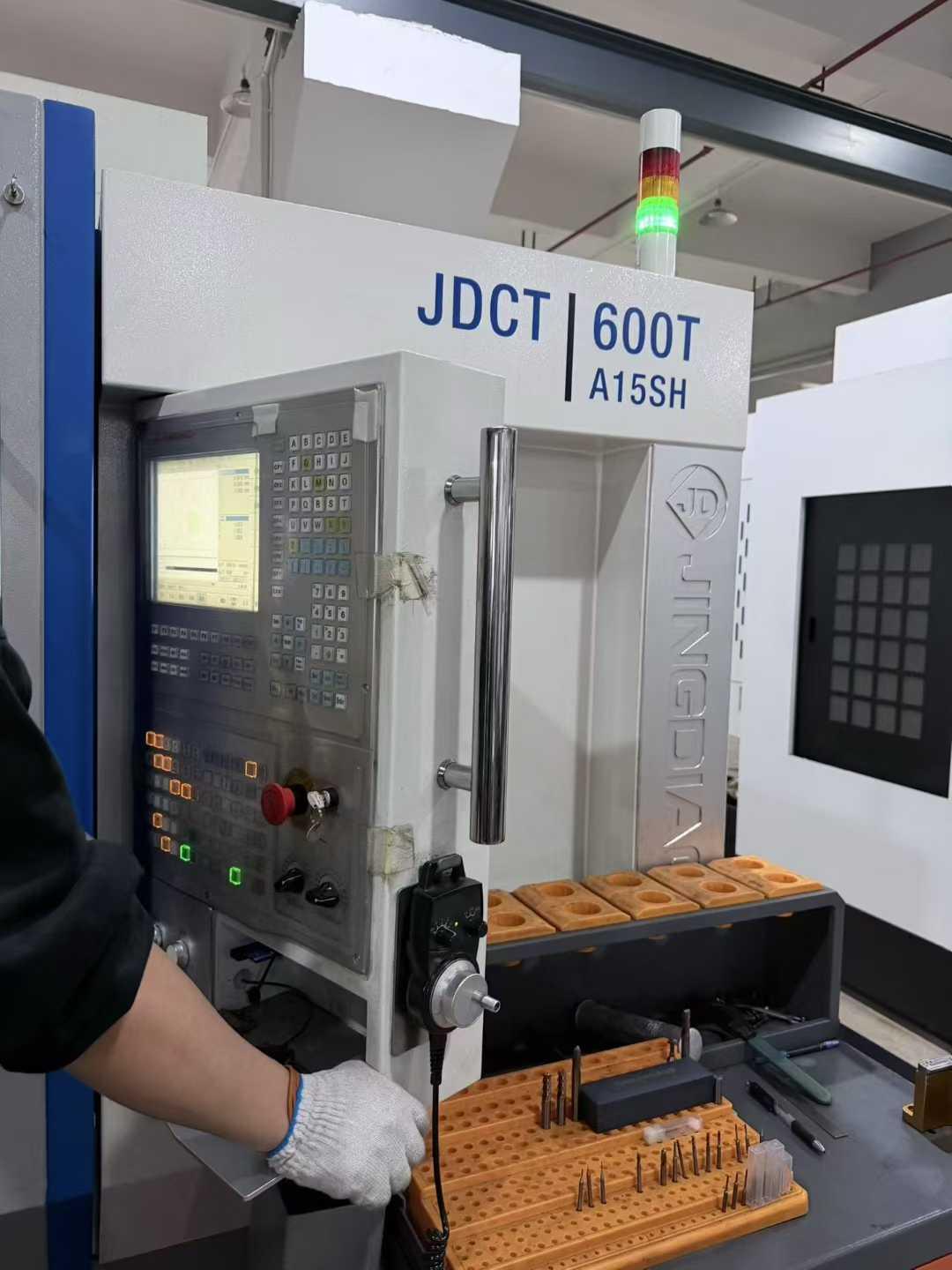

JD JDCT600T_A15SH other

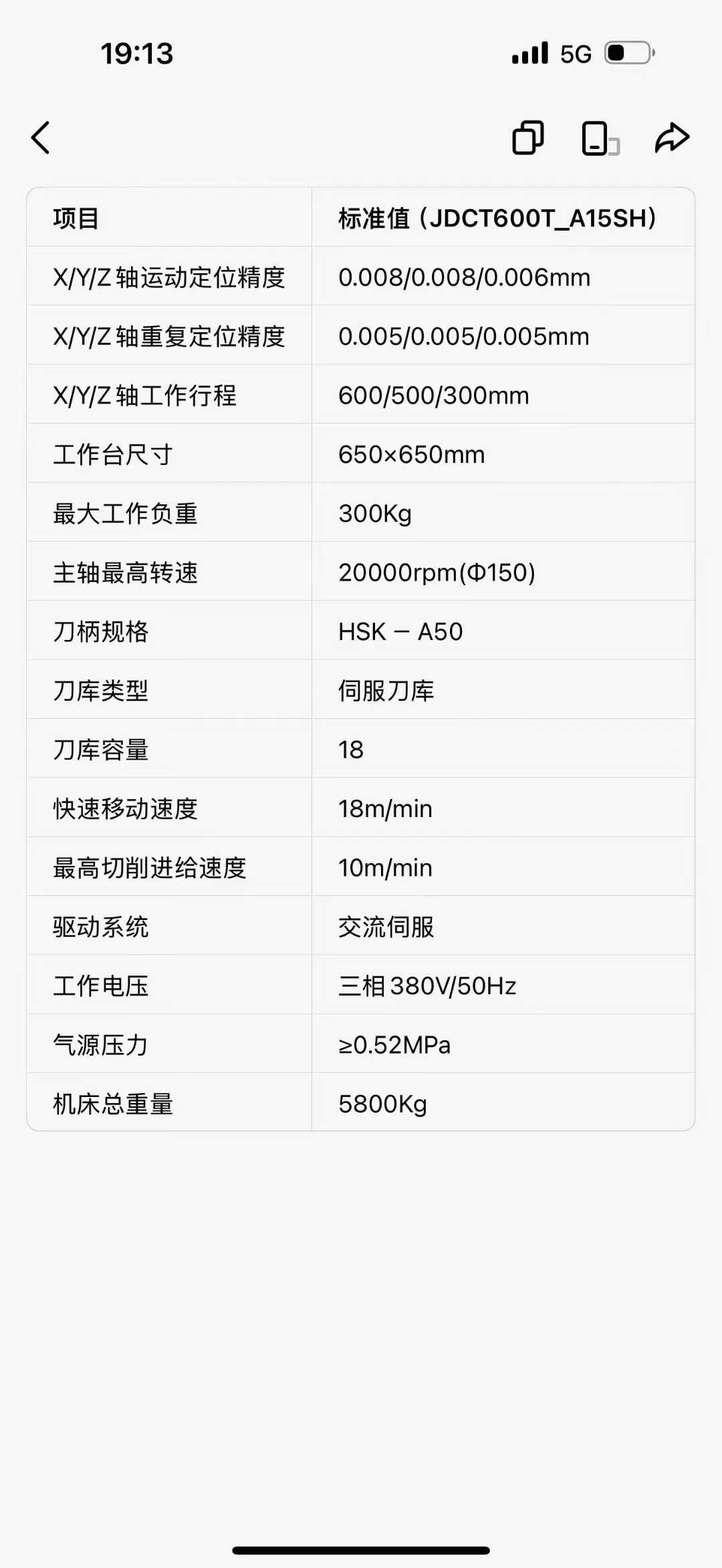

Three-axis travel: 600 × 500 × 300 mm
Three-axis motion positioning precision: 0.008 × 0.008 × 0.006 mm
Three-axis repetitive positioning precision: 0.005 × 0.005 × 0.005 mm
Worktable size: 650 × 650 mm
Maximum working load: 300 kg
Maximum spindle speed: 20,000 rpm (0150)
Tool holder specification: HSK-A50
Tool magazine type: Servo tool magazine
Tools Magazine capacity: 18
Fast movement rate: 18 m/min
Maximum cutting feed rate: 10 m/min
Drive system: AC servo
Working voltage: Three-phase 380V / 50Hz
Air source pressure: > 0.52 MPa
Total weight of the machine tool: 5800 kg
