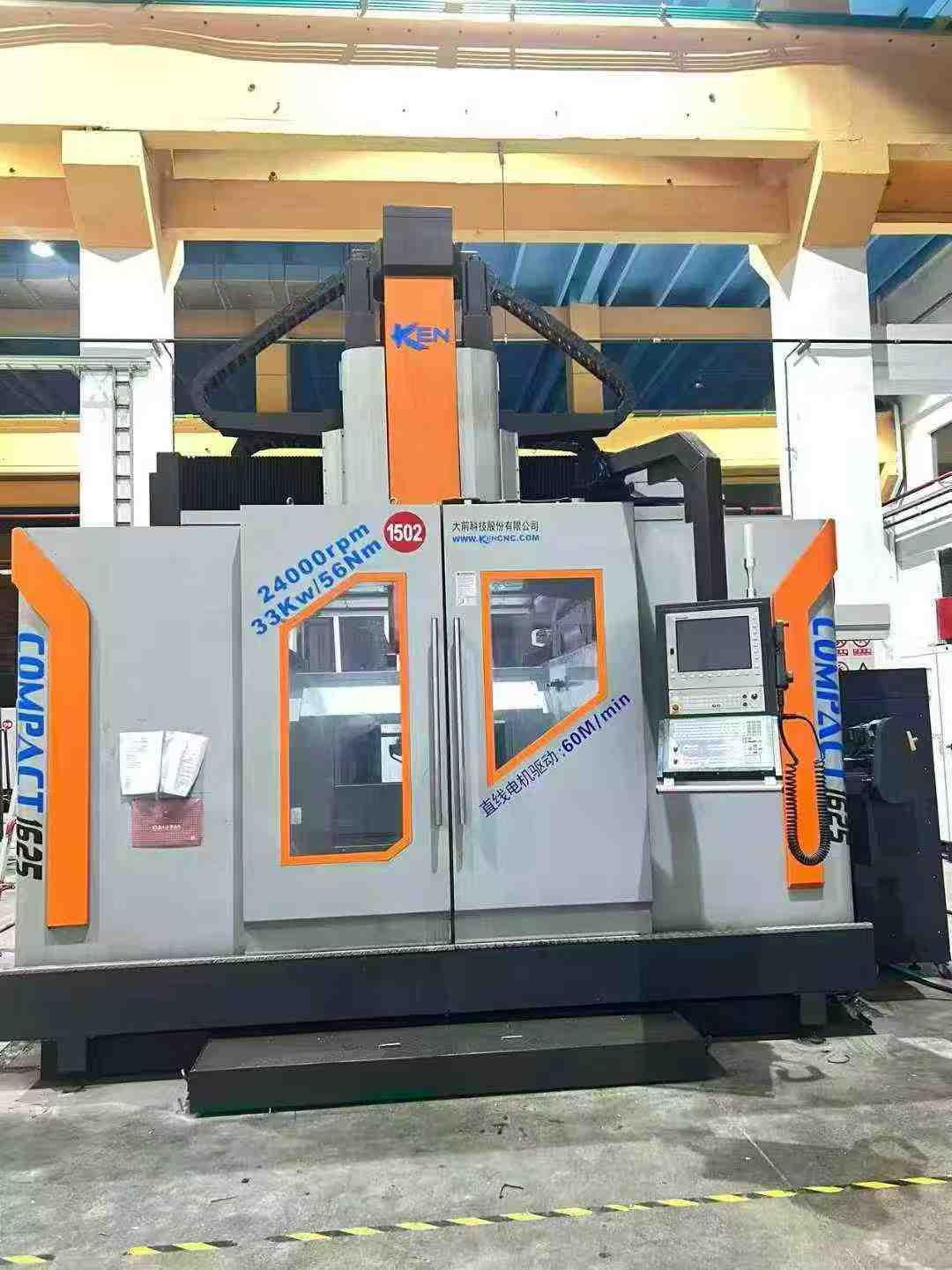

KEN ICHI COMPACT 1625 5 axis machining centre

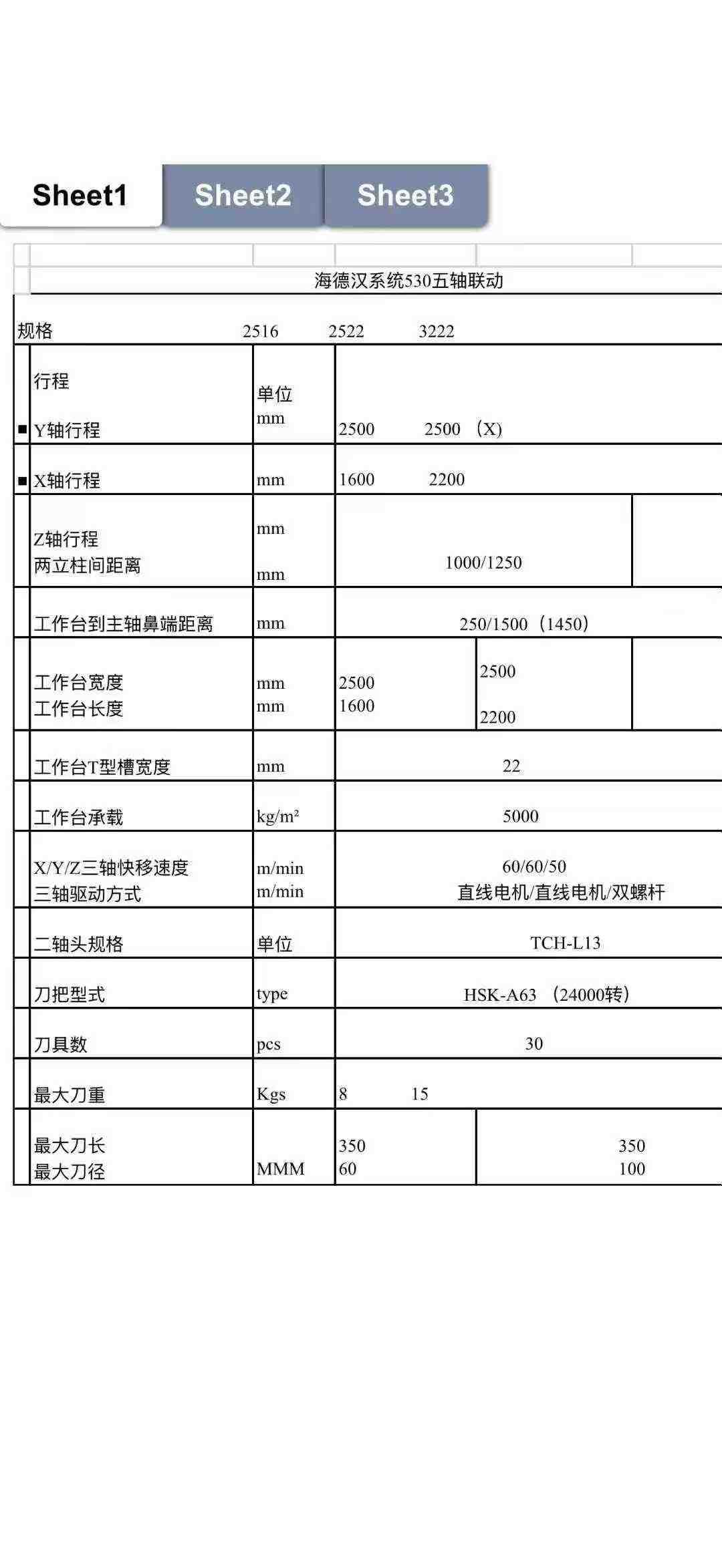

Travel
Y-axis travel: 2500 mm
X-axis travel: 1600 mm
Z-axis travel: 1000 mm
Distance between the two columns: 1000 mm
Distance from worktable to spindle nose: 250 mm
Worktable Specifications
Worktable width: 2500 mm
Worktable length: 1600 mm
T-slot width on worktable: 22 mm
Worktable load: 5000 kg/m²
Axial Speed
Rapid travel speed of the X/Y/Z axes: 60/60/50 m/min
3-axis drive system: Linear motor / Linear motor / Twin-screw

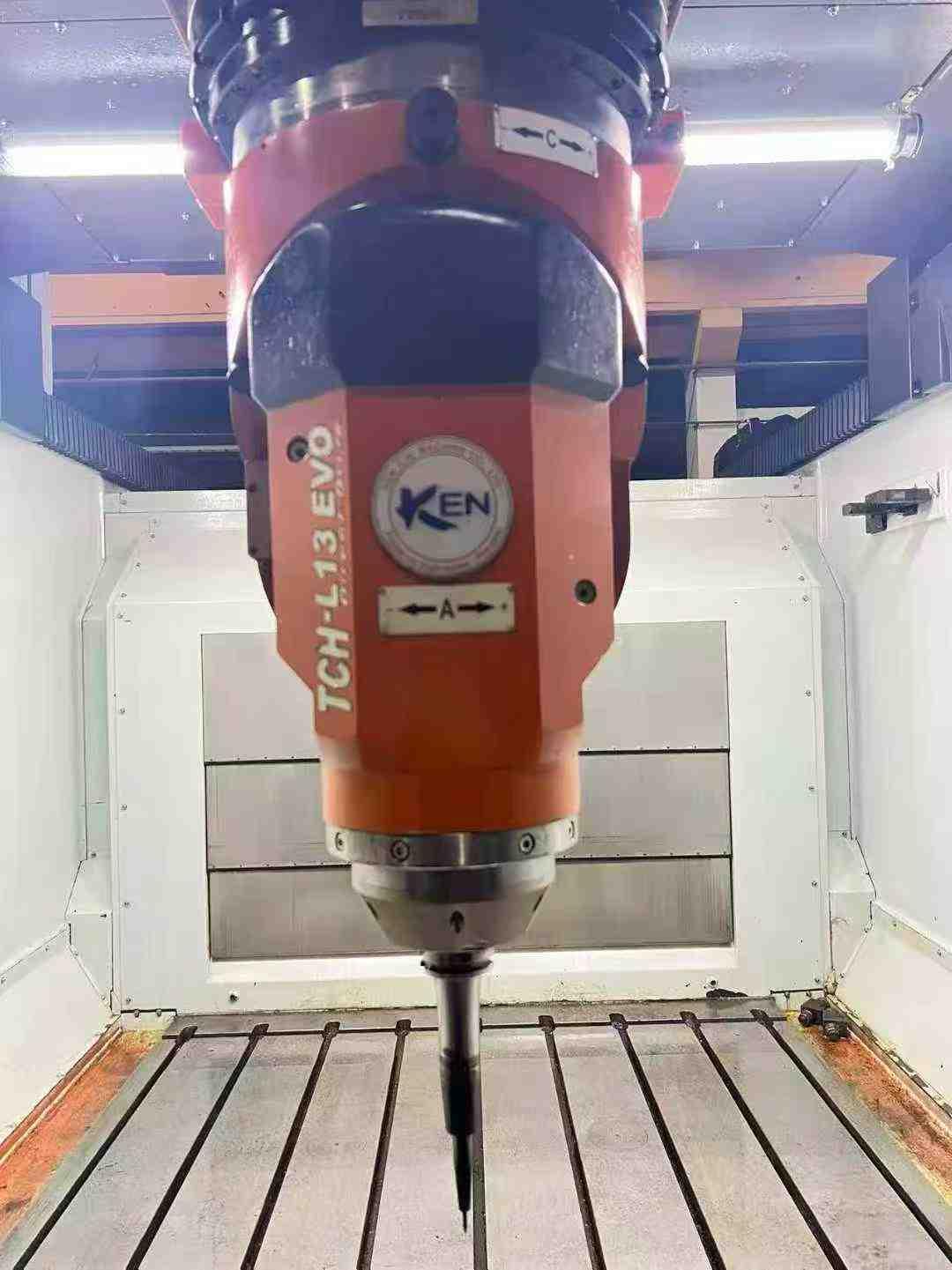

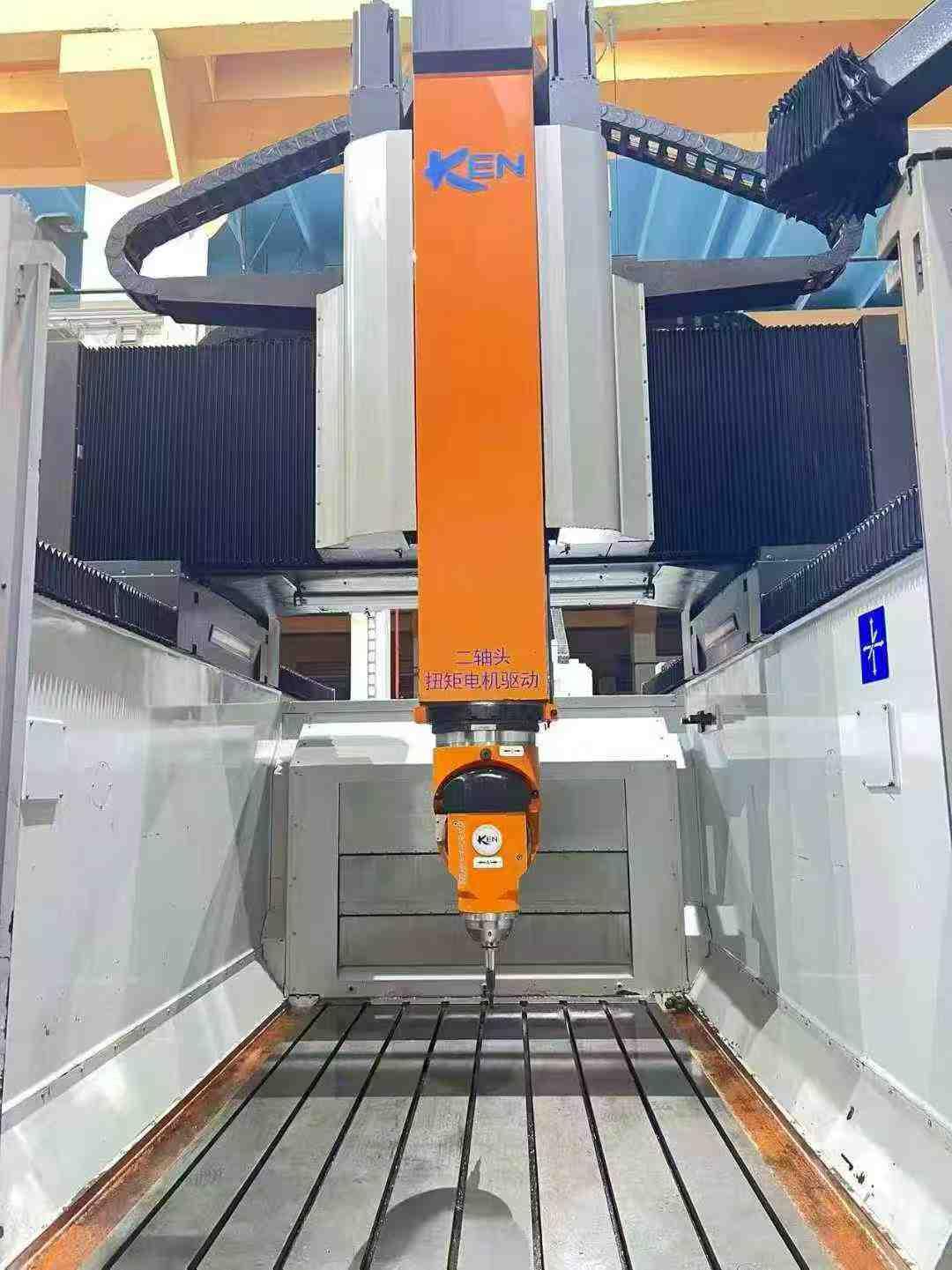

Two-Axis Head Specifications
Model: TCH-L13
Tool holder type: HSK-A63
Spindle speed: 24,000 RPM
Number of tools: 30 pieces
Maximum Tool Specifications
Maximum tool weight: 8 kg
Maximum tool length: 350 mm
Maximum tool diameter: 60 mm
