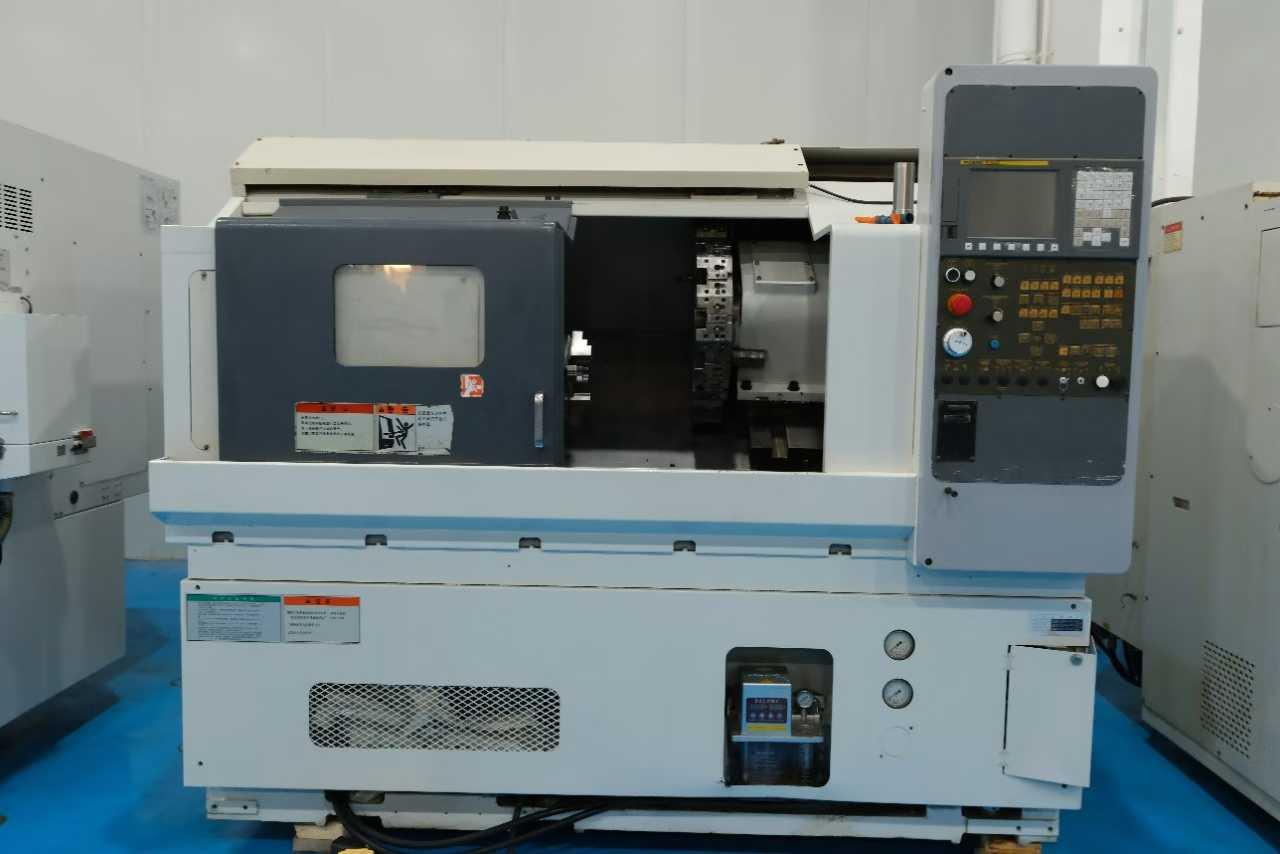

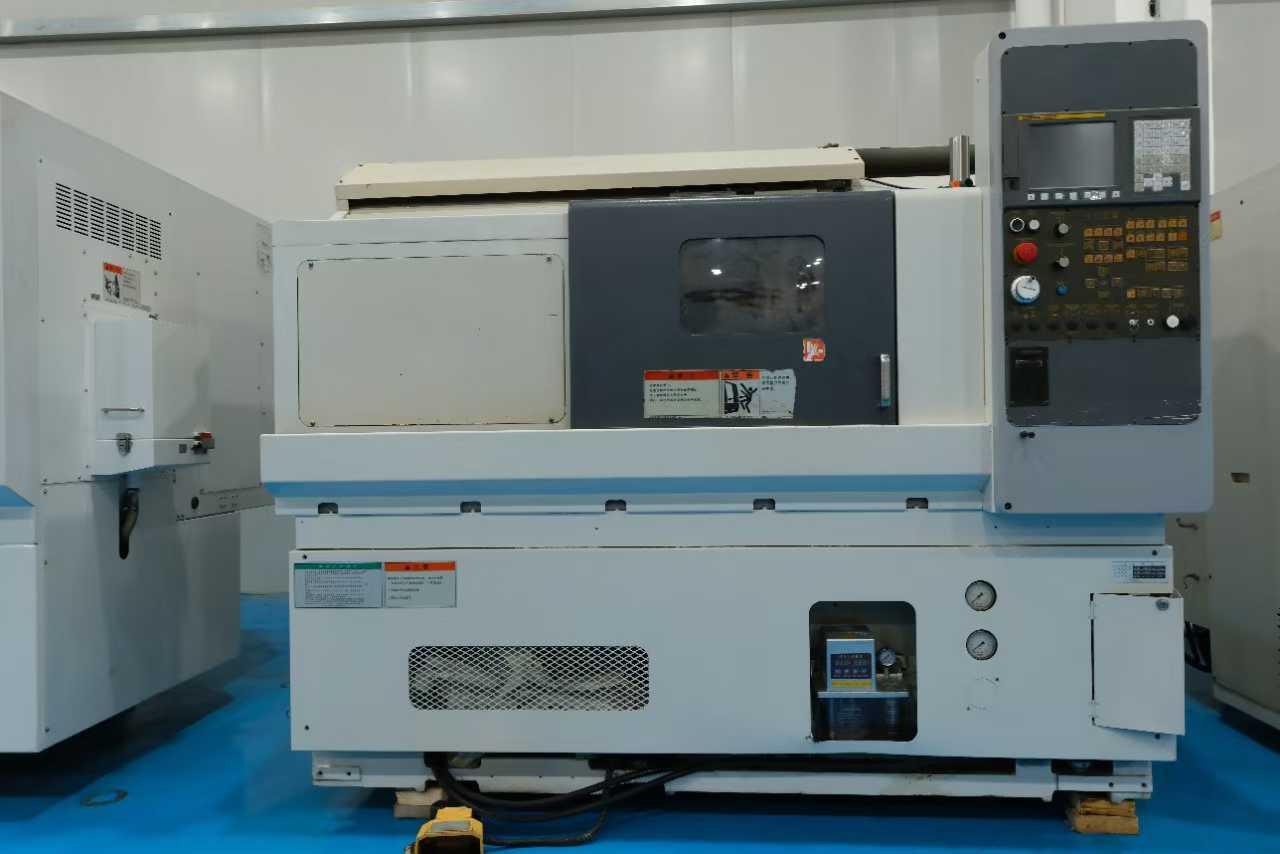

Takisawa TCN-206C CNC turning lathe

[Product Information]:

Inventory number：489887
Brand：Takisawa
Model：TCN-206C
Origin：
Location：China
Year：2017
Create Time：2026-01-03

Specifications:

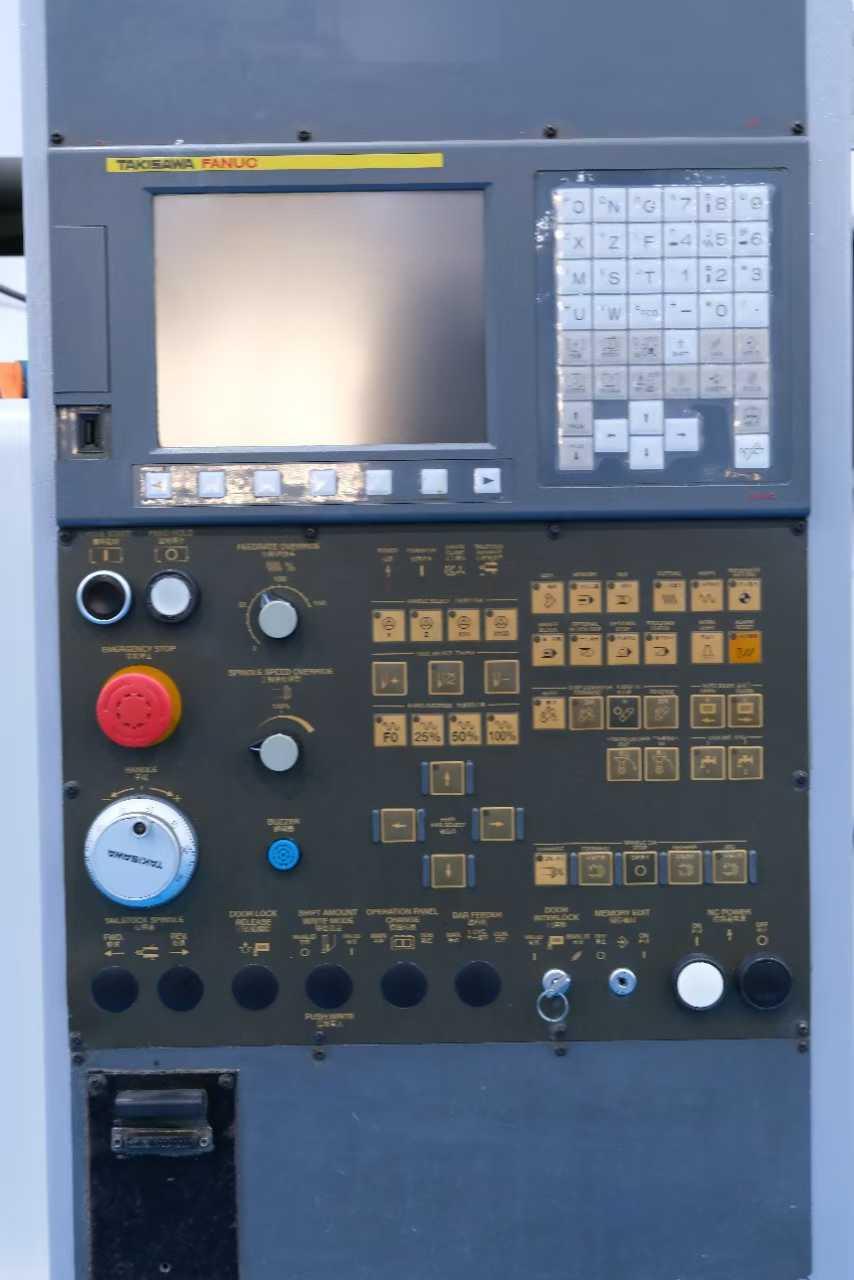

CNC System: FANUC Oi-TF

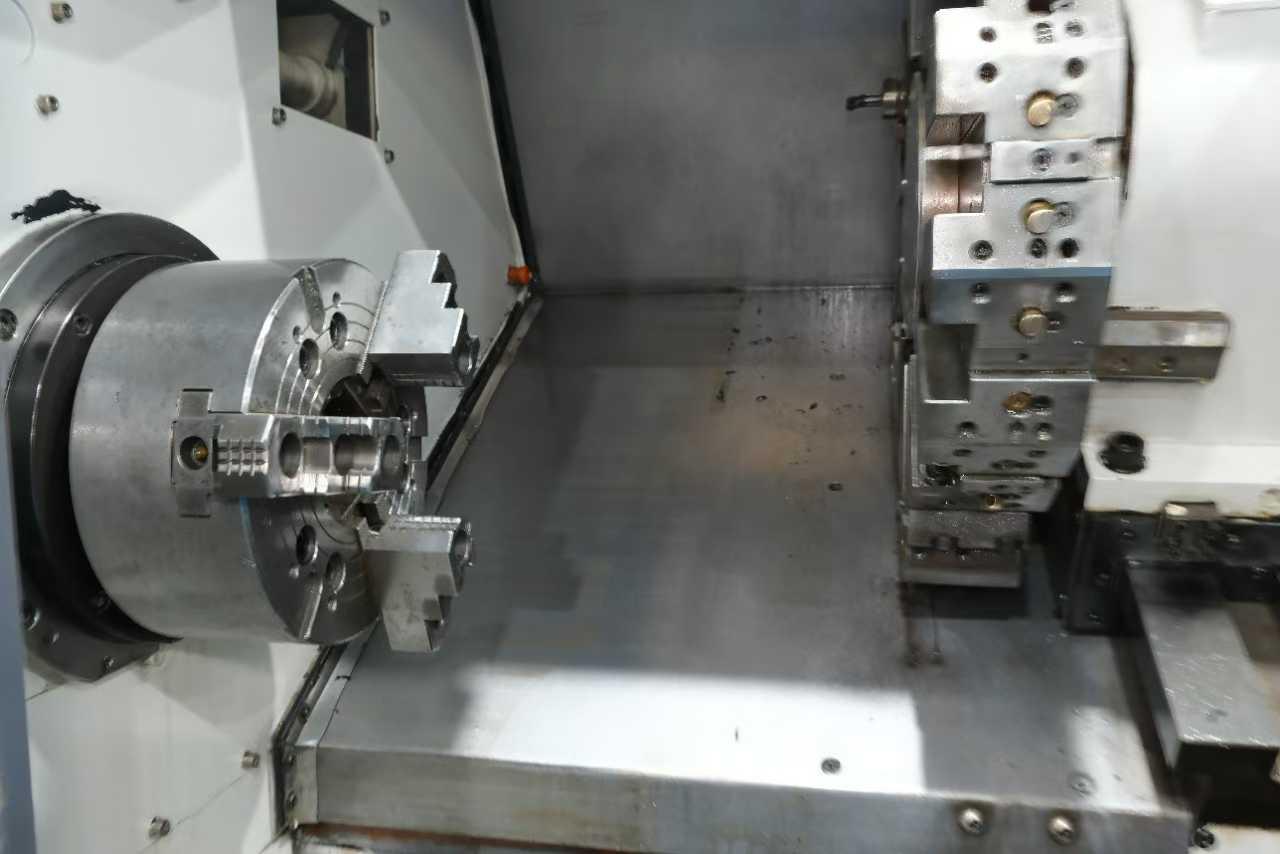

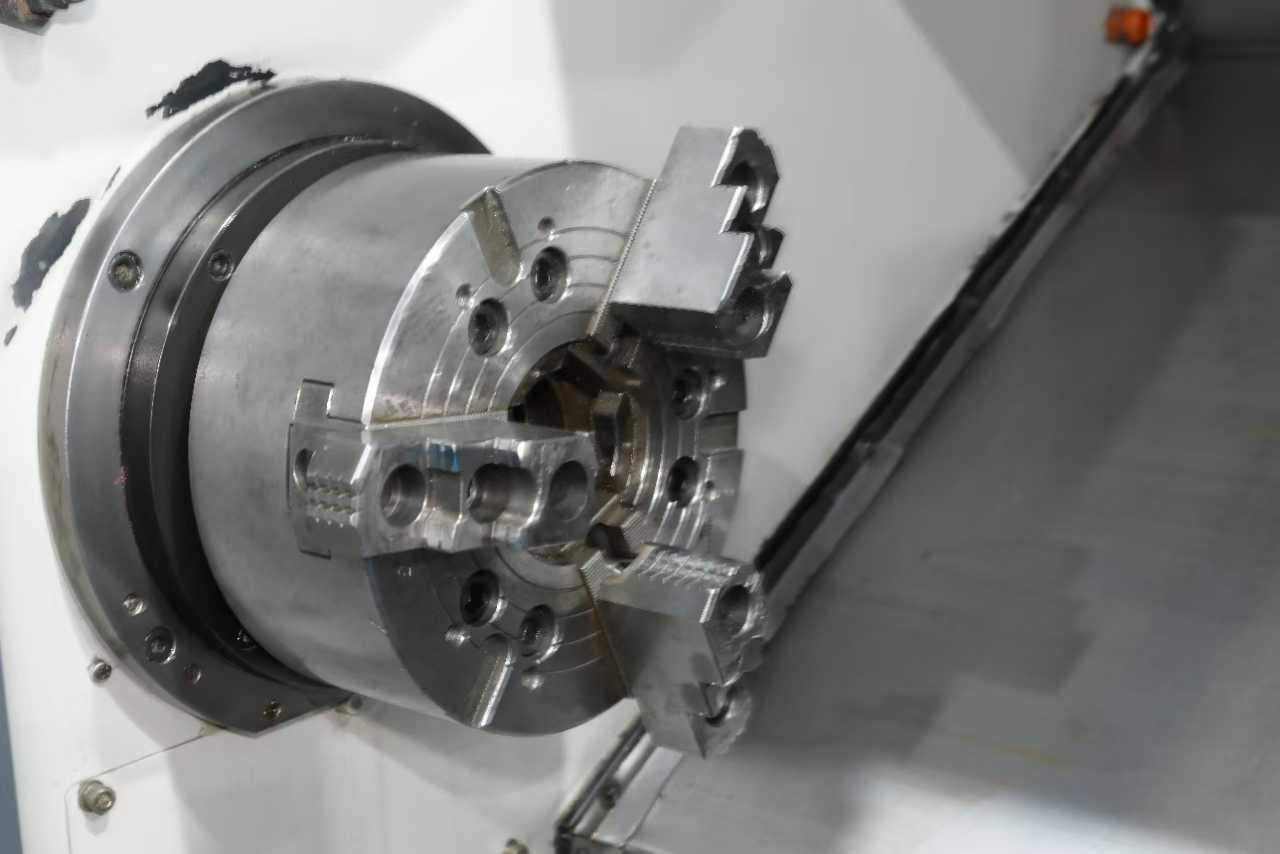

Chuck specification: 8-inch chuck

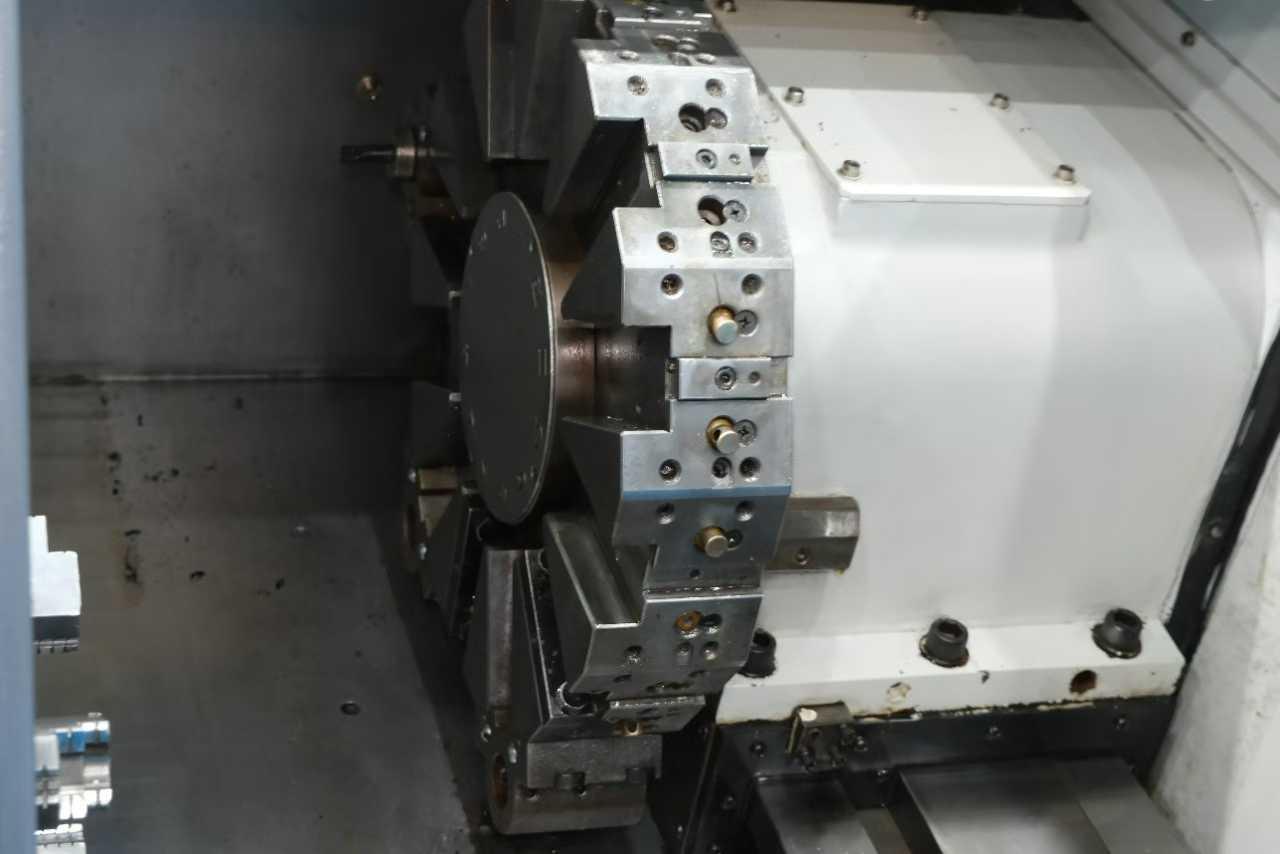

Tool turret type: 12-position servo tool turret
Maximum spindle speed: 4500 rpm
Spindle power: 15 / 11 kW
Maximum turning diameter: 350 mm
Maximum swing diameter: 370 mm
Diameter of spindle through hole: 48 mm
Bed structure: I-shaped rigid guideway design
X-axis travel: 430 mm
X-axis rapid traverse speed: 20 m/min
Z-axis travel: 600 mm
Z-axis rapid traverse speed: 24 m/min
Machine dimensions (length × width × height): 2130 × 2400 × 1800 mm
With Chip conveyor
