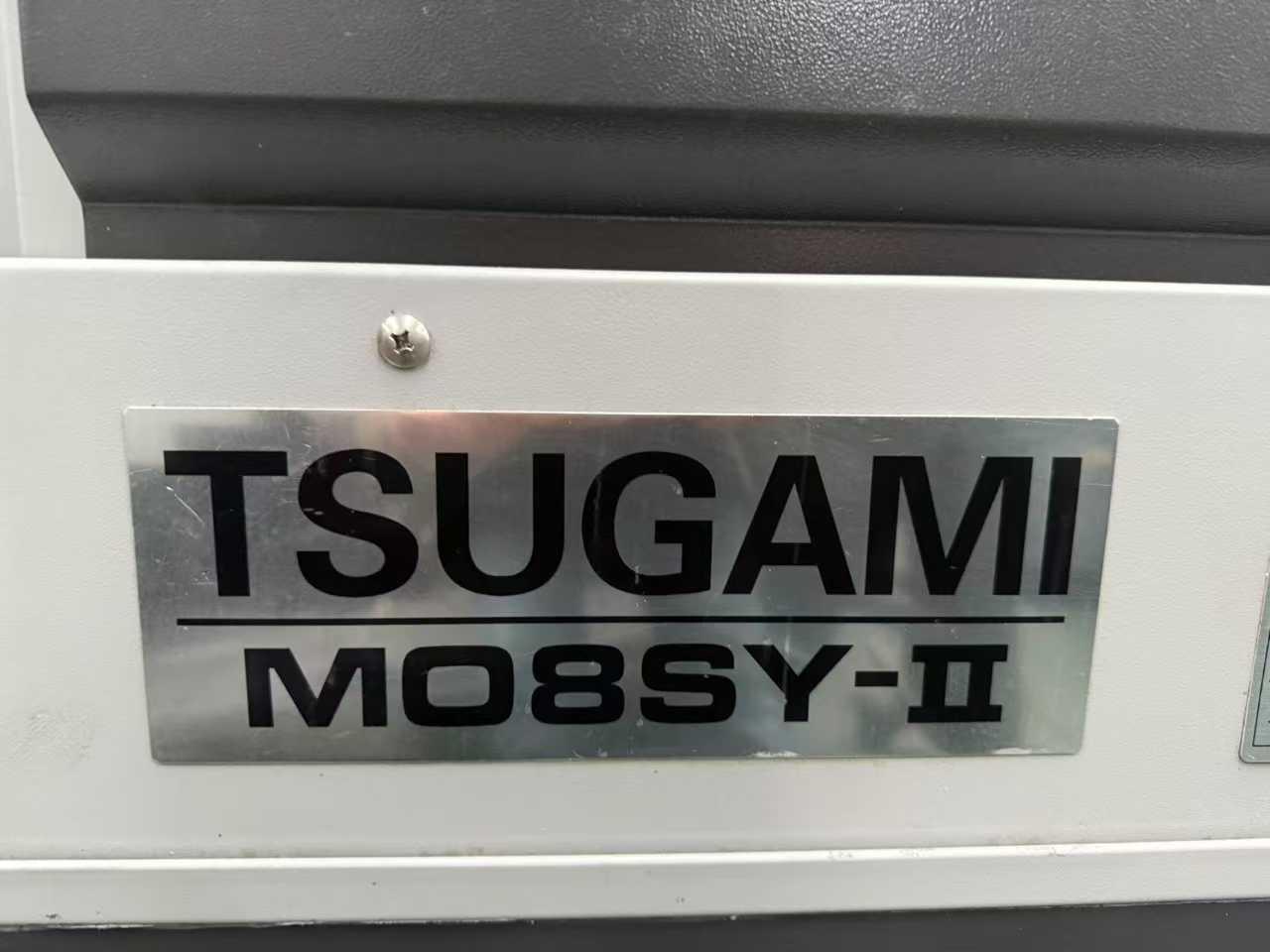

Tsugami M08SY-II Turn Mill Machining Centre

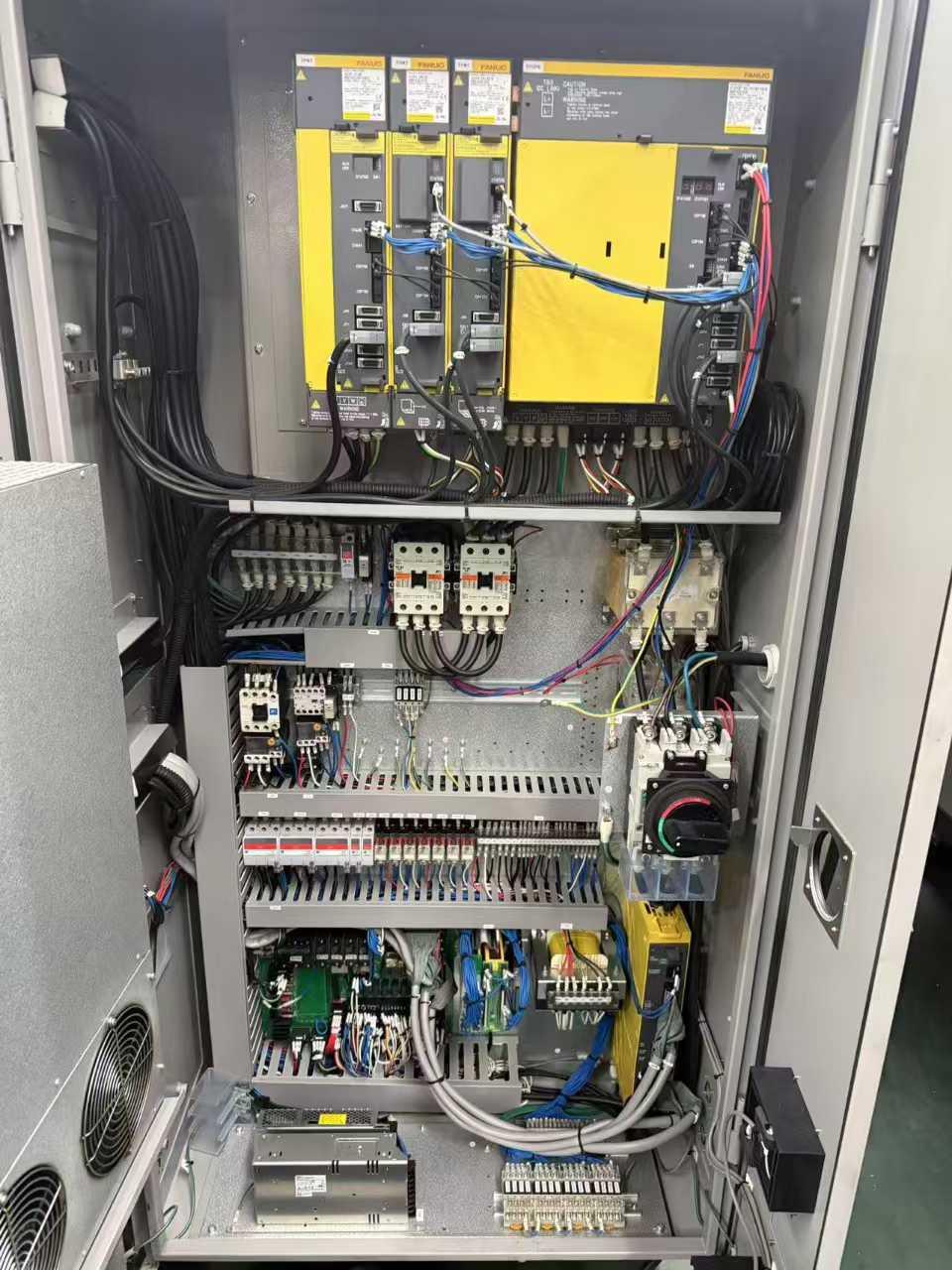

CNC CNC System: FANUC Oi-TF  plus

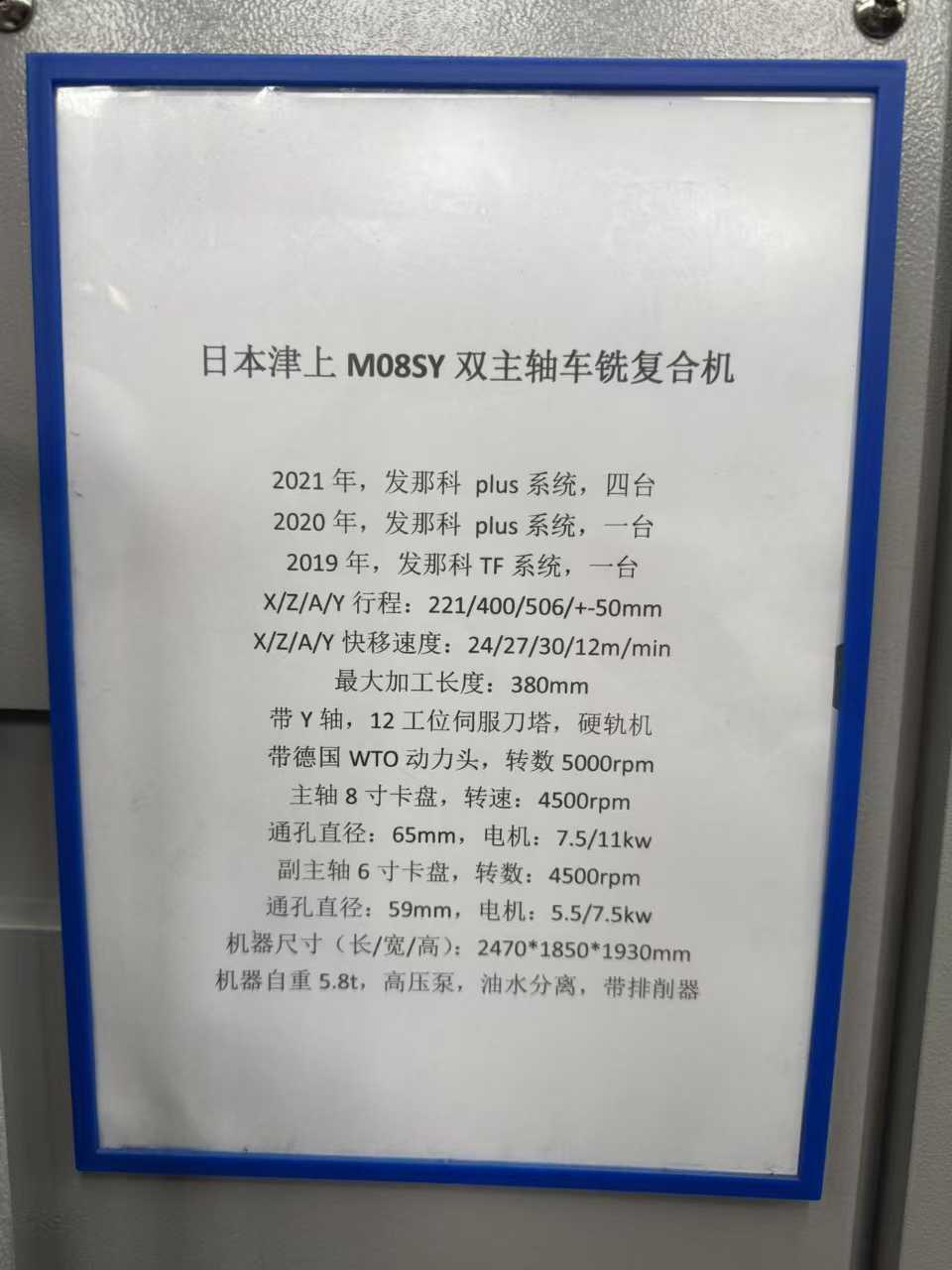

travel of X*Z*A*Y: 221*400*506*±50mm

The Fast moving rate of X*Z*A*Y: 24*27*30*12m/min

8-inch spindle Taiwan Thousand Island chuck

Through hole diameter: 65mm

spindle motor: 7.5/11kw

Spindle speed: 4500rpm

6-inch secondary spindle, Taiwan Qian Dao chuck

Through hole diameter: 59mm

Subspindle motor: 5.5/7.5kw

Secondary Spindle speed: 4500rpm

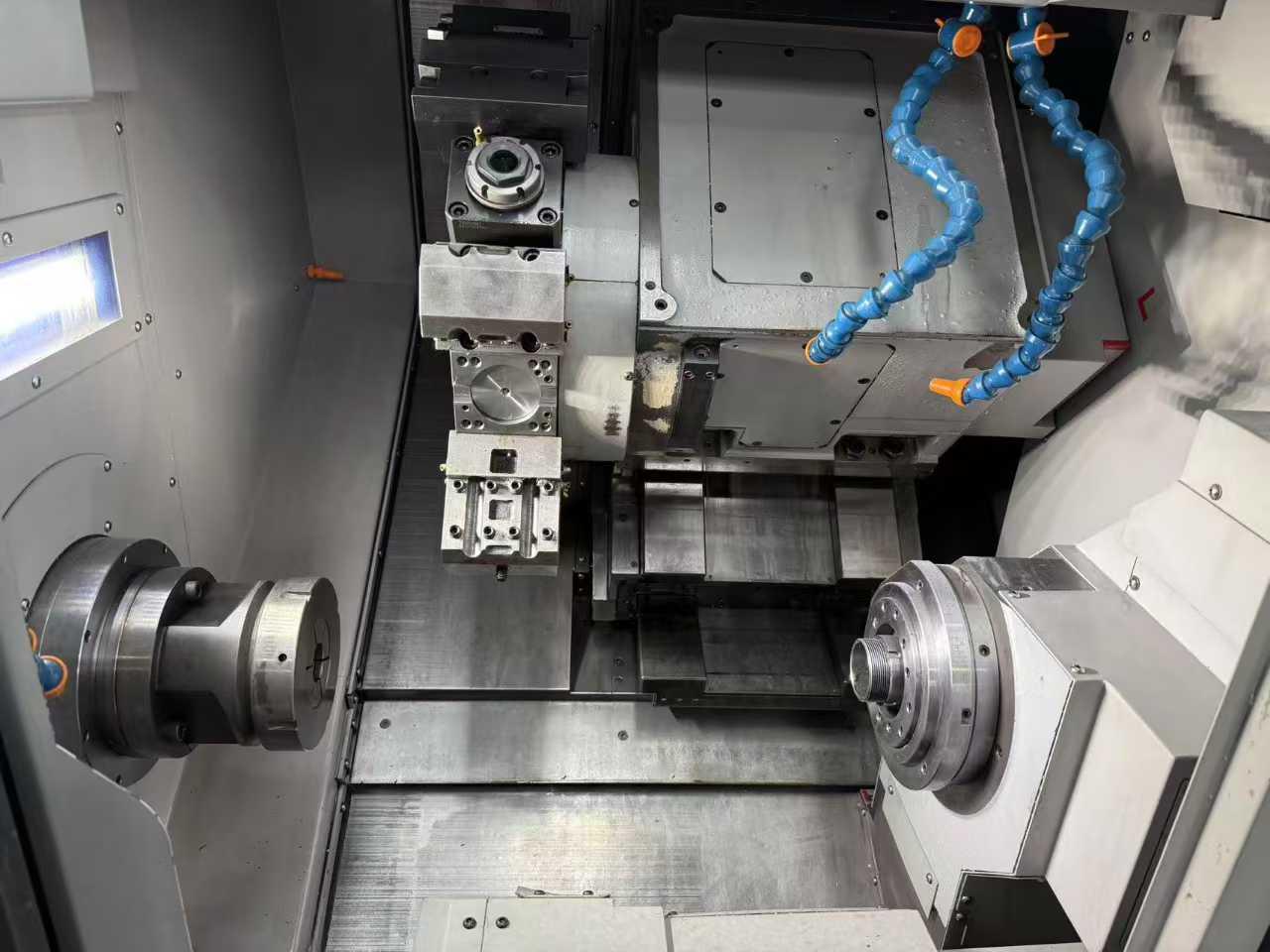

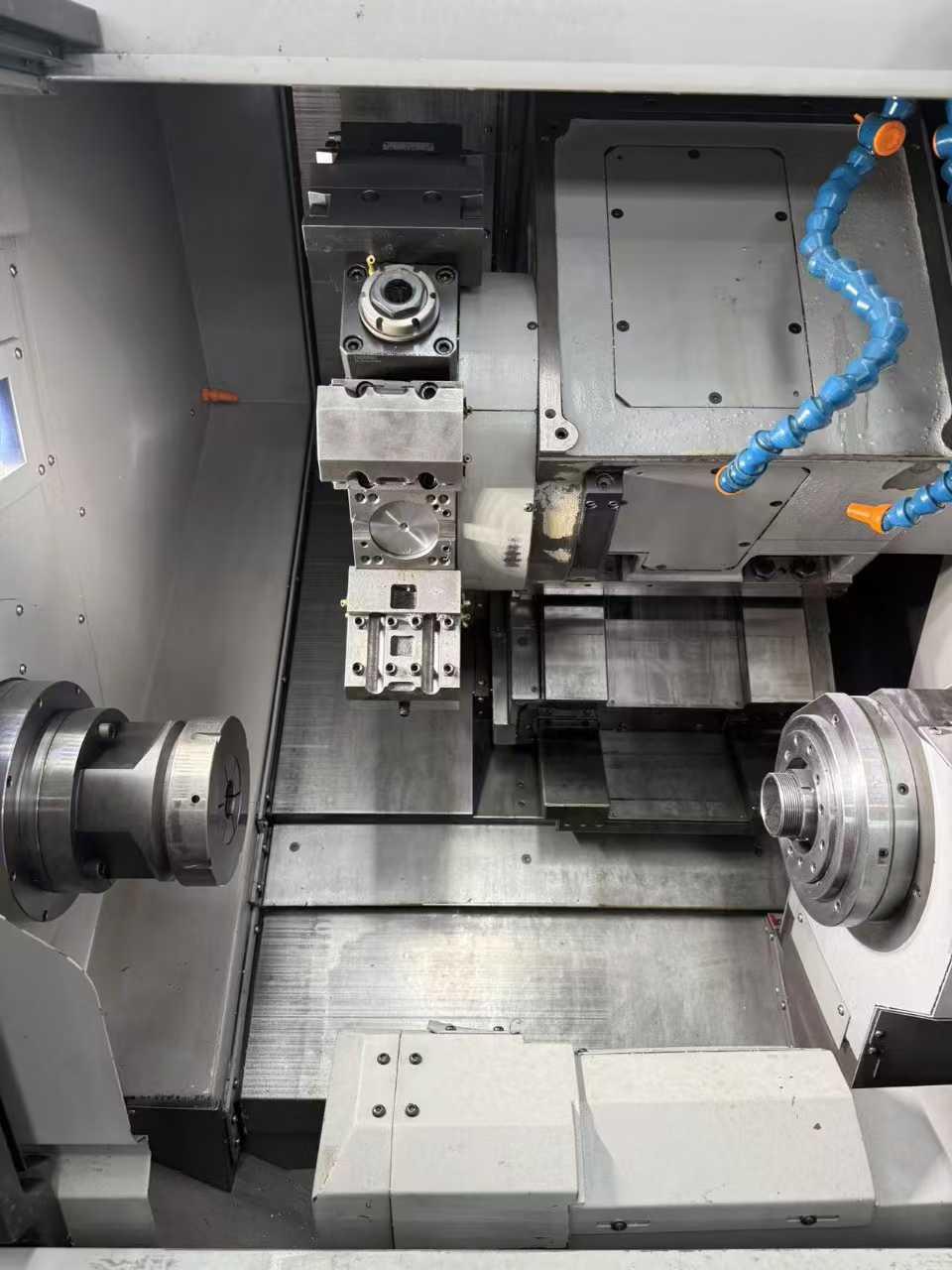

12-position servo tool turret

Number of tools turret faces: 12

Turret speed: 5000rpm

external diameter Tool holder: 25mm

Maximum machining  diameter: 280mm

Maximum machining  length: 380mm

Overall Footage: 2470*1850*1930mm

Weight: 5,450 kg

Configuration

Three German WTO driving forces
