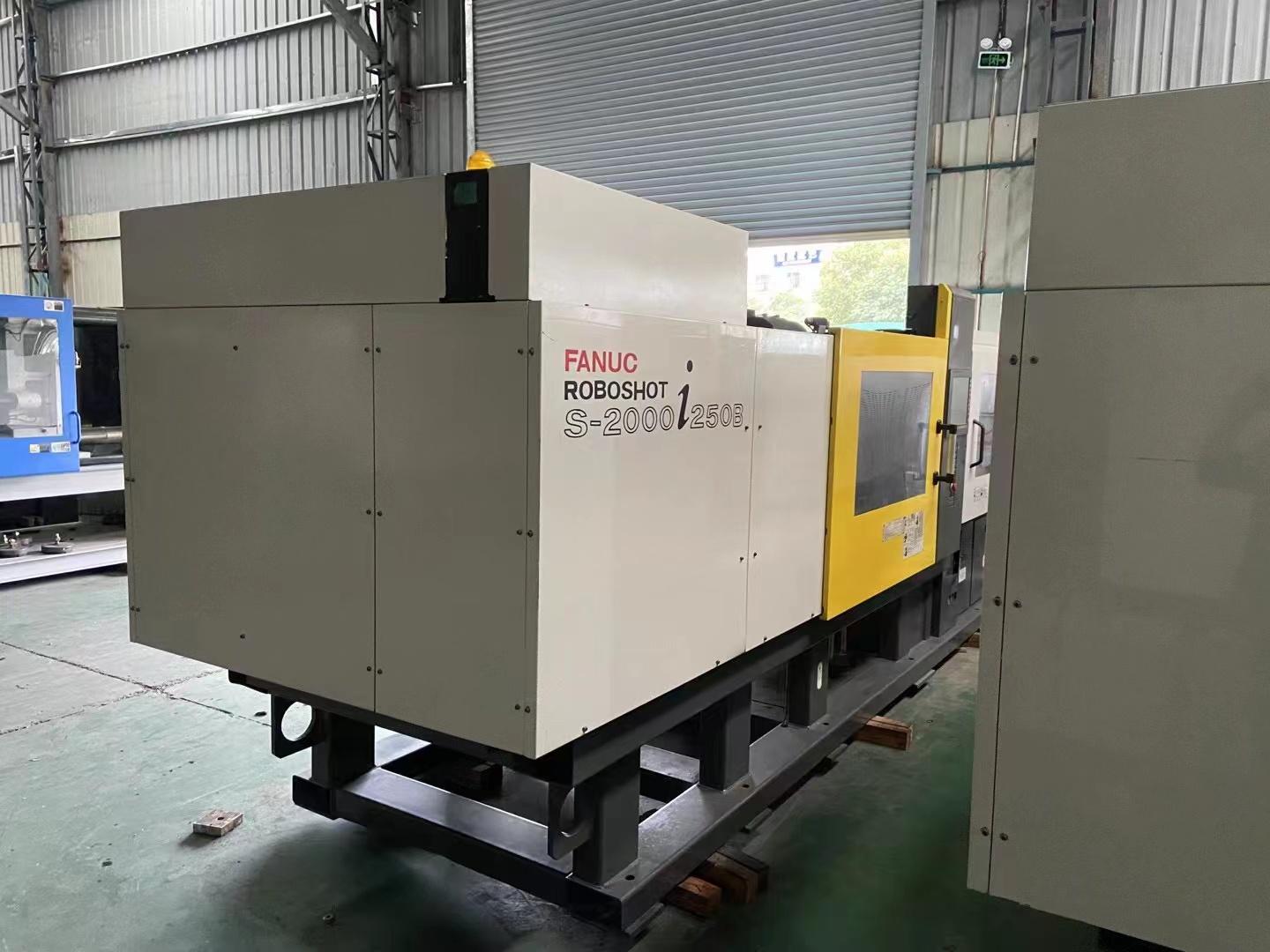

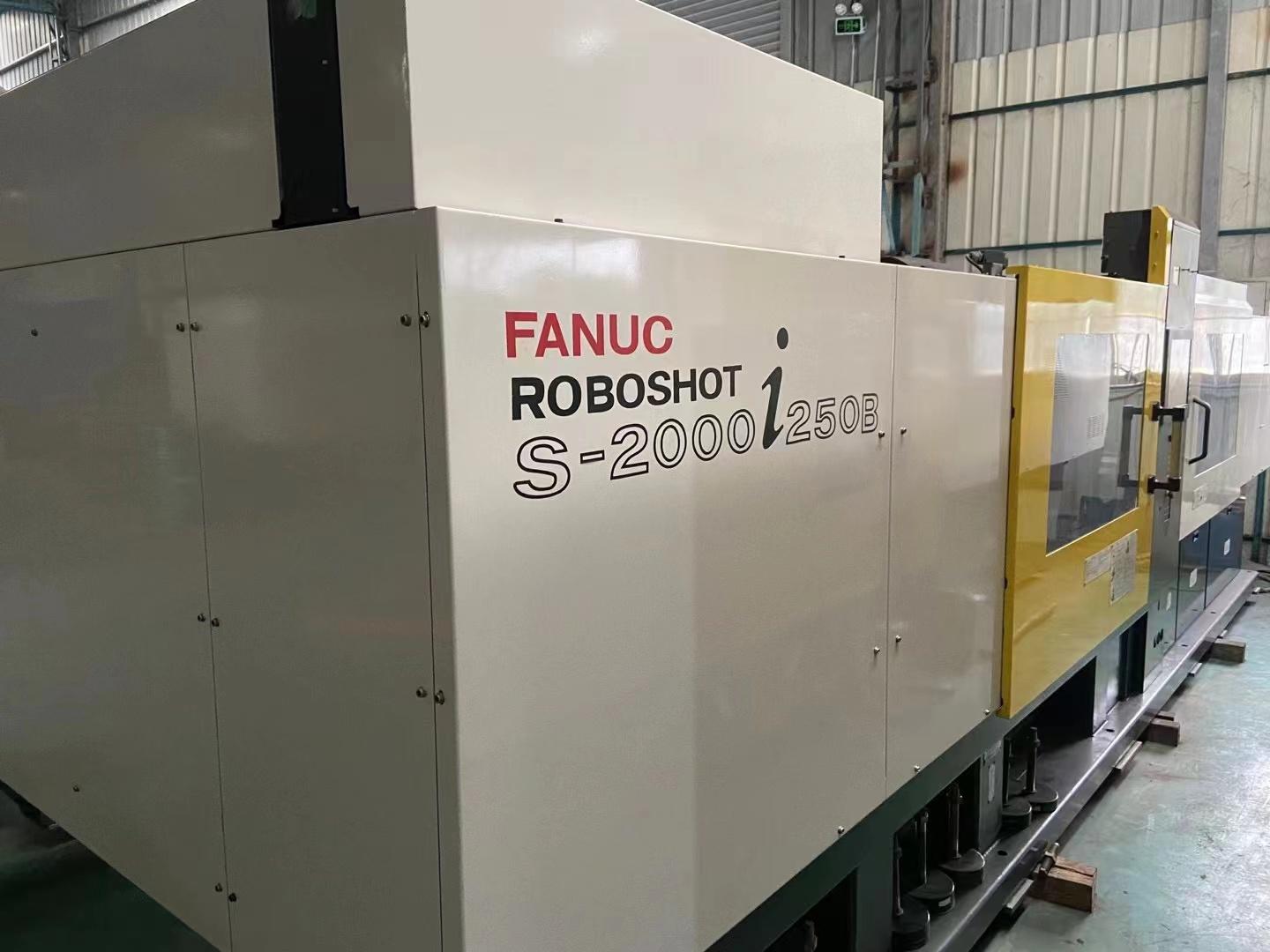

Fanuc ROBOSHOT S-2000i 250B injection molding machine

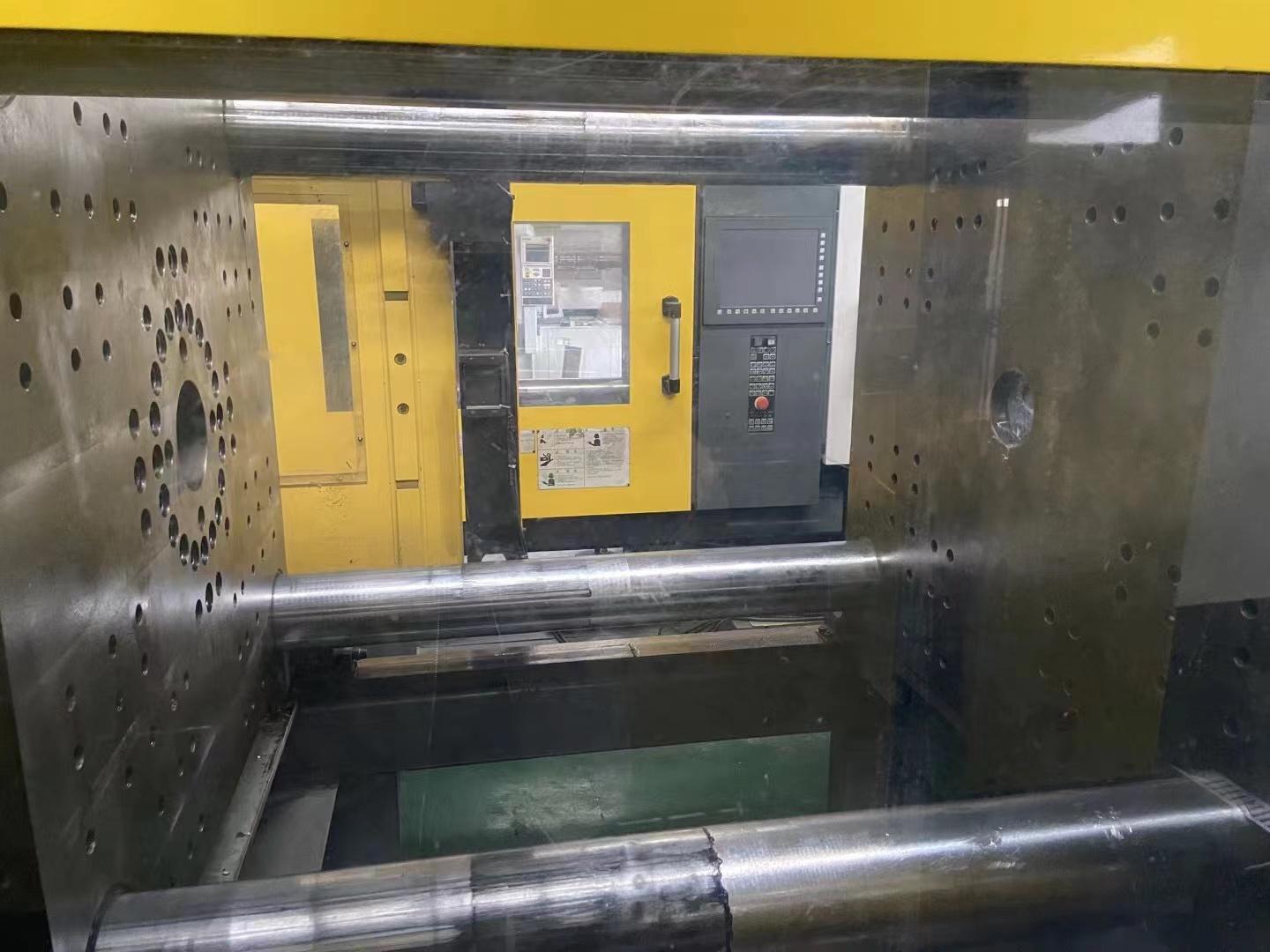

Mold Clamping Unit
Maximum Clamping Force: 2500 kN (250 tonf)
Mold Thickness (Max./Min.): 650 / 300 mm
Mold Opening Stroke: 600 mm
Tie Bar Spacing (Horizontal × Vertical): 710 × 635 mm

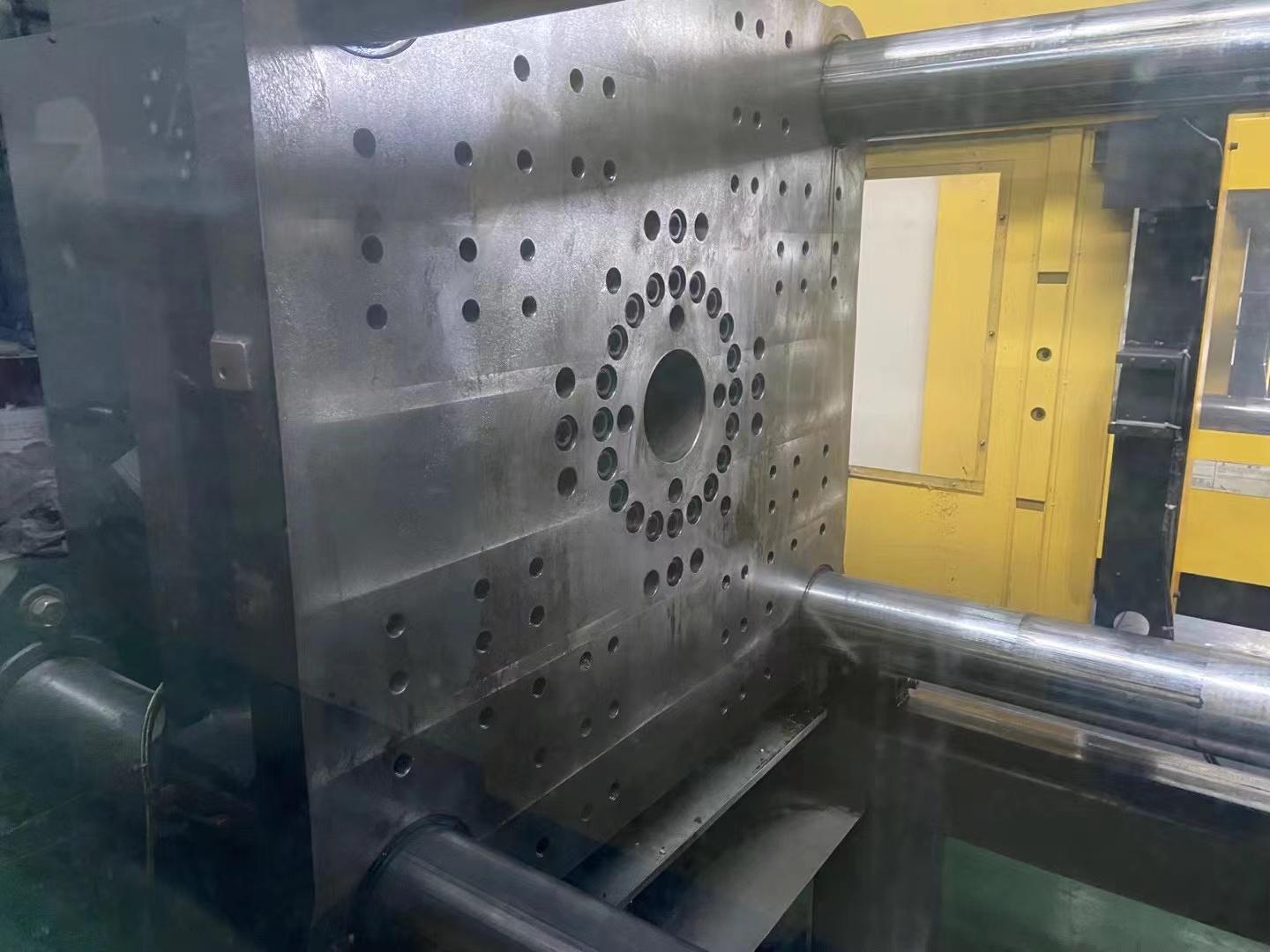

Platen Size (Horizontal × Vertical): 1030 × 960 mm
Ejector System (CNC Controlled):
Ejector Pins: 13
Ejector Force: 80 kN (8.5 tonf)
Ejector Stroke: 200 mm

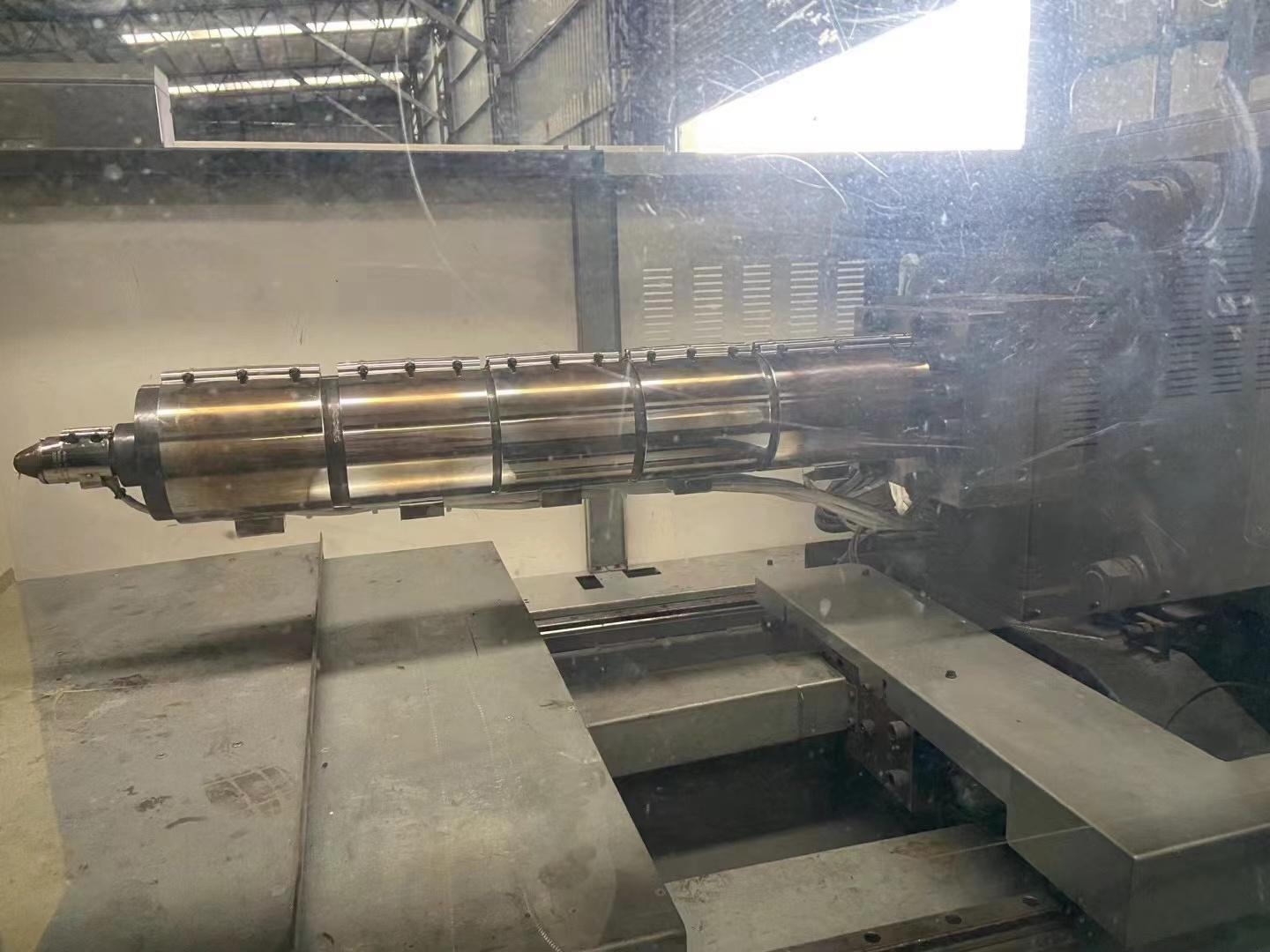

Injection Unit
Screw Diameter: 32 mm
Maximum Shot Volume: 121 cm³
Maximum Injection Pressure (High-Fill Mode): 380 MPa
Maximum Injection Pressure: 280 MPa
Maximum Holding Pressure: 280 MPa
Maximum Injection Speed: 330 mm/s
Maximum Screw Speed: 400 min⁻¹
