Taikan T-V8 Vertical Machining centre

[Product Information]:

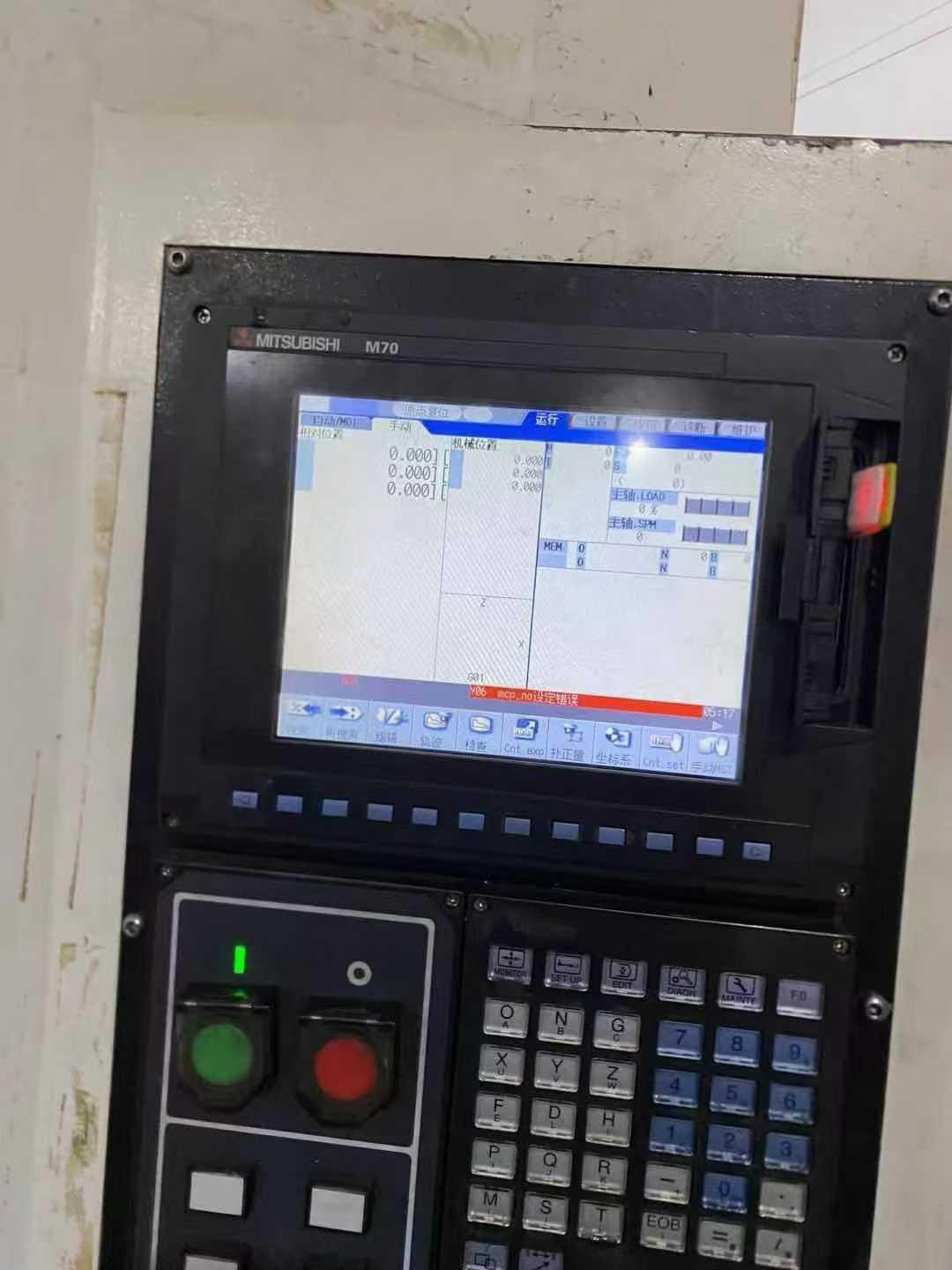

CNC CNC System: Mitsubishi

WorkWorktable size: 900*450mm

three-axis travel: 800*500*500mm

T-slot: 3*18-130mm

Distance from spindle nose surface to workWorktable: 100-650mm

Distance from spindle center to the end face of machine body: 579mm

Spindle speed: 10,000 RPM

spindle taper: BT40

spindle power: 7.5kw

Fast movement: 36*36*36m/min
