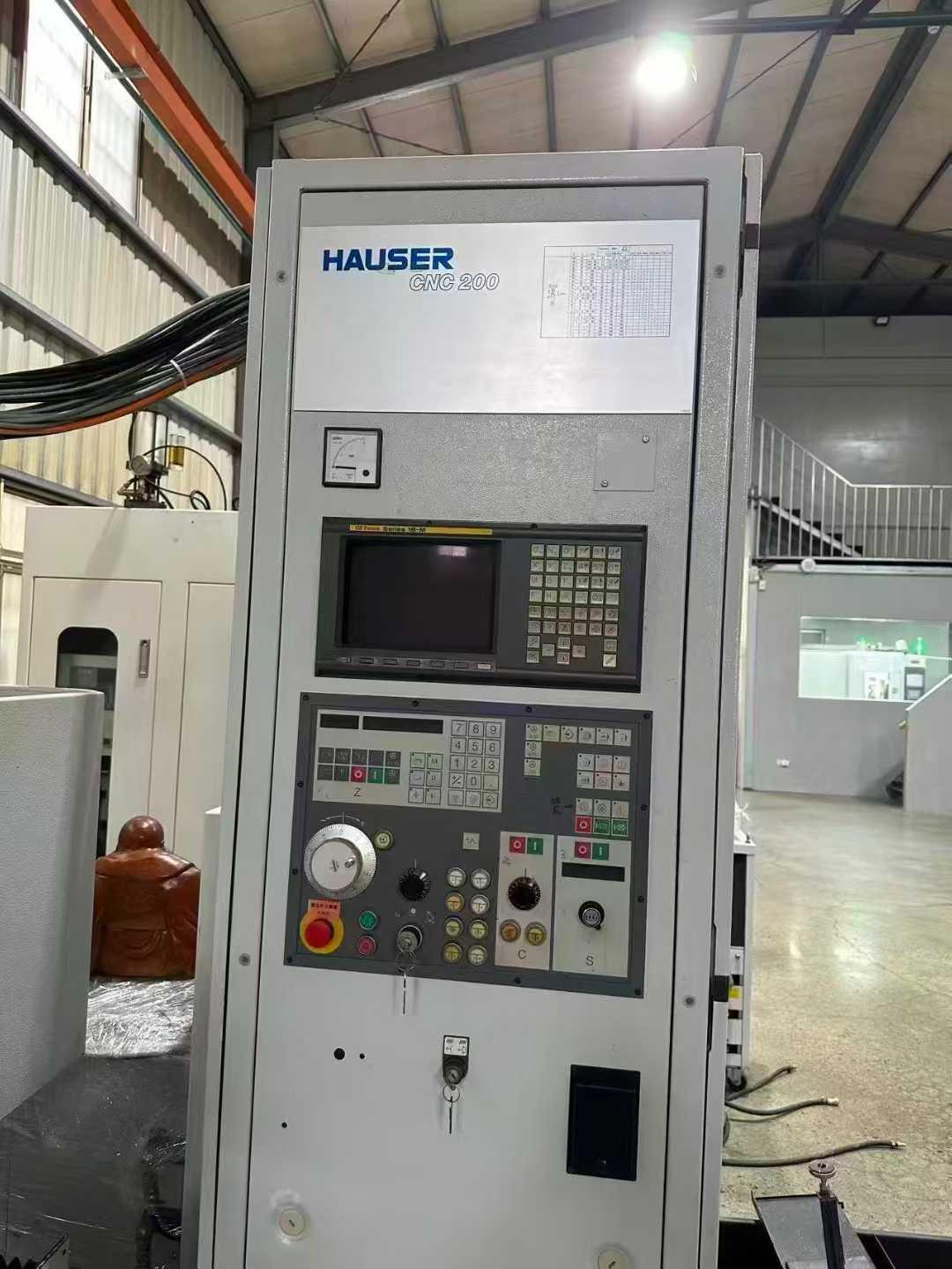

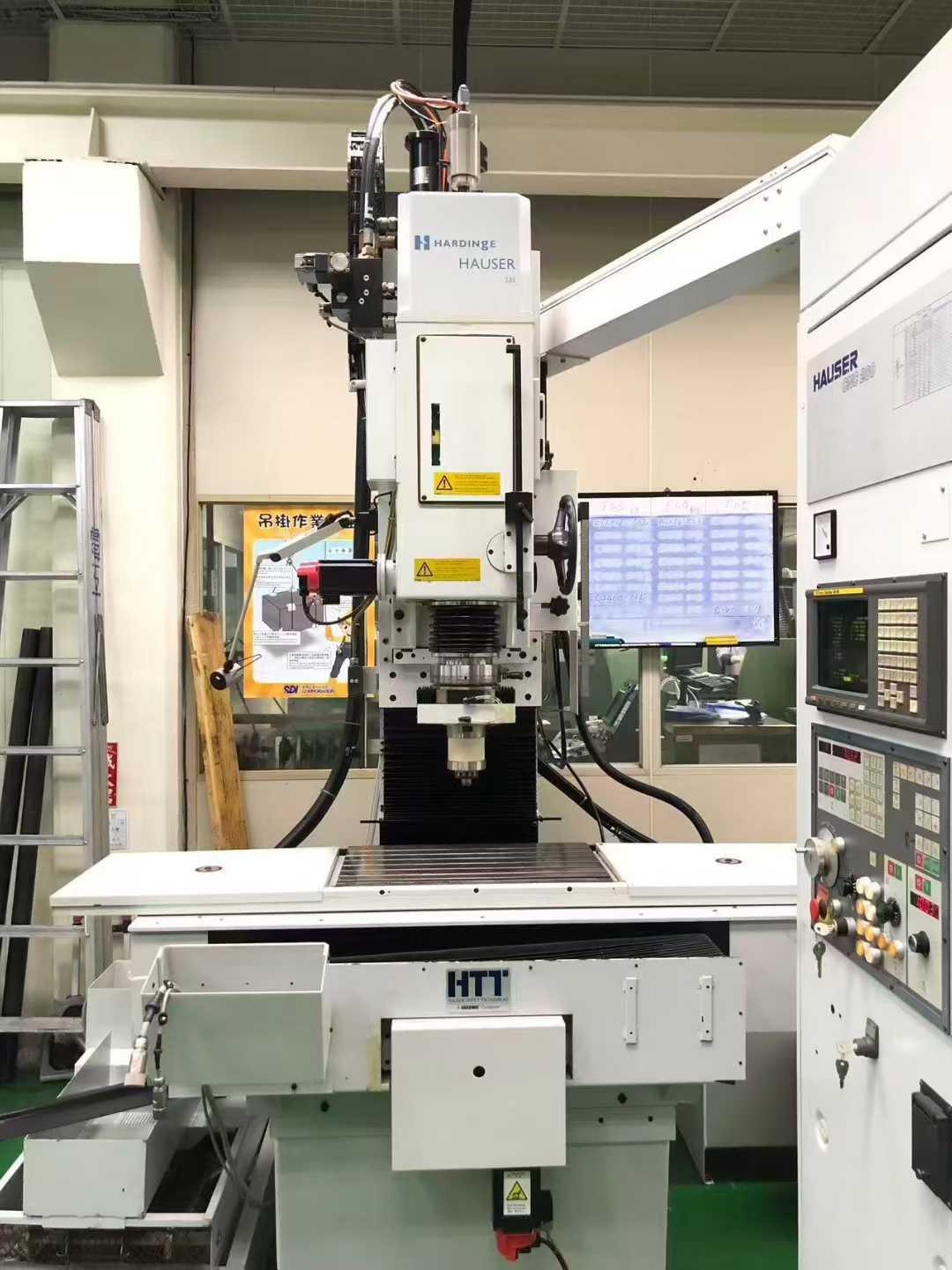

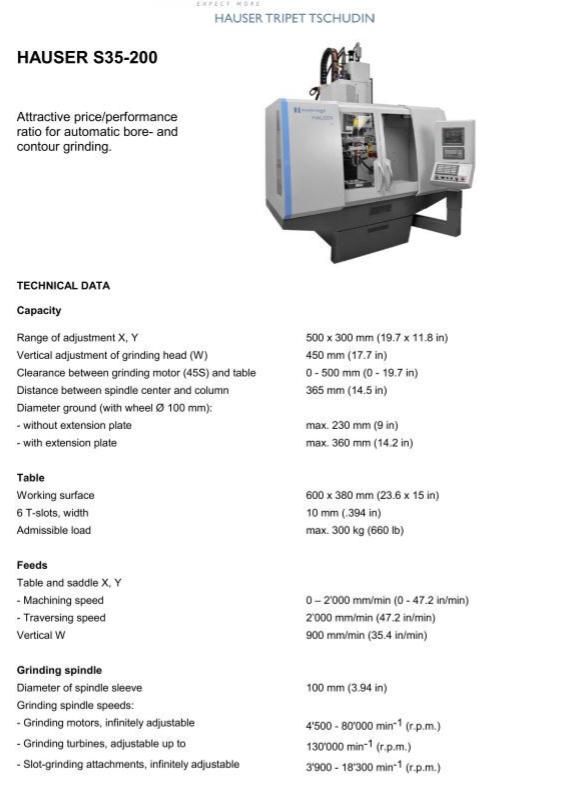

HAUSER S35-200 CNC Jig grinding machine

X* Y-axis travel: 500 * 300 mm

Vertical adjustment of the grinding head (W) : 450 mm

The gap between the grinding motor and workWorktable: 0-500 mm

Distance from spindle center to the column: 365 mm

Maximum grinding diameter (when the grinding wheel is Ø 100mm)

No extension plate: 230mm

There is an extension plate: 360mm

WorkWorktable surface size: 600 * 380mm

T-slot (quantity * width) : 6 * 10 mm

Maximum load: 300 kg

The machining  speed of workWorktable and saddle (X, Y) : 0-2000 mm/min

The rapid movement speed of workWorktable and saddle (X, Y) is 2000 mm/min

Vertical feed (W) : 900 mm/min

spindle sleeve diameter: 100 mm

Spindle speed (grinding motor) : 4,500-80,000 rpm, stepless speed regulation

Spindle speed (grinding turbine) : up to 130,000 rpm

Spindle speed (with groove grinding accessories) : 3,900-18,300 rpm, stepless speed regulation
