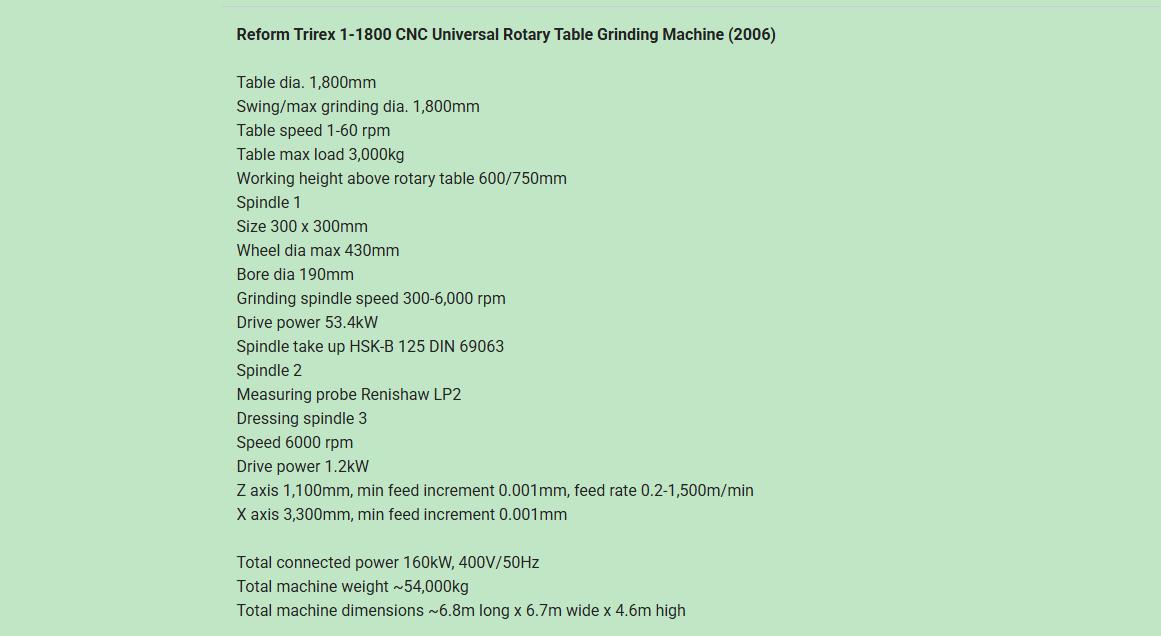

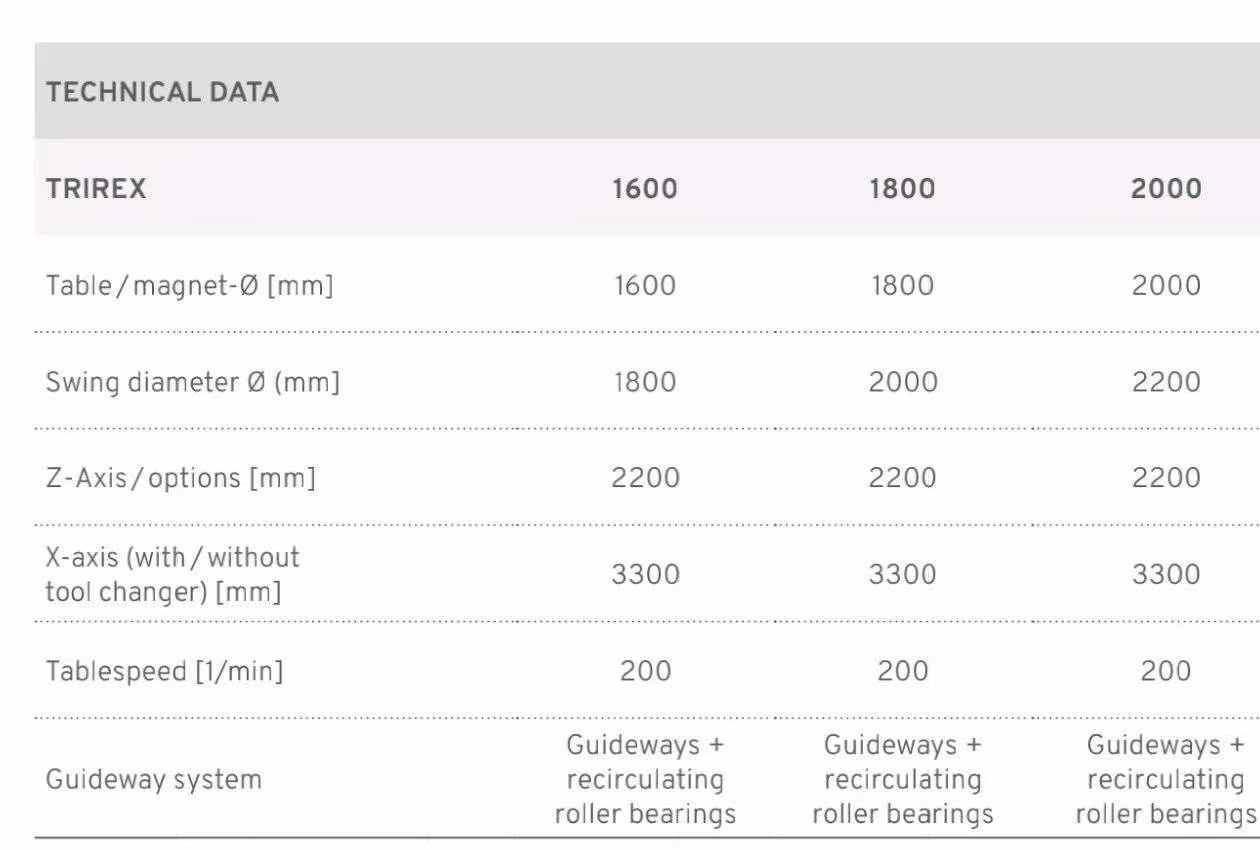

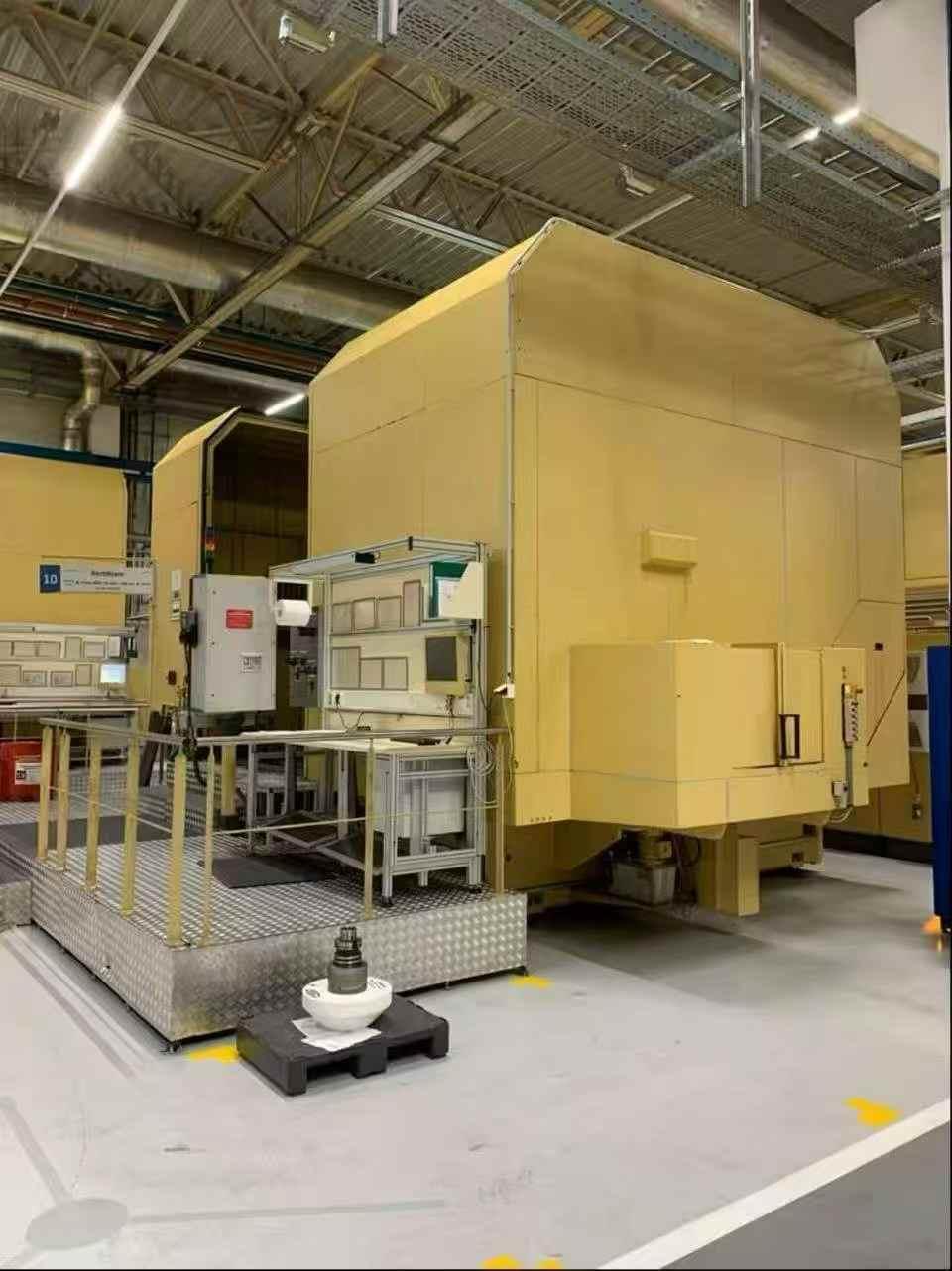

Reform Trirex 1-1800 other

WorkWorktable diameter: 1800mm

Rotation/Maximum grinding diameter: 1800mm

WorkWorktable speed: 1-60rpm

Maximum load of workWorktable: 3000KG

machining  height above workWorktable surface: 600/750mm

X* Z-axis travel: 1100*3300mm

spindle 1 (grinding spindle) :

Size: 300*300mm

Maximum diameter of grinding wheel: 430mm

- through hole: 190mm

- Rotational speed: 300-6000rpm

- Drive power: 53.4KW

-spindle interface: HSK-B 125 (standard: DIN 69063)

spindle 2 (measuring probe) :

- Measuring probe: Renishaw LP2 type;

spindle 3 (dressing spindle) :

- Rotational speed: 6000rpm

- Drive power: 1.2KW
