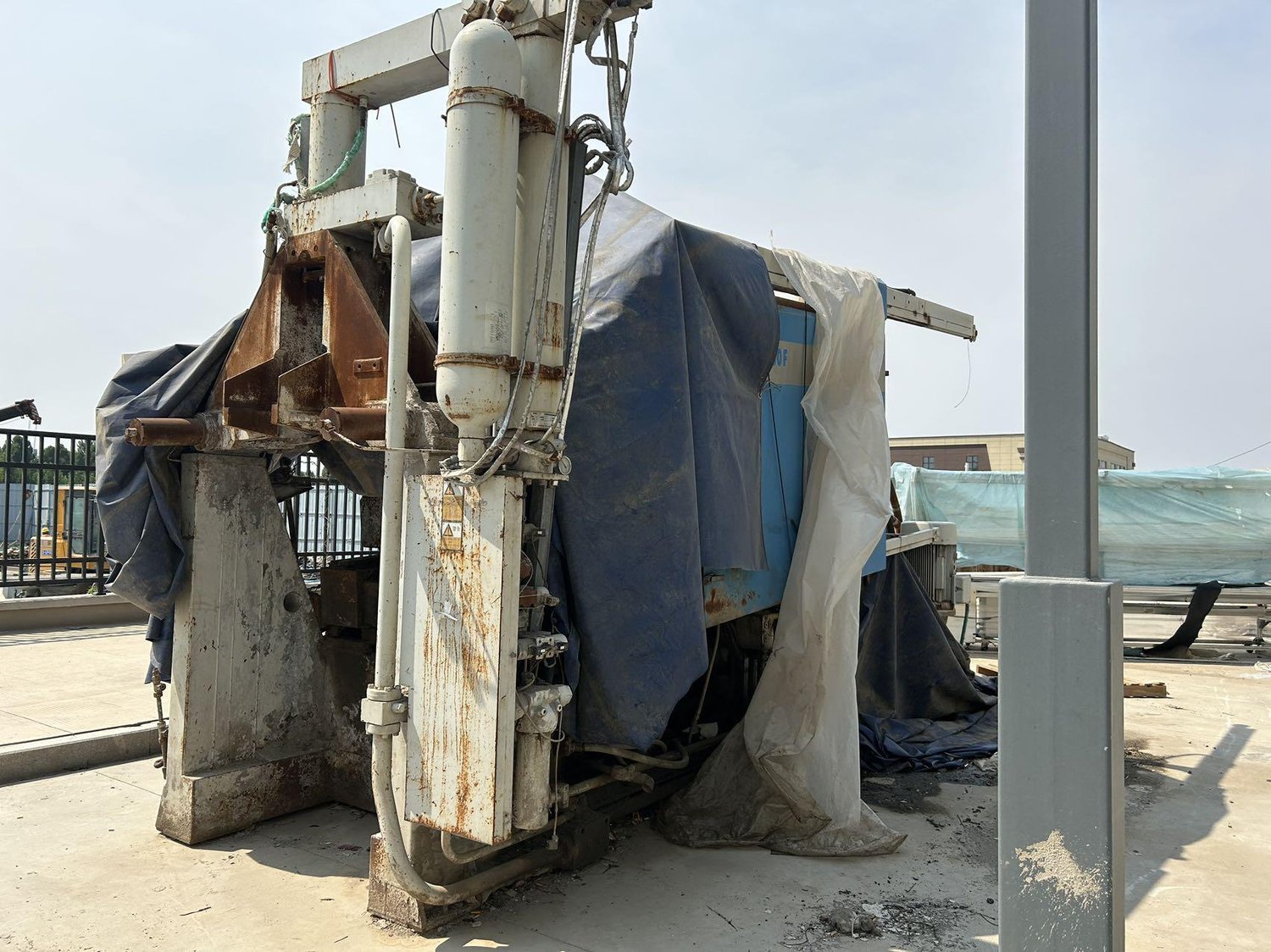

FRECH DAM500F other

Clamping force: 5800 kN

Mold thickness (minimum - maximum) : 350-800 mm

Template size (horizontal * vertical) : 1120 * 1120mm

Spacing (longitudinal * transverse) : 700 * 700 mm

tie-bar diameter: 140 mm

Closed travel: 680 mm

Shooting force: 182 kN

Injection piston diameters: 80, 90, 100, 110 mm

Casting volume: 791, 1105, 1445, 1810 cm³

Output force: 285 kN

Injection travel: 160mm

Mold height: 350-800 mm
