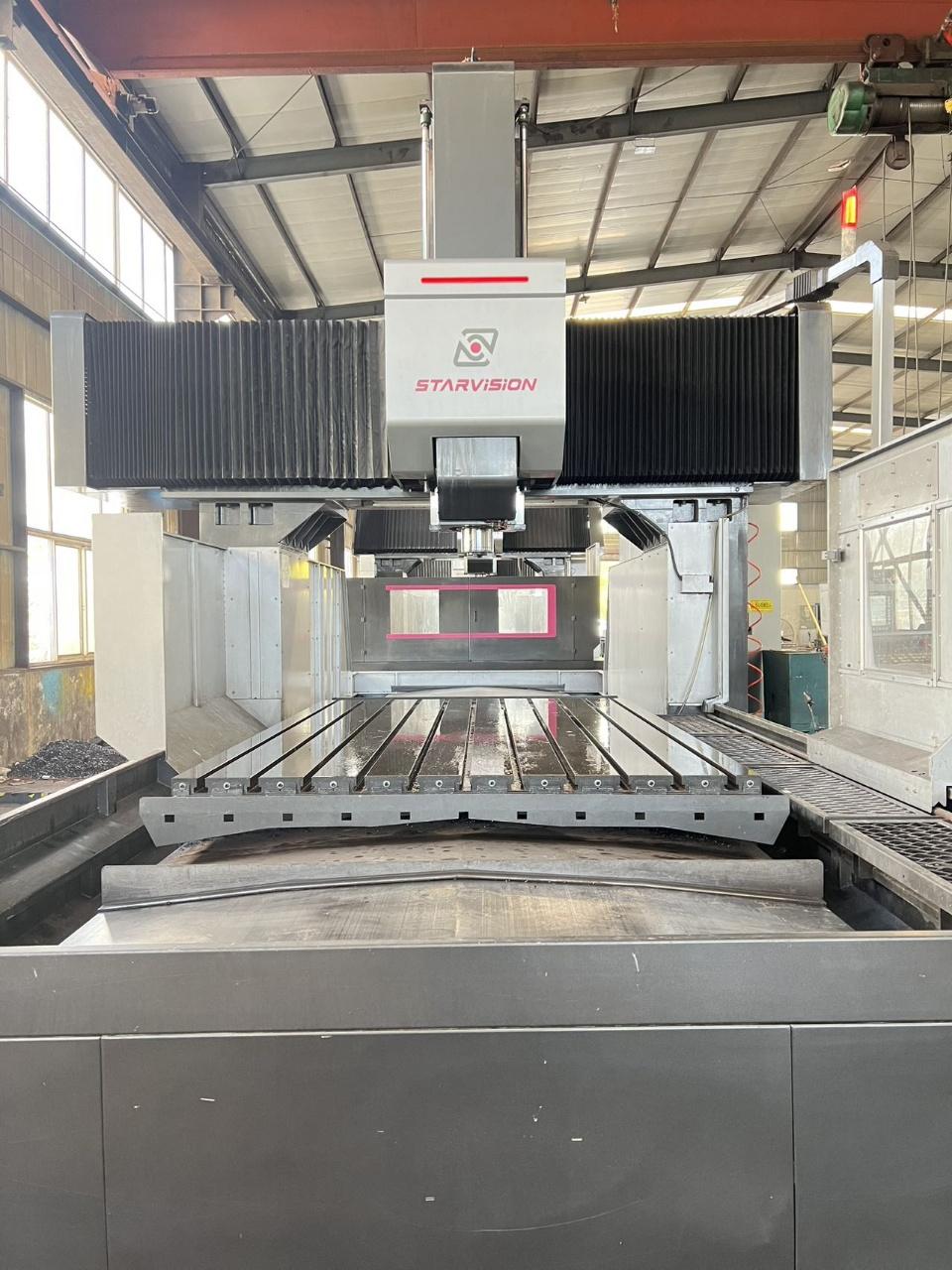

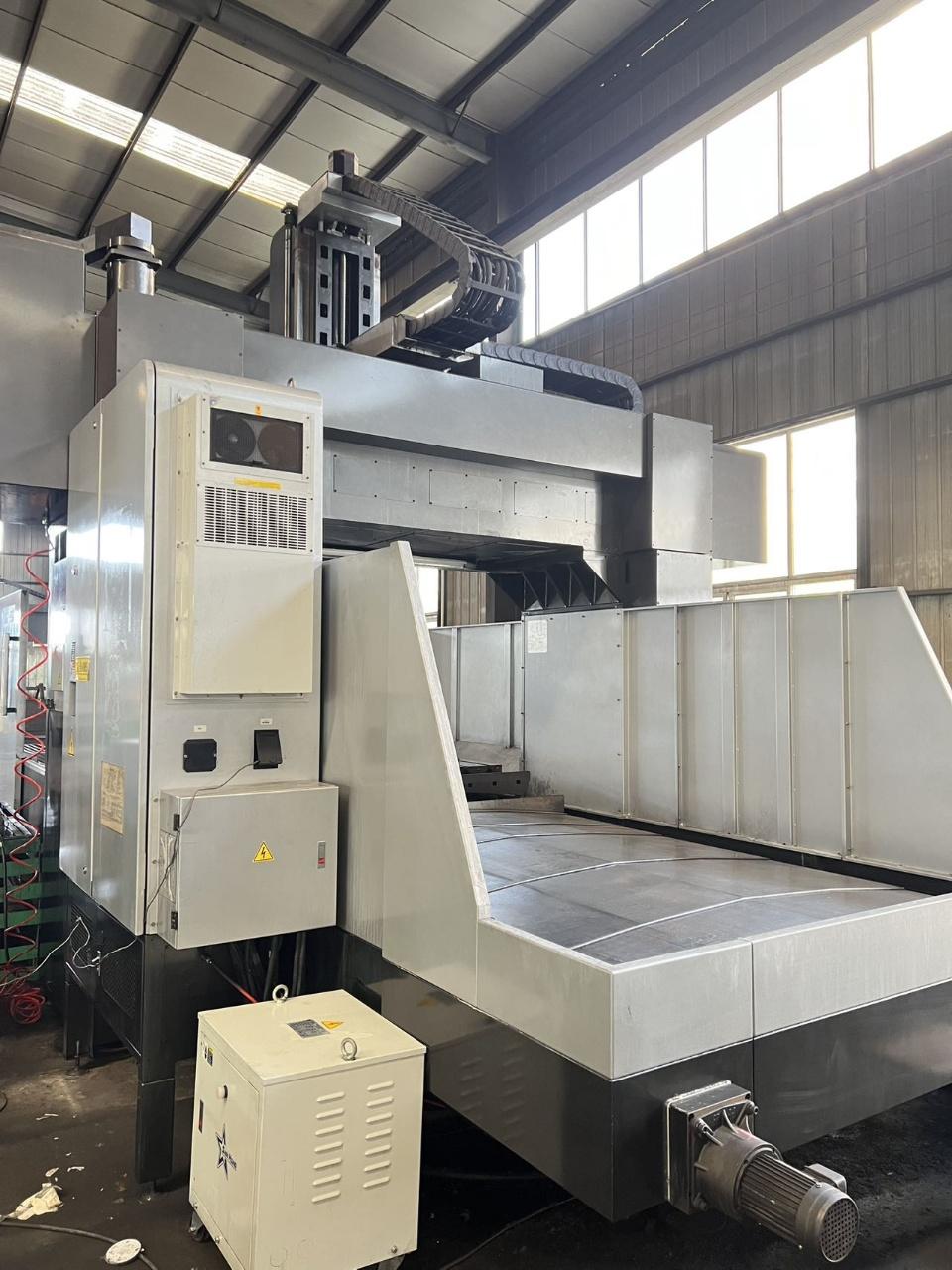

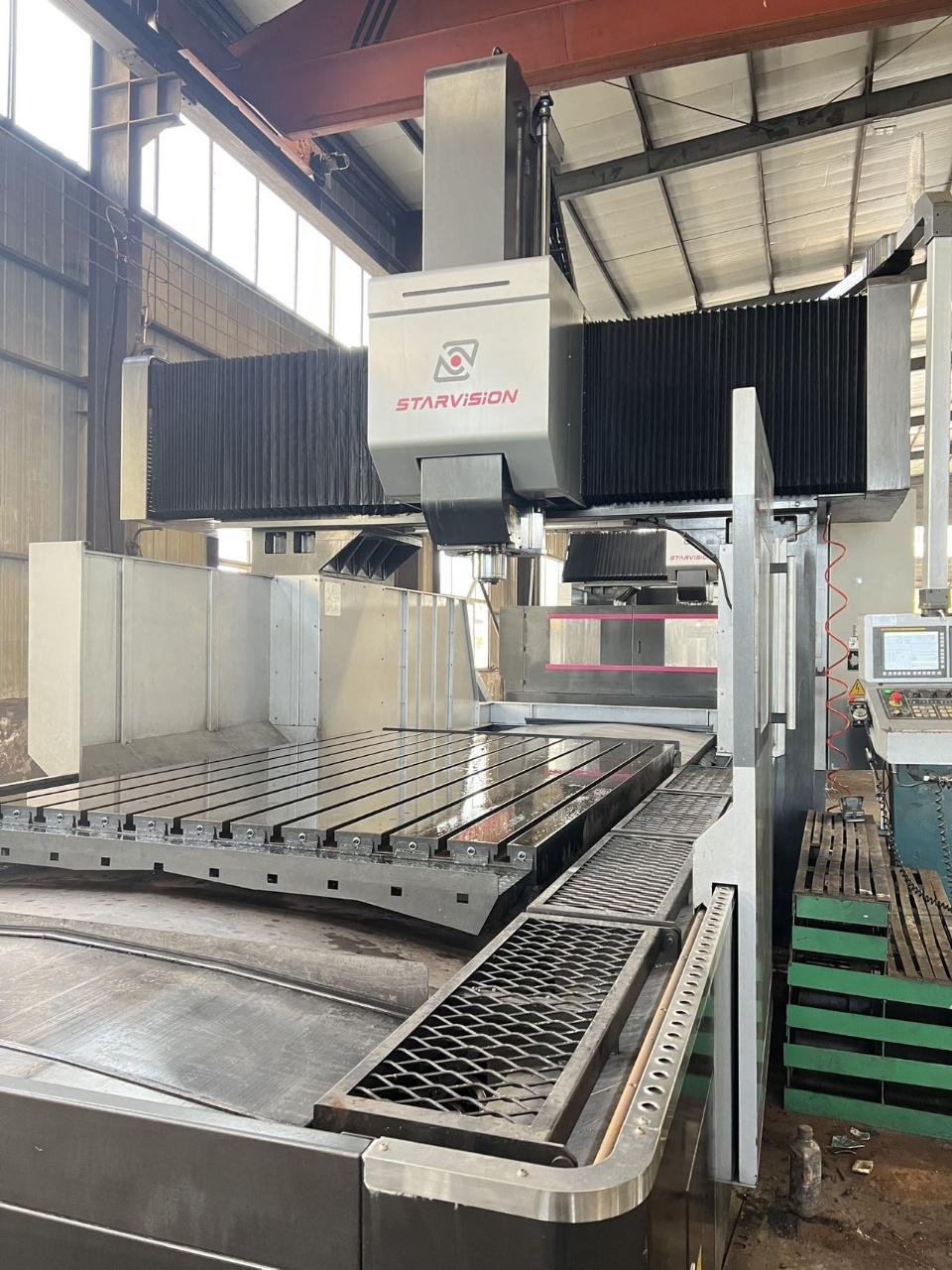

STARVISION CLG-3223 Gantry machining centre

[Product Information]:

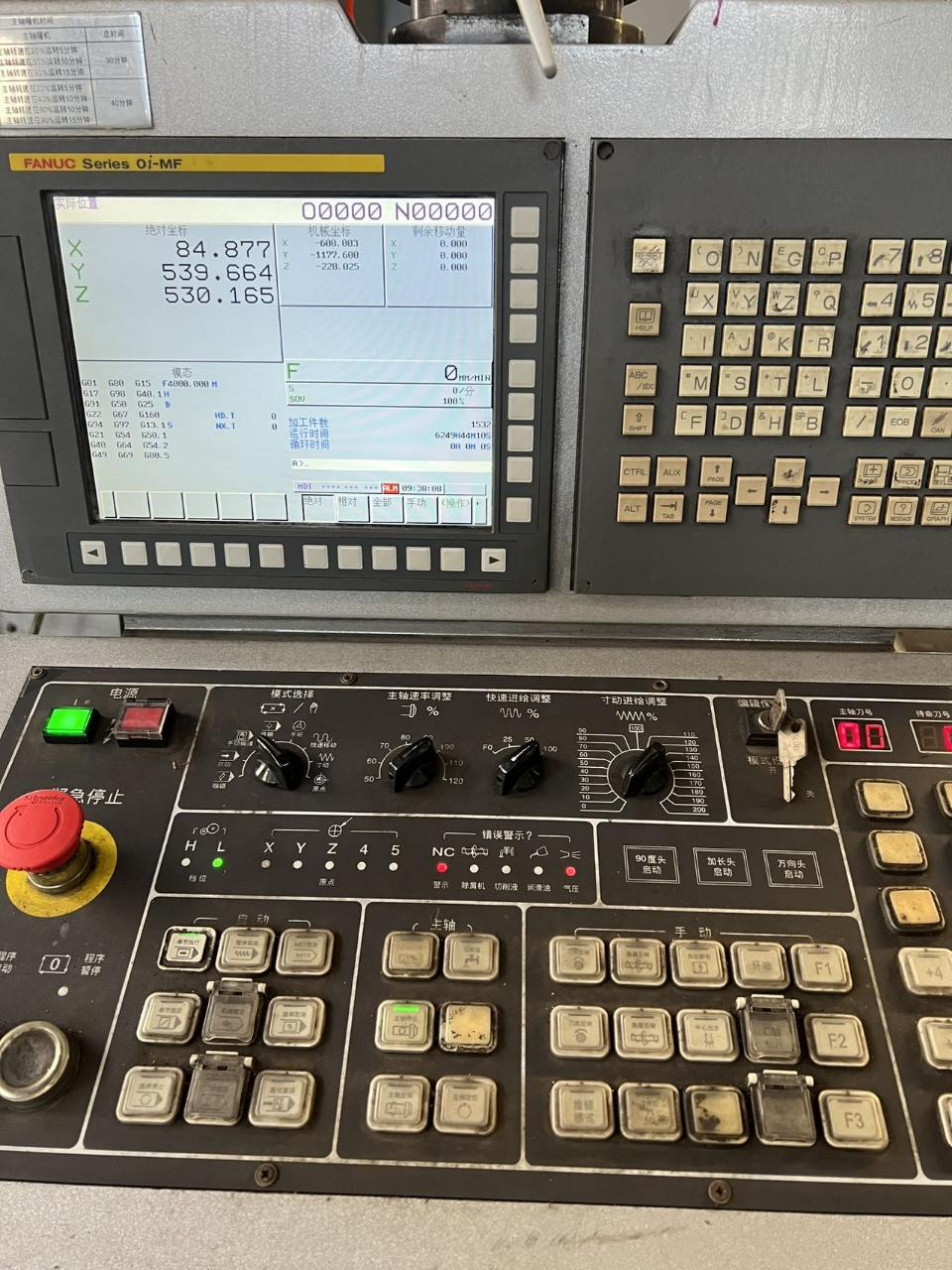

CNC CNC System: FANUC MFPlus

WorkWorktable size: 3000*2000 mm

WorkWorktable load: 7000 kg

three-axis travel: 3200*2300*1000 mm

spindle type: BT50, gear spindle

Maximum spindle speed: 8000 rpm

Height of the gantry: 1300mm

Gantry width: 2500mm

machine tool weight: 25,000 kg

Configuration

Track: Two tracks and one hard track

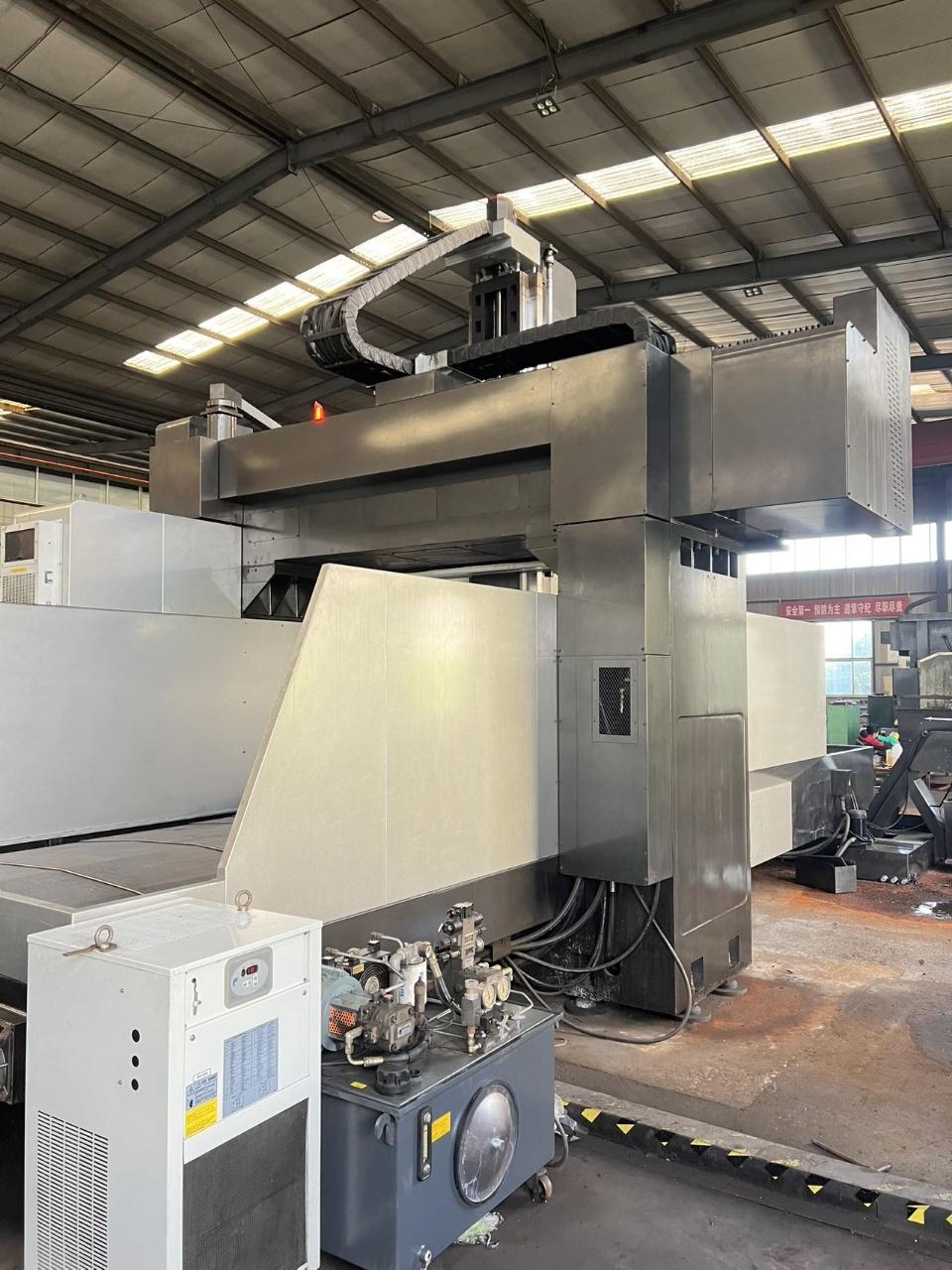

spindle is equipped with an oil chiller

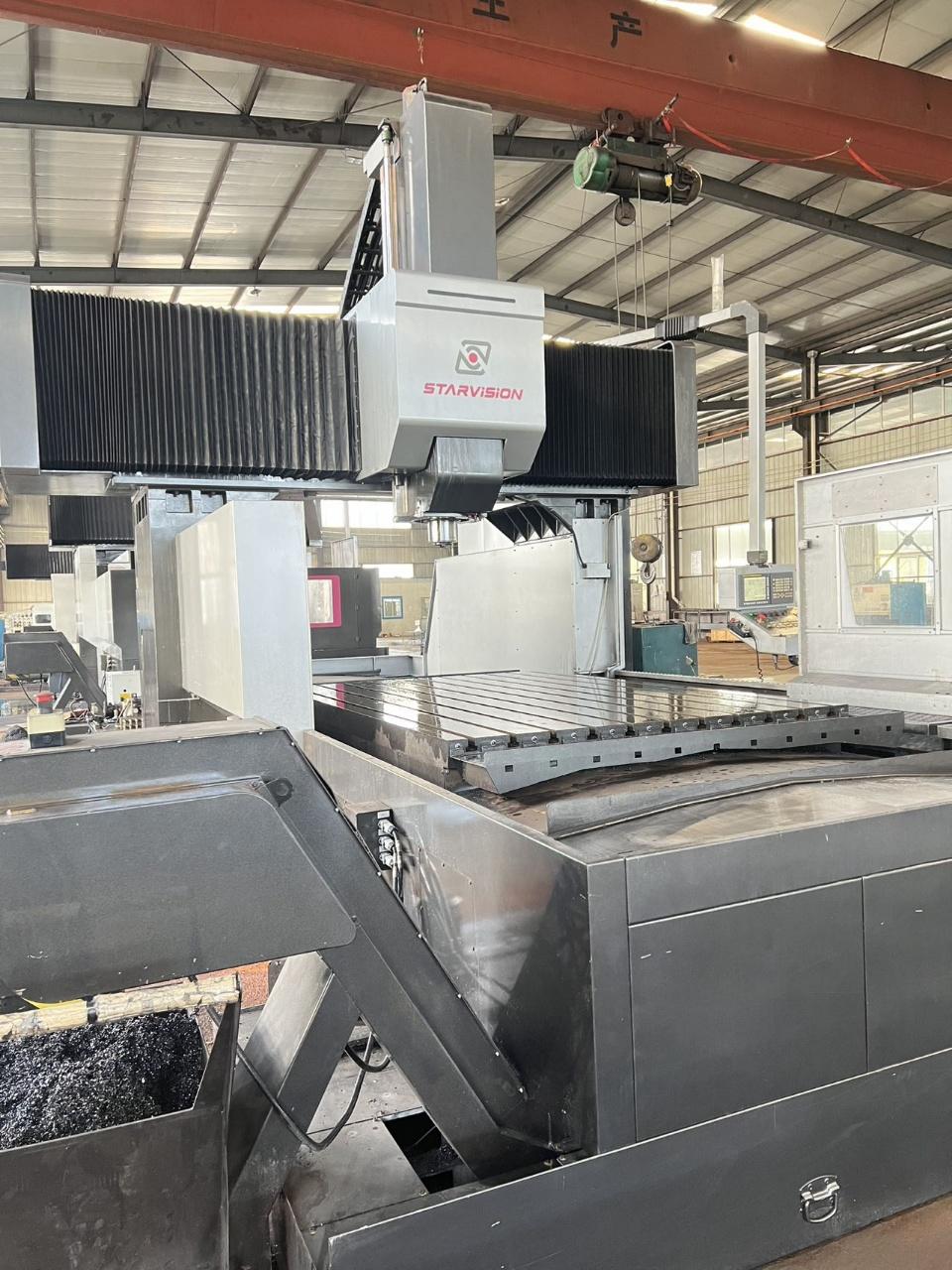

Faucet-type chip conveyor
